M16DF Serisi

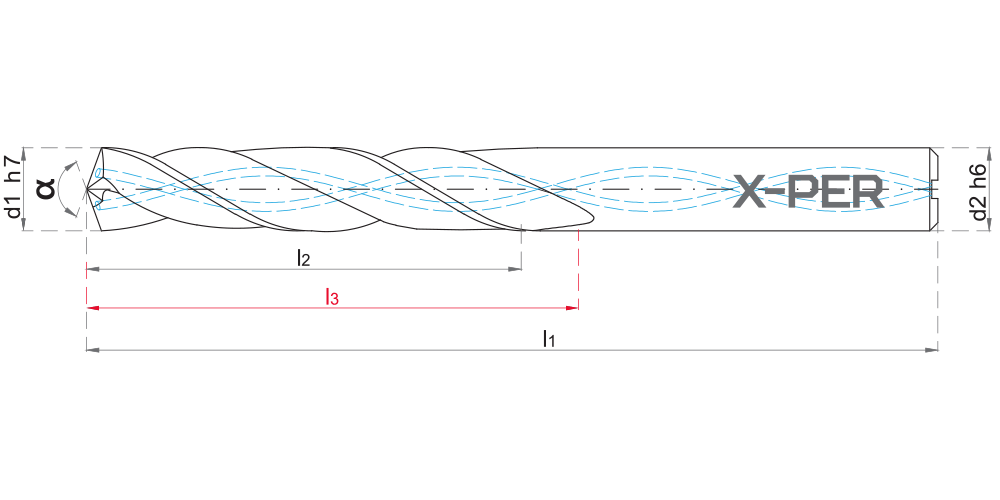

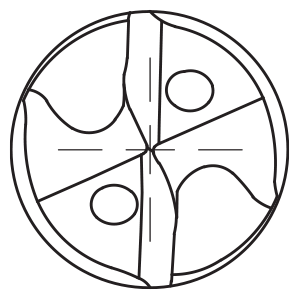

Sipariş Kodu	Kod	Eski Kod	d1h7	d2h6	l1	l2	l3	İlgili Doküman
75100	M16DF.2.0200.0840.A0135.0390.0000.0420.00.S04B2B03.01	M16DF020084	2	4	84	39	42	STP DXF
75102	M16DF.2.0220.0840.A0135.0390.0000.0420.00.S04B2B03.01	M16DF022084	2.20	4	84	39	42	STP DXF
75104	M16DF.2.0230.0840.A0135.0390.0000.0420.00.S04B2B03.01	M16DF023084	2.30	4	84	39	42	STP DXF
75106	M16DF.2.0240.0960.A0135.0500.0000.0540.00.S04B2B03.01	M16DF024096	2.40	4	96	50	54	STP DXF
75108	M16DF.2.0250.0960.A0135.0500.0000.0540.00.S04B2B03.01	M16DF025096	2.50	4	96	50	54	STP DXF
75110	M16DF.2.0270.0960.A0135.0500.0000.0540.00.S04B2B03.01	M16DF027096	2.70	4	96	50	54	STP DXF
75112	M16DF.2.0280.0960.A0135.0500.0000.0540.00.S04B2B03.01	M16DF028096	2.80	4	96	50	54	STP DXF
75114	M16DF.2.0300.1000.A0135.0550.0000.0600.00.S06B2B03.01	M16DF030100	3	6	100	55	60	STP DXF
75116	M16DF.2.0320.1000.A0135.0550.0000.0600.00.S06B2B03.01	M16DF032100	3.20	6	100	55	60	STP DXF
75118	M16DF.2.0330.1000.A0135.0550.0000.0600.00.S06B2B03.01	M16DF033100	3.30	6	100	55	60	STP DXF
75120	M16DF.2.0350.1000.A0135.0550.0000.0600.00.S06B2B03.01	M16DF035100	3.50	6	100	55	60	STP DXF
75122	M16DF.2.0380.1150.A0135.0690.0000.0750.00.S06B2B03.01	M16DF038115	3.80	6	115	69	75	STP DXF
75124	M16DF.2.0400.1150.A0135.0690.0000.0750.00.S06B2B03.01	M16DF040115	4	6	115	69	75	STP DXF
75126	M16DF.2.0420.1150.A0135.0690.0000.0750.00.S06B2B03.01	M16DF042115	4.20	6	115	69	75	STP DXF
75128	M16DF.2.0450.1300.A0135.0830.0000.0900.00.S06B2B03.01	M16DF045130	4.50	6	130	83	90	STP DXF
75130	M16DF.2.0480.1300.A0135.0830.0000.0900.00.S06B2B03.01	M16DF048130	4.80	6	130	83	90	STP DXF
75132	M16DF.2.0500.1300.A0135.0830.0000.0900.00.S06C2B02.01	M16DF050130	5	6	130	83	90	STP DXF
75134	M16DF.2.0550.1500.A0135.0990.0000.1080.00.S06C2B02.01	M16DF055150	5.50	6	150	99	108	STP DXF
75136	M16DF.2.0580.1500.A0135.0990.0000.1080.00.S06C2B02.01	M16DF058150	5.80	6	150	99	108	STP DXF
75138	M16DF.2.0600.1500.A0135.0990.0000.1080.00.S06C2B02.01	M16DF060150	6	6	150	99	108	STP DXF
75140	M16DF.2.0650.1650.A0135.1150.0000.1250.00.S08B2B02.01	M16DF065165	6.50	8	165	115	125	STP DXF
75142	M16DF.2.0680.1650.A0135.1150.0000.1250.00.S08B2B02.01	M16DF068165	6.80	8	165	115	125	STP DXF
75144	M16DF.2.0700.1650.A0135.1150.0000.1250.00.S08B2B02.01	M16DF070165	7	8	165	115	125	STP DXF
75146	M16DF.2.0750.1800.A0135.1280.0000.1400.00.S08B2B02.01	M16DF075180	7.50	8	180	128	140	STP DXF
75148	M16DF.2.0780.1800.A0135.1280.0000.1400.00.S08B2B02.01	M16DF078180	7.80	8	180	128	140	STP DXF
75150	M16DF.2.0800.1800.A0135.1280.0000.1400.00.S08B2B02.01	M16DF080180	8	8	180	128	140	STP DXF
75152	M16DF.2.0850.2050.A0135.1470.0000.1600.00.S10B2B02.01	M16DF085205	8.50	10	205	147	160	STP DXF
75154	M16DF.2.0880.2050.A0135.1470.0000.1600.00.S10B2B02.01	M16DF088205	8.80	10	205	147	160	STP DXF
75156	M16DF.2.0900.2050.A0135.1470.0000.1600.00.S10B2B02.01	M16DF090205	9	10	205	147	160	STP DXF
75158	M16DF.2.0980.2250.A0135.1650.0000.1800.00.S10B2B02.01	M16DF098225	9.80	10	225	165	180	STP DXF
75160	M16DF.2.1000.2250.A0135.1650.0000.1800.00.S10B2B02.01	M16DF100225	10	10	225	165	180	STP DXF
75162	M16DF.2.1020.2400.A0135.1740.0000.1900.00.S12B2B02.01	M16DF102240	10.20	12	240	174	190	STP DXF
75164	M16DF.2.1080.2400.A0135.1740.0000.1900.00.S12B2B02.01	M16DF108240	10.80	12	240	174	190	STP DXF
75166	M16DF.2.1180.2650.A0135.1970.0000.2150.00.S12B2B02.01	M16DF118265	11.80	12	265	197	215	STP DXF
75168	M16DF.2.1200.2650.A0135.1970.0000.2150.00.S12B2B02.01	M16DF120265	12	12	265	197	215	STP DXF

Devir Başı İlerleme (mm/dev)

⌀	mm/rev
2-3	0,05-0,15
3-5	0,08-0,23
5-8	0,8-0,25
8-12	0,1-0,32

Kesme Değerleri

Materiyal	Vc(m/dk)

Alaşımsız Çelik	100	●
İmalat Çeliği	100	●
lslah Çeliği	90	●
Soğuk İş Takım Çeliği	75	◑
Sıcak İş Takım Çeliği	55	◑
AISI 304 - 416 - 420	55	◑
AISI 316 - 440	50	◑
17-4 PH 15-5 PH	50	◑
Krom Kobalt Alaşım	40	◑
Duplex F51	40	◑
Gri Dökme Demir	105	●
Alaşımlı Dökme Demir	100	●
Hassas Döküm	100	●

	Çelik
	Paslanmaz Çelik
	Sertleştirilmiş Çelik ≤ 54 HRc
	Sertleştirilmiş Çelik > 54 HRc
	Döküm
	Grafit
	Demir Dışı Materyal
	HRSA
	Titanyum

Önerilir
Kabul Edilebilir
Önerilmez
