Finiş
Kaba
| Çelik |
|
|
| Paslanmaz Çelik |
|
|
| Sertleştirilmiş Çelik ≤ 54 HRc |
|
|
| Sertleştirilmiş Çelik > 54 HRc |
|
|
| Döküm |
|
|
| Grafit |
|
|
| Demir Dışı Materyal |
|
|
| HRSA |
|
|
| Titanyum |
|

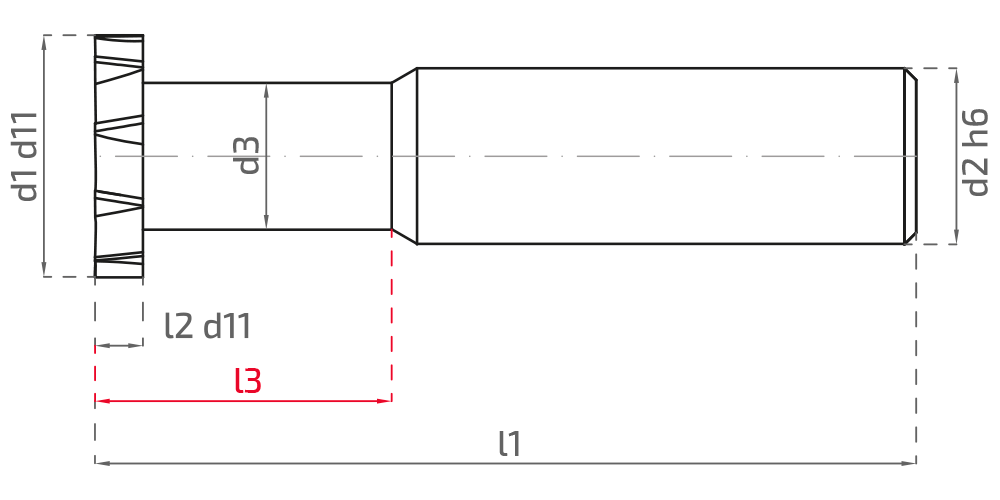

Önerilir Kabul Edilebilir Önerilmez| Stok | Sipariş Kodu | Kod | Eski Kod | d1d11 | d2h6 | d3 | l1 | l2d11 | l3 | Z | İlgili Doküman |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44100 | KTFF.6.0450.0500.K0000.0010.0300.0150.00.S06A1A01.01 | KTFF604510 | 4.50 | 6 | 3 | 50 | 1 | 15 | 6 | ||
| 44102 | KTFF.6.0750.0500.K0000.0015.0400.0150.00.S06A3A01.01 | KTFF607515 | 7.50 | 6 | 4 | 50 | 1.50 | 15 | 6 | ||
| 44104 | KTFF.6.0750.0500.K0000.0020.0400.0150.00.S06A3A01.01 | KTFF607520 | 7.50 | 6 | 4 | 50 | 2 | 15 | 6 | ||
| 44106 | KTFF.6.1050.0500.K0000.0020.0400.0150.00.S06A3A01.01 | KTFF610520 | 10.50 | 6 | 4 | 50 | 2 | 15 | 6 | ||
| 44108 | KTFF.6.1050.0500.K0000.0025.0400.0150.00.S06A3A01.01 | KTFF610525 | 10.50 | 6 | 4 | 50 | 2.50 | 15 | 6 | ||
| 44110 | KTFF.6.1050.0500.K0000.0030.0400.0150.00.S06A3A01.01 | KTFF610530 | 10.50 | 6 | 4 | 50 | 3 | 15 | 6 | ||
| 44112 | KTFF.8.1350.0560.K0000.0030.0600.0200.00.S10A3A01.01 | KTFF813530 | 13.50 | 10 | 6 | 56 | 3 | 20 | 8 | ||
| 44114 | KTFF.8.1350.0560.K0000.0040.0600.0200.00.S10A3A01.01 | KTFF813540 | 13.50 | 10 | 6 | 56 | 4 | 20 | 8 | ||
| 44116 | KTFF.8.1650.0560.K0000.0030.0800.0200.00.S12A3A01.01 | KTFF816530 | 16.50 | 12 | 8 | 56 | 3 | 20 | 8 | ||
| 44118 | KTFF.8.1650.0560.K0000.0040.0800.0200.00.S12A3A01.01 | KTFF816540 | 16.50 | 12 | 8 | 56 | 4 | 20 | 8 | ||
| 44120 | KTFF.8.1650.0560.K0000.0050.0800.0200.00.S12A3A01.01 | KTFF816550 | 16.50 | 12 | 8 | 56 | 5 | 20 | 8 | ||
| 44122 | KTFF.8.1950.0560.K0000.0030.1000.0200.00.S14A3A01.01 | KTFF819530 | 19.50 | 14 | 10 | 56 | 3 | 20 | 8 | ||
| 44124 | KTFF.8.1950.0560.K0000.0040.1000.0200.00.S14A3A01.01 | KTFF819540 | 19.50 | 14 | 10 | 56 | 4 | 20 | 8 | ||
| 44126 | KTFF.8.1950.0560.K0000.0050.1000.0200.00.S14A3A01.01 | KTFF819550 | 19.50 | 14 | 10 | 56 | 5 | 20 | 8 | ||
| 44128 | KTFF.8.2250.0630.K0000.0040.1000.0200.00.S14A3A01.01 | KTFF822540 | 22.50 | 14 | 10 | 63 | 4 | 20 | 8 | ||
| 44130 | KTFF.8.2250.0630.K0000.0050.1000.0200.00.S14A3A01.01 | KTFF822550 | 22.50 | 14 | 10 | 63 | 5 | 20 | 8 | ||
| 44132 | KTFF.8.2250.0630.K0000.0060.1000.0200.00.S14A3A01.01 | KTFF822560 | 22.50 | 14 | 10 | 63 | 6 | 20 | 8 | ||
| 44134 | KTFF.8.2550.0630.K0000.0050.1200.0200.00.S16A3A01.01 | KTFF825550 | 25.50 | 16 | 12 | 63 | 5 | 20 | 8 | ||
| 44136 | KTFF.8.2550.0630.K0000.0060.1200.0200.00.S16A3A01.01 | KTFF825560 | 25.50 | 16 | 12 | 63 | 6 | 20 | 8 | ||
| 44138 | KTFF.8.2550.0630.K0000.0070.1200.0200.00.S16A3A01.01 | KTFF825570 | 25.50 | 16 | 12 | 63 | 7 | 20 | 8 | ||
| 44140 | KTFF.8.2550.0630.K0000.0080.1200.0200.00.S16A3A01.01 | KTFF825580 | 25.50 | 16 | 12 | 63 | 8 | 20 | 8 | ||
| 44142 | KTFF.10.2850.0630.K0000.0050.1200.0200.00.S18A3A01.01 | KTFF102855 | 28.50 | 18 | 12 | 63 | 5 | 20 | 10 | ||
| 44144 | KTFF.10.2850.0630.K0000.0060.1200.0200.00.S18A3A01.01 | KTFF102856 | 28.50 | 18 | 12 | 63 | 6 | 20 | 10 | ||
| 44146 | KTFF.10.2850.0630.K0000.0070.1200.0200.00.S18A3A01.01 | KTFF102857 | 28.50 | 18 | 12 | 63 | 7 | 20 | 10 | ||
| 44148 | KTFF.10.2850.0630.K0000.0080.1200.0200.00.S18A3A01.01 | KTFF102858 | 28.50 | 18 | 12 | 63 | 8 | 20 | 10 |
| ᴓ | ap=0,25ᴓ |
|---|---|
| 4.5 | 0.009 |
| 7.5 | 0.011 |
| 10.5 | 0.016 |
| 13.5 | 0.021 |
| 16.5 | 0.023 |
| 19.5 | 0.028 |
| 22.5 | 0.031 |
| 25.5 | 0.035 |
| 28.5 | 0.04 |
| Malzeme | Kanal Frezeleme |
|---|---|
| ap=0,25ᴓ | |
| Vc(m/dk) | |
| Alaşımsız Çelik | 130-160 |
| İmalat Çeliği | 100-150 |
| Islah Çeliği | 90-130 |
| Soğuk İş Takım Çeliği | 70-100 |
| Sıcak İş Takım Çeliği | 70-100 |
| AISI 304-416-420 | 70-90 |
| AISI 316-440 | 70-90 |
| 17-4 PH 15-5 PH | 60-80 |
| Krom Kobalt Alaşımları | 60-80 |
| Duplex F51 | 30-50 |
| Super Duplex F55 | 30-50 |
| Gri Dökme Demir | 100-150 |
| Alaşımlı Dökme Demir | 100-140 |
| Hassas Döküm | 100-140 |
| Sertleştirilmiş Çelik ≤ 54 HRc | 70-90 |
| Sertleştirilmiş Çelik > 54 HRc | 40-80 |
| HRSA | 30-70 |
| Titanyum | 30-70 |
| Çelik |
|
|
| Paslanmaz Çelik |
|
|
| Sertleştirilmiş Çelik ≤ 54 HRc |
|
|
| Sertleştirilmiş Çelik > 54 HRc |
|
|
| Döküm |
|
|
| Grafit |
|
|
| Demir Dışı Materyal |
|
|
| HRSA |
|
|
| Titanyum |
|
Önerilir Kabul Edilebilir Önerilmez
