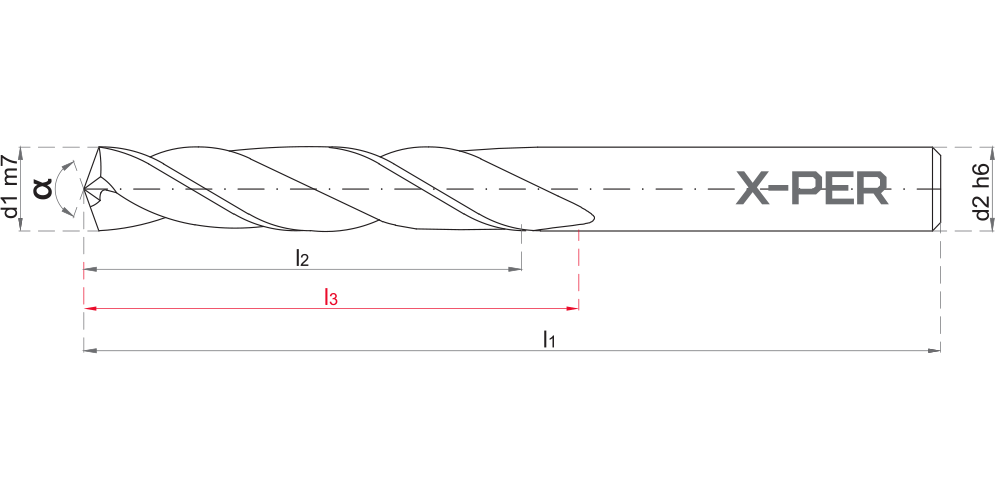

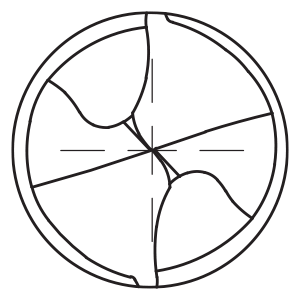

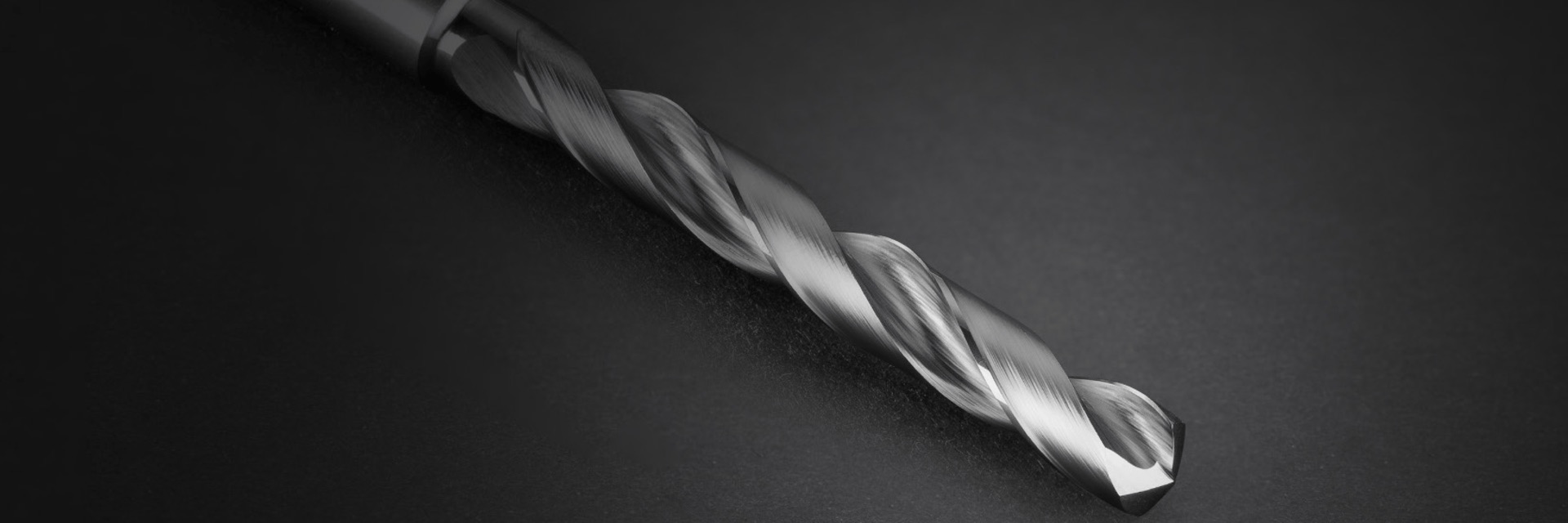

K5DF Serisi

Stok	Sipariş Kodu	Kod	Eski Kod	d1m7	d2h6	l1	l2	l3	İlgili Doküman
	47100	K5DF.2.0220.0500.A0138.0120.0220.0150.00.S04A1A05.01	K5DF022050	2.20	4	50	12	15	STP DXF
*	47102	K5DF.2.0300.0660.A0138.0270.0300.0280.00.S06A1A05.01	K5DF030066	3	6	66	27	28	STP DXF
	47104	K5DF.2.0310.0660.A0138.0270.0310.0280.00.S06A1A05.01	K5DF031066	3.10	6	66	27	28	STP DXF
	47106	K5DF.2.0320.0660.A0138.0270.0320.0280.00.S06A1A05.01	K5DF032066	3.20	6	66	27	28	STP DXF
*	47108	K5DF.2.0330.0660.A0138.0270.0330.0280.00.S06A1A05.01	K5DF033066	3.30	6	66	27	28	STP DXF
	47110	K5DF.2.0340.0660.A0138.0270.0340.0280.00.S06A1A05.01	K5DF034066	3.40	6	66	27	28	STP DXF
*	47112	K5DF.2.0350.0660.A0138.0270.0350.0280.00.S06A1A05.01	K5DF035066	3.50	6	66	27	28	STP DXF
*	47114	K5DF.2.0360.0660.A0138.0270.0360.0280.00.S06A1A05.01	K5DF036066	3.60	6	66	27	28	STP DXF
*	47116	K5DF.2.0370.0660.A0138.0270.0370.0280.00.S06A1A05.01	K5DF037066	3.70	6	66	27	28	STP DXF
	47118	K5DF.2.0380.0750.A0138.0320.0380.0360.00.S06A1A05.01	K5DF038074	3.80	6	75	32	36	STP DXF
*	47120	K5DF.2.0390.0740.A0138.0320.0390.0360.00.S06A1A05.01	K5DF039074	3.90	6	74	32	36	STP DXF
*	47122	K5DF.2.0400.0740.A0120.0320.0400.0450.00.S04A1B03.01	K5DF040074SP	4	4	74	32	45	STP DXF
*	47124	K5DF.2.0400.0740.A0138.0320.0400.0360.00.S06A1A05.01	K5DF040074	4	6	74	32	36	STP DXF
*	47126	K5DF.2.0410.0740.A0138.0320.0410.0360.00.S06A1A05.01	K5DF041074	4.10	6	74	32	36	STP DXF
*	47128	K5DF.2.0420.0740.A0138.0320.0420.0360.00.S06A1A05.01	K5DF042074	4.20	6	74	32	36	STP DXF
	47130	K5DF.2.0430.0740.A0138.0320.0430.0360.00.S06A1A05.01	K5DF043074	4.30	6	74	32	36	STP DXF
*	47132	K5DF.2.0440.0740.A0138.0320.0440.0360.00.S06A1A05.01	K5DF044074	4.40	6	74	32	36	STP DXF
*	47134	K5DF.2.0450.0740.A0138.0320.0450.0360.00.S06A1A05.01	K5DF045074	4.50	6	74	32	36	STP DXF
*	47136	K5DF.2.0460.0740.A0138.0320.0460.0360.00.S06A1A05.01	K5DF046074	4.60	6	74	32	36	STP DXF
*	47138	K5DF.2.0470.0740.A0138.0320.0470.0360.00.S06A1A05.01	K5DF047074	4.70	6	74	32	36	STP DXF
*	47140	K5DF.2.0480.0820.A0138.0410.0480.0440.00.S06A1A05.01	K5DF048082	4.80	6	82	41	44	STP DXF
*	47142	K5DF.2.0490.0820.A0138.0410.0490.0440.00.S06A1A05.01	K5DF049082	4.90	6	82	41	44	STP DXF
*	47144	K5DF.2.0500.0820.A0138.0410.0500.0440.00.S06A1A05.01	K5DF050082	5	6	82	41	44	STP DXF
*	47146	K5DF.2.0510.0820.A0138.0410.0510.0440.00.S06A1A05.01	K5DF051082	5.10	6	82	41	44	STP DXF
*	47148	K5DF.2.0520.0820.A0138.0410.0520.0440.00.S06A1A05.01	K5DF052082	5.20	6	82	41	44	STP DXF
*	47150	K5DF.2.0530.0820.A0138.0410.0530.0440.00.S06A1A05.01	K5DF053082	5.30	6	82	41	44	STP DXF
*	47152	K5DF.2.0540.0820.A0138.0410.0540.0440.00.S06A1A05.01	K5DF054082	5.40	6	82	41	44	STP DXF
*	47154	K5DF.2.0550.0820.A0138.0410.0550.0440.00.S06A1A05.01	K5DF055082	5.50	6	82	41	44	STP DXF
*	47156	K5DF.2.0560.0820.A0138.0410.0560.0440.00.S06A1A05.01	K5DF056082	5.60	6	82	41	44	STP DXF
	47158	K5DF.2.0570.0820.A0138.0410.0570.0440.00.S06A1A05.01	K5DF057082	5.70	6	82	41	44	STP DXF
*	47160	K5DF.2.0580.0820.A0138.0410.0580.0440.00.S06A1A05.01	K5DF058082	5.80	6	82	41	44	STP DXF
	47162	K5DF.2.0590.0820.A0138.0410.0590.0440.00.S06A1A05.01	K5DF059082	5.90	6	82	41	44	STP DXF
*	47164	K5DF.2.0600.0820.A0138.0410.0600.0440.00.S06A1A05.01	K5DF060082	6	6	82	41	44	STP DXF
*	47166	K5DF.2.0610.0910.A0138.0500.0610.0530.00.S08A1A05.01	K5DF061091	6.10	8	91	50	53	STP DXF
*	47168	K5DF.2.0620.0910.A0138.0500.0620.0530.00.S08A1A05.01	K5DF062091	6.20	8	91	50	53	STP DXF
*	47170	K5DF.2.0630.0910.A0138.0500.0630.0530.00.S08A1A05.01	K5DF063091	6.30	8	91	50	53	STP DXF
*	47172	K5DF.2.0640.0910.A0138.0500.0640.0530.00.S08A1A05.01	K5DF064091	6.40	8	91	50	53	STP DXF
*	47174	K5DF.2.0650.0910.A0138.0500.0650.0530.00.S08A1A05.01	K5DF065091	6.50	8	91	50	53	STP DXF
*	47176	K5DF.2.0660.0910.A0138.0500.0660.0530.00.S08A1A05.01	K5DF066091	6.60	8	91	50	53	STP DXF
*	47178	K5DF.2.0670.0910.A0138.0500.0670.0530.00.S08A1A05.01	K5DF067091	6.70	8	91	50	53	STP DXF
*	47180	K5DF.2.0680.0910.A0138.0500.0680.0530.00.S08A1A05.01	K5DF068091	6.80	8	91	50	53	STP DXF
*	47182	K5DF.2.0690.0910.A0138.0500.0690.0530.00.S08A1A05.01	K5DF069091	6.90	8	91	50	53	STP DXF
*	47184	K5DF.2.0700.0910.A0138.0500.0700.0530.00.S08A1A05.01	K5DF070091	7	8	91	50	53	STP DXF
	47186	K5DF.2.0710.0910.A0138.0500.0710.0530.00.S08A1A05.01	K5DF071091	7.10	8	91	50	53	STP DXF
*	47188	K5DF.2.0720.0910.A0138.0500.0720.0530.00.S08A1A05.01	K5DF072091	7.20	8	91	50	53	STP DXF
	47190	K5DF.2.0730.0910.A0138.0500.0730.0530.00.S08A1A05.01	K5DF073091	7.30	8	91	50	53	STP DXF
	47192	K5DF.2.0740.0910.A0138.0500.0740.0530.00.S08A1A05.01	K5DF074091	7.40	8	91	50	53	STP DXF
*	47194	K5DF.2.0750.0910.A0138.0500.0750.0530.00.S08A1A05.01	K5DF075091	7.50	8	91	50	53	STP DXF
	47196	K5DF.2.0760.0910.A0138.0500.0760.0530.00.S08A1A05.01	K5DF076091	7.60	8	91	50	53	STP DXF
	47198	K5DF.2.0770.0910.A0138.0500.0770.0530.00.S08A1A05.01	K5DF077091	7.70	8	91	50	53	STP DXF
*	47200	K5DF.2.0780.0910.A0138.0500.0780.0530.00.S08A1A05.01	K5DF078091	7.80	8	91	50	53	STP DXF
*	47202	K5DF.2.0790.0910.A0138.0500.0790.0530.00.S08A1A05.01	K5DF079091	7.90	8	91	50	53	STP DXF
*	47204	K5DF.2.0800.0910.A0138.0500.0800.0530.00.S08A1A05.01	K5DF080091	8	8	91	50	53	STP DXF
*	47206	K5DF.2.0810.1030.A0138.0570.0810.0610.00.S10A1A05.01	K5DF081103	8.10	10	103	57	61	STP DXF
*	47208	K5DF.2.0820.1030.A0138.0570.0820.0610.00.S10A1A05.01	K5DF082103	8.20	10	103	57	61	STP DXF
*	47210	K5DF.2.0830.1030.A0138.0570.0830.0610.00.S10A1A05.01	K5DF083103	8.30	10	103	57	61	STP DXF
*	47212	K5DF.2.0840.1030.A0138.0570.0840.0610.00.S10A1A05.01	K5DF084103	8.40	10	103	57	61	STP DXF
*	47214	K5DF.2.0850.1030.A0138.0570.0850.0610.00.S10A1A05.01	K5DF085103	8.50	10	103	57	61	STP DXF
*	47216	K5DF.2.0860.1030.A0138.0570.0860.0610.00.S10A1A05.01	K5DF086103	8.60	10	103	57	61	STP DXF
*	47218	K5DF.2.0870.1030.A0138.0570.0870.0610.00.S10A1A05.01	K5DF087103	8.70	10	103	57	61	STP DXF
*	47220	K5DF.2.0880.1030.A0138.0570.0880.0610.00.S10A1A05.01	K5DF088103	8.80	10	103	57	61	STP DXF
*	47222	K5DF.2.0890.1030.A0138.0570.0890.0610.00.S10A1A05.01	K5DF089103	8.90	10	103	57	61	STP DXF
*	47224	K5DF.2.0900.1030.A0138.0570.0900.0610.00.S10A1A05.01	K5DF090103	9	10	103	57	61	STP DXF
*	47226	K5DF.2.0910.1030.A0138.0570.0910.0610.00.S10A1A05.01	K5DF091103	9.10	10	103	57	61	STP DXF
*	47228	K5DF.2.0920.1030.A0138.0570.0920.0610.00.S10A1A05.01	K5DF092103	9.20	10	103	57	61	STP DXF
*	47230	K5DF.2.0930.1030.A0138.0570.0930.0610.00.S10A1A05.01	K5DF093103	9.30	10	103	57	61	STP DXF
*	47232	K5DF.2.0940.1030.A0138.0570.0940.0610.00.S10A1A05.01	K5DF094103	9.40	10	103	57	61	STP DXF
*	47234	K5DF.2.0950.1030.A0138.0570.0950.0610.00.S10A1A05.01	K5DF095103	9.50	10	103	57	61	STP DXF
*	47236	K5DF.2.0960.1030.A0138.0570.0960.0610.00.S10A1A05.01	K5DF096103	9.60	10	103	57	61	STP DXF
*	47238	K5DF.2.0970.1030.A0138.0570.0970.0610.00.S10A1A05.01	K5DF097103	9.70	10	103	57	61	STP DXF
*	47240	K5DF.2.0980.1030.A0138.0570.0980.0610.00.S10A1A05.01	K5DF098103	9.80	10	103	57	61	STP DXF
*	47242	K5DF.2.0990.1030.A0138.0570.0990.0610.00.S10A1A05.01	K5DF099103	9.90	10	103	57	61	STP DXF
*	47244	K5DF.2.1000.1030.A0138.0570.1000.0610.00.S10A1A05.01	K5DF100103	10	10	103	57	61	STP DXF
	47246	K5DF.2.1010.1180.A0138.0670.1010.0710.00.S12A1A05.01	K5DF101118	10.10	12	118	67	71	STP DXF
*	47248	K5DF.2.1020.1180.A0138.0670.1020.0710.00.S12A1A05.01	K5DF102118	10.20	12	118	67	71	STP DXF
*	47250	K5DF.2.1030.1180.A0138.0670.1030.0710.00.S12A1A05.01	K5DF103118	10.30	12	118	67	71	STP DXF
	47252	K5DF.2.1040.1180.A0138.0670.1040.0710.00.S12A1A05.01	K5DF104118	10.40	12	118	67	71	STP DXF
*	47254	K5DF.2.1050.1180.A0138.0670.1050.0710.00.S12A1A05.01	K5DF105118	10.50	12	118	67	71	STP DXF
*	47256	K5DF.2.1060.1180.A0138.0670.1060.0710.00.S12A1A05.01	K5DF106118	10.60	12	118	67	71	STP DXF
	47258	K5DF.2.1070.1180.A0138.0670.1070.0710.00.S12A1A05.01	K5DF107118	10.70	12	118	67	71	STP DXF
*	47260	K5DF.2.1080.1180.A0138.0670.1080.0710.00.S12A1A05.01	K5DF108118	10.80	12	118	67	71	STP DXF
	47262	K5DF.2.1090.1180.A0138.0670.1090.0710.00.S12A1A05.01	K5DF109118	10.90	12	118	67	71	STP DXF
*	47264	K5DF.2.1100.1180.A0138.0670.1100.0710.00.S12A1A05.01	K5DF110118	11	12	118	67	71	STP DXF
	47266	K5DF.2.1110.1180.A0138.0670.1110.0710.00.S12A1A05.01	K5DF111118	11.10	12	118	67	71	STP DXF
*	47268	K5DF.2.1120.1180.A0138.0670.1120.0710.00.S12A1A05.01	K5DF112118	11.20	12	118	67	71	STP DXF
	47270	K5DF.2.1130.1180.A0138.0670.1130.0710.00.S12A1A05.01	K5DF113118	11.30	12	118	67	71	STP DXF
	47272	K5DF.2.1140.1180.A0138.0670.1140.0710.00.S12A1A05.01	K5DF114118	11.40	12	118	67	71	STP DXF
*	47274	K5DF.2.1150.1180.A0138.0670.1150.0710.00.S12A1A05.01	K5DF115118	11.50	12	118	67	71	STP DXF
	47276	K5DF.2.1160.1180.A0138.0670.1160.0710.00.S12A1A05.01	K5DF116118	11.60	12	118	67	71	STP DXF
	47278	K5DF.2.1170.1180.A0138.0670.1170.0710.00.S12A1A05.01	K5DF117118	11.70	12	118	67	71	STP DXF
	47280	K5DF.2.1180.1180.A0138.0670.1180.0710.00.S12A1A05.01	K5DF118118	11.80	12	118	67	71	STP DXF
	47282	K5DF.2.1190.1180.A0138.0670.1190.0710.00.S12A1A05.01	K5DF119118	11.90	12	118	67	71	STP DXF
*	47284	K5DF.2.1200.1180.A0138.0670.1200.0710.00.S12A1A05.01	K5DF120118	12	12	118	67	71	STP DXF
*	47286	K5DF.2.1250.1240.A0138.0700.1250.0770.00.S14A1A05.01	K5DF125124	12.50	14	124	70	77	STP DXF
	47288	K5DF.2.1270.1240.A0138.0700.1270.0770.00.S14A1A05.01	K5DF127124	12.70	14	124	70	77	STP DXF
*	47290	K5DF.2.1280.1240.A0138.0700.1280.0770.00.S14A1A05.01	K5DF128124	12.80	14	124	70	77	STP DXF
	47292	K5DF.2.1290.1240.A0138.0700.1290.0770.00.S14A1A05.01	K5DF129124	12.90	14	124	70	77	STP DXF
	47294	K5DF.2.1300.1240.A0138.0700.1300.0770.00.S14A1A05.01	K5DF130124	13	14	124	70	77	STP DXF
	47296	K5DF.2.1310.1240.A0138.0700.1310.0770.00.S14A1A05.01	K5DF131124	13.10	14	124	70	77	STP DXF
	47298	K5DF.2.1330.1240.A0138.0700.1330.0770.00.S14A1A05.01	K5DF133124	13.30	14	124	70	77	STP DXF
*	47300	K5DF.2.1350.1240.A0138.0700.1350.0770.00.S14A1A05.01	K5DF135124	13.50	14	124	70	77	STP DXF
	47302	K5DF.2.1370.1240.A0138.0700.1370.0770.00.S14A1A05.01	K5DF137124	13.70	14	124	70	77	STP DXF
	47304	K5DF.2.1380.1240.A0138.0700.1380.0770.00.S14A1A05.01	K5DF138124	13.80	14	124	70	77	STP DXF
*	47306	K5DF.2.1400.1240.A0138.0700.1400.0770.00.S14A1A05.01	K5DF140124	14	14	124	70	77	STP DXF
	47308	K5DF.2.1420.1330.A0138.0740.1420.0830.00.S16A1A05.01	K5DF142133	14.20	16	133	74	83	STP DXF
*	47310	K5DF.2.1450.1330.A0138.0740.1450.0830.00.S16A1A05.01	K5DF145133	14.50	16	133	74	83	STP DXF
	47312	K5DF.2.1470.1330.A0138.0740.1470.0830.00.S16A1A05.01	K5DF147133	14.70	16	133	74	83	STP DXF
	47314	K5DF.2.1480.1330.A0138.0740.1480.0830.00.S16A1A05.01	K5DF148133	14.80	16	133	74	83	STP DXF
	47316	K5DF.2.1500.1330.A0138.0740.1500.0830.00.S16A1A05.01	K5DF150133	15	16	133	74	83	STP DXF
	47318	K5DF.2.1510.1330.A0138.0740.1510.0830.00.S16A1A05.01	K5DF151133	15.10	16	133	74	83	STP DXF
	47320	K5DF.2.1530.1330.A0138.0740.1530.0830.00.S16A1A05.01	K5DF153133	15.30	16	133	74	83	STP DXF
	47322	K5DF.2.1550.1330.A0138.0740.1550.0830.00.S16A1A05.01	K5DF155133	15.50	16	133	74	83	STP DXF
	47324	K5DF.2.1570.1330.A0138.0740.1570.0830.00.S16A1A05.01	K5DF157133	15.70	16	133	74	83	STP DXF
	47326	K5DF.2.1580.1330.A0138.0740.1580.0830.00.S16A1A05.01	K5DF158133	15.80	16	133	74	83	STP DXF
	47328	K5DF.2.1600.1330.A0138.0740.1600.0830.00.S16A1A05.01	K5DF160133	16	16	133	74	83	STP DXF
	47330	K5DF.2.1650.1430.A0138.0860.1650.0930.00.S18A1A05.01	K5DF165143	16.50	18	143	86	93	STP DXF
	47332	K5DF.2.1680.1430.A0138.0860.1680.0930.00.S18A1A05.01	K5DF168143	16.80	18	143	86	93	STP DXF
	47334	K5DF.2.1700.1430.A0138.0860.1700.0930.00.S18A1A05.01	K5DF170143	17	18	143	86	93	STP DXF
	47336	K5DF.2.1750.1430.A0138.0860.1750.0930.00.S18A1A05.01	K5DF175143	17.50	18	143	86	93	STP DXF
	47338	K5DF.2.1780.1430.A0138.0860.1780.0930.00.S18A1A05.01	K5DF178143	17.80	18	143	86	93	STP DXF
	47340	K5DF.2.1800.1430.A0138.0860.1800.0930.00.S18A1A05.01	K5DF180143	18	18	143	86	93	STP DXF
	47342	K5DF.2.1850.1530.A0138.0920.1850.1010.00.S20A1A05.01	K5DF185153	18.50	20	153	92	101	STP DXF
	47344	K5DF.2.1880.1530.A0138.0920.1880.1010.00.S20A1A05.01	K5DF188153	18.80	20	153	92	101	STP DXF
	47346	K5DF.2.1900.1530.A0138.0920.1900.1010.00.S20A1A05.01	K5DF190153	19	20	153	92	101	STP DXF
	47348	K5DF.2.1950.1530.A0138.0920.1950.1010.00.S20A1A05.01	K5DF195153	19.50	20	153	92	101	STP DXF
	47350	K5DF.2.1980.1530.A0138.0920.1980.1010.00.S20A1A05.01	K5DF198153	19.80	20	153	92	101	STP DXF
	47352	K5DF.2.2000.1530.A0138.0920.2000.1010.00.S20A1A05.01	K5DF200153	20	20	153	92	101	STP DXF

Diş Başı İlerleme (mm/dev)

⌀
3	0,025
4	0,03
5	0,042
6	0,052
7	0,082
8	0,12
9	0,14
10	0,16
12	0,19
14	0,22
16	0,24
18	0,26
20	0,29

Kesme Değerleri

Malzeme	Vc(m/dk)

Alaşımsız Çelik	80-105	●
İmalat Çeliği	80-100	●
lslah Çeliği	80-100	●
Soğuk İş Takım Çeliği	60-80	◑
Sıcak İş Takım Çeliği	60-80	◑
AISI 304 - 416 - 420	30-40	◑
AISI 316 - 440	30-40	◑
17-4 PH 15-5 PH	25-30	◑
Krom Kobalt Alaşım	25-30	◑
Duplex F51	15-25	◑
Super Duplex F55	15-25	◑
Gri Dökme Demir	140-170	●
Alaşımlı Dökme Demir	100-130	●
Hassas Döküm	80-110	●
Titanyum	30-40	◑
Titanyum Alaşım	25-30	◑
≤54 HRc	60-80	◑
>54 HRc	40-55	◑

	Çelik
	Paslanmaz Çelik
	Sertleştirilmiş Çelik ≤ 54 HRc
	Sertleştirilmiş Çelik > 54 HRc
	Döküm
	Grafit
	Demir Dışı Materyal
	HRSA
	Titanyum

Önerilir
Kabul Edilebilir
Önerilmez
