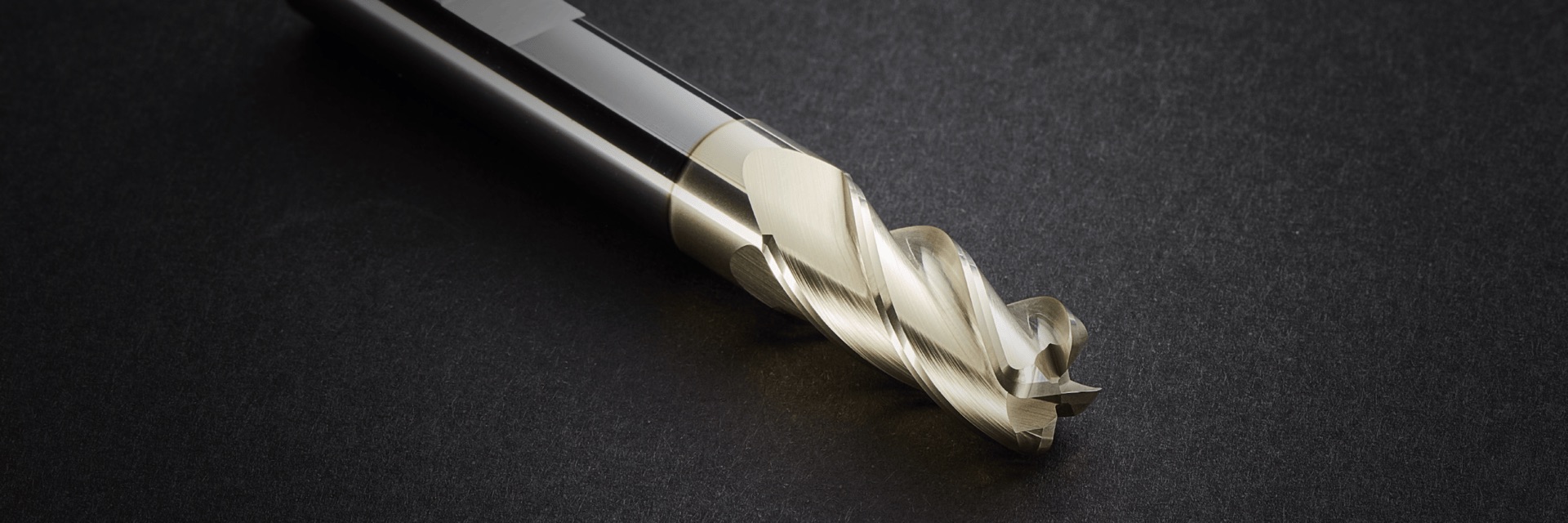

Finiş
Kaba
| Çelik |
|
|
| Paslanmaz Çelik |
|
|
| Sertleştirilmiş Çelik ≤ 54 HRc |
|
|
| Sertleştirilmiş Çelik > 54 HRc |
|
|
| Döküm |
|
|
| Grafit |
|
|
| Demir Dışı Materyal |
|
|
| HRSA |
|
|
| Titanyum |
|

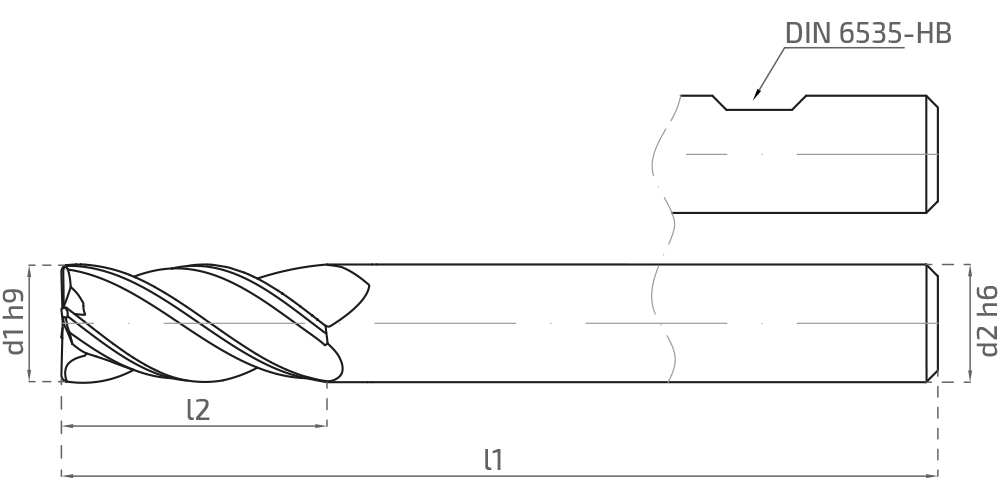

Önerilir Kabul Edilebilir Önerilmez| Stok | Sipariş Kodu | Kod | Eski Kod | d1h9 | d2h6 | l1 | l2 | Köşe | Z | Weldon Sipariş Kodu | İlgili Doküman |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * | 11100 | 98.3.0300.0510.C0003.0060.0000.0000.00.S06C1C02.01 | 98303046 | 3 | 6 | 51 | 6 | Ch 0.03 | 3 | 11101 | |
| * | 11102 | 98.4.0300.0510.R0020.0060.0000.0000.00.S06C1B01.01 | 98403002 | 3 | 6 | 51 | 6 | R 0.20 | 4 | 11103 | |
| * | 11104 | 98.4.0400.0580.R0020.0120.0000.0000.00.S06C1B01.01 | 98404002 | 4 | 6 | 58 | 12 | R 0.20 | 4 | 11105 | |
| * | 11106 | 98.4.0400.0580.R0050.0120.0000.0000.00.S06C1B01.01 | 98404005 | 4 | 6 | 58 | 12 | R 0.50 | 4 | 11107 | |
| * | 11108 | 98.4.0400.0580.R0100.0120.0000.0000.00.S06C1B01.01 | 98404010 | 4 | 6 | 58 | 12 | R 1.00 | 4 | 11109 | |
| * | 11110 | 98.4.0600.0580.R0020.0140.0000.0000.00.S06C1B01.01 | 98406002 | 6 | 6 | 58 | 14 | R 0.20 | 4 | 11111 | |
| * | 11112 | 98.4.0600.0580.R0050.0140.0000.0000.00.S06C1B01.01 | 98406005 | 6 | 6 | 58 | 14 | R 0.50 | 4 | 11113 | |
| * | 11114 | 98.4.0600.0580.R0100.0140.0000.0000.00.S06C1B01.01 | 98406010 | 6 | 6 | 58 | 14 | R 1.00 | 4 | 11115 | |
| 11116 | 98.4.0600.0580.R0150.0140.0000.0000.00.S06C1B01.01 | 98406015 | 6 | 6 | 58 | 14 | R 1.50 | 4 | 11117 | ||
| * | 11118 | 98.4.0800.0640.R0020.0230.0000.0000.00.S08C1B01.01 | 98408002 | 8 | 8 | 64 | 23 | R 0.20 | 4 | 11119 | |
| * | 11120 | 98.4.0800.0640.R0050.0230.0000.0000.00.S08C1B01.01 | 98408005 | 8 | 8 | 64 | 23 | R 0.50 | 4 | 11121 | |
| 11122 | 98.4.0800.0640.R0150.0230.0000.0000.00.S08C1B01.01 | 98408015 | 8 | 8 | 64 | 23 | R 1.50 | 4 | 11123 | ||
| 11124 | 98.4.0800.0640.R0200.0230.0000.0000.00.S08C1B01.01 | 98408020 | 8 | 8 | 64 | 23 | R 2.00 | 4 | 11125 | ||
| * | 11152 | 98.4.0800.0640.C0030.0170.0000.0000.00.S08C1B01.01 | 98408064 | 8 | 8 | 64 | 17 | Ch 0.30 | 4 | 11153 | |
| * | 11126 | 98.4.1000.0730.R0020.0240.0000.0000.00.S10C1B01.01 | 98410002 | 10 | 10 | 73 | 24 | R 0.20 | 4 | 11127 | |
| * | 11128 | 98.4.1000.0730.R0050.0240.0000.0000.00.S10C1B01.01 | 98410005 | 10 | 10 | 73 | 24 | R 0.50 | 4 | 11129 | |
| 11130 | 98.4.1000.0730.R0100.0240.0000.0000.00.S10C1B01.01 | 98410010 | 10 | 10 | 73 | 24 | R 1.00 | 4 | 11131 | ||
| 11132 | 98.4.1000.0730.R0200.0240.0000.0000.00.S10C1B01.01 | 98410020 | 10 | 10 | 73 | 24 | R 2.00 | 4 | 11133 | ||
| 11134 | 98.4.1200.0650.R0020.0260.0000.0000.00.S12C2B01.01 | 98412065 | 12 | 12 | 65 | 26 | R 0.20 | 4 | 11135 | ||
| * | 11136 | 98.4.1200.0820.R0020.0280.0000.0000.00.S12C1B01.01 | 98412002 | 12 | 12 | 82 | 28 | R 0.20 | 4 | 11137 | |
| * | 11138 | 98.4.1200.0820.R0050.0280.0000.0000.00.S12C1B01.01 | 98412005 | 12 | 12 | 82 | 28 | R 0.50 | 4 | 11139 | |
| 11140 | 98.4.1200.0820.R0100.0280.0000.0000.00.S12C1B01.01 | 98412010 | 12 | 12 | 82 | 28 | R 1.00 | 4 | 11141 | ||
| 11142 | 98.4.1200.0820.R0200.0280.0000.0000.00.S12C1B01.01 | 98412020 | 12 | 12 | 82 | 28 | R 2.00 | 4 | 11143 | ||
| 11144 | 98.4.1200.0820.R0400.0280.0000.0000.00.S12C1B01.01 | 98412040 | 12 | 12 | 82 | 28 | R 4.00 | 4 | 11145 | ||
| * | 11146 | 98.4.1600.0930.R0020.0380.0000.0000.00.S16C1B01.01 | 98416002 | 16 | 16 | 93 | 38 | R 0.20 | 4 | 11147 | |
| * | 11148 | 98.4.1600.0930.R0050.0380.0000.0000.00.S16C1B01.01 | 98416005 | 16 | 16 | 93 | 38 | R 0.50 | 4 | 11149 | |
| 11150 | 98.4.2000.1050.R0500.0440.0000.0000.00.S20C1B01.01 | 98420050 | 20 | 20 | 105 | 44 | R 5.00 | 4 | 11151 |
| Ø | ap=1Ø | ap=0.50Ø | ae=0.35Ø | ae=0.30Ø | ae=0.25Ø | ae=0.20Ø | ae=0.15Ø | ae=0.10Ø |
|---|---|---|---|---|---|---|---|---|
| 3 | 0.006 | 0.007 | 0.007 | 0.007 | 0.007 | 0.008 | 0.008 | 0.01 |
| 4 | 0.008 | 0.01 | 0.009 | 0.009 | 0.01 | 0.01 | 0.011 | 0.014 |
| 5 | 0.011 | 0.014 | 0.012 | 0.013 | 0.013 | 0.014 | 0.015 | 0.019 |
| 6 | 0.014 | 0.0l7 | 0.0l5 | 0.016 | 0.0l7 | 0.018 | 0.02 | 0.024 |
| 8 | 0.02 | 0.024 | 0.022 | 0.023 | 0.024 | 0.025 | 0.028 | 0.034 |
| 10 | 0.027 | 0.029 | 0.03 | 0.031 | 0.032 | 0.034 | 0.038 | 0.046 |
| 12 | 0.035 | 0.04 | 0.04 | 0.041 | 0.043 | 0.045 | 0.05 | 0.061 |
| 16 | 0.055 | 0.065 | 0.061 | 0.063 | 0.066 | 0.069 | 0.077 | 0.094 |
| 20 | 0.075 | 0.09 | 0.083 | 0.086 | 0.09 | 0.094 | 0.105 | 0.128 |
| Malzeme | Kanal Frezeleme | Kenar Frezeleme | Son Yüzey Frezeleme |
|---|---|---|---|
|
|
|
|
|
| ap=1.0 - 0.5Ø | ap=1.5Ø / ae=0.35 - 0.20Ø | ap=1.5Ø / ae=0.20 - 0.10Ø | |
| Vc (m/dk) | Vc (m/dk) | Vc (m/dk) | |
| AISI 304 - 416 - 420 | 50-70 | 70-90 | 80-100 |
| AISI 316 - 440 | 45-70 | 55-80 | 60-90 |
| 17-4 PH 15-5 PH | 45-70 | 55-80 | 60-90 |
| Krom Kobalt Alaşım | 30-50 | 35-55 | 40-70 |
| Duplex F51 | 60-80 | 65-85 | 70-90 |
| Super Duplex F55 | 30-50 | 40-60 | 50-70 |
| HRSA Hastelloy | 30-50 | 40-60 | 50-70 |
| HRSA lncoinel 625 | 30-50 | 40-60 | 50-70 |
| HRSA lncoinel 718 | 30-50 | 40-60 | 50-70 |
| HRSA Nimonic | 30-50 | 40-60 | 50-70 |
| Titanyum | 60-80 | 70-90 | 80-90 |
| Çelik |
|
|
| Paslanmaz Çelik |
|
|
| Sertleştirilmiş Çelik ≤ 54 HRc |
|
|
| Sertleştirilmiş Çelik > 54 HRc |
|
|
| Döküm |
|
|
| Grafit |
|
|
| Demir Dışı Materyal |
|
|
| HRSA |
|
|
| Titanyum |
|
Önerilir Kabul Edilebilir Önerilmez
