Frezeleme (Ultra-Bite)

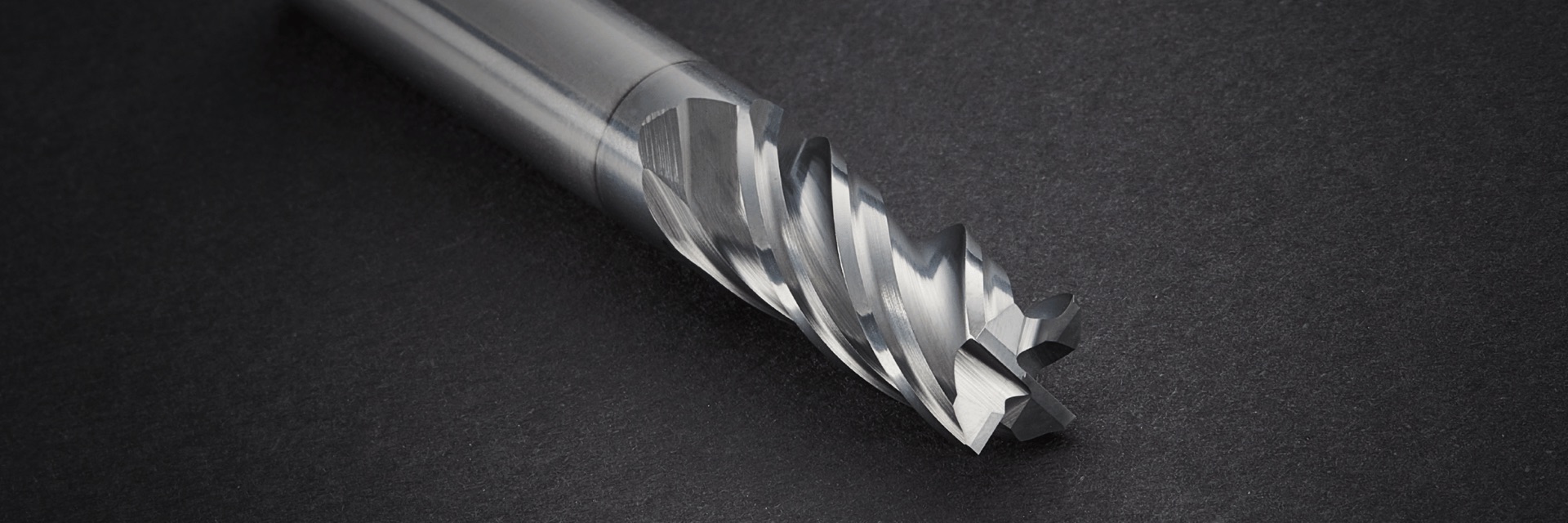

97 Serisi Freze

Ultra-Bite Serisi
Ultra-Bite Serisi
Yüksek Performans

Finiş
Kaba

Çelik
Paslanmaz Çelik
Sertleştirilmiş Çelik ≤ 54 HRc
Sertleştirilmiş Çelik > 54 HRc
Döküm
Grafit
Demir Dışı Materyal
HRSA
Titanyum
  • Önerilir
  • Kabul Edilebilir
  • Önerilmez

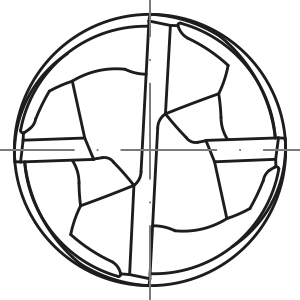

97 Serisi Freze

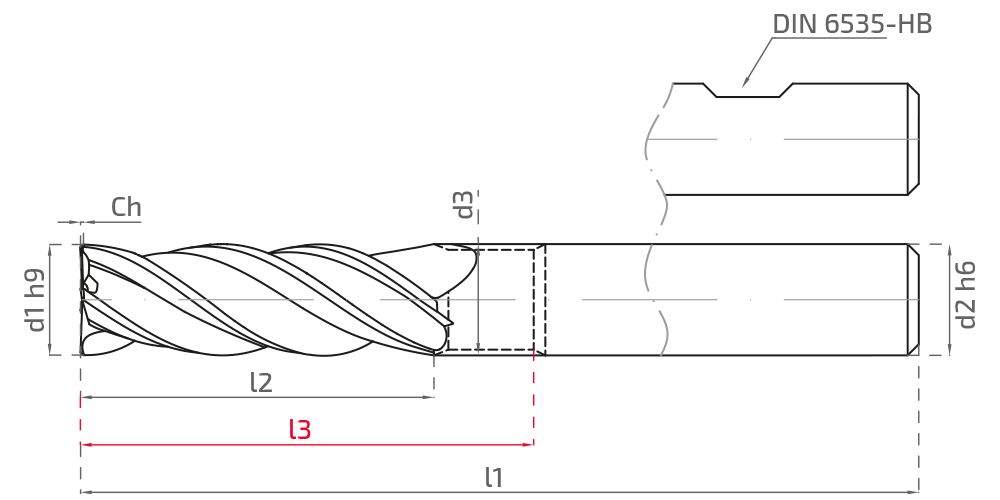

Stok Sipariş Kodu Kod Eski Kod d1h9 d2h6 d3 l1 l2 l3 Köşe Weldon Sipariş Kodu İlgili Doküman
* 10100 97.4.0300.0500.K0000.0060.0000.0000.00.S06B1A01.01 97403000 3 6 - 50 6 - Ch 0.00 10101
STP DXF
* 10102 97.4.0300.0510.C0010.0060.0000.0000.00.S06H1A01.01 97403051 3 6 - 51 6 - Ch 0.10 10103
STP DXF
10104 97.4.0300.0510.C0010.0030.0280.0063.00.S06H1A01.01 97403051SP 3 6 2.8 51 3 6.3 Ch 0.10 10105
STP DXF
* 10106 97.4.0300.0580.R0015.0060.0280.0150.00.S06H1A01.01 97403058P 3 6 2.8 58 6 15 R 0.15 10107
STP DXF
* 10108 97.4.0300.0580.R0015.0100.0280.0130.00.S06H1A01.01 97403058XL 3 6 2.8 58 10 13 R 0.15 10109
STP DXF
* 10110 97.4.0400.0500.K0000.0120.0380.0200.00.S06B1A01.01 97404000 4 6 3.8 50 12 20 Ch 0.00 10111
STP DXF
* 10112 97.4.0400.0580.R0015.0090.0380.0120.00.S06H1A01.01 97404058 4 6 3.8 58 9 12 R 0.15 10113
STP DXF
* 10114 97.4.0400.0580.R0015.0090.0380.0180.00.S06H1A01.01 97404058P 4 6 3.8 58 9 18 R 0.15 10115
STP DXF
* 10116 97.4.0400.0580.R0015.0120.0380.0190.00.S06H1A01.01 97404058XL 4 6 3.8 58 12 19 R 0.15 10117
STP DXF
* 10118 97.4.0500.0500.K0000.0120.0480.0180.00.S06B1A01.01 97405000 5 6 4.8 50 12 18 Ch 0.00 10119
STP DXF
* 10120 97.4.0500.0580.R0015.0130.0480.0180.00.S06B1A01.01 97405058 5 6 4.8 58 13 18 R 0.15 10121
STP DXF
* 10122 97.4.0600.0500.K0000.0150.0000.0000.00.S06B1A01.01 97406000 6 6 0 50 15 0 Ch 0.00 10123
STP DXF
* 10124 97.4.0600.0580.R0015.0160.0570.0230.00.S06B1A01.01 97406058 6 6 5.7 58 16 23 R 0.15 10125
STP DXF
10126 97.4.0700.0640.C0020.0200.0670.0270.00.S08B1A01.01 97407064 7 8 6.7 64 20 27 Ch 0.20 10127
STP DXF
* 10128 97.4.0800.0640.K0000.0200.0000.0000.00.S08B1A01.01 97408000 8 8 - 64 20 - Ch 0.00 10129
STP DXF
* 10130 97.4.0800.0640.C0020.0200.0770.0270.00.S08B1A01.01 97408064 8 8 7.7 64 20 27 Ch 0.20 10131
STP DXF
* 10132 97.4.1000.0730.K0000.0260.0000.0000.00.S10B1A01.01 97410000 10 10 - 73 26 - Ch 0.00 10133
STP DXF
* 10134 97.4.1000.0730.C0020.0260.0950.0320.00.S10B1A01.01 97410073 10 10 9.5 73 26 32 Ch 0.20 10135
STP DXF
* 10136 97.4.1200.0820.C0030.0280.1150.0380.00.S12B1A01.01 97412082 12 12 11.5 82 28 38 Ch 0.30 10137
STP DXF
* 10138 97.4.1400.0820.C0030.0300.1370.0420.00.S14B1A01.01 97414082 14 14 13.7 82 30 42 Ch 0.30 10139
STP DXF
* 10140 97.4.1600.0930.C0030.0360.1550.0440.00.S16B1A01.01 97416093 16 16 15.5 93 36 44 Ch 0.30 10141
STP DXF
10142 97.4.1600.0930.C0050.0340.0000.0000.00.S16B1A01.01 97416093SP 16 16 - 93 34 - Ch 0.50 10143
STP DXF
10144 97.4.1800.0930.C0030.0350.1750.0440.00.S18B1A01.01 97418093 18 18 17.5 93 35 44 Ch 0.30 10145
STP DXF
* 10146 97.4.2000.1050.C0030.0380.1950.0540.00.S20B1A01.01 97420105 20 20 19.5 105 38 54 Ch 0.30 10147
STP DXF
10148 97.4.2000.1050.K0000.0380.1950.0540.00.S20B1A01.01 97420000 20 20 19.5 105 38 54 Ch 0.00 10149
STP DXF
* 10150 97.4.1200.0820.C0010.0280.1170.0360.00.S12B1A02.01 97412082 XPER SLOT KABA 12 12 11.7 82 28 36 Ch 0.10 10151 SLOT
STP DXF
* 10152 97.4.1200.0820.C0010.0280.1170.0360.00.S12C1A02.01 97412082 XPER SLOT FINISH 12 12 11.7 82 28 36 Ch 0.10 10153
STP DXF
* 10154 97.4.0500.0580.C0010.0150.0480.0180.00.S06C1A02.01 97405058 UPPER 5 6 4.8 58 15 18 Ch 0.10 10155 UPPER
STP DXF
* 10156 97.4.0600.0580.R0015.0160.0570.0230.00.S06H1A02.01 97406058 UPPER 6 6 5.7 58 16 23 R 0.15 10157
STP DXF
* 10158 97.4.0800.0640.C0015.0200.0770.0270.00.S08C1A02.01 97408064 UPPER 8 8 7.7 64 20 27 Ch 0.15 10159
STP DXF

Diş Başı İlerleme (mm/diş)

Ø ap=1.5Ø ap=1Ø ap=0.50Ø ae=0.35Ø ae=0.30Ø ae=0.25Ø ae=0.20Ø ae=0.15Ø ae=0.10Ø
3 0.004  0.006  0.008  0.010  0.012  0.016  0.020  0.030  0.042
4 0.007  0.009  0.013  0.016  0.020 0.025  0.030  0.038  0.049
5 0.010  0.013  0.017  0.020  0.025  0.031  0.036  0.046  0.058
6 0.014  0.018  0.022  0.026  0.030  0.037  0.044  0.050  0.062
8 0.020  0.025  0.029  0.034  0.040  0.048  0.056  0.064  0.073
10 0.026  0.030  0.038  0.042  0.050  0.059  0.067  0.076  0.088
12 0.035 0.042 0.053 0.060 0.070 0.080 0.092 0.102 0.115
16 0.042 0.060 0.082 0.100 0.110 0.120 0.130 0.138 0.150
20 0.050 0.065 0.085 0.100 0.110 0.120 0.130 0.138 0.150

Kesme Değerleri

Malzeme Kanal Frezeleme Kanal Frezeleme Kenar Frezeleme Son Yüzey Frezeleme
ap=1.5 - 1Ø ap= 1.0 - 0.5Ø ap=1.5Ø   / ae=0.35 - 0.20Ø ap=1.5Ø   / ae=0.20 - 0.10Ø
Vc (m/dk)  Vc (m/dk)  Vc (m/dk)  Vc (m/dk)
Alaşımsız Çelik 150-190 190-220 220-250 250-300
İmalat Çeliği 140-180 180-210 210-240 240-280
Islah Çeliği 80-110 100-130 130-160 160-200
Soğuk İş Takım Çeliği 80-100 90-120 110-140 130-150
Sıcak İş Takım Çeliği 70-100 80-110 100-130 120-140
AISI 304 - 416 - 420 50-70 70-90 80-100
AISI 316 - 440 45-70 55-80 60-90
17-4 PH 15-5 PH 45-70 55-80 60-90
Krom Kobalt Alaşımları 30-50 35-55 40-70
Duplex F51 60-80 65-85 70-90
Super Duplex F55 60-80 65-85 70-90
Gri Dökme Demir 90-130 130-180 180-220 220-260
Alaşımlı Dökme Demir 90-130 130-180 180-220 220-260
Hassas Döküm 80-120 120-160 160-195 180-220
Çelik
Paslanmaz Çelik
Sertleştirilmiş Çelik ≤ 54 HRc
Sertleştirilmiş Çelik > 54 HRc
Döküm
Grafit
Demir Dışı Materyal
HRSA
Titanyum
  • Önerilir
  • Kabul Edilebilir
  • Önerilmez
