Frezeleme (Mic-Cut)

250 Serisi Freze

Mikro Seri
Mikro Seri
Mikro Küresel Freze

Finiş
Kaba

Çelik
Paslanmaz Çelik
Sertleştirilmiş Çelik ≤ 54 HRc
Sertleştirilmiş Çelik > 54 HRc
Döküm
Grafit
Demir Dışı Materyal
HRSA
Titanyum
  • Önerilir
  • Kabul Edilebilir
  • Önerilmez

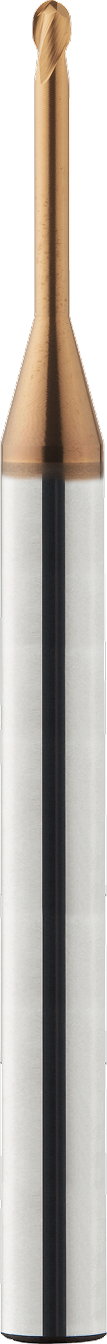

250 Ultra-Bite Kısa Serisi

StokSipariş KoduKodEski Kodd1h9d2h5d3l1l2l3Köşeİlgili Doküman
26100250.2.0050.0510.R0025.0005.0047.0020.00.S04H1A04.012502005020.5040.47510.502R 0.25
STP DXF
26102250.2.0050.0510.R0025.0005.0047.0030.00.S04H1A04.012502005030.5040.47510.503R 0.25
STP DXF
26104250.2.0050.0510.R0025.0005.0047.0040.00.S04H1A04.012502005040.5040.47510.504R 0.25
STP DXF
26106250.2.0060.0510.R0030.0006.0055.0040.00.S04H1A04.012502006040.6040.55510.604R 0.30
STP DXF
26108250.2.0060.0510.R0030.0006.0055.0060.00.S04H1A04.012502006060.6040.55510.606R 0.30
STP DXF
26112250.2.0080.0510.R0040.0008.0075.0040.00.S04H1A03.012502008040.8040.75510.804R 0.40
STP DXF
26114250.2.0080.0510.R0040.0008.0075.0060.00.S04H1A03.012502008060.8040.75510.806R 0.40
STP DXF
26116250.2.0080.0510.R0040.0008.0075.0080.00.S04H1A03.012502008080.8040.75510.808R 0.40
STP DXF
26120250.2.0100.0510.R0050.0010.0094.0040.00.S04H1A04.01250201004140.945114R 0.50
STP DXF
*26122250.2.0100.0510.R0050.0010.0094.0060.00.S04H1A04.01250201006140.945116R 0.50
STP DXF
*26124250.2.0100.0510.R0050.0010.0094.0080.00.S04H1A04.01250201008140.945118R 0.50
STP DXF
*26126250.2.0100.0510.R0050.0010.0094.0100.00.S04H1A04.01250201010140.9451110R 0.50
STP DXF
*26128250.2.0100.0510.R0050.0010.0094.0120.00.S04H1A04.01250201012140.9451112R 0.50
STP DXF
*26136250.2.0150.0510.R0075.0015.0140.0040.00.S04H1A04.012502150041.5041.40511.504R 0.75
STP DXF
*26138250.2.0150.0510.R0075.0015.0140.0060.00.S04H1A04.012502150061.5041.40511.506R 0.75
STP DXF
*26140250.2.0150.0510.R0075.0015.0140.0080.00.S04H1A04.012502150081.5041.40511.508R 0.75
STP DXF
*26142250.2.0150.0510.R0075.0015.0140.0100.00.S04H1A04.012502150101.5041.40511.5010R 0.75
STP DXF
*26144250.2.0150.0510.R0075.0015.0140.0120.00.S04H1A04.012502150121.5041.40511.5012R 0.75
STP DXF
26148250.2.0200.0510.R0100.0020.0190.0040.00.S04H1A04.01250202004241.905124R 1.00
STP DXF
*26150250.2.0200.0510.R0100.0020.0190.0060.00.S04H1A04.01250202006241.905126R 1.00
STP DXF
*26152250.2.0200.0510.R0100.0020.0190.0080.00.S04H1A04.01250202008241.905128R 1.00
STP DXF
*26154250.2.0200.0510.R0100.0020.0190.0100.00.S04H1A04.01250202010241.9051210R 1.00
STP DXF
*26156250.2.0200.0510.R0100.0020.0190.0120.00.S04H1A04.01250202012241.9051212R 1.00
STP DXF

250 Ultra-Bite Uzun Serisi

Stok Sipariş Kodu Kod Eski Kod d1h9 d2h5 d3 l1 l2 l3 Köşe İlgili Doküman
* 26168 250.2.0100.0510.R0050.0010.0094.0160.00.S04H1A04.01 250201016 1 4 0.94 51 1 16 R 0.50
STP DXF
26170 250.2.0100.0510.R0050.0010.0094.0200.00.S04H1A04.01 250201020 1 4 0.94 51 1 20 R 0.50
STP DXF
* 26172 250.2.0150.0510.R0075.0015.0140.0160.00.S04H1A04.01 250215016 1.5 4 1.4 51 1.5 16 R 0.75
STP DXF
26174 250.2.0150.0510.R0075.0015.0140.0200.00.S04H1A04.01 250215020 1.5 4 1.4 51 1.5 20 R 0.75
STP DXF
* 26176 250.2.0200.0510.R0100.0020.0190.0160.00.S04H1A04.01 250202016 2 4 1.9 51 2 16 R 1.00
STP DXF
26178 250.2.0200.0510.R0100.0020.0190.0200.00.S04H1A04.01 250202020 2 4 1.9 51 2 20 R 1.00
STP DXF

Diş Başı İlerleme (mm/diş)

Ø ae=0.20Ø ae=0.10Ø
0,5 0.07 0.01
1 0.015 0.02
1,5 0.018 0.025
2 0.022 0.031
3 0.027 0.037
4 0.035 0.042

Kesme Değerleri

Malzeme Kenar Frezeleme ap=0.10Ø /ae=0.20 - 0.10Ø Vc (m/dk)
Alaşımsız Çelik 170-220
İmalat Çeliği 170-220
lslah Çeliği 140-180
Soğuk İş Takım Çeliği 140-180
Sıcak İş Takım Çeliği 110-150
AISI 304 - 416 - 420 80-130
AISI 316 - 440 70-120
17-4 PH 15-5 PH 70-100
Krom Kobalt Alaşımları 60-100
Duplex F51 50-80
Super Duplex F55 50-80
Gri Dökme Demir 110-150
Titanyum 30-60
Titanyum Alaşımları 30-50
≤ 54 HRC 100-140
>54 HRC 70-90
Çelik
Paslanmaz Çelik
Sertleştirilmiş Çelik ≤ 54 HRc
Sertleştirilmiş Çelik > 54 HRc
Döküm
Grafit
Demir Dışı Materyal
HRSA
Titanyum
  • Önerilir
  • Kabul Edilebilir
  • Önerilmez
KARCAN KESİCİ TAKIM SANAYİ VE TİCARET A.Ş.
