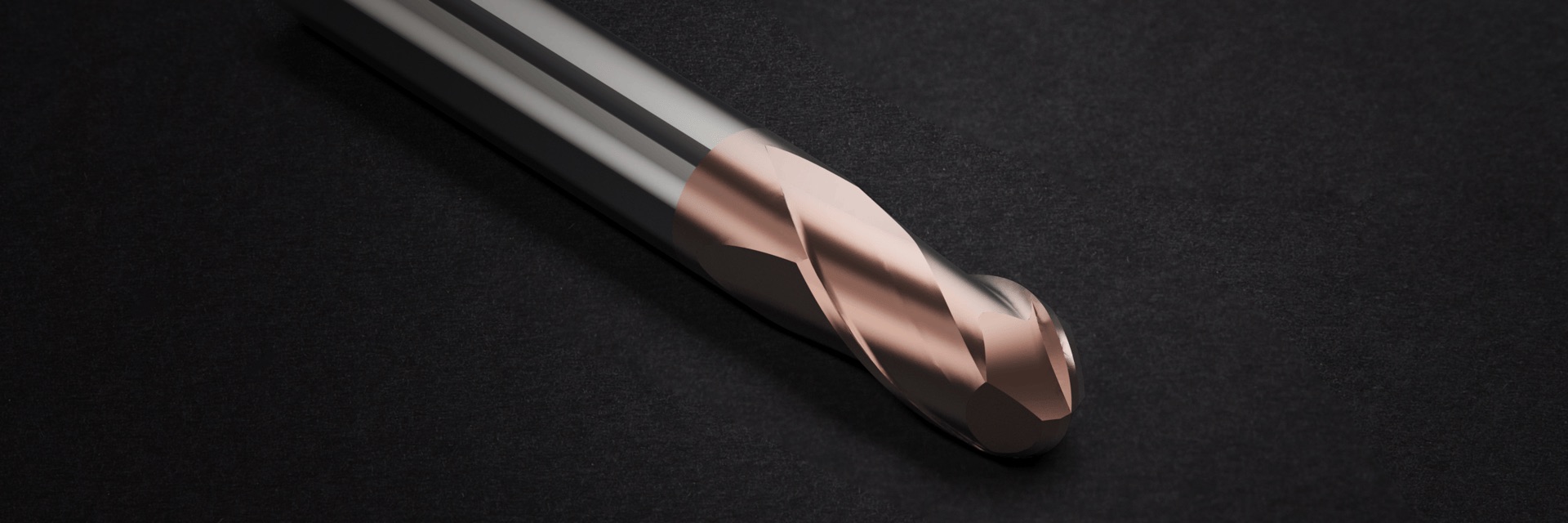

Finiş
Kaba
| Çelik |
|
|
| Paslanmaz Çelik |
|
|
| Sertleştirilmiş Çelik ≤ 54 HRc |
|
|
| Sertleştirilmiş Çelik > 54 HRc |
|
|
| Döküm |
|
|
| Grafit |
|
|
| Demir Dışı Materyal |
|
|
| HRSA |
|
|
| Titanyum |
|

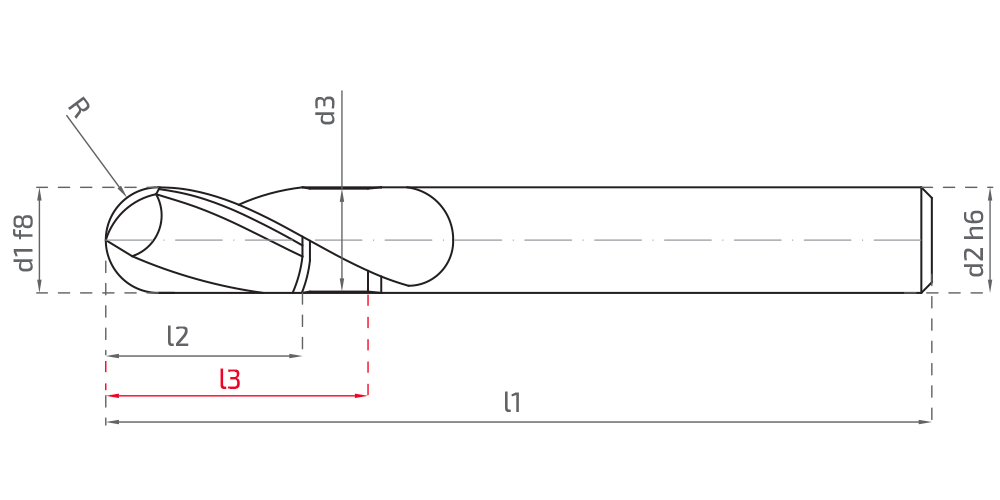

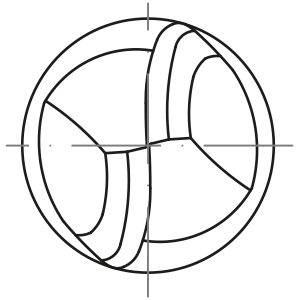

Önerilir Kabul Edilebilir Önerilmez| Stok | Sipariş Kodu | Kod | Eski Kod | d1f8 | d2h6 | d3 | l1 | l2 | l3 | Köşe | İlgili Doküman |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22100 | 203.2.0100.0500.R0050.0020.0100.0045.00.S04G1A02.01 | 203201050 | 1 | 4 | 1 | 50 | 2 | 4.50 | R 0.50 | ||
| 22102 | 203.2.0150.0500.R0075.0030.0150.0050.00.S04G1A02.01 | 203201550 | 1.50 | 4 | 1.50 | 50 | 3 | 5 | R 0.75 | ||
| 22104 | 203.2.0200.0500.R0100.0040.0200.0060.00.S04G1A02.01 | 203202050 | 2 | 4 | 2 | 50 | 4 | 6 | R 1.00 | ||
| * | 22106 | 203.2.0300.0570.R0150.0060.0300.0115.00.S06G1A02.01 | 203203057 | 3 | 6 | 3 | 57 | 6 | 11.50 | R 1.50 | |
| * | 22108 | 203.2.0400.0570.R0200.0090.0400.0148.00.S06G1A02.01 | 203204058 | 4 | 6 | 4 | 57 | 9 | 14.80 | R 2.00 | |
| * | 22110 | 203.2.0500.0570.R0250.0100.0500.0156.00.S06G1A02.01 | 203205058 | 5 | 6 | 5 | 57 | 10 | 15.60 | R 2.50 | |
| * | 22112 | 203.2.0600.0570.R0300.0120.0000.0000.00.S06G1A02.01 | 203206058 | 6 | 6 | - | 57 | 12 | - | R 3.00 | |
| * | 22114 | 203.2.0800.0630.R0400.0150.0000.0000.00.S08G1A02.01 | 203208064 | 8 | 8 | - | 63 | 15 | - | R 4.00 | |
| * | 22116 | 203.2.1000.0720.R0500.0200.0000.0000.00.S10G1A02.01 | 203210073 | 10 | 10 | - | 72 | 20 | - | R 5.00 | |
| * | 22118 | 203.2.1200.0830.R0600.0220.0000.0000.00.S12G1A02.01 | 203212082 | 12 | 12 | - | 83 | 22 | - | R 6.00 |
| Stok | Sipariş Kodu | Kod | Eski Kod | d1f8 | d2h6 | d3 | l1 | l2 | l3 | Köşe | İlgili Doküman |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * | 22120 | 203.2.0300.0510.R0150.0050.0290.0150.00.S03G1A02.01 | 203203050 | 3 | 3 | 2.9 | 51 | 5 | 15 | R 1.50 | |
| * | 22122 | 203.2.0300.0750.R0150.0050.0290.0300.00.S03G1A02.01 | 203203075 | 3 | 3 | 2.9 | 75 | 5 | 30 | R 1.50 | |
| * | 22124 | 203.2.0400.0500.R0200.0060.0380.0150.00.S04G1A02.01 | 203204050 | 4 | 4 | 3.8 | 50 | 6 | 15 | R 2.00 | |
| * | 22126 | 203.2.0400.0800.R0200.0060.0380.0350.00.S04G1A02.01 | 203204080 | 4 | 4 | 3.8 | 80 | 6 | 35 | R 2.00 | |
| * | 22128 | 203.2.0500.0500.R0250.0070.0480.0150.00.S05G1A02.01 | 203205050 | 5 | 5 | 4.8 | 50 | 7 | 15 | R 2.50 | |
| * | 22130 | 203.2.0500.0750.R0250.0100.0480.0350.00.S05G1A02.01 | 203205080 | 5 | 5 | 4.8 | 75 | 10 | 35 | R 2.50 | |
| * | 22132 | 203.2.0600.0800.R0300.0100.0580.0350.00.S06G1A02.01 | 203206080 | 6 | 6 | 5.8 | 80 | 10 | 35 | R 3.00 | |
| * | 22134 | 203.2.0600.1000.R0300.0100.0580.0450.00.S06G1A02.01 | 203206100 | 6 | 6 | 5.8 | 100 | 10 | 45 | R 3.00 | |
| * | 22136 | 203.2.0800.1000.R0400.0120.0770.0450.00.S08G1A02.01 | 203208100 | 8 | 8 | 7.7 | 100 | 12 | 45 | R 4.00 | |
| * | 22138 | 203.2.1000.1100.R0500.0140.0970.0550.00.S10G1A02.01 | 203210110 | 10 | 10 | 9.7 | 110 | 14 | 55 | R 5.00 | |
| * | 22140 | 203.2.1200.1100.R0600.0160.1170.0550.00.S12G1A02.01 | 203212110 | 12 | 12 | 11.7 | 110 | 16 | 55 | R 6.00 |
| Ø | ae=0.25Ø | ae=0.20Ø | ae=0.15Ø | ae=0.10Ø |
|---|---|---|---|---|
| 3 | 0.050 | 0.054 | 0.059 | 0.062 |
| 4 | 0.051 | 0.058 | 0.065 | 0.070 |
| 6 | 0.059 | 0.070 | 0.083 | 0.087 |
| 8 | 0.061 | 0.073 | 0.086 | 0.091 |
| 10 | 0.069 | 0.082 | 0.095 | 0.107 |
| 12 | 0.080 | 0.090 | 0.110 | 0.122 |
| Malzeme | Kanal Frezeleme | Son Yüzey Frezeleme |
|---|---|---|
|
|
|
|
| ap=0.25 - 0.10Ø / ae=0.25 - 0.10Ø | ap=0.10Ø / ae=0.10Ø | |
| Vc (m/dk) | Vc (m/dk) | |
| Soğuk İş Takım Çeliği | 170-200 | 190-230 |
| Sıcak İş Takım Çeliği | 160-190 | 180-220 |
| AISI 304 - 416 - 420 | 90-120 | 120-150 |
| AISI 316 - 440 | 80-110 | 110-140 |
| 17-4 PH 15-5 PH | 80-110 | 110-140 |
| Krom Kobalt Alaşım | 70-100 | 100-130 |
| ≤ 54 HRC | 90-120 | 120-150 |
| >54 HRC | 60-90 | 90-120 |
| Çelik |
|
|
| Paslanmaz Çelik |
|
|
| Sertleştirilmiş Çelik ≤ 54 HRc |
|
|
| Sertleştirilmiş Çelik > 54 HRc |
|
|
| Döküm |
|
|
| Grafit |
|
|
| Demir Dışı Materyal |
|
|
| HRSA |
|
|
| Titanyum |
|
Önerilir Kabul Edilebilir Önerilmez
