Frezeleme (Mic-Cut)

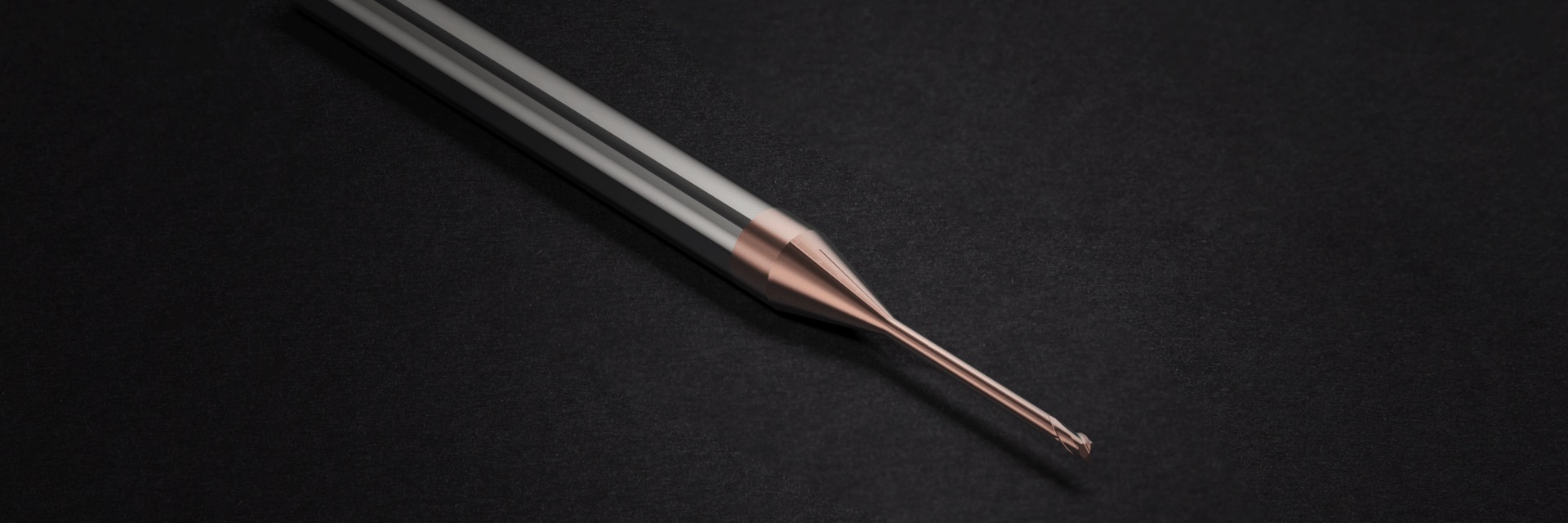

150 Serisi Freze

Mikro Seri
Mikro Seri
Mikro Düz Freze

Finiş
Kaba

Çelik
Paslanmaz Çelik
Sertleştirilmiş Çelik ≤ 54 HRc
Sertleştirilmiş Çelik > 54 HRc
Döküm
Grafit
Demir Dışı Materyal
HRSA
Titanyum
  • Önerilir
  • Kabul Edilebilir
  • Önerilmez

150 Ultra-Bite Serisi

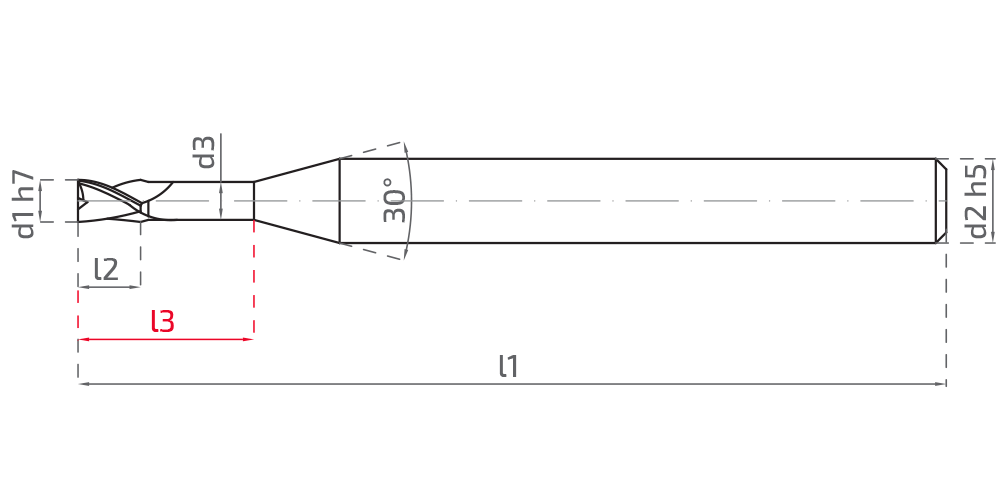

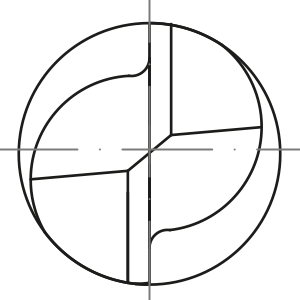

Stok Sipariş Kodu Kod d1h9 d2h5 d3 l1 l2 l3 Köşe
24100 150.2.0040.0510.K0000.0010.0000.0000.00.S04H1A04.01 0.4 4 - 51 1 - Ch 0.00
* 24102 150.2.0050.0510.K0000.0005.0047.0020.00.S04H1A04.01 0.5 4 0.47 51 0.5 2 Ch 0.00
* 24104 150.2.0050.0510.K0000.0005.0047.0030.00.S04H1A04.01 0.5 4 0.47 51 0.5 3 Ch 0.00
* 24106 150.2.0050.0510.K0000.0005.0047.0040.00.S04H1A04.01 0.5 4 0.47 51 0.5 4 Ch 0.00
24108 150.2.0060.0510.K0000.0006.0055.0020.00.S04H1A04.01 0.6 4 0.55 51 0.6 2 Ch 0.00
24110 150.2.0060.0510.K0000.0006.0055.0040.00.S04H1A04.01 0.6 4 0.55 51 0.6 4 Ch 0.00
24112 150.2.0060.0510.K0000.0006.0055.0060.00.S04H1A04.01 0.6 4 0.55 51 0.6 6 Ch 0.00
24114 150.2.0100.0510.K0000.0010.0094.0028.00.S04H1A04.01 1 4 0.94 51 1 2.8 Ch 0.00
* 24116 150.2.0100.0510.K0000.0010.0094.0040.00.S04H1A04.01 1 4 0.94 51 1 4 Ch 0.00
* 24118 150.2.0100.0510.K0000.0010.0094.0060.00.S04H1A04.01 1 4 0.94 51 1 6 Ch 0.00
* 24120 150.2.0100.0510.K0000.0010.0094.0080.00.S04H1A04.01 1 4 0.94 51 1 8 Ch 0.00
* 24122 150.2.0100.0510.K0000.0010.0094.0100.00.S04H1A04.01 1 4 0.94 51 1 10 Ch 0.00
* 24124 150.2.0100.0510.K0000.0010.0094.0120.00.S04H1A04.01 1 4 0.94 51 1 12 Ch 0.00
24126 150.2.0100.0510.K0000.0010.0094.0140.00.S04H1A04.01 1 4 0.94 51 1 14 Ch 0.00
* 24128 150.2.0100.0510.K0000.0010.0094.0160.00.S04H1A04.01 1 4 0.94 51 1 16 Ch 0.00
* 24130 150.2.0150.0510.K0000.0015.0140.0040.00.S04H1A04.01 1.5 4 1.4 51 1.5 4 Ch 0.00
* 24132 150.2.0150.0510.K0000.0015.0140.0060.00.S04H1A04.01 1.5 4 1.4 51 1.5 6 Ch 0.00
* 24134 150.2.0150.0510.K0000.0015.0140.0080.00.S04H1A04.01 1.5 4 1.4 51 1.5 8 Ch 0.00
* 24136 150.2.0150.0510.K0000.0015.0140.0100.00.S04H1A04.01 1.5 4 1.4 51 1.5 10 Ch 0.00
* 24138 150.2.0150.0510.K0000.0015.0140.0120.00.S04H1A04.01 1.5 4 1.4 51 1.5 12 Ch 0.00
24140 150.2.0150.0510.K0000.0015.0140.0140.00.S04H1A04.01 1.5 4 1.4 51 1.5 14 Ch 0.00
* 24142 150.2.0150.0510.K0000.0015.0140.0160.00.S04H1A04.01 1.5 4 1.4 51 1.5 16 Ch 0.00
* 24144 150.2.0200.0510.K0000.0020.0190.0040.00.S04H1A04.01 2 4 1.9 51 2 4 Ch 0.00
* 24146 150.2.0200.0510.K0000.0020.0190.0060.00.S04H1A04.01 2 4 1.9 51 2 6 Ch 0.00
* 24148 150.2.0200.0510.K0000.0020.0190.0080.00.S04H1A04.01 2 4 1.9 51 2 8 Ch 0.00
* 24150 150.2.0200.0510.K0000.0020.0190.0100.00.S04H1A04.01 2 4 1.9 51 2 10 Ch 0.00
* 24152 150.2.0200.0510.K0000.0020.0190.0120.00.S04H1A04.01 2 4 1.9 51 2 12 Ch 0.00
* 24154 150.2.0200.0510.K0000.0020.0190.0160.00.S04H1A04.01 2 4 1.9 51 2 16 Ch 0.00
24156 150.2.0200.0510.K0000.0020.0190.0200.00.S04H1A04.01 2 4 1.9 51 2 20 Ch 0.00
24158 150.2.0200.0750.K0000.0060.0190.0400.00.S04J1A04.01 2 4 1.9 75 6 40 Ch 0.00
24160 150.2.0250.0510.K0000.0025.0240.0060.00.S04H1A04.01 2.5 4 2.4 51 2.5 6 Ch 0.00
24162 150.2.0250.0510.K0000.0025.0240.0080.00.S04H1A04.01 2.5 4 2.4 51 2.5 8 Ch 0.00
24164 150.2.0250.0510.K0000.0025.0240.0100.00.S04H1A04.01 2.5 4 2.4 51 2.5 10 Ch 0.00
24166 150.2.0250.0510.K0000.0025.0240.0120.00.S04H1A04.01 2.5 4 2.4 51 2.5 12 Ch 0.00
24168 150.2.0250.0510.K0000.0025.0240.0200.00.S04H1A04.01 2.5 4 2.4 51 2.5 20 Ch 0.00
24170 150.2.0250.0750.K0000.0060.0240.0500.00.S04J1A04.01 2.5 4 2.4 75 6 50 Ch 0.00

Macro Serisi

Stok Sipariş Kodu Kod d1h9 d2h5 d3 l1 l2 l3 Köşe
24172 150.2.0300.0580.K0000.0025.0290.0100.00.S06H1A04.01 3 6 2.9 58 2.5 10 Ch 0.00
24174 150.2.0300.0580.K0000.0025.0290.0120.00.S06H1A04.01 3 6 2.9 58 2.5 12 Ch 0.00
24176 150.2.0300.0580.K0000.0025.0290.0160.00.S06H1A04.01 3 6 2.9 58 2.5 16 Ch 0.00
24178 150.2.0300.0750.K0000.0025.0290.0200.00.S06J1A04.01 3 6 2.9 75 2.5 20 Ch 0.00
24180 150.2.0300.0750.K0000.0025.0290.0250.00.S06J1A04.01 3 6 2.9 75 2.5 25 Ch 0.00
24182 150.2.0300.0750.K0000.0025.0290.0300.00.S06J1A04.01 3 6 2.9 75 2.5 30 Ch 0.00
24184 150.2.0300.0750.K0000.0060.0290.0500.00.S04J1A04.01 3 4 2.9 75 6 50 Ch 0.00
24186 150.2.0350.0510.K0000.0100.0340.0150.00.S04H1A04.01 3.5 4 3.4 51 10 15 Ch 0.00
24188 150.2.0400.0580.K0000.0040.0390.0120.00.S06H1A04.01 4 6 3.9 58 4 12 Ch 0.00
24190 150.2.0400.0580.K0000.0040.0390.0160.00.S06H1A04.01 4 6 3.9 58 4 16 Ch 0.00
24192 150.2.0400.0750.K0000.0040.0390.0200.00.S06J1A04.01 4 6 3.9 75 4 20 Ch 0.00
24194 150.2.0400.0750.K0000.0040.0390.0250.00.S06J1A04.01 4 6 3.9 75 4 25 Ch 0.00
24196 150.2.0400.0750.K0000.0040.0390.0300.00.S06J1A04.01 4 6 3.9 75 4 30 Ch 0.00
24198 150.2.0400.0750.K0000.0100.0390.0500.00.S04J1A04.01 4 4 3.9 75 10 50 Ch 0.00

Diş Başı İlerleme (mm/diş)

Ø ae=0.20Ø ae=0.10Ø ae=0.20Ø ae=0.10Ø
0,5 0,007 0,009 0,1 0,12
1 0,015 0,02 0,015 0,02
1,5 0,018 0,025 0,018 0,025
2 0,022 0,031 0,022 0,031
2,5 0,027 0,038 0,027 0,038
3 0,030 0,042 0,035 0,045
4 0,035 0,048 0,044 0,049

Kesme Değerleri

Malzeme Kenar Frezeleme Kanal Frezeleme
ap=0.2Ø / ae=0.20 - 0.10Ø ap=0.1Ø
Vc (m/dk)  Vc (m/dk)
Alaşımsız Çelik 170-220 170-220
İmalat Çeliği 170-220 170-220
lslah Çeliği 140-180 140-180
Soğuk İş Takım Çeliği 140-180 140-180
Sıcak İş Takım Çeliği 110-150 110-150
AISI 304 - 416 - 420 80-130 80-130
AISI 316 - 440 70-120 70-120
17-4 PH 15-5 PH 70-100 70-100
Krom Kobalt Alaşımları 60-100 60-10
Duplex F51 50-80 50-80
Super Duplex F55 50-80 50-80
Gri Dökme Demir 110-150 110-150
Titanyum 30-60 30-60
Titanyum Alaşımları 30-60 30-60
≤ 54 HRC 100-140 100-140
>54 HRC 70-90 70-90
Çelik
Paslanmaz Çelik
Sertleştirilmiş Çelik ≤ 54 HRc
Sertleştirilmiş Çelik > 54 HRc
Döküm
Grafit
Demir Dışı Materyal
HRSA
Titanyum
  • Önerilir
  • Kabul Edilebilir
  • Önerilmez
