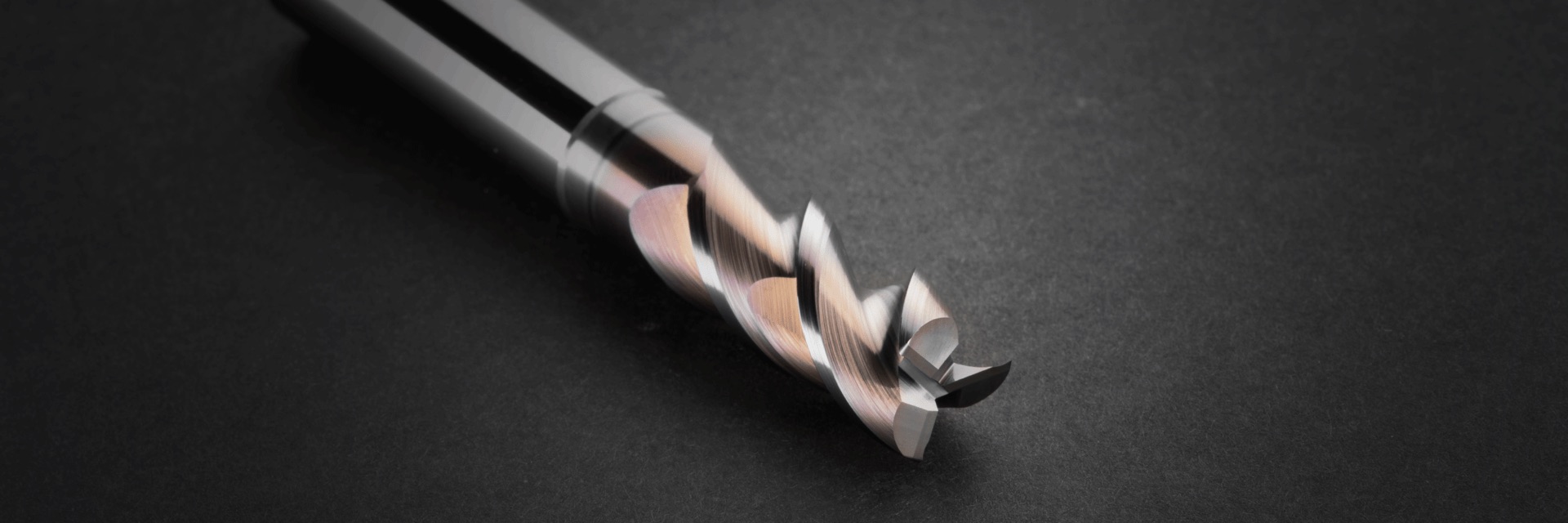

Finiş
Kaba
| Çelik |
|
|
| Paslanmaz Çelik |
|
|
| Sertleştirilmiş Çelik ≤ 54 HRc |
|
|
| Sertleştirilmiş Çelik > 54 HRc |
|
|
| Döküm |
|
|
| Grafit |
|
|
| Demir Dışı Materyal |
|
|
| HRSA |
|
|
| Titanyum |
|
Önerilir

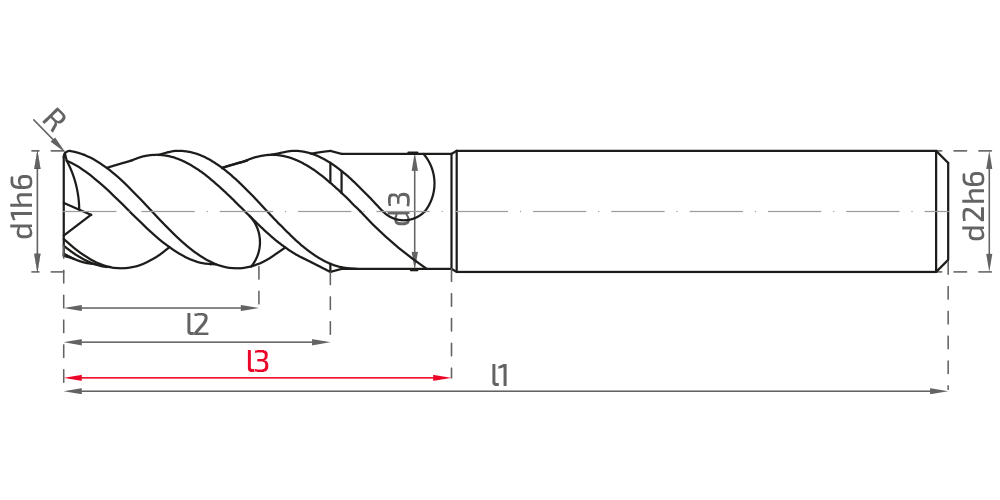

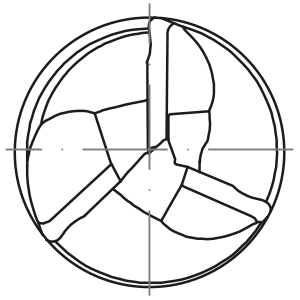

Kabul Edilebilir Önerilmez| Stok | Sipariş Kodu | Kod | Eski Kod | d1h6 | d2h6 | d3 | l1 | l2 | l3 | Köşe | İlgili Doküman |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 59100 | 133.3.0300.0580.R0015.0080.0280.0130.00.S06E2V01.01 | 133303015 | 3 | 6 | 2.80 | 58 | 8 | 13 | R 0.15 | ||
| 59102 | 133.3.0300.0580.K0000.0080.0280.0130.00.S06E2V01.01 | 133303000 | 3 | 6 | 2.80 | 58 | 8 | 13 | Ch 0.00 | ||
| 59104 | 133.3.0400.0580.R0015.0130.0380.0154.00.S06E2V01.01 | 133304015 | 4 | 6 | 3.80 | 58 | 13 | 15.40 | R 0.15 | ||
| 59106 | 133.3.0500.0580.R0015.0130.0480.0210.00.S06E2V01.01 | 133305015 | 5 | 6 | 4.80 | 58 | 13 | 21 | R 0.15 | ||
| 59108 | 133.3.0500.0580.K0000.0130.0480.0210.00.S06E2V01.01 | 133305000 | 5 | 6 | 4.80 | 58 | 13 | 21 | Ch 0.00 | ||
| * | 59110 | 133.3.0600.0580.R0020.0130.0550.0210.00.S06E2V01.01 | 133306002 | 6 | 6 | 5.50 | 58 | 13 | 21 | R 0.20 | |
| * | 59112 | 133.3.0600.0580.R0050.0130.0550.0210.00.S06E2V01.01 | 133306005 | 6 | 6 | 5.50 | 58 | 13 | 21 | R 0.50 | |
| * | 59114 | 133.3.0800.0640.R0025.0210.0750.0280.00.S08E2V01.01 | 133308025 | 8 | 8 | 7.50 | 64 | 21 | 28 | R 0.25 | |
| 59116 | 133.3.0800.0640.R0050.0210.0750.0280.00.S08E2V01.01 | 133308005 | 8 | 8 | 7.50 | 64 | 21 | 28 | R 0.50 | ||
| 59118 | 133.3.0800.0640.R0100.0210.0750.0280.00.S08E2V01.01 | 133308010 | 8 | 8 | 7.50 | 64 | 21 | 28 | R 1.00 | ||
| * | 59120 | 133.3.1000.0730.R0030.0220.0950.0320.00.S10E2V01.01 | 133310003 | 10 | 10 | 9.50 | 73 | 22 | 32 | R 0.30 | |
| * | 59122 | 133.3.1000.0730.R0050.0220.0950.0320.00.S10E2V01.01 | 133310005 | 10 | 10 | 9.50 | 73 | 22 | 32 | R 0.50 | |
| 59124 | 133.3.1000.0730.R0100.0220.0950.0320.00.S10E2V01.01 | 133310010 | 10 | 10 | 9.50 | 73 | 22 | 32 | R 1.00 | ||
| * | 59126 | 133.3.1200.0820.R0030.0260.1150.0400.00.S12E2V01.01 | 133312003 | 12 | 12 | 11.50 | 82 | 26 | 40 | R 0.30 | |
| * | 59128 | 133.3.1200.0820.R0050.0260.1150.0400.00.S12E2V01.01 | 133312005 | 12 | 12 | 11.50 | 82 | 26 | 40 | R 0.50 | |
| 59130 | 133.3.1200.0820.R0100.0260.1150.0400.00.S12E2V01.01 | 133312010 | 12 | 12 | 11.50 | 82 | 26 | 40 | R 1.00 | ||
| * | 59132 | 133.3.1600.0930.R0040.0360.1550.0530.00.S16E2V01.01 | 133316004 | 16 | 16 | 15.50 | 93 | 36 | 53 | R 0.40 | |
| 59134 | 133.3.1600.0930.R0100.0360.1550.0530.00.S16E2V01.01 | 133316010 | 16 | 16 | 15.50 | 93 | 36 | 53 | R 1.00 | ||
| 59136 | 133.3.1600.0930.R0200.0360.1550.0530.00.S16E2V01.01 | 133316020 | 16 | 16 | 15.50 | 93 | 36 | 53 | R 2.00 | ||
| * | 59138 | 133.3.2000.1050.R0050.0410.1950.0540.00.S20E2V01.01 | 133320005 | 20 | 20 | 19.50 | 105 | 41 | 54 | R 0.50 | |
| 59140 | 133.3.2000.1050.R0200.0410.1950.0540.00.S20E2V01.01 | 133320020 | 20 | 20 | 19.50 | 105 | 41 | 54 | R 2.00 |
| Ø | ap=1.50Ø | ap=1Ø | ae=0.30Ø | ae=0.20Ø | ae=0.10Ø |
|---|---|---|---|---|---|
| 3 | 0,050 | 0,061 | 0,120 | 0,160 | 0,200 |
| 4 | 0,056 | 0,068 | 0,130 | 0,178 | 0,221 |
| 5 | 0,062 | 0,076 | 0,152 | 0,190 | 0,240 |
| 6 | 0,068 | 0,080 | 0,161 | 0,200 | 0,262 |
| 8 | 0,072 | 0,083 | 0,168 | 0,210 | 0,281 |
| 10 | 0,075 | 0,088 | 0,173 | 0,220 | 0,300 |
| 12 | 0,084 | 0,093 | 0,200 | 0,260 | 0,325 |
| 16 | 0,090 | 0,103 | 0,240 | 0,300 | 0,360 |
| 20 | 0,100 | 0,112 | 0,280 | 0,340 | 0,400 |
| MALZEME | KANAL FREZELEME ap=1xØ / ae=1xØ Vc(m/dk) | KENAR FREZELEME ap=1xØ/ ae=0,5xØ Vc(m/dk) | |
|---|---|---|---|
|
|
|
|
|
| Alüminyum Alaşım | <%6 Si | 380-430 | 380-430 |
| <%12 Si | 330-380 | 330-380 | |
| >%12 Si | 200-250 | 200-250 | |
| Bakır Alaşımları | 140-180 | 140-180 |
