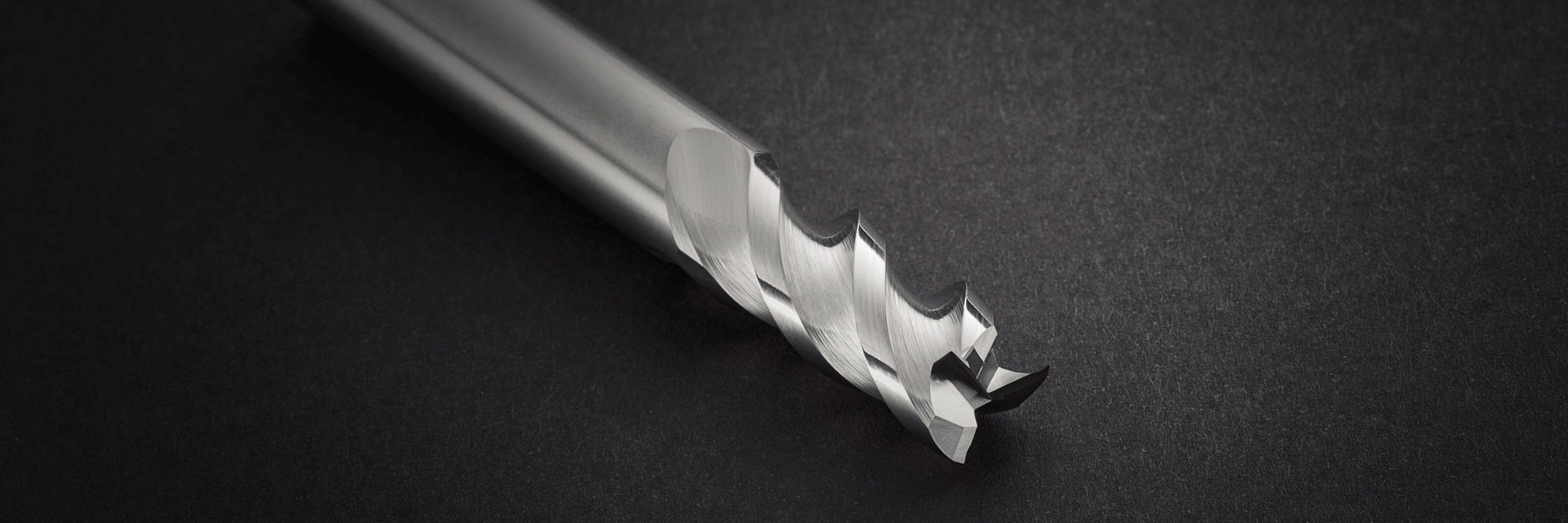

123 Kısa Serisi

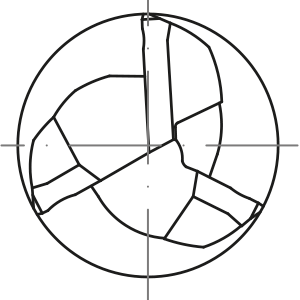

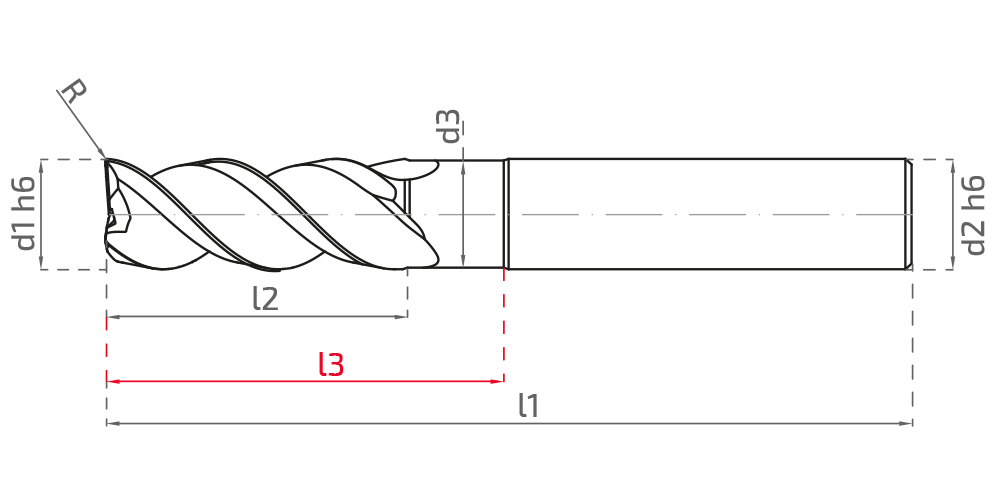

Stok	Sipariş Kodu	Kod	d1h6	d2h6	d3	l1	l2	l3	Köşe	Z
*	58100	11F01_12300030200A01	2	6	1.90	57	5	12	Ch 0,04	3
*	58224	11F01_12300030200A02	2	6	1.90	57	4	8	Ch 0,04	3
*	58102	11F01_12300030250A01	2.50	6	2.40	57	8	16	Ch 0,05	3
*	58226	11F01_12300030250A02	2.50	6	2.40	57	5	9	Ch 0,05	3
*	58104	11F20_12300030300A01	3	6	2.80	57	8	13	R 0,20	3
	58230	11F20_12300030300A02	3	6	2.80	57	8	16	R 0,10	3
*	58106	11F20_12300030400A01	4	6	3.80	57	13	15.40	R 0,20	3
*	58108	11F20_12300030500A01	5	6	4.80	57	15	21	R 0,20	3
*	58110	11F20_12300030600A01	6	6	5.50	57	17	26	R 0,20	3
*	58182	11F20_12300030600A02	6	6	5.50	57	17	26	R 0,50	3
*	58184	11F20_12300030600A03	6	6	5.50	57	17	26	R 1,00	3
*	58186	11F20_12300030600A04	6	6	5.50	57	17	26	R 2,00	3
	58236	11F20_12300030800A01	8	8	7.50	64	10	20	R 0,10	3
*	58112	11F20_12300030800A02	8	8	7.50	64	22	29	R 0,20	3
*	58188	11F20_12300030800A03	8	8	7.50	64	22	29.50	R 0,50	3
*	58190	11F20_12300030800A04	8	8	7.50	64	22	29.50	R 1,00	3
*	58192	11F20_12300030800A05	8	8	7.50	64	22	29.50	R 2,00	3
*	58194	11F20_12300030800A06	8	8	7.50	64	22	29.50	R 3,00	3
*	58114	11F20_12300031000A01	10	10	9.50	72	25	34	R 0,20	3
*	58196	11F20_12300031000A02	10	10	9.50	72	25	34	R 0,50	3
*	58198	11F20_12300031000A03	10	10	9.50	72	25	34	R 1,00	3
*	58200	11F20_12300031000A04	10	10	9.50	72	25	34	R 2,00	3
*	58202	11F20_12300031000A05	10	10	9.50	72	25	34	R 3,00	3
*	58116	11F20_12300031200A01	12	12	11.50	82	28	40	R 0,20	3
*	58204	11F20_12300031200A02	12	12	11.50	82	28	40	R 0,50	3
*	58206	11F20_12300031200A03	12	12	11.50	82	28	40	R 1,00	3
*	58208	11F20_12300031200A04	12	12	11.50	82	28	40	R 2,00	3
*	58210	11F20_12300031200A05	12	12	11.50	82	28	40	R 3,00	3
*	58212	11F20_12300031200A06	12	12	11.50	82	28	40	R 4,00	3
*	58118	11F20_12300031400A01	14	14	13.50	82	28	39	R 0,20	3
*	58120	11F20_12300031600A01	16	16	15.50	93	37	51	R 0,20	3
*	58214	11F20_12300031600A02	16	16	15.50	93	37	51	R 0,50	3
*	58216	11F20_12300031600A03	16	16	15.50	93	37	51	R 1,00	3
*	58218	11F20_12300031600A04	16	16	15.50	93	37	51	R 2,00	3
*	58220	11F20_12300031600A05	16	16	15.50	93	37	51	R 3,00	3
*	58222	11F20_12300031600A06	16	16	15.50	93	37	51	R 4,00	3
*	58122	11F20_12300032000A01	20	20	19.50	105	38	52	R 0,20	3

123 Uzun Serisi

Stok	Sipariş Kodu	Kod	d1h6	d2h6	d3	l1	l2	l3	Köşe	Z
*	58124	11F20_123U0030300A01	3	6	2.8	75	8	13	R 0,20	3
	58180	11F20_123U0030400A01	4	6	3.8	75	13	15.4	R 0,20	3
	58232	11F20_123U0030500A01	5	6	4.8	65	10	20	R 0,10	3
	58234	11F20_123U0030600A01	6	6	5.5	65	10	20	R 0,10	3
	58286	11F20_123U0030600A02	6	6	5.5	70	17	35	R 0,50	3
	58288	11F20_123U0030600A03	6	6	5.5	70	17	35	R 1,00	3
*	58126	11F20_123U0030600A04	6	6	5.5	100	15	45	R 0,20	3
	58290	11F20_123U0030800A01	8	8	7.5	72	15	40	R 0,50	3
	58238	11F20_123U0030800A03	8	8	7.5	82	20	45	R 2,00	3
	58292	11F20_123U0030800A04	8	8	7.5	90	15	55	R 0,50	3
*	58128	11F20_123U0030800A05	8	8	7.5	110	18	62	R 0,20	3
	58268	11F20_123U0030800A02	8	8	7.5	82	22	45	R 0,20	3
	58240	11F20_123U0031000A02	10	10	9.5	82	10	30	R 0,10	3
	58270	11F20_123U0031000A01	10	10	9.5	82	25	45	R 0,20	3
	58244	11F20_123U0031000A04	10	10	9.5	82	10	30	R 0,30	3
	58254	11F20_123U0031000A03	10	10	9.5	82	10	45	R 2,00	3
	58258	11F20_123U0031000A05	10	10	9.5	82	10	42	R 3,00	3
	58250	11F20_123U0031000A06	10	10	9.5	90	30	40	R 0,50	3
	58246	11F20_123U0031000A08	10	10	9.5	95	15	55	R 0,50	3
	58252	11F20_123U0031000A09	10	10	9.5	95	15	55	R 1,00	3
	58256	11F20_123U0031000A10	10	10	9.5	95	15	55	R 3,00	3
	58242	11F20_123U0031000A11	10	10	9.5	100	15	63	R 0,10	3
*	58130	11F20_123U0031000A12	10	10	9.5	110	20	62	R 0,20	3
	58260	11F20_123U0031000A07	10	10	9.5	110	15	65	R 3,00	3
	58248	11F20_123U0031000A13	10	10	9.5	130	20	85	R 0,50	3
	58262	11F20_123U0031200A01	12	12	11.5	95	15	40	R 0,10	3
	58296	11F20_123U0031200A02	12	12	11.5	95	40	50	R 0,30	3
*	58132	11F20_123U0031200A03	12	12	11.5	103	25	40	R 0,20	3
	58228	11F20_123U0031200A04	12	12	11.5	100	45	50	R 0,20	3
	58264	11F20_123U0031200A05	12	12	11.5	110	20	70	R 0,20	3
*	58134	11F20_123U0031200A06	12	12	11.5	130	25	80	R 0,20	3
*	58136	11F20_123U0031200A07	12	12	11.5	150	32	105	R 0,20	3
*	58138	11F20_123U0031600A01	16	16	15.5	110	50	60	R 0,20	3
*	58142	11F20_123U0031600A02	16	16	15.5	125	35	75	R 0,20	3
	58302	11F20_123U0031600A05	16	16	15.5	130	20	85	R 1,00	3
*	58144	11F20_123U0031600A03	16	16	15.5	160	30	110	R 0,20	3
	58146	11F20_123U0031600A04	16	16	-	200	30	-	R 0,20	3
	58298	11F20_123U0031800A01	18	18	17.5	220	20	160	R 3,00	3
	58300	11F20_123U0032000A01	20	20	19.5	110	20	65	R 3,00	3
	58148	11F20_123U0032000A02	20	20	19.5	200	30	115	R 0,20	3
	58304	11F20_123U0032500A01	25	25	24.5	220	95	150	R 3,00	3

Diş Başı İlerleme (mm/dev)

Ø	ap=1.50Ø	ap=1Ø	ae=0.30Ø	ae=0.20Ø	ae=0.10Ø
3	0,01	0,015	0,03	0,035	0,04
4	0,056	0,068	0,08	0,09	0,1
5	0,06	0,07	0,09	0,1	0,12
6	0,07	0,075	0,1	0,12	0,15
8	0,072	0,083	0,168	0,21	0,281
10	0,075	0,088	0,173	0,22	0,3
12	0,084	0,093	0,2	0,26	0,325
16	0,09	0,103	0,24	0,3	0,36
20	0,1	0,112	0,28	0,34	0,4

Kesme Değerleri

Malzeme	Kanal Frezeleme	Kenar Frezeleme

	ap=1.5-1.0Ø	ap=1.5Ø / ae=0.3 - 0.2 - 0.1Ø
	Vc (m/dk)	Vc (m/dk)
Alüminyum Alaşım	250-300	350-400
Bakır Alaşımları	200-250	300-350

	Çelik
	Paslanmaz Çelik
	Sertleştirilmiş Çelik ≤ 54 HRc
	Sertleştirilmiş Çelik > 54 HRc
	Döküm
	Grafit
	Demir Dışı Materyal
	HRSA
	Titanyum

Önerilir
Kabul Edilebilir
Önerilmez

Frezeleme (Alu-Mac)

123 Serisi

123 Kısa Serisi

123 Uzun Serisi

Diş Başı İlerleme (mm/dev)

Kesme Değerleri
