| Oțel |
|
|
| Oțel inoxidabil |
|
|
| Oțel călit ≤ 54 HRc |
|
|
| Oțel călit > 54 HRc |
|
|
| Turnare |
|
|
| Grafit |
|
|
| Material neferos |
|
|
| HRSA |
|
|
| Titan |
|

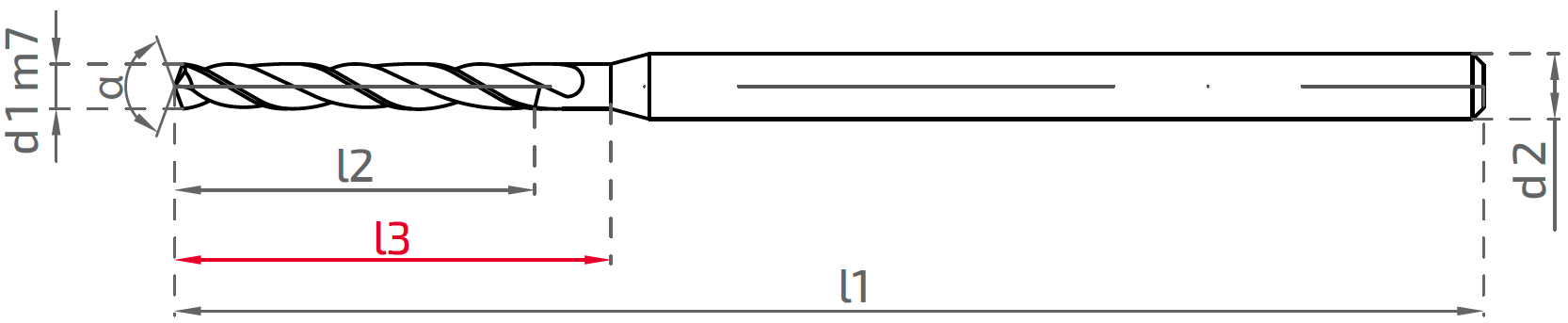

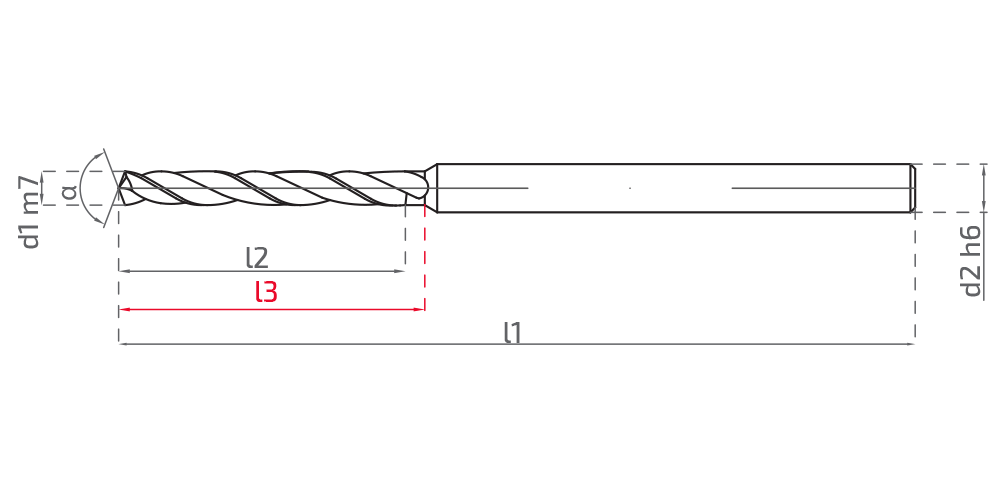

Recomandat Acceptabil Nerecomandat| Stock | Order No | Code | d1m7 | d2h6 | l1 | l2 | l3 |
|---|---|---|---|---|---|---|---|
| 50168 | MED5004738 | 0.47 | 3 | 38 | 7.12 | - | |
| 50124 | MED8012050 | 1.20 | 3 | 50 | 12 | - | |
| 50126 | MED8012060 | 1.20 | 3 | 60 | 12 | - | |
| 50128 | MED8013050 | 1.30 | 3 | 50 | 12 | - | |
| 50130 | MED8013060 | 1.30 | 3 | 60 | 12 | - | |
| 50100 | MED5013060 | 1.30 | 3 | 60 | 10 | 13.50 | |
| 50132 | MED8014050 | 1.40 | 3 | 50 | 12 | 13 | |
| 50134 | MED8014060 | 1.40 | 3 | 60 | 12 | 13 | |
| 50102 | MED8015060 | 1.50 | 3 | 60 | 16 | 18.50 | |
| 50136 | MED8015050 | 1.50 | 3 | 50 | 12 | 13 | |
| 50138 | MED8015060SP | 1.50 | 3 | 60 | 12 | 13 | |
| 50116 | MED8015860 | 1.58 | 3 | 60 | 14 | 16 | |
| 50140 | MED8016050 | 1.60 | 3 | 50 | 16 | 17 | |
| 50142 | MED8016060 | 1.60 | 3 | 60 | 16 | 17 | |
| 50118 | MED5016260 | 1.62 | 3 | 60 | 14.50 | 16 | |
| 50104 | MED5016560 | 1.65 | 3 | 60 | 12.50 | 16 | |
| 50106 | MED8016560 | 1.65 | 3 | 60 | 19 | 22 | |
| 50108 | MED5020560 | 2.05 | 3 | 60 | 16.50 | 20 | |
| 50110 | MED8020560 | 2.05 | 3 | 60 | 22 | 26 | |
| 50144 | MED8021050 | 2.10 | 3 | 50 | 20 | - | |
| 50146 | MED8021060 | 2.10 | 3 | 60 | 20 | - | |
| 50148 | MED5022040 | 2.20 | 3 | 40 | 14 | 16 | |
| 50150 | MED5022060 | 2.20 | 3 | 60 | 14 | 16 | |
| 50122 | MED8023065 | 2.30 | 3 | 65 | 14 | 20 | |
| 50152 | MED5023040 | 2.30 | 3 | 40 | 14 | 16 | |
| 50154 | MED5023060 | 2.30 | 3 | 60 | 14 | 16 | |
| 50112 | MED5024560 | 2.45 | 3 | 60 | 19.50 | 23.50 | |
| 50114 | MED8024560 | 2.45 | 3 | 60 | 28 | 31 | |
| 50120 | MED8025085 | 2.50 | 3 | 85 | 15 | 20 | |
| 50156 | MED5025540 | 2.55 | 3 | 40 | 14 | 16 | |
| 50158 | MED5025560 | 2.55 | 3 | 60 | 14 | 16 | |
| 50164 | MED8026060 | 2.60 | 3 | 60 | 24 | 24.50 | |
| 50160 | MED5027047 | 2.70 | 3 | 47 | 16 | 19 | |
| 50162 | MED5027060 | 2.70 | 3 | 60 | 16 | 19 | |
| 50166 | MED8029060 | 2.90 | 3 | 60 | 27 | 28 |
| Ø | mm/dev |
|---|---|
| 1,3-1,5 | 0,022 |
| 1,5-1,7 | 0,029 |
| 1,7-2,1 | 0,039 |
| 2,1-2,45 | 0,052 |
| 2,45-3 | 0,068 |
| 17-20 | 0,220 |
| Material | m/min | |
|---|---|---|
| Unalloyed steel | 80-180 | ◑ |
| Steel | 75-160 | ◑ |
| Tempered steel | 75-150 | ○ |
| Cold work tool steel | 60-120 | ○ |
| Hot work tool steel | 60-120 | ○ |
| AISI 304 - 416 - 420 | 40-80 | ● |
| AISI 316 - 440 | 40-80 | ● |
| 17-4 PH 15-5 PH | 35-65 | ● |
| Cobalt-Chrome alloys | 30-50 | ● |
| Duplex F51 | 30-50 | ● |
| Gray cast | 90-150 | ◑ |
| Alloyed cast | 90-130 | ◑ |
| Precision cast | 90-120 | ◑ |
| Grafit | 95-110 | ○ |
| Titanium | 40-70 | ● |
| Titanium alloys | 40-70 | ● |
| Oțel |
|
|
| Oțel inoxidabil |
|
|
| Oțel călit ≤ 54 HRc |
|
|
| Oțel călit > 54 HRc |
|
|
| Turnare |
|
|
| Grafit |
|
|
| Material neferos |
|
|
| HRSA |
|
|
| Titan |
|
Recomandat Acceptabil Nerecomandat
