Finiş
Kaba
| Oțel |
|
|
| Oțel inoxidabil |
|
|
| Oțel călit ≤ 54 HRc |
|
|
| Oțel călit > 54 HRc |
|
|
| Turnare |
|
|
| Grafit |
|
|
| Material neferos |
|
|
| HRSA |
|
|
| Titan |
|

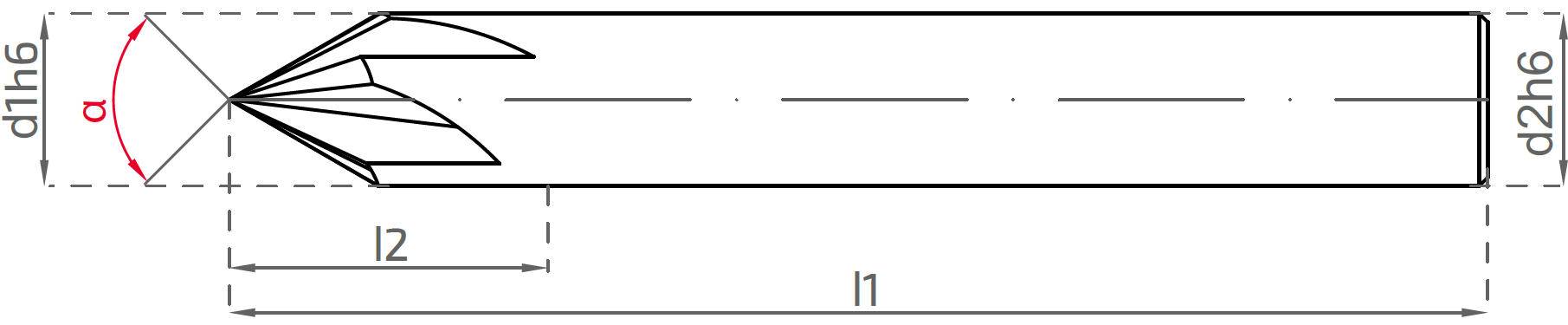

Recomandat Acceptabil Nerecomandat| Stock | Order No | Code | d1h6 | d2h6 | l1 | l2 | α | Z |
|---|---|---|---|---|---|---|---|---|
| 40100 | MCY404051 | 4 | 4 | 51 | 10 | 60 | 4 | |
| * | 40102 | MCY406058 | 6 | 6 | 58 | 15 | 60 | 4 |
| * | 40104 | MCY508064 | 8 | 8 | 64 | 15 | 60 | 5 |
| * | 40106 | MCY610073 | 10 | 10 | 73 | 18 | 60 | 6 |
| * | 40108 | MCY612083 | 12 | 12 | 83 | 21 | 60 | 6 |

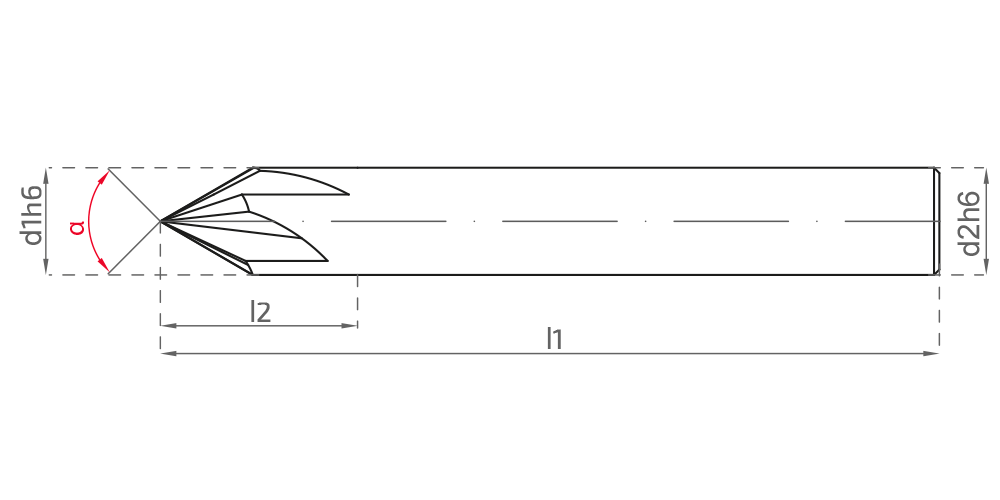

| Stock | Order No. | Code | Old Code | d1h6 | d2h6 | l1 | l2 | α | Z | Related Document |
|---|---|---|---|---|---|---|---|---|---|---|
| * | 40100 | MCY.4.0400.0500.A060.0100.0000.0000.00.S04A1A01.01 | MCY404051 | 4 | 4 | 50 | 10 | 60 | 4 | |
| * | 40102 | MCY.4.0600.0580.A060.0150.0000.0000.00.S06A1A01.01 | MCY406058 | 6 | 6 | 58 | 15 | 60 | 4 | |
| * | 40104 | MCY.5.0800.0640.A060.0150.0000.0000.00.S08A1A01.01 | MCY508064 | 8 | 8 | 64 | 15 | 60 | 5 | |
| * | 40106 | MCY.6.1000.0730.A060.0180.0000.0000.00.S10A1A01.01 | MCY610073 | 10 | 10 | 73 | 18 | 60 | 6 | |
| * | 40108 | MCY.6.1200.0820.A060.0210.0000.0000.00.S12A1A01.01 | MCY610073 | 12 | 12 | 82 | 21 | 60 | 6 |
| Material | Quarter Circle |
|---|---|
| Vc (m/min) | |
| Unalloyed steel | 120-150 |
| Steel | 120-150 |
| Tempered steel | 110-140 |
| Cold work tool steel | 90-120 |
| Hot work tool steel | 80-110 |
| AISI 304 - 416 - 420 | 60-90 |
| AISI 316 - 440 | 40-70 |
| 17-4 PH 15-5 PH | 40-70 |
| Chrome-Cobalt alloy | 35-65 |
| Duplex F51 | 35-65 |
| Super duplex F55 | 30-40 |
| HRSA hastelloy | 40-70 |
| HRSA incoinel 625 | 40-70 |
| HRSA incoinel 718 | 40-70 |
| HRSA nimonic | 40-70 |
| Titanium | 50-80 |
| Titanium alloys | 50-80 |
| ≤ 54 HRC | 70-100 |
| >54 HRC | 50-80 |
| Oțel |
|
|
| Oțel inoxidabil |
|
|
| Oțel călit ≤ 54 HRc |
|
|
| Oțel călit > 54 HRc |
|
|
| Turnare |
|
|
| Grafit |
|
|
| Material neferos |
|
|
| HRSA |
|
|
| Titan |
|
Recomandat Acceptabil Nerecomandat
