K5DX 5D Burghiu Seria

K5DX Seria

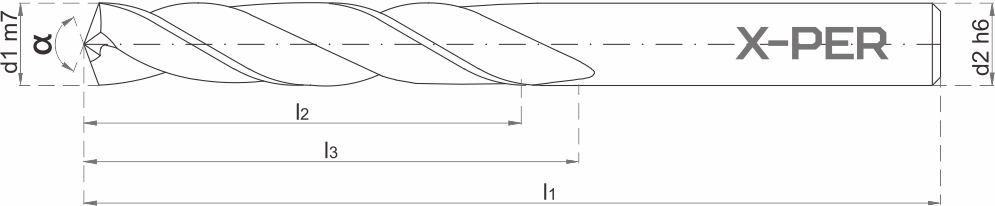

Order No	Code	d1m7	d2h6	l1	l2	l3
49100	K5DX030066	3	6	66	27	28
49102	K5DX031066	3.10	6	66	27	28
49104	K5DX032066	3.20	6	66	27	28
49106	K5DX033066	3.30	6	66	27	28
49108	K5DX034066	3.40	6	66	27	28
49110	K5DX035066	3.50	6	66	27	28
49112	K5DX036066	3.60	6	66	27	28
49114	K5DX037066	3.70	6	66	27	28
49116	K5DX038074	3.80	6	74	32	36
49118	K5DX039074	3.90	6	74	32	36
49120	K5DX040074	4	6	74	32	36
49122	K5DX041074	4.10	6	74	32	36
49124	K5DX042074	4.20	6	74	32	36
49126	K5DX043074	4.30	6	74	32	36
49128	K5DX044074	4.40	6	74	32	36
49130	K5DX045074	4.50	6	74	32	36
49132	K5DX046074	4.60	6	74	32	36
49134	K5DX047074	4.70	6	74	32	36
49136	K5DX048082	4.80	6	82	41	44
49138	K5DX049082	4.90	6	82	41	44
49140	K5DX050082	5	6	82	41	44
49142	K5DX051082	5.10	6	82	41	44
49144	K5DX052082	5.20	6	82	41	44
49146	K5DX053082	5.30	6	82	41	44
49148	K5DX054082	5.40	6	82	41	44
49150	K5DX055082	5.50	6	82	41	44
49152	K5DX056082	5.60	6	82	41	44
49154	K5DX057082	5.70	6	82	41	44
49156	K5DX058082	5.80	6	82	41	44
49158	K5DX059082	5.90	6	82	41	44
49160	K5DX060082	6	6	82	41	44
49162	K5DX061091	6.10	8	91	50	53
49164	K5DX062091	6.20	8	91	50	53
49166	K5DX063091	6.30	8	91	50	53
49168	K5DX064091	6.40	8	91	50	53
49170	K5DX065091	6.50	8	91	50	53
49172	K5DX066091	6.60	8	91	50	53
49174	K5DX067091	6.70	8	91	50	53
49176	K5DX068091	6.80	8	91	50	53
49178	K5DX069091	6.90	8	91	50	53
49180	K5DX070091	7	8	91	50	53
49182	K5DX071091	7.10	8	91	50	53
49184	K5DX072091	7.20	8	91	50	53
49186	K5DX073091	7.30	8	91	50	53
49188	K5DX074091	7.40	8	91	50	53
49190	K5DX075091	7.50	8	91	50	53
49192	K5DX076091	7.60	8	91	50	53
49194	K5DX077091	7.70	8	91	50	53
49196	K5DX078091	7.80	8	91	50	53
49198	K5DX079091	7.90	8	91	50	53
49200	K5DX080091	8	8	91	50	53
49202	K5DX081103	8.10	10	103	57	61
49204	K5DX082103	8.20	10	103	57	61
49206	K5DX084103	8.40	10	103	57	61
49208	K5DX085103	8.50	10	103	57	61
49210	K5DX086103	8.60	10	103	57	61
49212	K5DX088103	8.80	10	103	57	61
49214	K5DX089103	8.90	10	103	57	61
49216	K5DX090103	9	10	103	57	61
49218	K5DX091103	9.10	10	103	57	61
49220	K5DX092103	9.20	10	103	57	61
49222	K5DX093103	9.30	10	103	57	61
49224	K5DX094103	9.40	10	103	57	61
49226	K5DX095103	9.50	10	103	57	61
49228	K5DX096103	9.60	10	103	57	61
49230	K5DX097103	9.70	10	103	57	61
49232	K5DX098103	9.80	10	103	57	61
49234	K5DX099103	9.90	10	103	57	61
49236	K5DX100103	10	10	103	57	61
49238	K5DX101118	10.10	12	118	67	71
49240	K5DX102118	10.20	12	118	67	71
49242	K5DX103118	10.30	12	118	67	71
49244	K5DX104118	10.40	12	118	67	71
49246	K5DX105118	10.50	12	118	67	71
49248	K5DX106118	10.60	12	118	67	71
49250	K5DX107118	10.70	12	118	67	71
49252	K5DX108118	10.80	12	118	67	71
49254	K5DX109118	10.90	12	118	67	71
49256	K5DX110118	11	12	118	67	71
49258	K5DX111118	11.10	12	118	67	71
49260	K5DX112118	11.20	12	118	67	71
49262	K5DX113118	11.30	12	118	67	71
49264	K5DX114118	11.40	12	118	67	71
49266	K5DX115118	11.50	12	118	67	71
49268	K5DX116118	11.60	12	118	67	71
49270	K5DX117118	11.70	12	118	67	71
49272	K5DX118118	11.80	12	118	67	71
49274	K5DX119118	11.90	12	118	67	71
49276	K5DX120118	12	12	118	67	71
49278	K5DX121124	12.10	14	124	70	77
49280	K5DX122124	12.20	14	124	70	77
49282	K5DX123124	12.30	14	124	70	77
49284	K5DX124124	12.40	14	124	70	77
49286	K5DX125124	12.50	14	124	70	77
49288	K5DX126124	12.60	14	124	70	77
49290	K5DX127124	12.70	14	124	70	77
49292	K5DX128124	12.80	14	124	70	77
49294	K5DX129124	12.90	14	124	70	77
49296	K5DX130124	13	14	124	70	77
49298	K5DX131124	13.10	14	124	70	77
49300	K5DX133124	13.30	14	124	70	77
49302	K5DX134124	13.40	14	124	70	77
49304	K5DX135124	13.50	14	124	70	77
49306	K5DX136124	13.60	14	124	70	77
49308	K5DX137124	13.70	14	124	70	77
49310	K5DX138124	13.80	14	124	70	77
49312	K5DX139124	13.90	14	124	70	77
49314	K5DX140124	14	14	124	70	77
49316	K5DX141133	14.10	16	133	74	83
49318	K5DX142133	14.20	16	133	74	83
49320	K5DX143133	14.30	16	133	74	83
49322	K5DX144133	14.40	16	133	74	83
49324	K5DX145133	14.50	16	133	74	83
49326	K5DX150133	15	16	133	74	83
49328	K5DX155133	15.50	16	133	74	83
49330	K5DX160133	16	16	133	74	83

Feed Per Tooth (mm/tooth)

Ø	mm/dev
3	0.025
4	0.030
5	0.042
6	0.052
8	0.092
10	0.115
12	0.135
16	0.155
20	0.175
14	0,29
16	0,31
18	0,33
20	0,35

Parametrii de tăiere

Material	Vc(m/min)

Unalloyed steel	65-80	●
Steel	55-70	●
Tempered steel	50-65	●
Cold work tool steel	40-55	◑
Hot work tool steel	40-55	◑
AISI 304 - 416 - 420	30-40	◑
AISI 316 - 440	30-40	◑
17-4 PH 15-5 PH	25-30	◑
Chrome-Cobalt alloy	25-30	◑
Duplex F51	15-25	◑
Super duplex F55	15-25	◑
Gray cast	80-95	●
Alloyed cast	65-80	●
Precision cast	65-80	●
Graphite	95-110	◑
Titanium	30-40	◑
Titanium alloys	25-30	◑

	Oțel
	Oțel inoxidabil
	Oțel călit ≤ 54 HRc
	Oțel călit > 54 HRc
	Turnare
	Grafit
	Material neferos
	HRSA
	Titan

Recomandat
Acceptabil
Nerecomandat

Gaurire
