K3DX 3D Burghiu Seria

K3DX Seria

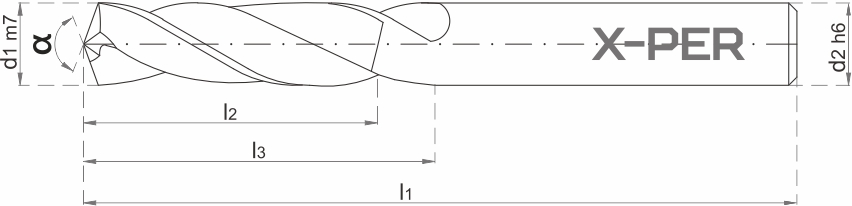

Order No	Code	d1m7	d2h6	l1	l2	l3
48100	K3DX030062	3	6	62	18	20
48102	K3DX033062	3.30	6	62	18	20
48104	K3DX034062	3.40	6	62	18	20
48106	K3DX037062	3.70	6	62	18	20
48108	K3DX038066	3.80	6	66	22	24
48110	K3DX040066	4	6	66	22	24
48112	K3DX041066	4.10	6	66	22	24
48114	K3DX042066	4.20	6	66	22	24
48116	K3DX045066	4.50	6	66	22	24
48118	K3DX046066	4.60	6	66	22	24
48120	K3DX047066	4.70	6	66	22	24
48122	K3DX048066	4.80	6	66	26	28
48124	K3DX050066	5	6	66	26	28
48126	K3DX052066	5.20	6	66	26	28
48128	K3DX055066	5.50	6	66	26	28
48130	K3DX058066	5.80	6	66	26	28
48132	K3DX060066	6	6	66	26	28
48134	K3DX063079	6.30	8	79	32	34
48136	K3DX066079	6.60	8	79	32	34
48138	K3DX068079	6.80	8	79	32	34
48140	K3DX069079	6.90	8	79	32	34
48142	K3DX070079	7	8	79	32	34
48144	K3DX073079	7.30	8	79	38	41
48146	K3DX078079	7.80	8	79	38	41
48148	K3DX080079	8	8	79	38	41
48150	K3DX082089	8.20	10	89	43	47
48152	K3DX085089	8.50	10	89	43	47
48154	K3DX088089	8.80	10	89	43	47
48156	K3DX090089	9	10	89	43	47
48158	K3DX091089	9.10	10	89	43	47
48160	K3DX093089	9.30	10	89	43	47
48162	K3DX095089	9.50	10	89	43	47
48164	K3DX098089	9.80	10	89	43	47
48166	K3DX100089	10	10	89	43	47
48168	K3DX102102	10.20	12	102	51	55
48170	K3DX105102	10.50	12	102	51	55
48172	K3DX108102	10.80	12	102	51	55
48174	K3DX109102	10.90	12	102	51	55
48176	K3DX110102	11	12	102	51	55
48178	K3DX111102	11.10	12	102	51	55
48180	K3DX113102	11.30	12	102	51	55
48182	K3DX115102	11.50	12	102	51	55
48184	K3DX118102	11.80	12	102	51	55
48186	K3DX120102	12	12	102	51	55
48188	K3DX122107	12.20	14	107	53	60
48190	K3DX125107	12.50	14	107	53	60
48192	K3DX128107	12.80	14	107	53	60
48194	K3DX130107	13	14	107	53	60
48196	K3DX135107	13.50	14	107	53	60
48198	K3DX138107	13.80	14	107	53	60
48200	K3DX140107	14	14	107	53	60
48202	K3DX143115	14.30	16	115	58	65
48204	K3DX145115	14.50	16	115	58	65
48206	K3DX150115	15	16	115	58	65
48208	K3DX155115	15.50	16	115	58	65
48210	K3DX160115	16	16	115	58	65

Feed Per Tooth (mm/tooth)

Ø	mm/dev
3	0,030
4	0,035
5	0,050
6	0,060
8	0,100
10	0,125
12	0,150
16	0,155
20	0,200

Parametrii de tăiere

Material	Vc(m/min)

Unalloyed steel	80-120	●
Steel	70-110	●
Tempered steel	65-100	●
Cold work tool steel	55-70	◑
Hot work tool steel	55-70	◑
AISI 304 - 416 - 420	55-65	◑
AISI 316 - 440	55-65	◑
17-4 PH 15-5 PH	50-55	◑
Chrome-Cobalt alloy	50-55	◑
Duplex F51	40-50	◑
Super duplex F55	40-50	◑
Gray cast	95-110	●
Alloyed cast	80-95	●
Precision cast	80-95	●
Graphite	110-130	◑
Titanium	50-70	◑
Titanium alloys	40-60	◑

	Oțel
	Oțel inoxidabil
	Oțel călit ≤ 54 HRc
	Oțel călit > 54 HRc
	Turnare
	Grafit
	Material neferos
	HRSA
	Titan

Recomandat
Acceptabil
Nerecomandat

Gaurire
