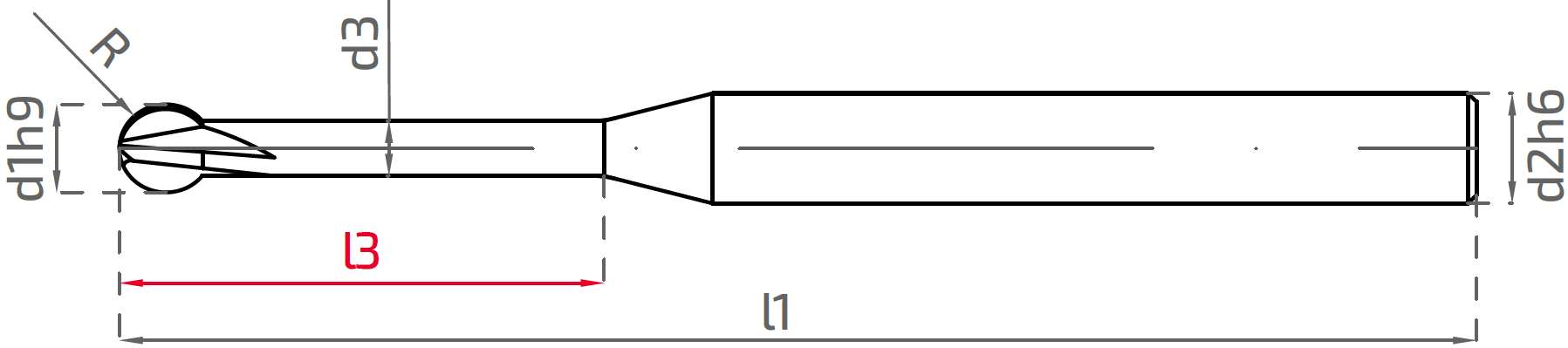

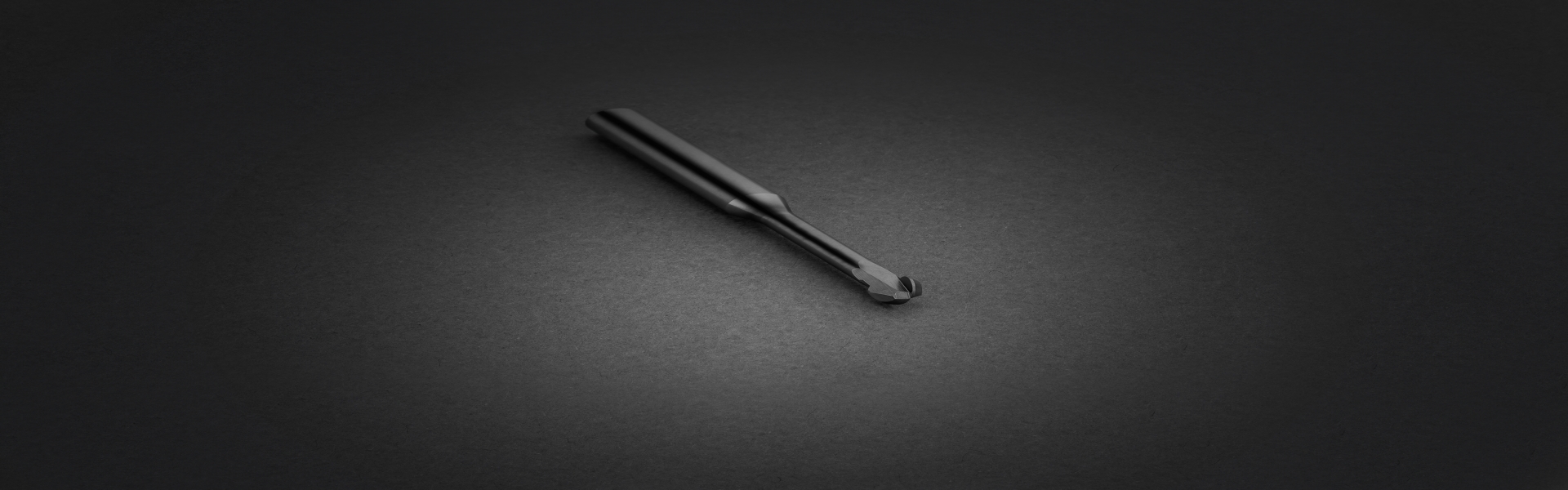

Nerecomandat| Stock | Order No | Legacy Code | d1h9 | d2h6 | d3 | l1 | l3 | Corner |
|---|---|---|---|---|---|---|---|---|
| 66100 | 11F23_DBRA0020080A01 | 0.80 | 3 | 0.48 | 60 | 5 | R 0,40 | |
| 66102 | 11F23_DBRA0020130A01 | 1.30 | 3 | 0.78 | 60 | 8 | R 0,65 | |
| 66104 | 11F23_DBRA0020180A01 | 1.80 | 3 | 1.10 | 60 | 10 | R 0,90 | |
| 66106 | 11F23_DBRA0020230A01 | 2.30 | 3 | 1.40 | 70 | 12.50 | R 1,15 | |
| 66108 | 11F23_DBRA0020280A01 | 2.80 | 4 | 1.70 | 70 | 15 | R 1,40 | |
| 66110 | 11F23_DBRA0020330A01 | 3.30 | 4 | 2 | 70 | 17.50 | R 1,65 | |
| 66112 | 11F23_DBRA0020380A01 | 3.80 | 4 | 2.40 | 70 | 20 | R 1,90 | |
| 66114 | 11F23_DBRA0020480A01 | 4.80 | 6 | 3 | 70 | 25 | R 2,40 | |
| 66116 | 11F23_DBRA0020580A01 | 5.80 | 6 | 3.50 | 70 | 30 | R 2,90 | |
| 66118 | 11F23_DBRA0020780A01 | 7.80 | 8 | 4.70 | 100 | 40 | R 3,90 | |
| 66120 | 11F23_DBRA0020980A01 | 9.80 | 10 | 5.90 | 120 | 50 | R 4,90 |
| Ø (d1h6) | ap=3xØ |
|---|---|
| 0.8 | 0,04-0,08 |
| 1.3 | 0,05-0,08 |
| 1.8 | 0,06-0,09 |
| 2.3 | 0,09-0,1 |
| 2.8 | 0,1-0,15 |
| 3.3 | 0,15-0,18 |
| 3.8 | 0,15-0,19 |
| 4.8 | 0,15-0,20 |
| 5.8 | 0,16-0,21 |
| 7.8 | 0,17-0,22 |
| 9.8 | 0,18-0,23 |
| Material | Deburring |
|---|---|
| Vc (m/dk) | |
| Unalloyed steel | 70-130 |
| Steel | 70-120 |
| Reclamation steel | 70-110 |
| Cold work tool steel | 60-100 |
| Hot work tool steel | 60-100 |
| AISI 304 - 416 - 420 | 50-80 |
| AISI 316 - 440 | 50-80 |
| 17-4 PH 15-5 PH | 50-70 |
| Chrome-Cobalt alloy | 50-70 |
| Duplex F51 | 70-90 |
| Super Duplex F55 | 70-90 |
| Gray cast | 80-130 |
| Alloyed cast | 80-120 |
| Precision cast | 80-120 |
| HRSA inconel 718 | 60-80 |
| Titanium | 80-100 |
| Titanium alloys | 80-100 |
| HRSA | 60-80 |
