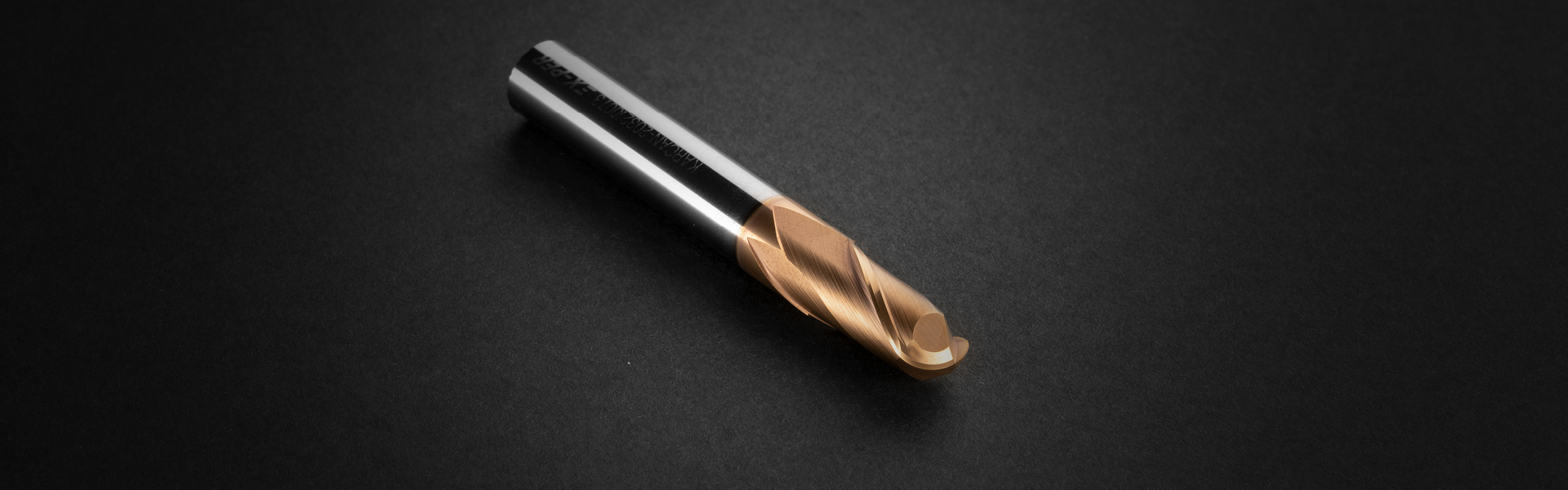

203 Plus Seria Ultra-Bite

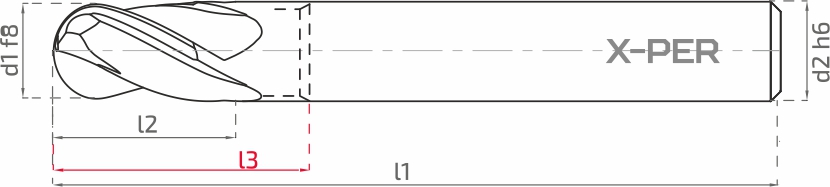

Order No	Code	d1f8	d2h6	d3	l1	l2	l3	Corner	Z
22142	203201050 PLUS	1	4	1	50	2	4.50	R 0,50	2
22144	203202050 PLUS	2	4	2	50	4	6	R 1,00	2
22146	203203058 PLUS	3	6	-	58	6	-	R 1,50	2
22148	203204058 PLUS	4	6	-	58	9	-	R 2,00	2
22150	203205058 PLUS	5	6	-	58	10	-	R 2,50	2
22152	203206058 PLUS	6	6	-	58	12	-	R 3,00	2
22154	203208064 PLUS	8	8	-	64	15	-	R 4,00	2
22156	203210073 PLUS	10	10	-	73	20	-	R 5,00	2
22158	203212082 PLUS	12	12	-	82	22	-	R 6,00	2

Ø	ae=0.25Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
1	0.020	0.025	0.030	0.033
2	0.020	0.025	0.030	0.033
3	0.026	0.031	0.037	0.040
4	0.032	0.037	0.041	0.045
5	0.032	0.037	0.042	0.046
6	0.041	0.046	0.052	0.057
8	0.047	0.052	0.061	0.066
10	0.052	0.057	0.066	0.072
12	0.051	0.058	0.072	0.079

Material	Shoulder Milling ap=0.25 - 0.10Ø / ae=0.25 - 0.10Ø Vc(m/dk)	Finish Milling ap=0.10Ø / ae=0.10Ø Vc(m/dk)

Unalloyed steel	120-140	230-260
Steel	120-140	200-230
Tempered steel	120-140	230-260
Cold work tool steel	90-110	200-230
Hot work tool steel	90-110	200-230
AISI 304-416-420	90-120	180-210
AISI 316-440	80-110	170-20 0
17-4 PH 15-5 PH	80-110	120-150
Cobalt-Chrome alloys	80-110	110-140
Duplex F51	80-110	110-140
Super Duplex F55	80-110	110-140
> 54 HRC	30-60	50-70

Frezare (Ultra-Bite)
