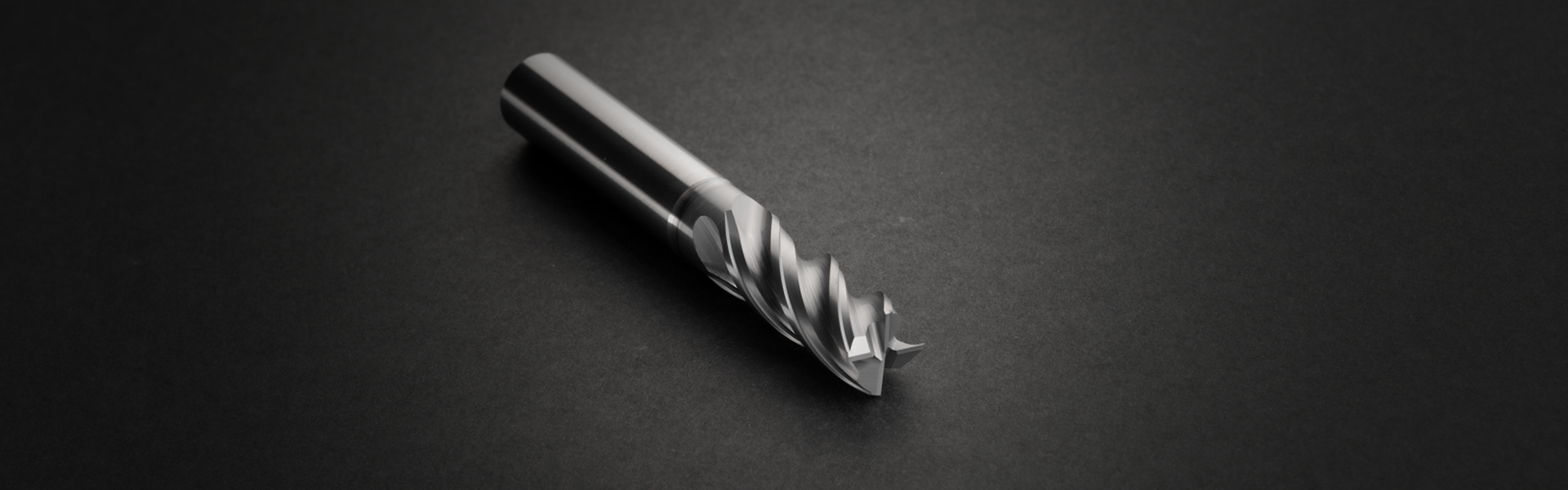

121 Slot seria Ultra-Bite

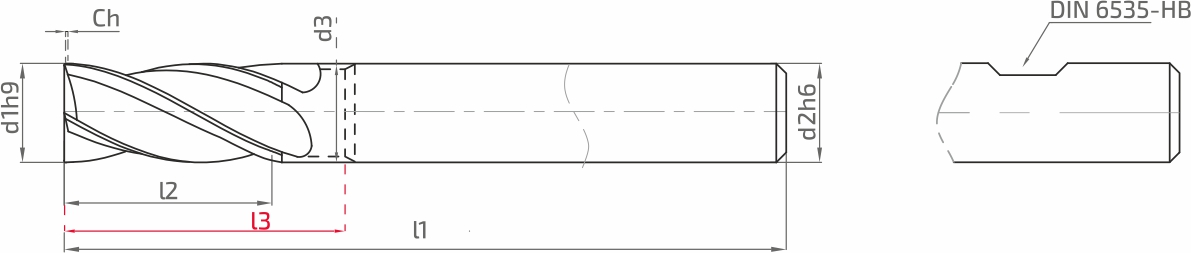

Stock	Order No	Code	d1h9	d2h6	d3	l1	l2	l3	Corner	Z	Weldon Order No
*	21154	121403050 - SLOT	3	6	2.90	50	5	8	Ch 0,15	4	21155
*	21156	121404050 - SLOT	4	6	3.90	50	6	9	Ch 0,15	4	21157
*	21158	121405054 - SLOT	5	6	4.90	54	9	14	Ch 0,18	4	21159
*	21160	121406054 - SLOT	6	6	-	54	10	-	Ch 0,20	4	21161
*	21162	121408058 - SLOT	8	8	-	58	12	-	Ch 0,20	4	21163
*	21164	121410066 - SLOT	10	10	-	66	14	-	Ch 0,20	4	21165
*	21134	121412082 - SLOT	12	12	-	83	28	-	Ch 0,20	4	21135
*	21166	121412073 - SLOT	12	12	-	73	16	-	Ch 0,20	4	21167
*	21168	121416082 - SLOT	16	16	-	82	23	-	Ch 0,40	4	21169
*	21170	121420092 - SLOT	20	20	-	92	26	-	Ch 0,50	4	21171

ᴓ	ap=1.5Ø	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
3	0.004	0.006	0.008	0.010	0.012	0.020	0.030	0.0420
4	0.007	0.009	0.013	0.016	0.020	0.030	0.038	0.0490
5	0.010	0.013	0.017	0.020	0.025	0.036	0.046	0.0580
6	0.014	0.018	0.022	0.026	0.030	0.044	0.050	0.0620
8	0.020	0.025	0.029	0.034	0.040	0.056	0.064	0.0730
10	0.026	0.030	0.038	0.042	0.050	0.067	0.076	0.0880
12	0.035	0.042	0.053	0.060	0.070	0.092	0.102	0.1150
16	0.042	0.060	0.082	0.100	0.110	0.130	0.0138	0.1500

Material	Slotting ap=1.5 - 1Ø Vc (m/min)	Slotting ap= 1.0 - 0.5Ø Vc (m/min)	Slotting ap=1.5Ø / ae=0.35 - 0.20Ø Vc (m/min)	Finish Milling ap=1.5Ø / ae=0.20 - 0.10Ø Vc (m/min)

Slot Series (Tisin Coating)
Unalloyed steel	100-130	120-160	150-180	170-220
Steel	100-130	120-150	150-180	170-220
Tempered steel	90-120	110-150	130-170	150-200
Cold work tool steel	80-110	100-140	120-150	140-180
Hot work tool steel	80-110	100-140	120-150	140-180
AISI 304 - 416 - 420		50-70	70-90	80-100
AISI 316 - 440		45-70	55-80	60-90
17-4 PH 15-5 PH		45-70	55-80	60-90
Cobalt-Chrome Alloys		30-50	35-55	40-70
Dublex F51		60-80	65-85	70-90
Super Dublex F55		60-80	65-85	70-90
HRSA Hastelloy	35-60	30-50	40-60	50-70
HRSA inconel 625	35-60	30-50	40-60	50-70
HRSA inconel 718	35-60	30-50	40-60	50-70
HRSA Nimonic	35-60	30-50	40-60	50-70
Titanium	50-70	60-80	70-90	80-90
Titanium Alloys	50-70	60-80	70-90	80-90
< 54 HRC		50-70	55-75	60-85

Frezare (Ultra-Bite)
