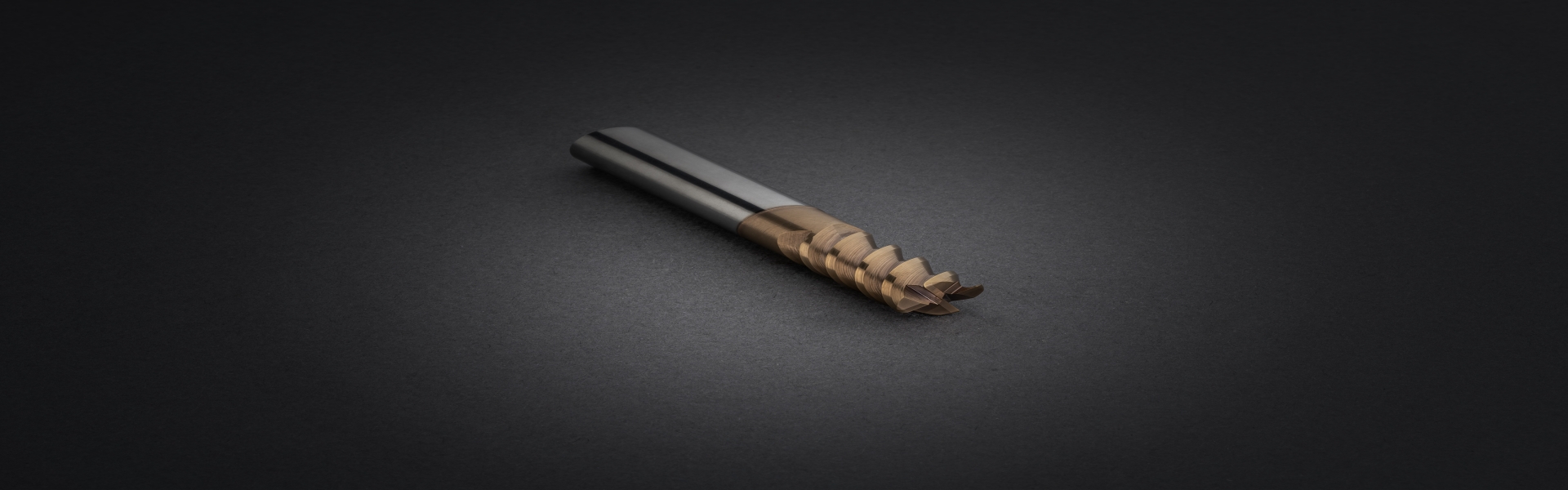

105 EVO Mold Seria

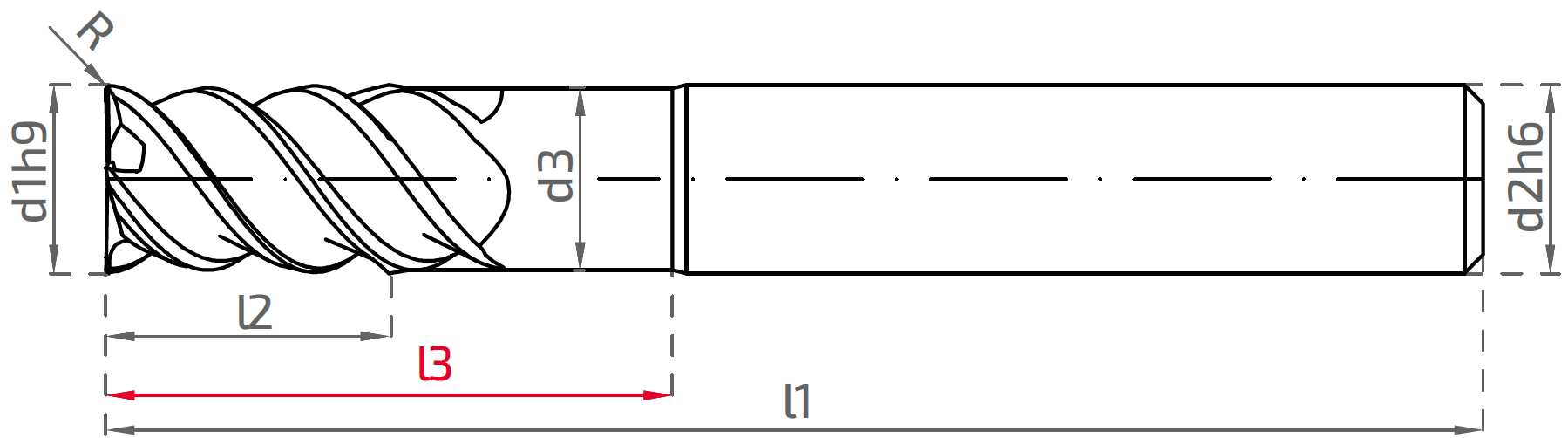

Stock	Order No	Code	d1h9	d2h6	d3	l1	l2	l3	Corner	Z
*	36118	105E40305005 EVO	3	3	2.80	51	6	10	R 0,50	4
*	36206	105E403010 EVO	3	3	2.80	58	8	12	R 1,00	4
*	36102	105E404005 EVO	4	4	3.80	58	11	15	R 0,50	4
*	36200	105E404010 EVO	4	4	3.80	57	11	15	R 1,00	4
*	36202	105E405005 EVO	5	5	4.80	57	11	15	R 0,50	4
*	36204	105E405010 EVO	5	5	4.80	57	11	15	R 1,00	4
*	36122	105E40605005 EVO	6	6	5.50	50	12	16	R 0,50	4
*	36104	105E406010 EVO	6	6	5.50	58	12	24	R 1,00	4
*	36124	105E40806005 EVO	8	8	7.50	64	16	24	R 0,50	4
*	36106	105E408010 EVO	8	8	7.50	64	12	24	R 1,00	4
*	36126	105E41007505 EVO	10	10	9.60	75	20	32	R 0,50	4
*	36108	105E410010 EVO	10	10	9.60	73	15	30	R 1,00	4
*	36128	105E41207505 EVO	12	12	11.70	75	24	32	R 0,50	4
*	36110	105E412010 EVO	12	12	11.70	83	25	37	R 1,00	4
	36130	105E414005 EVO	14	14	13.70	83	30	41.40	R 0,50	4
	36112	105E414010 EVO	14	14	13.70	82	30	41	R 1,00	4
*	36132	105E416005 EVO	16	16	15.55	93	32	50	R 0,50	4
*	36114	105E416010 EVO	16	16	15.55	93	32	50	R 1,00	4
	36134	105E418005 EVO	18	18	17.55	93	32	50	R 0,50	4
	36208	105E418010 EVO	18	18	17.60	93	32	50	R 1,00	4
	36136	105E420005 EVO	20	20	19.60	105	42	59	R 0,50	4
	36116	105E420010 EVO	20	20	19.60	105	42	59	R 1,00	4

Ø	ap=1.5Ø	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø
3	0.007	0.032	0.037	0.039	0.041
4	0.012	0.039	0.043	0.045	0.047
5	0.018	0.042	0.044	0.046	0.048
6	0.023	0.049	0.053	0.055	0.057
8	0.028	0.056	0.06	0.063	0.066
10	0.036	0.064	0.068	0.071	0.074
12	0.045	0.069	0.074	0.077	0.08
14	0.054	0.074	0.079	0.083	0.086
16	0.065	0.079	0.084	0.089	0.093
18	0.076	0.082	0.088	0.093	0.097
20	0.087	0.087	0.095	0.1	0.105
25	0.115	0.092	0.105	0.11	0.119

Material	Slotting	Shoulder Milling	Finish Milling

	ap=0.5Ø Vc (m/dk)	ap=1.5Ø / ae=0.30 - 0.20Ø Vc (m/dk)	ap=1.5Ø / ae=0.20 - 0.10Ø Vc (m/dk)
Unalloyed steel	95-125	150-180	180-210
Steel	90-120	140-170	170-200
Reclamation steel	80-110	130-160	160-190
Cold work tool steel	70-90	120-150	150-180
Hot work tool steel	60-80	120-150	150-180
AISI 304 - 416 - 420	70-90	80-110	110-150
AISI 316 - 440	65-85	70-100	100-130
17-4 PH 15-5 PH	60-80	70-100	100-130
Chrome-Cobalt alloy	50-70	60-90	90-120
Gray cast	100-130	250-280	280-330
Alloyed cast	70-100	150-190	190-240
Precision cast	60-90	130-160	160-210
>54 HRC	40-60	50-70	70-90
