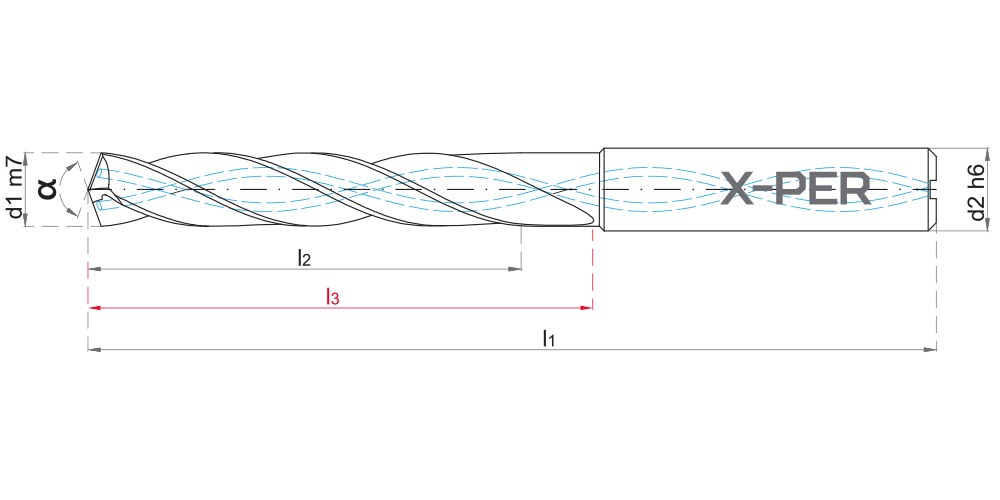

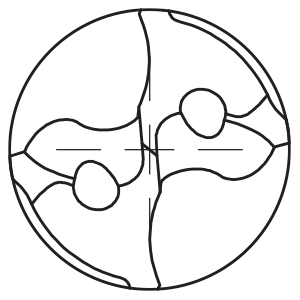

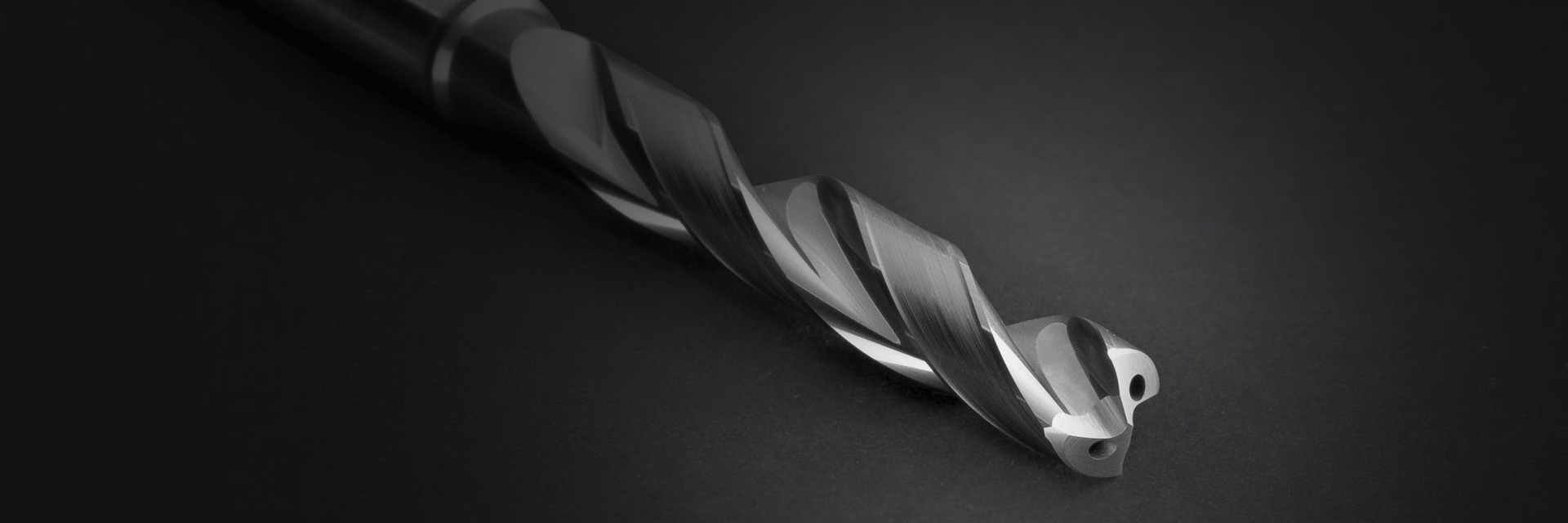

Y5DF Series

Stock	Order No.	Code	Old Code	d1m7	d2h6	l1	l2	l3	Related Document
	78100	Y5DF.2.0350.0660.A0140.0270.0000.0280.00.S06N2B02.01	Y5DF035066	3.50	6	66	27	28	STP DXF
	78102	Y5DF.2.0360.0660.A0140.0270.0000.0280.00.S06B2C06.01	Y5DF036066	3.60	6	66	27	28	STP DXF
	78104	Y5DF.2.0370.0660.A0140.0270.0000.0280.00.S06B2C06.01	Y5DF037066	3.70	6	66	27	28	STP DXF
*	78106	Y5DF.2.0390.0740.A0138.0320.0000.0360.00.S06C2C06.01	Y5DF039074SP	3.90	6	74	32	36	STP DXF
	78108	Y5DF.2.0390.0740.A0142.0320.0000.0360.00.S06B2B02.01	Y5DF039074	3.90	6	74	32	36	STP DXF
*	78110	Y5DF.2.0400.0740.A0142.0320.0000.0360.00.S06C2B02.01	Y5DF040074	4	6	74	32	36	STP DXF
	78112	Y5DF.2.0400.0950.A0138.0380.0000.0420.00.S06C2C06.01	Y5DF040095	4	6	95	38	42	STP DXF
	78114	Y5DF.2.0400.0750.A0142.0320.0000.0360.00.S06B2C05.01	Y5DF040002	4	6	75	32	36	STP DXF
	78116	Y5DF.2.0415.0800.A0140.0370.0000.0400.00.S06B2B02.01	Y5DF0415080	4.15	6	80	37	40	STP DXF
*	78118	Y5DF.2.0420.0740.A0140.0320.0000.0360.00.S06B2C06.01	Y5DF042074	4.20	6	74	32	36	STP DXF
	78120	Y5DF.2.0450.0740.A0140.0320.0000.0360.00.S06B2C06.01	Y5DF045074	4.50	6	74	32	36	STP DXF
*	78122	Y5DF.2.0460.0740.A0140.0320.0000.0360.00.S06B2C06.01	Y5DF046074	4.60	6	74	32	36	STP DXF
	78124	Y5DF.2.0460.0750.A0142.0330.0000.0380.00.S06B2B02.01	Y5DF046002	4.60	6	75	33	38	STP DXF
	78126	Y5DF.2.0500.0820.A0140.0410.0000.0440.00.S06B2B02.01	Y5DF050082	5	6	82	41	44	STP DXF
*	78128	Y5DF.2.0510.0820.A0138.0410.0000.0440.00.S06C2B03.01	Y5DF051082	5.10	6	82	41	44	STP DXF
	78130	Y5DF.2.0550.0820.A0138.0410.0000.0440.00.S06C2B03.01	Y5DF055082	5.50	6	82	41	44	STP DXF
	78132	Y5DF.2.0600.0820.A0138.0410.0000.0440.00.S06B2B03.01	Y5DF060082	6	6	82	41	44	STP DXF
	78134	Y5DF.2.0650.0910.A0138.0500.0000.0530.00.S08C2L02.01	Y5DF065091	6.50	8	91	50	53	STP DXF
*	78136	Y5DF.2.0680.0910.A0140.0500.0000.0530.00.S08B1B02.01	Y5DF068091	6.80	8	91	50	53	STP DXF
*	78138	Y5DF.2.0700.0910.A0138.0500.0000.0530.00.S08B1B03.01	Y5DF070091	7	8	91	50	53	STP DXF
	78140	Y5DF.2.0750.0910.A0138.0500.0000.0530.00.S08B1B02.01	Y5DF075091	7.50	8	91	50	53	STP DXF
	78142	Y5DF.2.0780.0910.A0138.0500.0000.0530.00.S08B1B02.01	Y5DF078091	7.80	8	91	50	53	STP DXF
	78144	Y5DF.2.0800.0910.A0138.0500.0000.0530.00.S08B1B02.01	Y5DF080091	8	8	91	50	53	STP DXF
*	78146	Y5DF.2.0850.1030.A0140.0570.0000.0610.00.S10B1B03.01	Y5DF085103	8.50	10	103	57	61	STP DXF
	78148	Y5DF.2.0880.1030.A0140.0570.0000.0610.00.S10B1C06.01	Y5DF088103	8.80	10	103	57	61	STP DXF
	78150	Y5DF.2.0890.1030.A0140.0570.0000.0610.00.S10B1C06.01	Y5DF089103	8.90	10	103	57	61	STP DXF
	78152	Y5DF.2.0900.1030.A0140.0570.0000.0610.00.S10B1B03.01	Y5DF090103	9	10	103	57	61	STP DXF
	78154	Y5DF.2.0950.1030.A0140.0570.0000.0610.00.S10B1B03.01	Y5DF095103	9.50	10	103	57	61	STP DXF
	78156	Y5DF.2.0960.1030.A0140.0570.0000.0610.00.S10B1B03.01	Y5DF096103	9.60	10	103	57	61	STP DXF
	78158	Y5DF.2.0960.1250.A0130.0780.0000.0850.00.S10B2C03.01	Y5DF096125	9.60	10	125	78	85	STP DXF
*	78160	Y5DF.2.1000.1030.A0140.0570.0000.0610.00.S10B1B03.01	Y5DF100103	10	10	103	57	61	STP DXF
*	78162	Y5DF.2.1020.1180.A0140.0670.0000.0710.00.S12B1B03.01	Y5DF102118	10.20	12	118	67	71	STP DXF
	78164	Y5DF.2.1050.1180.A0140.0670.0000.0710.00.S12B1B03.01	Y5DF105118	10.50	12	118	67	71	STP DXF
	78166	Y5DF.2.1100.1180.A0140.0670.0000.0710.00.S12B1B03.01	Y5DF110118	11	12	118	67	71	STP DXF
	78168	Y5DF.2.1200.1180.A0140.0670.0000.0710.00.S12B1B03.01	Y5DF120118	12	12	118	67	71	STP DXF
*	78170	Y5DF.2.1250.1240.A0140.0700.0000.0770.00.S14B2C06.01	Y5DF125124	12.50	14	124	70	77	STP DXF
	78172	Y5DF.2.1280.1240.A0140.0700.0000.0770.00.S14B2C06.01	Y5DF128124	12.80	14	124	70	77	STP DXF
	78174	Y5DF.2.1300.1240.A0140.0700.0000.0770.00.S14B2C06.01	Y5DF130124	13	14	124	70	77	STP DXF
	78176	Y5DF.2.1400.1240.A0140.0700.0000.0770.00.S14B2C06.01	Y5DF140124	14	14	124	70	77	STP DXF
	78178	Y5DF.2.1450.1330.A0140.0740.0000.0830.00.S16B2C06.01	Y5DF145133	14.50	16	133	74	83	STP DXF
	78180	Y5DF.2.1500.1330.A0140.0740.0000.0830.00.S16B2C06.01	Y5DF150133	15	16	133	74	83	STP DXF
	78182	Y5DF.2.1550.1330.A0140.0740.0000.0830.00.S16B2C06.01	Y5DF155133	15.50	16	133	74	83	STP DXF
	78184	Y5DF.2.1600.1330.A0140.0740.0000.0830.00.S16B2C06.01	Y5DF160133	16	16	133	74	83	STP DXF
	78186	Y5DF.2.1700.1430.A0140.0860.0000.0930.00.S18B2C06.01	Y5DF170143	17	18	143	86	93	STP DXF
	78188	Y5DF.2.1750.1430.A0140.0860.0000.0930.00.S18B2C06.01	Y5DF175143	17.50	18	143	86	93	STP DXF
	78190	Y5DF.2.1800.1430.A0140.0860.0000.0930.00.S18B2C06.01	Y5DF180143	18	18	143	86	93	STP DXF
	78192	Y5DF.2.1850.1530.A0140.0920.0000.1010.00.S20B2C06.01	Y5DF185153	18.50	20	153	92	101	STP DXF
	78194	Y5DF.2.1900.1530.A0140.0920.0000.1010.00.S20B2C06.01	Y5DF190153	19	20	153	92	101	STP DXF
	78196	Y5DF.2.1950.1530.A0140.0920.0000.1010.00.S20B2C06.01	Y5DF195153	19.50	20	153	92	101	STP DXF
	78198	Y5DF.2.2000.1530.A0140.0920.0000.1010.00.S20B2C06.01	Y5DF200153	20	20	153	92	101	STP DXF
	78200	Y5DF.2.0300.0660.A0140.0270.0000.0280.00.S06B2C06.01	Y5DF030066	3	6	66	27	28	STP DXF

Feed per Revolution (mm/rev)

Ø	mm/dev
3	0.100
4	0.110
5	0.120
6	0.150
8	0.200
10	0.250
12	0.300
16	0.350
20	0.400

Cutting Parameters

Material	m/min

Unalloyed steel	160-200	●
Steel	140-180	●
Tempered steel	100-130	●
Cold work tool steel	100-120	◑
Hot work tool steel	80-110	◑
AISI 304 - 416 - 420	30-50	◑
AISI 316 - 440	30-50	◑
Gray cast	140-180	◑
Alloyed cast	140-160	◑
Precision cast	130-160	◑
Titanium	30-40	◑
Titanium alloys	25-30	◑

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended
