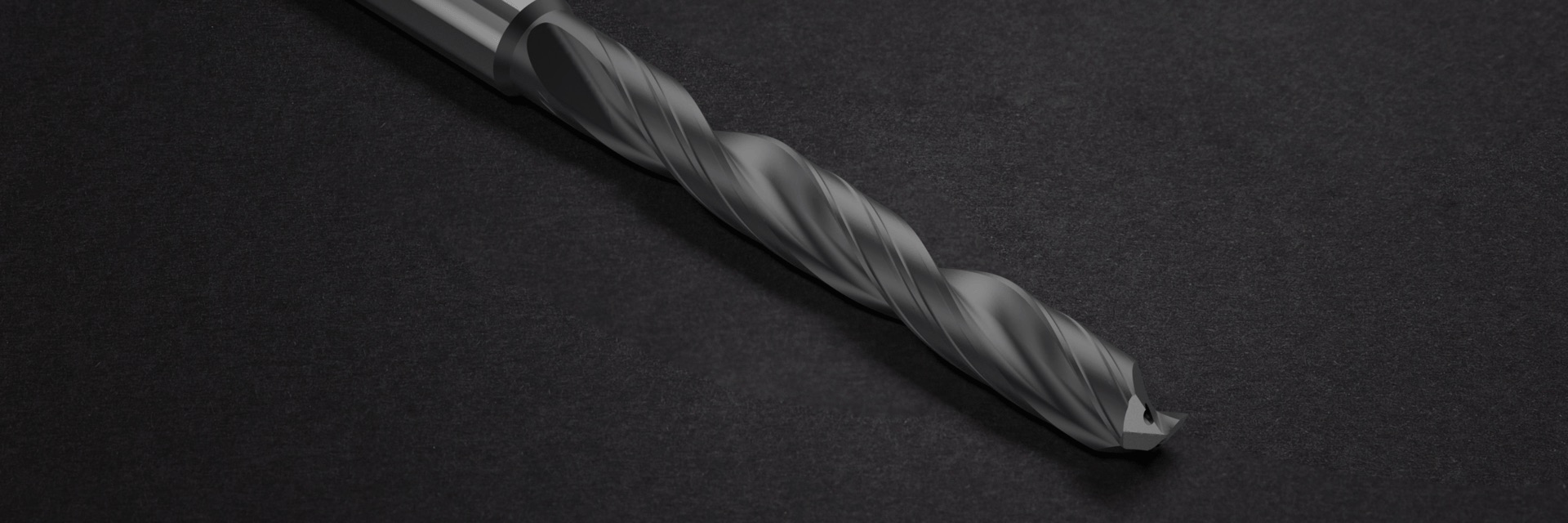

S5DF Series

Order No	Code	d1m7	d2h6	l1	l2
88100	11M00_S5DF0020238S01	2.38	3	68	14
88102	11M00_S5DF0020300A01	3	6	66	27
88104	11M00_S5DF0020310A01	3.10	6	66	27
88106	11M00_S5DF0020320A01	3.20	6	66	27
88108	11M00_S5DF0020325A01	3.25	6	66	27
88110	11M00_S5DF0020330S01	3.30	6	72	29
88112	11M00_S5DF0020330A01	3.30	6	66	27
88114	11M00_S5DF0020340A01	3.40	6	66	27
88116	11M00_S5DF0020350A01	3.50	6	66	27
88118	11M00_S5DF0020360A01	3.60	6	66	27
88120	11M00_S5DF0020370A01	3.70	6	66	27
88122	11M00_S5DF0020380A01	3.80	6	74	32
88124	11M00_S5DF0020390A01	3.90	6	74	32
88126	11M00_S5DF0020400A01	4	6	74	32
88128	11M00_S5DF0020410A01	4.10	6	74	32
88130	11M00_S5DF0020420A01	4.20	6	74	32
88132	11M00_S5DF0020430A01	4.30	6	74	32
88134	11M00_S5DF0020440A01	4.40	6	74	32
88136	11M00_S5DF0020450A01	4.50	6	74	32
88138	11M00_S5DF0020460A01	4.60	6	74	32
88140	11M00_S5DF0020470A01	4.70	6	74	32
88142	11M00_S5DF0020480A01	4.80	6	82	41
88144	11M00_S5DF0020490A01	4.90	6	82	41
88146	11M00_S5DF0020495A01	4.95	6	82	41
88148	11M00_S5DF0020500A01	5	6	82	41
88150	11M00_S5DF0020510S01	5.10	6	82	43
88152	11M00_S5DF0020510A01	5.10	6	82	41
88154	11M00_S5DF0020520A01	5.20	6	82	41
88156	11M00_S5DF0020530A01	5.30	6	82	41
88158	11M00_S5DF0020540A01	5.40	6	82	41
88160	11M00_S5DF0020550A01	5.50	6	82	41
88162	11M00_S5DF0020555A01	5.55	6	82	41
88164	11M00_S5DF0020560A01	5.60	6	82	41
88166	11M00_S5DF0020570A01	5.70	6	82	41
88168	11M00_S5DF0020580A01	5.80	6	82	41
88170	11M00_S5DF0020590A01	5.90	6	82	41
88172	11M00_S5DF0020600S01	6	6	82	41
88174	11M00_S5DF0020600A01	6	6	82	41
88176	11M00_S5DF0020610A01	6.10	8	91	50
88178	11M00_S5DF0020620A01	6.20	8	91	50
88180	11M00_S5DF0020630A01	6.30	8	91	50
88182	11M00_S5DF0020640A01	6.40	8	91	50
88184	11M00_S5DF0020650A01	6.50	8	91	50
88186	11M00_S5DF0020660A01	6.60	8	91	50
88188	11M00_S5DF0020670A01	6.70	8	91	50
88190	11M00_S5DF0020680A01	6.80	8	91	50
88192	11M00_S5DF0020690A01	6.90	8	91	50
88194	11M00_S5DF0020700A01	7	8	91	50
88196	11M00_S5DF0020710A01	7.10	8	91	50
88198	11M00_S5DF0020720A01	7.20	8	91	50
88200	11M00_S5DF0020730A01	7.30	8	91	50
88202	11M00_S5DF0020740A01	7.40	8	91	50
88204	11M00_S5DF0020750A01	7.50	8	91	50
88206	11M00_S5DF0020760A01	7.60	8	91	50
88208	11M00_S5DF0020770A01	7.70	8	91	50
88210	11M00_S5DF0020780A01	7.80	8	91	50
88212	11M00_S5DF0020790A01	7.90	8	91	50
88214	11M00_S5DF0020800A01	8	8	91	50
88216	11M00_S5DF0020810A01	8.10	10	103	57
88218	11M00_S5DF0020820A01	8.20	10	103	57
88220	11M00_S5DF0020830A01	8.30	10	103	57
88222	11M00_S5DF0020840A01	8.40	10	103	57
88224	11M00_S5DF0020850A01	8.50	10	103	57
88226	11M00_S5DF0020860A01	8.60	10	103	57
88228	11M00_S5DF0020870A01	8.70	10	103	57
88230	11M00_S5DF0020880A01	8.80	10	103	57
88232	11M00_S5DF0020890A01	8.90	10	103	57
88234	11M00_S5DF0020900A01	9	10	103	57
88236	11M00_S5DF0020910A01	9.10	10	103	57
88238	11M00_S5DF0020920A01	9.20	10	103	57
88240	11M00_S5DF0020930A01	9.30	10	103	57
88242	11M00_S5DF0020940A01	9.40	10	103	57
88244	11M00_S5DF0020950A01	9.50	10	103	57
88246	11M00_S5DF0020960A01	9.60	10	103	57
88248	11M00_S5DF0020970A01	9.70	10	103	57
88250	11M00_S5DF0020980A01	9.80	10	103	57
88252	11M00_S5DF0020990A01	9.90	10	103	57
88254	11M00_S5DF0021000A01	10	10	103	57
88256	11M00_S5DF0021000S01	10	10	110	65
88258	11M00_S5DF0021010A01	10.10	12	118	67
88260	11M00_S5DF0021020A01	10.20	12	118	67
88262	11M00_S5DF0021030A01	10.30	12	118	67
88264	11M00_S5DF0021040A01	10.40	12	118	67
88266	11M00_S5DF0021050A01	10.50	12	118	67
88268	11M00_S5DF0021060A01	10.60	12	118	67
88270	11M00_S5DF0021070A01	10.70	12	118	67
88272	11M00_S5DF0021080A01	10.80	12	118	67
88274	11M00_S5DF0021090A01	10.90	12	118	67
88276	11M00_S5DF0021100A01	11	12	118	67
88278	11M00_S5DF0021110A01	11.10	12	118	67
88280	11M00_S5DF0021120A01	11.20	12	118	67
88282	11M00_S5DF0021130A01	11.30	12	118	67
88284	11M00_S5DF0021140A01	11.40	12	118	67
88286	11M00_S5DF0021150A01	11.50	12	118	67
88288	11M00_S5DF0021160A01	11.60	12	118	67
88290	11M00_S5DF0021170A01	11.70	12	118	67
88292	11M00_S5DF0021180A01	11.80	12	118	67
88294	11M00_S5DF0021190A01	11.90	12	118	67
88296	11M00_S5DF0021200A01	12	12	118	67
88298	11M00_S5DF0021210A01	12.10	14	124	70
88300	11M00_S5DF0021220A01	12.20	14	124	70
88302	11M00_S5DF0021230A01	12.30	14	124	70
88304	11M00_S5DF0021250A01	12.50	14	124	70
88306	11M00_S5DF0021270A01	12.70	14	124	70
88308	11M00_S5DF0021280A01	12.80	14	124	70
88310	11M00_S5DF0021290A01	12.90	14	124	70
88312	11M00_S5DF0021300A01	13	14	124	70
88314	11M00_S5DF0021330A01	13.30	14	124	70
88316	11M00_S5DF0021350A01	13.50	14	124	70
88318	11M00_S5DF0021370A01	13.70	14	124	70
88320	11M00_S5DF0021380A01	13.80	14	124	70
88322	11M00_S5DF0021400A01	14	14	124	70
88324	11M00_S5DF0021410A01	14.10	16	133	74
88326	11M00_S5DF0021420A01	14.20	16	133	74
88328	11M00_S5DF0021450A01	14.50	16	133	74
88330	11M00_S5DF0021470A01	14.70	16	133	74
88332	11M00_S5DF0021480A01	14.80	16	133	74
88334	11M00_S5DF0021500A01	15	16	133	74
88336	11M00_S5DF0021510A01	15.10	16	133	74
88338	11M00_S5DF0021530A01	15.30	16	133	74
88340	11M00_S5DF0021550A01	15.50	16	133	74
88342	11M00_S5DF0021570A01	15.70	16	133	74
88344	11M00_S5DF0021580A01	15.80	16	133	74
88346	11M00_S5DF0021600A01	16	16	133	74
88348	11M00_S5DF0021650A01	16.50	18	143	86
88350	11M00_S5DF0021660A01	16.60	18	143	86
88352	11M00_S5DF0021680A01	16.80	18	143	86
88354	11M00_S5DF0021700A01	17	18	143	86
88356	11M00_S5DF0021730A01	17.30	18	143	86
88358	11M00_S5DF0021750A01	17.50	18	143	86
88360	11M00_S5DF0021780A01	17.80	18	143	86
88362	11M00_S5DF0021800A01	18	18	143	86
88364	11M00_S5DF0021850A01	18.50	20	153	92
88366	11M00_S5DF0021880A01	18.80	20	153	92
88368	11M00_S5DF0021900A01	19	20	153	92
88370	11M00_S5DF0021950A01	19.50	20	153	92
88372	11M00_S5DF0021980A01	19.80	20	153	92
88374	11M00_S5DF0022000A01	20	20	153	92

You can use the “KarcanEYE” application to access the machining data for this series based on the material and operational details. More Information

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Hole-Making
