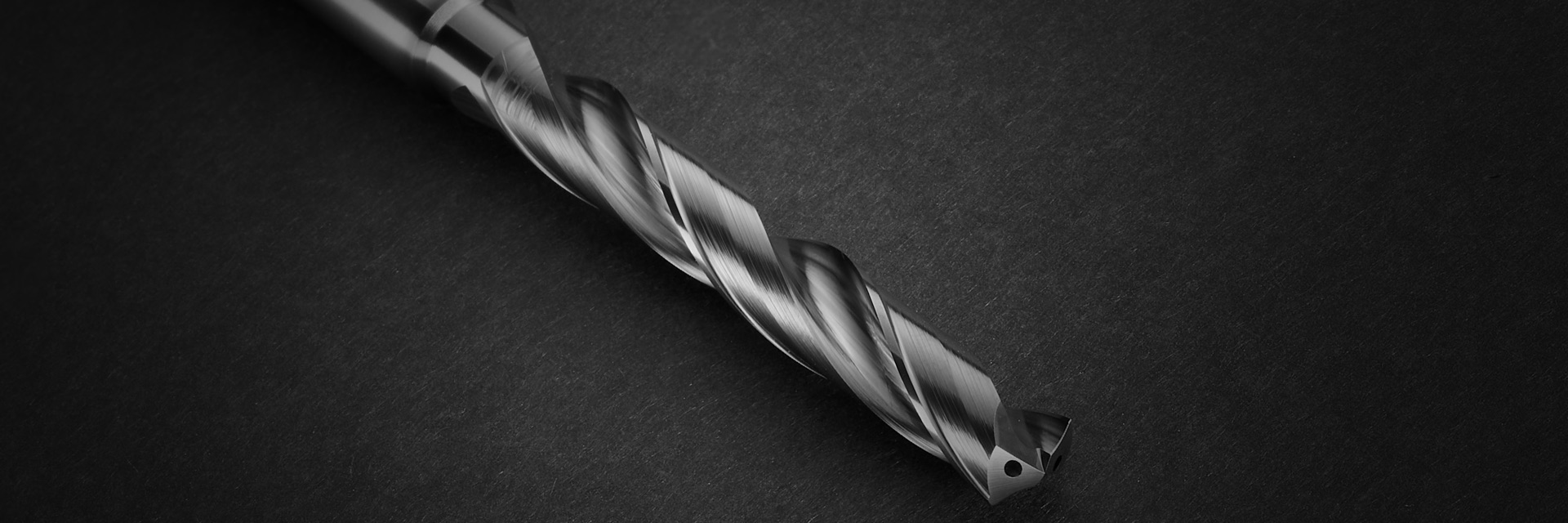

M5DX Series

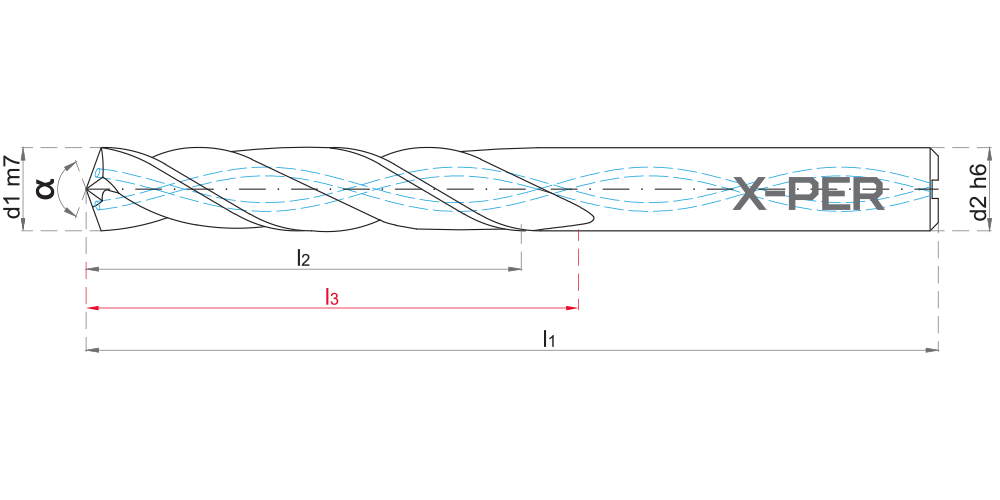

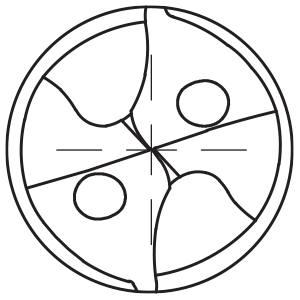

Code	d1m7	d2h6	l1	l2	l3
M5DX030066	3	6	66	27	28
M5DX031066	3.1	6	66	27	28
M5DX032066	3.2	6	66	27	28
M5DX033066	3.3	6	66	27	28
M5DX034066	3.4	6	66	27	28
M5DX035066	3.5	6	66	27	28
M5DX036066	3.6	6	66	27	28
M5DX037066	3.7	6	66	27	28
M5DX038074	3.8	6	74	32	36
M5DX039074	3.9	6	74	32	36
M5DX040074	4	6	74	32	36
M5DX041074	4.1	6	74	32	36
M5DX042074	4.2	6	74	32	36
M5DX043074	4.3	6	74	32	36
M5DX044074	4.4	6	74	32	36
M5DX045074	4.5	6	74	32	36
M5DX046074	4.6	6	74	32	36
M5DX047074	4.7	6	74	32	36
M5DX048082	4.8	6	82	41	44
M5DX049082	4.9	6	82	41	44
M5DX050082	5	6	82	41	44
M5DX051082	5.1	6	82	41	44
M5DX052082	5.2	6	82	41	44
M5DX053082	5.3	6	82	41	44
M5DX054082	5.4	6	82	41	44
M5DX055082	5.5	6	82	41	44
M5DX056082	5.6	6	82	41	44
M5DX057082	5.7	6	82	41	44
M5DX058082	5.8	6	82	41	44
M5DX059082	5.9	6	82	41	44
M5DX060082	6	6	82	41	44
M5DX063091	6.3	8	91	50	53
M5DX066091	6.6	8	91	50	53
M5DX068091	6.8	8	91	50	53
M5DX069091	6.9	8	91	50	53
M5DX070091	7	8	91	50	53
M5DX073091	7.3	8	91	50	53
M5DX078091	7.8	8	91	50	53
M5DX080091	8	8	91	50	53
M5DX081103	8.1	10	103	57	61
M5DX082103	8.2	10	103	57	61
M5DX085103	8.5	10	103	57	61
M5DX088103	8.8	10	103	57	61
M5DX090103	9	10	103	57	61
M5DX093103	9.3	10	103	57	61
M5DX095103	9.5	10	103	57	61
M5DX098103	9.8	10	103	57	61
M5DX100103	10	10	103	57	61
M5DX102118	10.2	12	118	67	71
M5DX105118	10.5	12	118	67	71
M5DX108118	10.8	12	118	67	71
M5DX109118	10.9	12	118	67	71
M5DX110118	11	12	118	67	71
M5DX113118	11.3	12	118	67	71
M5DX115118	11.5	12	118	67	71
M5DX118118	11.8	12	118	67	71
M5DX120118	12	12	118	67	71
M5DX122118	12.2	14	118	67	71
M5DX125124	12.5	14	124	70	77
M5DX128124	12.8	14	124	70	77
M5DX130124	13	14	124	70	77
M5DX135124	13.5	14	124	70	77
M5DX138124	13.8	14	124	70	77
M5DX140124	14	14	124	70	77
M5DX143133	14.3	16	133	74	83
M5DX145133	14.5	16	133	74	83
M5DX150133	15	16	133	74	83
M5DX155133	15.5	16	133	74	83
M5DX160133	16	16	133	74	83
M5DX180143	18	20	143	86	93
M5DX185153	18.5	20	153	77	101

Feed Per Tooth (mm/tooth)

Q
3	0.022
4	0.03
5	0.035
6	0.052
8	0.09
10	0.115
12	0.135
16	0.15
20	0.175

Cutting Parameters

Alaşımsız Çelik	80-95

İmalat Çeliği	70-90
lslah Çeliği	65-80
Soğuk İş Takım Çeliği	55-70
Sıcak İş Takım Çeliği	55-70
AISI 304 - 416 - 420	50-55
AISI 316 - 440	50-55
17-4 PH 15-5 PH	40-50
Krom Kobalt Alaşım	40-50
Duplex F51	30-40
Super Duplex F55	30-40
Gri Dökme Demir	100-120
Alaşımlı Dökme Demir	80-95
Hassas Döküm	70-90
Grafit	120-130
Titanyum	30-40
Titanyum Alaşım	25-30
≤ 54 HRC	75-110
>54 HRC	40-55

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended

Hole-Making

M5DX Series

M5DX Series

Feed Per Tooth (mm/tooth)

Cutting Parameters
