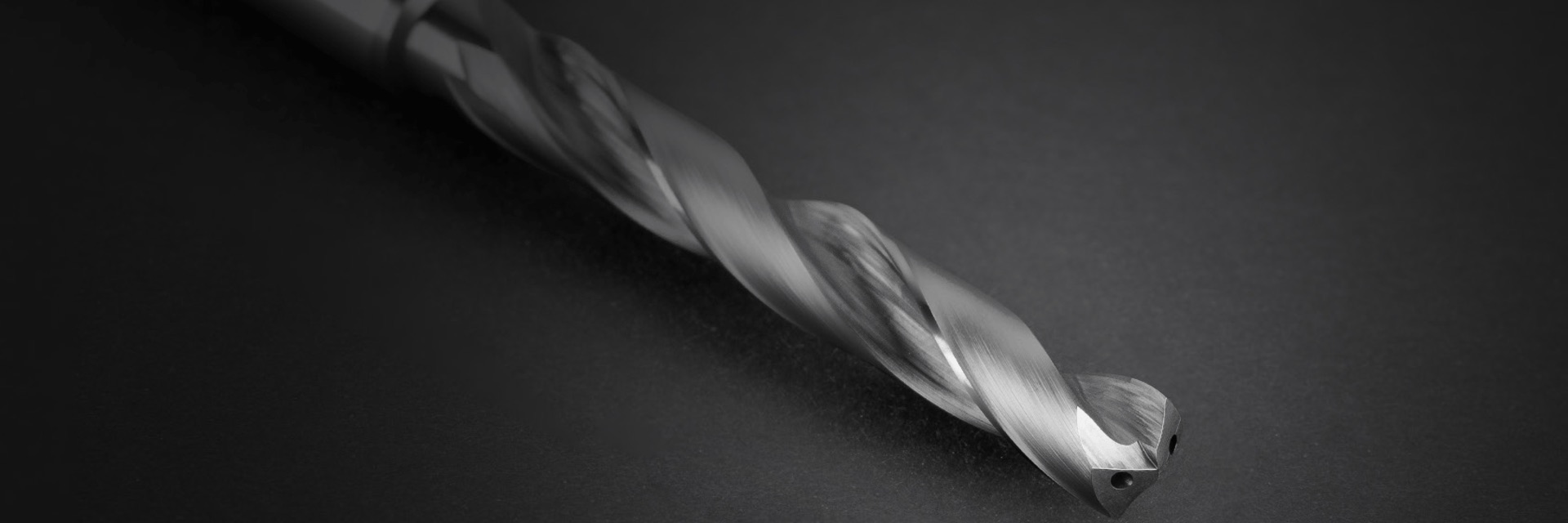

M3DF Series

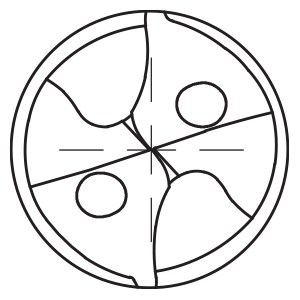

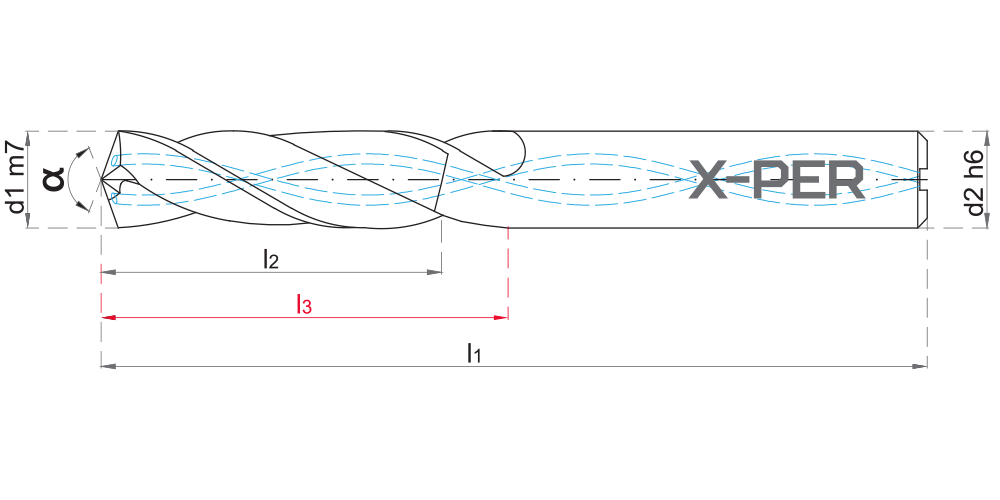

Stock	Code	d1m7	d2h6	l1	l2	l3
	M3DF020050	2	4	50	9	12
	M3DF021055	2.1	4	55	9.5	12.6
* SP	M3DF0215058	2.15	3	58	11	16
	M3DF022055	2.2	4	55	9.9	13.2
	M3DF023055	2.3	4	55	10.4	13.8
	M3DF024055	2.4	4	55	10.8	14.4
*	M3DF025055	2.5	4	55	11.3	15
	M3DF026055	2.6	4	55	11.7	15.6
	M3DF027055	2.7	4	55	12.2	16.2
	M3DF028055	2.8	4	55	12.6	16.8
	M3DF029055	2.9	4	55	13.1	17.4
*	M3DF030062	3	6	62	18	20
	M3DF031062	3.1	6	62	18	20
	M3DF032062	3.2	6	62	18	20
*	M3DF033062	3.3	6	62	18	20
	M3DF034062	3.4	6	62	18	20
*	M3DF035062	3.5	6	62	18	20
	M3DF036062	3.6	6	62	18	20
	M3DF037062	3.7	6	62	18	20
	M3DF038066	3.8	6	66	22	24
	M3DF039066	3.9	6	66	22	24
*	M3DF040066	4	6	66	22	24
	M3DF041066	4.1	6	66	22	24
*	M3DF042066	4.2	6	66	22	24
	M3DF043066	4.3	6	66	22	24
	M3DF044066	4.4	6	66	22	24
*	M3DF045066	4.5	6	66	22	24
	M3DF046066	4.6	6	66	22	24
	M3DF047066	4.7	6	66	22	24
	M3DF048066	4.8	6	66	26	28
	M3DF049066	4.9	6	66	26	28
*	M3DF050066	5	6	66	26	28
	M3DF051066	5.1	6	66	26	28
* SP	M3DF052066	5.2	6	66	26	28
*	M3DF052066	5.2	6	66	26	28
	M3DF053066	5.3	6	66	26	28
	M3DF054066	5.4	6	66	26	28
*	M3DF055066	5.5	6	66	26	28
	M3DF056066	5.6	6	66	26	28
	M3DF057066	5.7	6	66	26	28
	M3DF058066	5.8	6	66	26	28
	M3DF059066	5.9	6	66	26	28
*	M3DF060066	6	6	66	26	28
	M3DF061079	6.1	8	79	32	34
	M3DF062079	6.2	8	79	32	34
	M3DF063079	6.3	8	79	32	34
	M3DF064079	6.4	8	79	32	34
*	M3DF065079	6.5	8	79	32	34
	M3DF066079	6.6	8	79	32	34
	M3DF067079	6.7	8	79	32	34
*	M3DF068079	6.8	8	79	32	34
	M3DF069079	6.9	8	79	32	34
	M3DF070079	7	8	79	32	34
	M3DF071079	7.1	8	79	38	41
	M3DF072079	7.2	8	79	38	41
	M3DF073079	7.3	8	79	38	41
	M3DF074079	7.4	8	79	38	41
	M3DF075079	7.5	8	79	38	41
	M3DF076079	7.6	8	79	38	41
	M3DF077079	7.7	8	79	38	41
	M3DF078079	7.8	8	79	38	41
	M3DF079079	7.9	8	79	38	41
*	M3DF080079	8	8	79	38	41
	M3DF081089	8.1	10	89	43	47
	M3DF082089	8.2	10	89	43	47
	M3DF083089	8.3	10	89	43	47
	M3DF084089	8.4	10	89	43	47
*	M3DF085089	8.5	10	89	43	47
	M3DF086089	8.6	10	89	43	47
	M3DF087089	8.7	10	89	43	47
	M3DF088089	8.8	10	89	43	47
	M3DF089089	8.9	10	89	43	47
*	M3DF090089	9	10	89	43	47
	M3DF091089	9.1	10	89	43	47
	M3DF092089	9.2	10	89	43	47
	M3DF093089	9.3	10	89	43	47
	M3DF094089	9.4	10	89	43	47
*	M3DF095089	9.5	10	89	43	47
	M3DF096089	9.6	10	89	43	47
	M3DF097089	9.7	10	89	43	47
	M3DF098089	9.8	10	89	43	47
	M3DF099089	9.9	10	89	43	47
*	M3DF100089	10	10	89	43	47
	M3DF101102	10.1	12	102	51	55
*	M3DF102102	10.2	12	102	51	55
	M3DF103102	10.3	12	102	51	55
	M3DF104102	10.4	12	102	51	55
	M3DF105102	10.5	12	102	51	55
	M3DF106102	10.6	12	102	51	55
	M3DF107102	10.7	12	102	51	55
	M3DF108102	10.8	12	102	51	55
	M3DF109102	10.9	12	102	51	55
*	M3DF110102	11	12	102	51	55
	M3DF111102	11.1	12	102	51	55
	M3DF112102	11.2	12	102	51	55
	M3DF113102	11.3	12	102	51	55
	M3DF114102	11.4	12	102	51	55
*	M3DF115102	11.5	12	102	51	55
	M3DF116102	11.6	12	102	51	55
	M3DF117102	11.7	12	102	51	55
	M3DF118102	11.8	12	102	51	55
	M3DF119102	11.9	12	102	51	55
*	M3DF120102	12	12	102	51	55
	M3DF123107	12.3	14	107	53	60
	M3DF124107	12.4	14	107	53	60
	M3DF125107	12.5	14	107	53	60
	M3DF127107	12.7	14	107	53	60
	M3DF128107	12.8	14	107	53	60
	M3DF129107	12.9	14	107	53	60
	M3DF130107	13	14	107	53	60
	M3DF133107	13.3	14	107	53	60
	M3DF135107	13.5	14	107	53	60
	M3DF137107	13.7	14	107	53	60
	M3DF138107	13.8	14	107	53	60
	M3DF140107	14	14	107	53	60
	M3DF142115	14.2	16	115	58	65
	M3DF145115	14.5	16	115	58	65
	M3DF147115	14.7	16	115	58	65
	M3DF148115	14.8	16	115	58	65
	M3DF150115	15	16	115	58	65
	M3DF153115	15.3	16	115	58	65
	M3DF155115	15.5	16	115	58	65
	M3DF157115	15.7	16	115	58	65
	M3DF158115	15.8	16	115	58	65
	M3DF160115	16	16	115	58	65
	M3DF165123	16.5	18	123	66	73
	M3DF168123	16.8	18	123	66	73
	M3DF170123	17	18	123	66	73
	M3DF175123	17.5	18	123	66	73
	M3DF178123	17.8	18	123	66	73
	M3DF180123	18	18	123	66	73
	M3DF185131	18.5	20	131	72	79
	M3DF188131	18.8	20	131	72	79
	M3DF195131	19.5	20	131	72	79
	M3DF198131	19.8	20	131	72	79
	M3DF200131	20	20	131	72	79

Feed Per Tooth (mm/tooth)

Q
3	0.022
4	0.03
5	0.035
6	0.052
8	0.09
10	0.115
12	0.135
16	0.15
20	0.175

Cutting Parameters

Unalloyed steel	80-95

Steel	70-90
Tempered steel	65-80
Cold work tool steel	55-70
Hot work tool steel	55-70
AISI 304 - 416 - 420	50-55
AISI 316 - 440	50-55
17-4 PH 15-5 PH	40-50
Chrome-Cobalt alloy	40-50
Duplex F51	30-40
Super duplex F55	30-40
Gray cast	100-120
Alloyed cast	65-95
Precision cast	70-90
Graphite	120 -130
Titanium	30-40
Titanium alloys	25-30
≤ 54 HRC	75-110
>54 HRC	40-55

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended
