M20DF Series

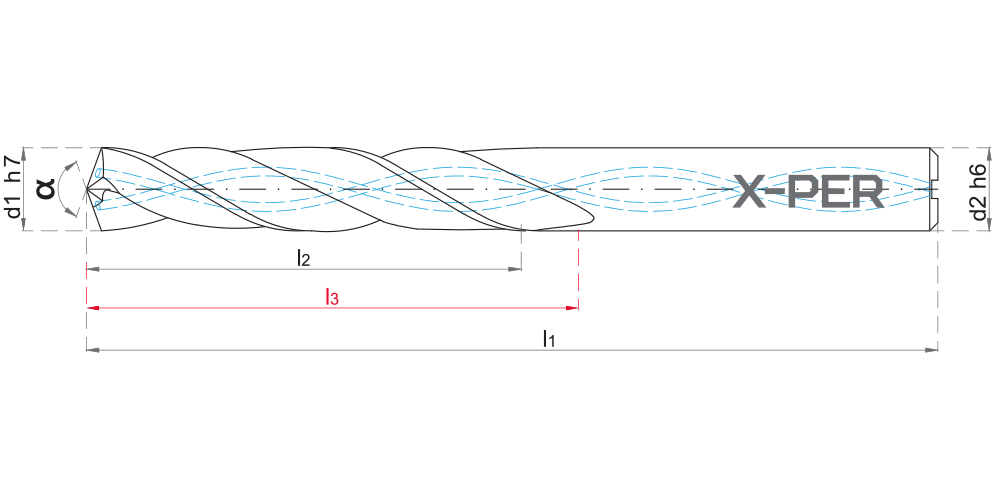

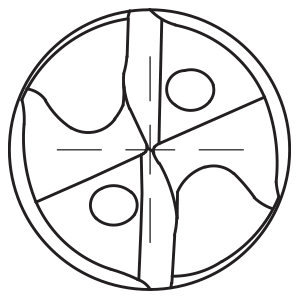

Order No.	Code	Old Code	d1h7	d2h6	l1	l2	l3	Related Document
76100	M20DF.2.0200.0920.A0135.0470.0000.0500.00.S04B2B03.01	M20DF020092	2	4	92	47	50	STP DXF
76102	M20DF.2.0220.0920.A0135.0470.0000.0500.00.S04B2B03.01	M20DF022092	2.20	4	92	47	50	STP DXF
76104	M20DF.2.0230.0920.A0135.0470.0000.0500.00.S04B2B03.01	M20DF023092	2.30	4	92	47	50	STP DXF
76106	M20DF.2.0240.1120.A0135.0660.0000.0700.00.S04B2B03.01	M20DF024112	2.40	4	112	66	70	STP DXF
76108	M20DF.2.0250.1120.A0135.0660.0000.0700.00.S04B2B03.01	M20DF025112	2.50	4	112	66	70	STP DXF
76110	M20DF.2.0270.1120.A0135.0660.0000.0700.00.S04B2B03.01	M20DF027112	2.70	4	112	66	70	STP DXF
76112	M20DF.2.0280.1120.A0135.0660.0000.0700.00.S04B2B03.01	M20DF028112	2.80	4	112	66	70	STP DXF
76114	M20DF.2.0300.1200.A0135.0750.0000.0800.00.S06B2B03.01	M20DF030120	3	6	120	75	80	STP DXF
76116	M20DF.2.0320.1200.A0135.0750.0000.0800.00.S06B2B03.01	M20DF032120	3.20	6	120	75	80	STP DXF
76118	M20DF.2.0330.1200.A0135.0750.0000.0800.00.S06B2B03.01	M20DF033120	3.30	6	120	75	80	STP DXF
76120	M20DF.2.0350.1200.A0135.0750.0000.0800.00.S06B2B03.01	M20DF035120	3.50	6	120	75	80	STP DXF
76122	M20DF.2.0380.1300.A0135.0840.0000.0900.00.S06B2B03.01	M20DF038130	3.80	6	130	84	90	STP DXF
76124	M20DF.2.0400.1300.A0135.0840.0000.0900.00.S06B2B03.01	M20DF040130	4	6	130	84	90	STP DXF
76126	M20DF.2.0420.1600.A0135.1030.0000.1100.00.S06B2B03.01	M20DF042160	4.20	6	160	103	110	STP DXF
76128	M20DF.2.0450.1600.A0135.1030.0000.1100.00.S06B2B03.01	M20DF045160	4.50	6	160	103	110	STP DXF
76130	M20DF.2.0480.1600.A0135.1130.0000.1200.00.S06B2B03.01	M20DF048160	4.80	6	160	113	120	STP DXF
76132	M20DF.2.0500.1600.A0135.1130.0000.1200.00.S06B2B03.01	M20DF050160	5	6	160	113	120	STP DXF
76134	M20DF.2.0550.1850.A0135.1310.0000.1400.00.S06B2B03.01	M20DF055185	5.50	6	185	131	140	STP DXF
76136	M20DF.2.0580.1850.A0135.1310.0000.1400.00.S06B2B03.01	M20DF058185	5.80	6	185	131	140	STP DXF
76138	M20DF.2.0600.1850.A0135.1310.0000.1400.00.S06B2B03.01	M20DF060185	6	6	185	131	140	STP DXF
76140	M20DF.2.0650.2100.A0135.1500.0000.1600.00.S08B2B03.01	M20DF065210	6.50	8	210	150	160	STP DXF
76142	M20DF.2.0680.2100.A0135.1500.0000.1600.00.S08B2B03.01	M20DF068210	6.80	8	210	150	160	STP DXF
76144	M20DF.2.0700.2100.A0135.1500.0000.1600.00.S08B2B03.01	M20DF070210	7	8	210	150	160	STP DXF
76146	M20DF.2.0750.2300.A0135.1680.0000.1800.00.S08B2B03.01	M20DF075230	7.50	8	230	168	180	STP DXF
76148	M20DF.2.0780.2300.A0135.1680.0000.1800.00.S08B2B03.01	M20DF078230	7.80	8	230	168	180	STP DXF
76150	M20DF.2.0800.2300.A0135.1680.0000.1800.00.S08B2B03.01	M20DF080230	8	8	230	168	180	STP DXF
76152	M20DF.2.0850.2600.A0135.1820.0000.1950.00.S10B2B03.01	M20DF085260	8.50	10	260	182	195	STP DXF
76154	M20DF.2.0880.2900.A0135.2160.0000.2300.00.S10B2B03.01	M20DF088290	8.80	10	290	216	230	STP DXF
76156	M20DF.2.0900.2900.A0135.2160.0000.2300.00.S10B2B03.01	M20DF090290	9	10	290	216	230	STP DXF
76158	M20DF.2.0980.2900.A0135.2160.0000.2300.00.S10B2B03.01	M20DF098290	9.80	10	290	216	230	STP DXF
76160	M20DF.2.1000.2900.A0135.2160.0000.2300.00.S10B2B03.01	M20DF100290	10	10	290	216	230	STP DXF
76162	M20DF.2.1020.3150.A0135.2510.0000.2680.00.S12B2B03.01	M20DF102315	10.20	12	315	251	268	STP DXF
76164	M20DF.2.1080.3150.A0135.2510.0000.2680.00.S12B2B03.01	M20DF108315	10.80	12	315	251	268	STP DXF
76166	M20DF.2.1180.3150.A0135.2510.0000.2680.00.S12B2B03.01	M20DF118315	11.80	12	315	251	268	STP DXF
76168	M20DF.2.1200.3150.A0135.2510.0000.2680.00.S12B2B03.01	M20DF120315	12	12	315	251	268	STP DXF

Feed per Revolution (mm/rev)

⌀	mm/rev
2-3	0,05-0,15
3-5	0,08-0,23
5-8	0,12-0,335
8-12	0,15-0,425

Cutting Parameters

Material	Vc(m/min)

Unalloyed steel	95	●
Steel	95	●
Tempered steel	85	●
Hot work tool steel	70	◑
AISI 304 - 416 - 420	50	◑
AISI 316 - 440	50	◑
17-4 PH 15-5 PH	45	◑
Chrome-Cobalt alloy	45	◑
Duplex F51	35	◑
Super Dublex F55	35	◑
Gray cast iron	100	●
Alloyed cast iron	95	●
Precision cast iron	95	●

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended

Hole-Making

M20DF Series

M20DF Series

Feed per Revolution (mm/rev)

Cutting Parameters
