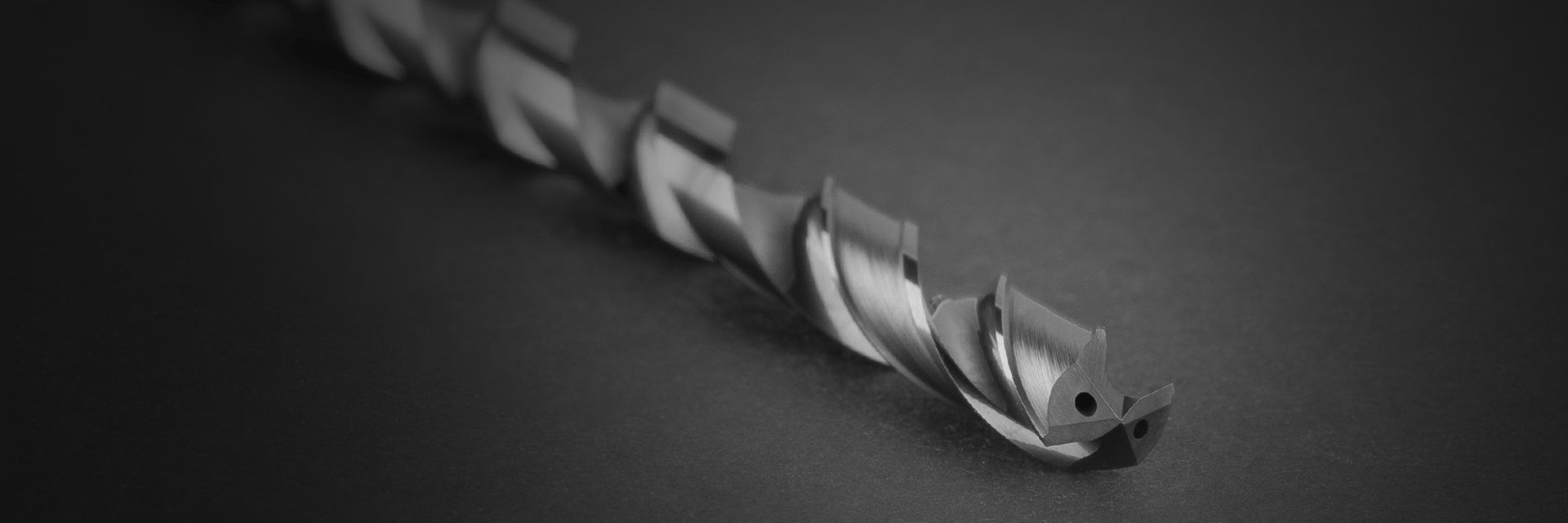

M12DF Series

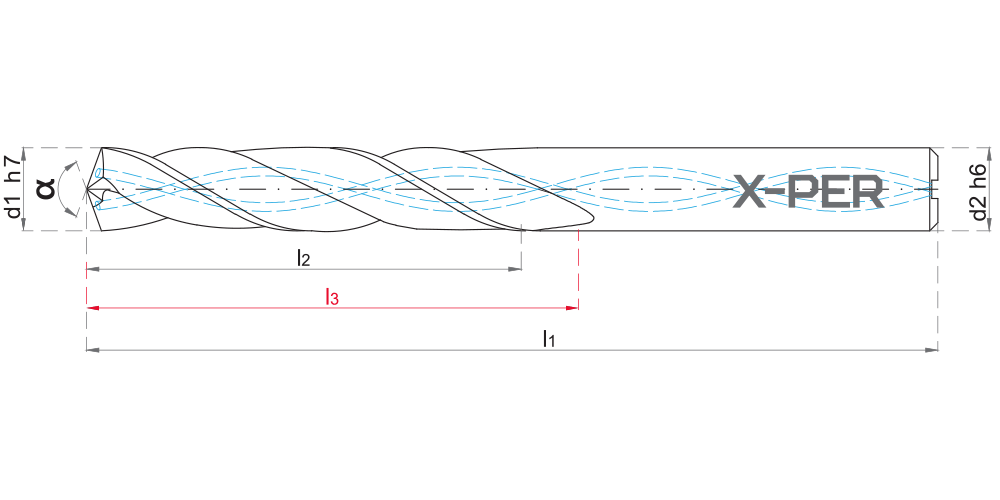

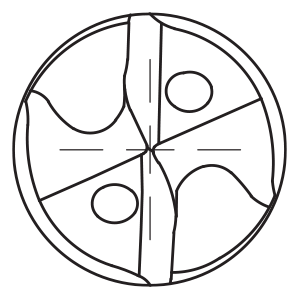

Order No.	Code	Old Code	d1h7	d2h6	l1	l2	l3	Related Document
74100	M12DF.2.0300.0920.A0135.0480.0000.0540.00.S06A2B03.01	M12DF030092	3	6	92	48	54	STP DXF
74102	M12DF.2.0310.0920.A0135.0480.0000.0540.00.S06A2B03.01	M12DF031092	3.10	6	92	48	54	STP DXF
74104	M12DF.2.0320.0920.A0135.0480.0000.0540.00.S06A2B03.01	M12DF032092	3.20	6	92	48	54	STP DXF
74106	M12DF.2.0330.0920.A0135.0480.0000.0540.00.S06A2B03.01	M12DF033092	3.30	6	92	48	54	STP DXF
74108	M12DF.2.0340.0920.A0135.0480.0000.0540.00.S06A2B03.01	M12DF034092	3.40	6	92	48	54	STP DXF
74110	M12DF.2.0350.0920.A0135.0480.0000.0540.00.S06A2B03.01	M12DF035092	3.50	6	92	48	54	STP DXF
74112	M12DF.2.0360.0920.A0135.0480.0000.0540.00.S06A2B03.01	M12DF036092	3.60	6	92	48	54	STP DXF
74114	M12DF.2.0370.0920.A0135.0480.0000.0540.00.S06A2B03.01	M12DF037092	3.70	6	92	48	54	STP DXF
74116	M12DF.2.0380.1020.A0135.0580.0000.0640.00.S06B2A05.01	M12DF038102	3.80	6	102	58	64	STP DXF
74118	M12DF.2.0390.1020.A0135.0580.0000.0640.00.S06B2A05.01	M12DF039102	3.90	6	102	58	64	STP DXF
74120	M12DF.2.0400.1020.A0140.0580.0000.0640.00.S06C2B02.01	M12DF040102	4	6	102	58	64	STP DXF
74122	M12DF.2.0410.1020.A0140.0580.0000.0640.00.S06C2B02.01	M12DF041102	4.10	6	102	58	64	STP DXF
74124	M12DF.2.0420.1020.A0140.0580.0000.0640.00.S06C2B02.01	M12DF042102	4.20	6	102	58	64	STP DXF
74126	M12DF.2.0430.1020.A0140.0580.0000.0640.00.S06C2B02.01	M12DF043102	4.30	6	102	58	64	STP DXF
74128	M12DF.2.0440.1020.A0140.0580.0000.0640.00.S06C2B02.01	M12DF044102	4.40	6	102	58	64	STP DXF
74130	M12DF.2.0450.1020.A0140.0580.0000.0640.00.S06C2B02.01	M12DF045102	4.50	6	102	58	64	STP DXF
74132	M12DF.2.0460.1020.A0140.0580.0000.0640.00.S06C2B02.01	M12DF046102	4.60	6	102	58	64	STP DXF
74134	M12DF.2.0470.1020.A0140.0580.0000.0640.00.S06C2B02.01	M12DF047102	4.70	6	102	58	64	STP DXF
74136	M12DF.2.0480.1160.A0135.0700.0000.0780.00.S06B2B03.01	M12DF048116	4.80	6	116	70	78	STP DXF
74138	M12DF.2.0490.1160.A0135.0700.0000.0780.00.S06B2B03.01	M12DF049116	4.90	6	116	70	78	STP DXF
74140	M12DF.2.0500.1160.A0135.0700.0000.0780.00.S06C2B02.01	M12DF050116	5	6	116	70	78	STP DXF
74142	M12DF.2.0530.1260.A0140.0750.0000.0880.00.S06C2B02.01	M12DF053126	5.30	6	126	75	88	STP DXF
74144	M12DF.2.0550.1160.A0135.0700.0000.0780.00.S06B2B03.01	M12DF055116	5.50	6	116	70	78	STP DXF
74146	M12DF.2.0560.1220.A0140.0840.0000.0750.00.S06C2B02.01	M12DF056122	5.60	6	122	84	75	STP DXF
74148	M12DF.2.0580.1160.A0135.0700.0000.0780.00.S06B2B03.01	M12DF058116	5.80	6	116	70	78	STP DXF
74150	M12DF.2.0600.1160.A0135.0700.0000.0780.00.S06C2B02.01	M12DF060116	6	6	116	70	78	STP DXF
74152	M12DF.2.0630.1460.A0135.0940.0000.1080.00.S08B2B02.01	M12DF063146	6.30	8	146	94	108	STP DXF
74154	M12DF.2.0650.1460.A0135.0940.0000.1080.00.S08B2B02.01	M12DF065146	6.50	8	146	94	108	STP DXF
74156	M12DF.2.0660.1460.A0135.0940.0000.1080.00.S08B2B02.01	M12DF066146	6.60	8	146	94	108	STP DXF
74158	M12DF.2.0680.1460.A0135.0940.0000.1080.00.S08B2B02.01	M12DF068146	6.80	8	146	94	108	STP DXF
74160	M12DF.2.0700.1460.A0135.0940.0000.1080.00.S08B2B02.01	M12DF070146	7	8	146	94	108	STP DXF
74162	M12DF.2.0750.1460.A0135.0940.0000.1080.00.S08B2B02.01	M12DF075146	7.50	8	146	94	108	STP DXF
74164	M12DF.2.0780.1460.A0135.0940.0000.1080.00.S08B2B02.01	M12DF078146	7.80	8	146	94	108	STP DXF
74166	M12DF.2.0800.1460.A0135.0940.0000.1080.00.S08B2B02.01	M12DF080146	8	8	146	94	108	STP DXF
74168	M12DF.2.0820.1620.A0135.1100.0000.1200.00.S10C2B02.01	M12DF082162	8.20	10	162	110	120	STP DXF
74170	M12DF.2.0850.1620.A0135.1100.0000.1200.00.S10C2B02.01	M12DF085162	8.50	10	162	110	120	STP DXF
74172	M12DF.2.0900.1620.A0135.1100.0000.1200.00.S10C2B02.01	M12DF090162	9	10	162	110	120	STP DXF
74174	M12DF.2.0950.1620.A0135.1100.0000.1200.00.S10B2B03.01	M12DF095162	9.50	10	162	110	120	STP DXF
74176	M12DF.2.0980.1620.A0135.1100.0000.1200.00.S10B2B03.01	M12DF098162	9.80	10	162	110	120	STP DXF
74178	M12DF.2.1000.1620.A0135.1100.0000.1200.00.S10B2B03.01	M12DF100162	10	10	162	110	120	STP DXF
74180	M12DF.2.1050.2040.A0135.1420.0000.1560.00.S12B2B03.01	M12DF105204	10.50	12	204	142	156	STP DXF
74182	M12DF.2.1100.2040.A0135.1420.0000.1560.00.S12B2B03.01	M12DF110204	11	12	204	142	156	STP DXF
74184	M12DF.2.1150.2040.A0135.1420.0000.1560.00.S12B2B03.01	M12DF115204	11.50	12	204	142	156	STP DXF
74186	M12DF.2.1200.2040.A0135.1420.0000.1560.00.S12B2B03.01	M12DF120204	12	12	204	142	156	STP DXF
74188	M12DF.2.1300.2300.A0135.1660.0000.1820.00.S14B2B03.01	M12DF130230	13	14	230	166	182	STP DXF
74190	M12DF.2.1400.2300.A0135.1660.0000.1820.00.S14B2B03.01	M12DF140230	14	14	230	166	182	STP DXF
74192	M12DF.2.1500.2600.A0135.1920.0000.2080.00.S16B2B02.01	M12DF150260	15	16	260	192	208	STP DXF
74194	M12DF.2.1600.2600.A0135.1920.0000.2080.00.S16B2B02.01	M12DF160260	16	16	260	192	208	STP DXF
74196	M12DF.2.1800.2850.A0135.2160.0000.2340.00.S18B2B02.01	M12DF180285	18	18	285	216	234	STP DXF

Feed Per Tooth (mm/tooth)

⌀	mm/rev
3-5	0,05-0,19
5-8	0,08-0,25
8-12	0,1-0,32
12-16	0,12-0,38
16-18	0,13-0,42

Cutting Parameters

Material	Vc(m/min)

Unalloyed steel	100	●
Steel	80	●
Tempered steel	70	●
Cold work tool steel	40	◑
Hot work tool steel	40	◑
AISI 304 - 416 - 420	35	◑
AISI 316 - 440	35	◑
17-4 PH 15-5 PH	30	◑
Chrome-Cobalt alloy	30	◑
Duplex F51	25	◑
Super Duplex F55	25	◑
Gray cast iron	70	●
Alloyed cast iron	60	●
Precision cast iron	50	●

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended

Hole-Making
