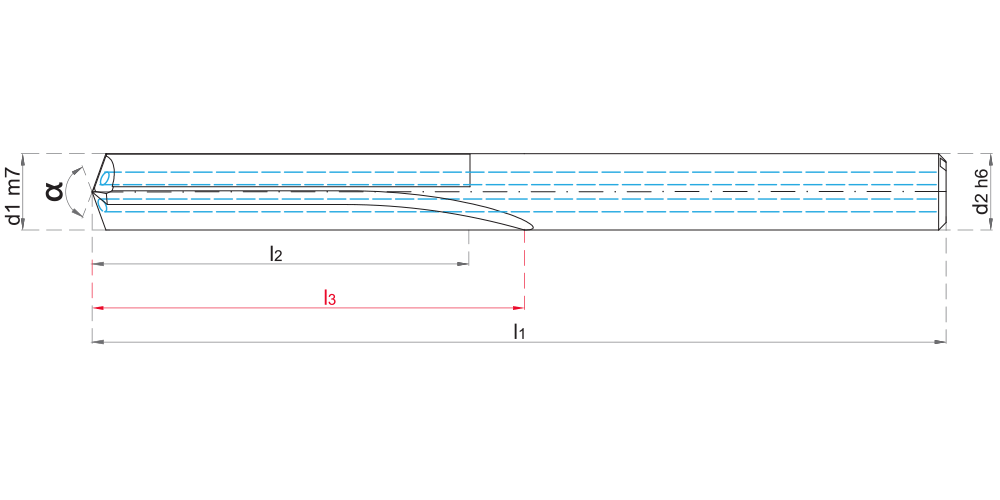

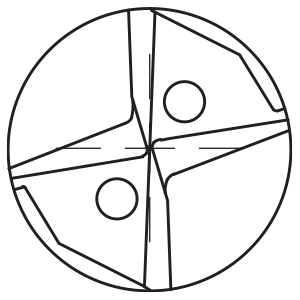

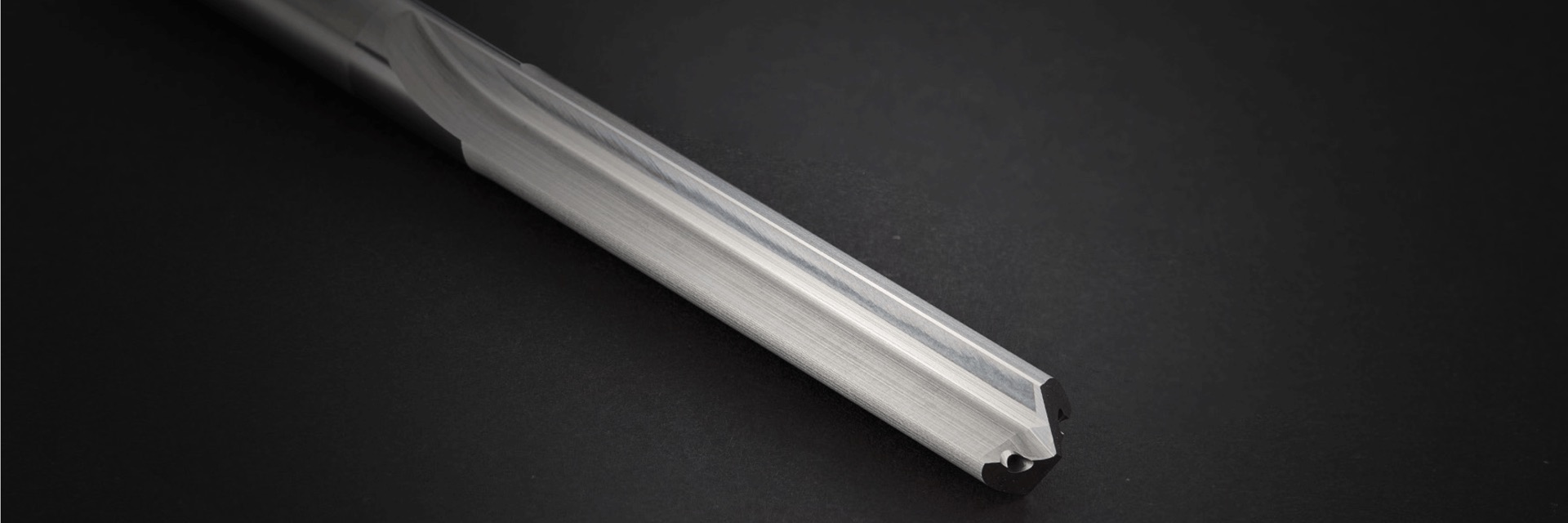

Acceptable Not Recommended| Stock | Order No. | Code | Old Code | d1m7 | d2h6 | l1 | l2 | l3 | Related Document |
|---|---|---|---|---|---|---|---|---|---|
| 80100 | KTX8D.2.0600.0950.A0130.0480.0000.0570.00.S06B1Y01.01 | KTX8D060095 | 6 | 6 | 95 | 48 | 57 | ||
| 80102 | KTX8D.2.0680.1140.A0130.0640.0000.0760.00.S08B1Y01.01 | KTX8D068114 | 6.80 | 8 | 114 | 64 | 76 | ||
| 80104 | KTX8D.2.0700.1140.A0130.0640.0000.0760.00.S08B1Y01.01 | KTX8D070114 | 7 | 8 | 114 | 64 | 76 | ||
| 80106 | KTX8D.2.0750.1140.A0130.0640.0000.0760.00.S08B1Y01.01 | KTX8D075114 | 7.50 | 8 | 114 | 64 | 76 | ||
| 80108 | KTX8D.2.0780.1140.A0130.0640.0000.0760.00.S08B1Y01.01 | KTX8D078114 | 7.80 | 8 | 114 | 64 | 76 | ||
| 80110 | KTX8D.2.0800.1140.A0130.0640.0000.0760.00.S08B1Y01.01 | KTX8D080114 | 8 | 8 | 114 | 64 | 76 | ||
| 80112 | KTX8D.2.0880.1420.A0130.0800.0000.0950.00.S10B1Y01.01 | KTX8D088142 | 8.80 | 10 | 142 | 80 | 95 | ||
| 80114 | KTX8D.2.0900.1420.A0130.0800.0000.0950.00.S10B1Y01.01 | KTX8D090142 | 9 | 10 | 142 | 80 | 95 | ||
| 80116 | KTX8D.2.0950.1420.A0130.0800.0000.0950.00.S10B1Y01.01 | KTX8D095142 | 9.50 | 10 | 142 | 80 | 95 | ||
| 80118 | KTX8D.2.1000.1420.A0130.0800.0000.0950.00.S10B1Y01.01 | KTX8D100142 | 10 | 10 | 142 | 80 | 95 | ||
| 80120 | KTX8D.2.1020.1620.A0130.0960.0000.1140.00.S12B1Y01.01 | KTX8D102162 | 10.20 | 12 | 162 | 96 | 114 | ||
| 80122 | KTX8D.2.1100.1620.A0130.0960.0000.1140.00.S12B1Y01.01 | KTX8D110162 | 11 | 12 | 162 | 96 | 114 | ||
| 80124 | KTX8D.2.1200.1620.A0130.0960.0000.1140.00.S12B1Y01.01 | KTX8D120162 | 12 | 12 | 162 | 96 | 114 | ||
| 80126 | KTX8D.2.1250.1780.A0130.1100.0000.1310.00.S14B1Y01.01 | KTX8D125178 | 12.50 | 14 | 178 | 110 | 131 | ||
| 80128 | KTX8D.2.1280.1780.A0130.1100.0000.1310.00.S14B1Y01.01 | KTX8D128178 | 12.80 | 14 | 178 | 110 | 131 | ||
| 80130 | KTX8D.2.1300.1780.A0130.1100.0000.1310.00.S14B1Y01.01 | KTX8D130178 | 13 | 14 | 178 | 110 | 131 | ||
| 80132 | KTX8D.2.1400.1780.A0130.1100.0000.1310.00.S14B1Y01.01 | KTX8D140178 | 14 | 14 | 178 | 110 | 131 | ||
| 80134 | KTX8D.2.1450.2030.A0130.1280.0000.1520.00.S16B1Y01.01 | KTX8D145203 | 14.50 | 16 | 203 | 128 | 152 | ||
| 80136 | KTX8D.2.1500.2030.A0130.1280.0000.1520.00.S16B1Y01.01 | KTX8D150203 | 15 | 16 | 203 | 128 | 152 | ||
| 80138 | KTX8D.2.1550.2030.A0130.1280.0000.1520.00.S16B1Y01.01 | KTX8D155203 | 15.50 | 16 | 203 | 128 | 152 | ||
| 80140 | KTX8D.2.1600.2030.A0130.1280.0000.1520.00.S16B1Y01.01 | KTX8D160203 | 16 | 16 | 203 | 128 | 152 | ||
| 80142 | KTX8D.2.1700.2220.A0130.1440.0000.1710.00.S18B1Y01.01 | KTX8D170222 | 17 | 18 | 222 | 144 | 171 | ||
| 80144 | KTX8D.2.1750.2220.A0130.1440.0000.1710.00.S18B1Y01.01 | KTX8D175222 | 17.50 | 18 | 222 | 144 | 171 | ||
| 80146 | KTX8D.2.1800.2220.A0130.1440.0000.1710.00.S18B1Y01.01 | KTX8D180222 | 18 | 18 | 222 | 144 | 171 | ||
| 80148 | KTX8D.2.1850.2430.A0130.1600.0000.1900.00.S20B1Y01.01 | KTX8D185243 | 18.50 | 20 | 243 | 160 | 190 | ||
| 80150 | KTX8D.2.1900.2430.A0130.1600.0000.1900.00.S20B1Y01.01 | KTX8D190243 | 19 | 20 | 243 | 160 | 190 | ||
| 80152 | KTX8D.2.1950.2430.A0130.1600.0000.1900.00.S20B1Y01.01 | KTX8D195243 | 19.50 | 20 | 243 | 160 | 190 | ||
| 80154 | KTX8D.2.2000.2430.A0130.1600.0000.1900.00.S20B1Y01.01 | KTX8D200243 | 20 | 20 | 243 | 160 | 190 |
| Ø | |
|---|---|
| 6 | 0,144 |
| 8 | 0,160 |
| 10 | 0,176 |
| 12 | 0,192 |
| 16 | 0,224 |
| 20 | 0,248 |
| Material | Vc(m/min) | |
|---|---|---|
| Aluminium alloys | 125-175 | ● |
| Coper alloys | 125-175 | ● |
| Magnesium alloys | 125-175 | ● |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
