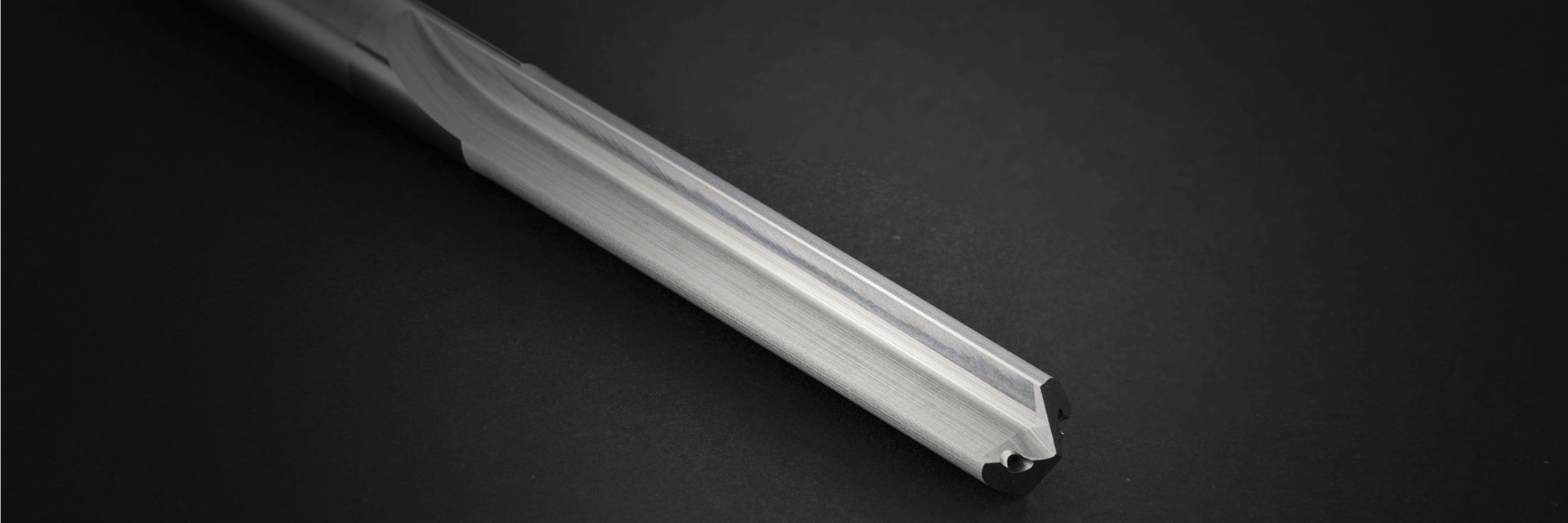

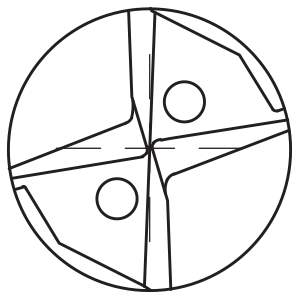

5D Drill With Straight Flute


Steel
Stainless Steel
Hardened Steel ≤ 54 HRc
Hardened Steel > 54 HRc
Cast
Graphite
Non Ferrous Material
HRSA
Titanium
  • Recommended
  • Acceptable
  • Not Recommended

KTX5D Series

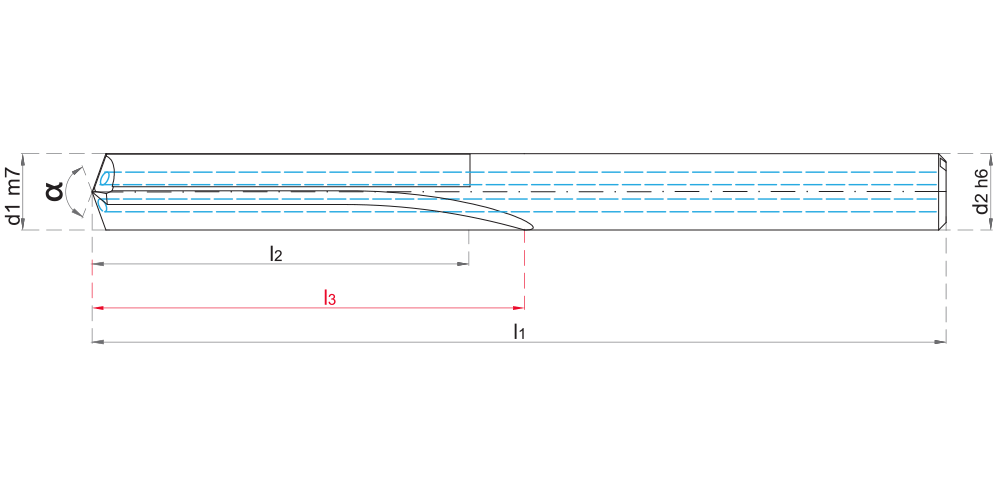

StockOrder No.CodeOld Coded1m7d2h6l1l2l3Related Document
79100KTX5D.2.0500.0820.A0130.0350.0000.0440.00.S06B1Y01.01KTX5D05008256823544
STP DXF
79102KTX5D.2.0510.0820.A0130.0350.0000.0440.00.S06B1Y01.01KTX5D0510825.106823544
STP DXF
79104KTX5D.2.0520.0820.A0130.0350.0000.0440.00.S06B1Y01.01KTX5D0520825.206823544
STP DXF
79106KTX5D.2.0550.0820.A0130.0350.0000.0440.00.S06B1Y01.01KTX5D0550825.506823544
STP DXF
79108KTX5D.2.0600.0820.A0130.0350.0000.0440.00.S06B1Y01.01KTX5D06008266823544
STP DXF
79110KTX5D.2.0650.0910.A0130.0430.0000.0530.00.S08B1Y01.01KTX5D0650916.508914353
STP DXF
79112KTX5D.2.0680.0910.A0130.0430.0000.0530.00.S08B1Y01.01KTX5D0680916.808914353
STP DXF
79114KTX5D.2.0700.0910.A0130.0430.0000.0530.00.S08B1Y01.01KTX5D07009178914353
STP DXF
79116KTX5D.2.0750.0910.A0130.0430.0000.0530.00.S08B1Y01.01KTX5D0750917.508914353
STP DXF
79118KTX5D.2.0780.0910.A0130.0430.0000.0530.00.S08B1Y01.01KTX5D0780917.808914353
STP DXF
79120KTX5D.2.0800.0910.A0130.0430.0000.0530.00.S08B1Y01.01KTX5D08009188914353
STP DXF
79122KTX5D.2.0840.1030.A0130.0490.0000.0610.00.S10B1Y01.01KTX5D0841038.40101034961
STP DXF
79124KTX5D.2.0850.1030.A0130.0490.0000.0610.00.S10B1Y01.01KTX5D0851038.50101034961
STP DXF
79126KTX5D.2.0880.1030.A0130.0490.0000.0610.00.S10B1Y01.01KTX5D0881038.80101034961
STP DXF
79128KTX5D.2.0900.1030.A0130.0490.0000.0610.00.S10B1Y01.01KTX5D0901039101034961
STP DXF
79130KTX5D.2.0950.1030.A0130.0490.0000.0610.00.S10B1Y01.01KTX5D0951039.50101034961
STP DXF
79132KTX5D.2.1000.1030.A0130.0490.0000.0610.00.S10B1Y01.01KTX5D10010310101034961
STP DXF
79134KTX5D.2.1020.1180.A0130.0560.0000.0710.00.S12B1Y01.01KTX5D10211810.20121185671
STP DXF
79136KTX5D.2.1050.1180.A0130.0560.0000.0710.00.S12B1Y01.01KTX5D10511810.50121185671
STP DXF
79138KTX5D.2.1100.1180.A0130.0560.0000.0710.00.S12B1Y01.01KTX5D11011811121185671
STP DXF
79140KTX5D.2.1200.1180.A0130.0560.0000.0710.00.S12B1Y01.01KTX5D12011812121185671
STP DXF
79142KTX5D.2.1250.1240.A0130.0600.0000.0770.00.S14B1Y01.01KTX5D12512412.50141246077
STP DXF
79144KTX5D.2.1280.1240.A0130.0600.0000.0770.00.S14B1Y01.01KTX5D12812412.80141246077
STP DXF
79146KTX5D.2.1300.1240.A0130.0600.0000.0770.00.S14B1Y01.01KTX5D13012413141246077
STP DXF
79148KTX5D.2.1400.1240.A0130.0600.0000.0770.00.S14B1Y01.01KTX5D14012414141246077
STP DXF
79150KTX5D.2.1450.1330.A0130.0630.0000.0830.00.S16B1Y01.01KTX5D14513314.50161336383
STP DXF
79152KTX5D.2.1500.1330.A0130.0740.0000.0830.00.S16B1Y01.01KTX5D15013315161337483
STP DXF
79154KTX5D.2.1550.1330.A0130.0630.0000.0830.00.S16B1Y01.01KTX5D15513315.50161336383
STP DXF
79156KTX5D.2.1600.1330.A0130.0630.0000.0830.00.S16B1Y01.01KTX5D16013316161336383
STP DXF
79158KTX5D.2.1700.1430.A0130.0710.0000.0930.00.S18B1Y01.01KTX5D17014317181437193
STP DXF
79160KTX5D.2.1750.1430.A0130.0710.0000.0930.00.S18B1Y01.01KTX5D17514317.50181437193
STP DXF
79162KTX5D.2.1800.1430.A0130.0710.0000.0930.00.S18B1Y01.01KTX5D18014318181437193
STP DXF
79164KTX5D.2.1850.1530.A0130.0770.0000.1010.00.S20B1Y01.01KTX5D18515318.502015377101
STP DXF
79166KTX5D.2.1900.1530.A0130.0770.0000.1010.00.S20B1Y01.01KTX5D190153192015377101
STP DXF
79168KTX5D.2.1950.1530.A0130.0770.0000.1010.00.S20B1Y01.01KTX5D19515319.502015377101
STP DXF
79170KTX5D.2.2000.1530.A0130.0770.0000.1010.00.S20B1Y01.01KTX5D200153202015377101
STP DXF

Feed Per Tooth (mm/tooth)

Ø
6 0.144
8 0.160
10 0.176
12 0.192
16 0.224
20 0.248

Cutting Parameters

Material Vc(m/min)
Aluminium alloys 125-175 ●
Coper alloys 125-175 ●
Magnesium alloys 125-175 ●
Steel
Stainless Steel
Hardened Steel ≤ 54 HRc
Hardened Steel > 54 HRc
Cast
Graphite
Non Ferrous Material
HRSA
Titanium
  • Recommended
  • Acceptable
  • Not Recommended
KARCAN KESİCİ TAKIM SANAYİ VE TİCARET A.Ş.
