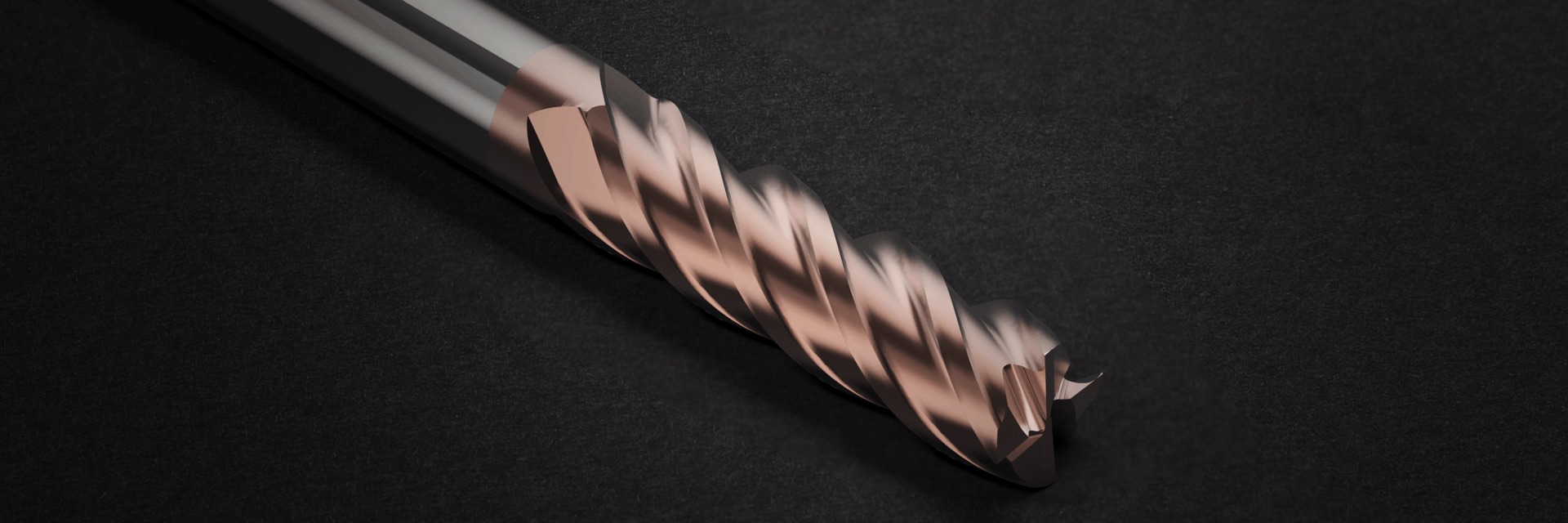

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

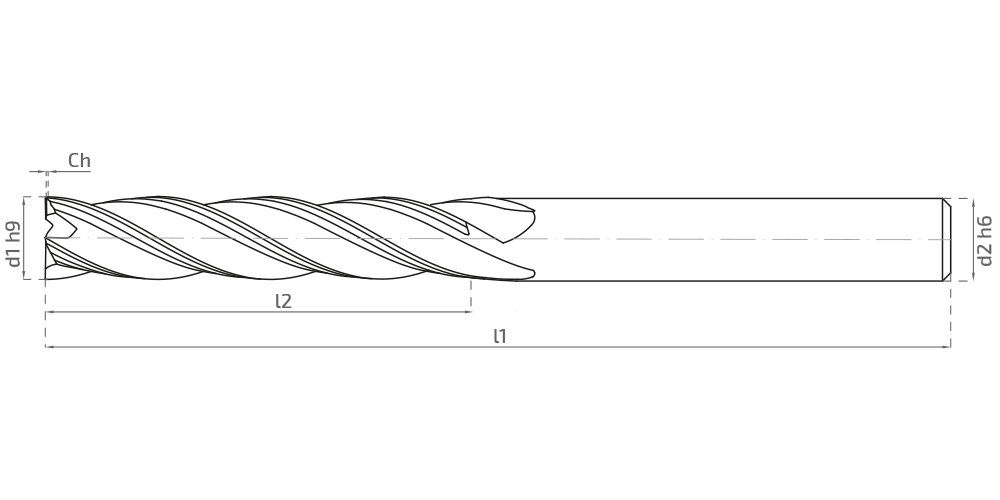

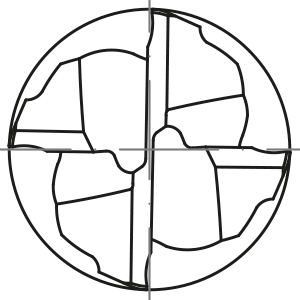

Recommended Acceptable Not Recommended| Stock | Order No. | Code | Old Code | d1h9 | d2h6 | l1 | l2 | Corner | Related Document |
|---|---|---|---|---|---|---|---|---|---|
| * | 28100 | KSUF.4.0150.0500.K0000.0090.0000.0000.00.S04A1A02.01 | KSUF401550 | 1.50 | 4 | 50 | 9 | Ch 0.00 | |
| * | 28102 | KSUF.4.0200.0500.K0000.0120.0000.0000.00.S04A1A02.01 | KSUF402050 | 2 | 4 | 50 | 12 | Ch 0.00 | |
| * | 28104 | KSUF.4.0300.0500.C0010.0150.0000.0000.00.S03A1A02.01 | KSUF403050 | 3 | 3 | 50 | 15 | Ch 0.10 | |
| * | 28106 | KSUF.4.0300.0750.C0010.0150.0000.0000.00.S03A1A02.01 | KSUF403075 | 3 | 3 | 75 | 15 | Ch 0.10 | |
| * | 28108 | KSUF.4.0400.0750.C0010.0200.0000.0000.00.S04A1A02.01 | KSUF404075 | 4 | 4 | 75 | 20 | Ch 0.10 | |
| * | 28110 | KSUF.4.0400.1000.C0010.0250.0000.0000.00.S04A1A02.01 | KSUF404100 | 4 | 4 | 100 | 25 | Ch 0.10 | |
| * | 28112 | KSUF.4.0500.0750.C0010.0200.0000.0000.00.S05A1A02.01 | KSUF405075 | 5 | 5 | 75 | 20 | Ch 0.10 | |
| 28114 | KSUF.4.0500.1000.C0010.0250.0000.0000.00.S05A1A02.01 | KSUF405100 | 5 | 5 | 100 | 25 | Ch 0.10 | ||
| * | 28116 | KSUF.4.0600.0750.C0010.0250.0000.0000.00.S06A1A02.01 | KSUF406075 | 6 | 6 | 75 | 25 | Ch 0.10 | |
| * | 28118 | KSUF.4.0600.1000.C0010.0300.0000.0000.00.S06A1A02.01 | KSUF406100 | 6 | 6 | 100 | 30 | Ch 0.10 | |
| * | 28120 | KSUF.4.0800.1000.C0010.0350.0000.0000.00.S08A1A02.01 | KSUF408100 | 8 | 8 | 100 | 35 | Ch 0.10 | |
| * | 28122 | KSUF.4.1000.1100.C0010.0400.0000.0000.00.S10A1A02.01 | KSUF410110 | 10 | 10 | 110 | 40 | Ch 0.10 | |
| * | 28124 | KSUF.4.1200.1100.C0015.0450.0000.0000.00.S12A2A02.01 | KSUF412110 | 12 | 12 | 110 | 45 | Ch 0.15 | |
| * | 28126 | KSUF.4.1200.1500.C0015.0600.0000.0000.00.S12A2A02.01 | KSUF412150 | 12 | 12 | 150 | 60 | Ch 0.15 | |
| 28128 | KSUF.4.1400.1500.C0015.0600.0000.0000.00.S14A1A02.01 | KSUF414150 | 14 | 14 | 150 | 60 | Ch 0.15 | ||
| 28130 | KSUF.4.1500.1000.C0010.0450.0000.0000.00.S16A1A02.01 | KSUF415100 | 15 | 16 | 100 | 45 | Ch 0.10 | ||
| 28132 | KSUF.4.1600.1000.C0015.0450.0000.0000.00.S16A1A02.01 | KSUF416100 | 16 | 16 | 100 | 45 | Ch 0.15 | ||
| * | 28134 | KSUF.4.1600.1500.C0015.0750.0000.0000.00.S16A2A02.01 | KSUF416150 | 16 | 16 | 150 | 75 | Ch 0.15 | |
| 28136 | KSUF.4.1650.1500.C0015.0750.0000.0000.00.S18A1A02.01 | KSUF4165150 | 16.50 | 18 | 150 | 75 | Ch 0.15 | ||
| 28138 | KSUF.4.1700.1500.C0015.0750.0000.0000.00.S18A1A02.01 | KSUF417150 | 17 | 18 | 150 | 75 | Ch 0.15 | ||
| 28140 | KSUF.4.1750.1500.C0015.0750.0000.0000.00.S18A1A02.01 | KSUF4175150 | 17.50 | 18 | 150 | 75 | Ch 0.15 | ||
| 28142 | KSUF.4.1800.1500.C0015.0750.0000.0000.00.S18A1A02.01 | KSUF418150 | 18 | 18 | 150 | 75 | Ch 0.15 | ||
| 28144 | KSUF.4.1850.1500.C0015.0750.0000.0000.00.S20A1A02.01 | KSUF4185150 | 18.50 | 20 | 150 | 75 | Ch 0.15 | ||
| * | 28146 | KSUF.4.2000.1500.C0015.0750.0000.0000.00.S20A1A02.01 | KSUF420150 | 20 | 20 | 150 | 75 | Ch 0.15 |
| Ø | ap=0.050Ø | ae=0.10Ø | ae=0.30Ø | ae=0.20Ø | ae=0.15Ø | ae=0.10Ø |
|---|---|---|---|---|---|---|
| 3 | 0.005 | 0.006 | 0.031 | 0.036 | 0.038 | 0.04 |
| 4 | 0.008 | 0.011 | 0.038 | 0.042 | 0.044 | 0.046 |
| 5 | 0.013 | 0.017 | 0.041 | 0.043 | 0.045 | 0.047 |
| 6 | 0.016 | 0.022 | 0.048 | 0.052 | 0.054 | 0.056 |
| 8 | 0.021 | 0.027 | 0.054 | 0.058 | 0.061 | 0.064 |
| 10 | 0.029 | 0.035 | 0.062 | 0.066 | 0.069 | 0.072 |
| 12 | 0.038 | 0.043 | 0.067 | 0.072 | 0.075 | 0.079 |
| 14 | 0.047 | 0.052 | 0.072 | 0.077 | 0.08 | 0.083 |
| 16 | 0.056 | 0.063 | 0.076 | 0.081 | 0.086 | 0.09 |
| 18 | 0.068 | 0.073 | 0.079 | 0.085 | 0.089 | 0.095 |
| 20 | 0.078 | 0.084 | 0.084 | 0.092 | 0.097 | 0.098 |
| Material | Slotting | Shoulder Milling | Finish Milling |
|---|---|---|---|
|
|
|
|
|
| ap=0.5 - 0.1Ø | ap=1.5Ø / ae=0.30 - 0.20Ø | ap=1.5Ø / ae=0.20 - 0.10Ø | |
| Vc (m/min) | Vc (m/min) | Vc (m/min) | |
| Unalloyed steel | 95-125 | 180-210 | 210-230 |
| Steel | 90-120 | 180-210 | 210-230 |
| Tempered steel | 80-110 | 160-190 | 190-120 |
| Cold work tool steel | 70-90 | 150-180 | 170-200 |
| Hot work tool steel | 60-80 | 140-170 | 160-190 |
| Gray cast | 100-130 | 250-280 | 280-330 |
| Alloyed cast | 70-100 | 150-190 | 190-240 |
| Precision cast | 60-90 | 130-160 | 160-210 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
