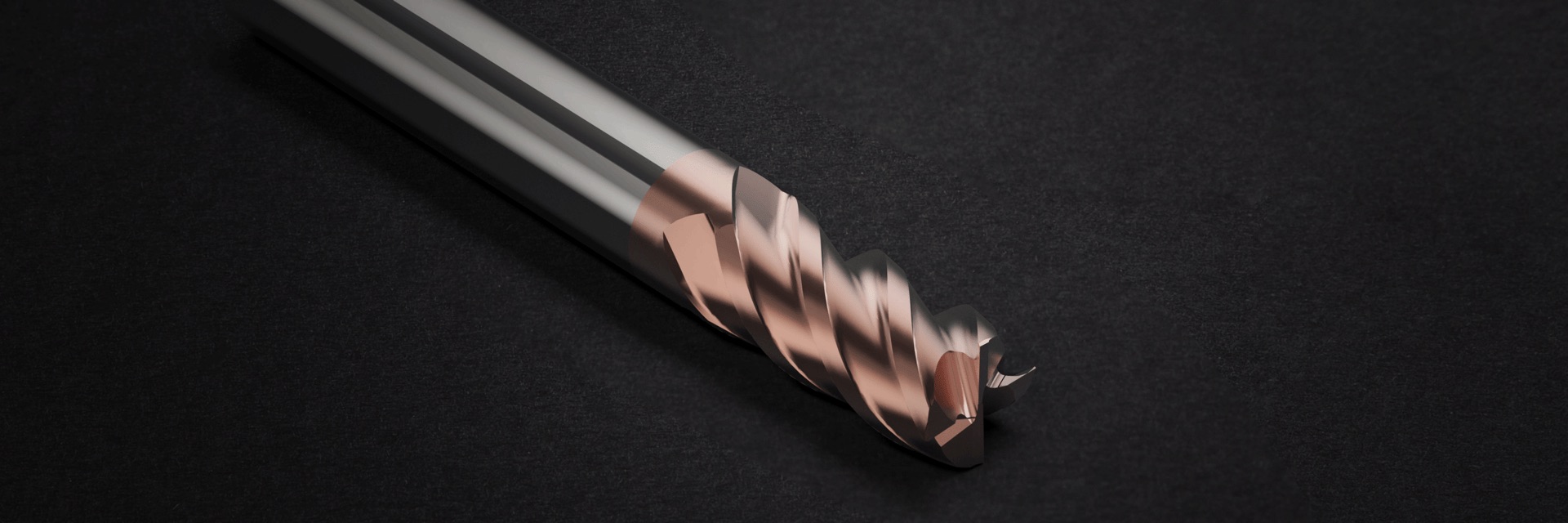

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

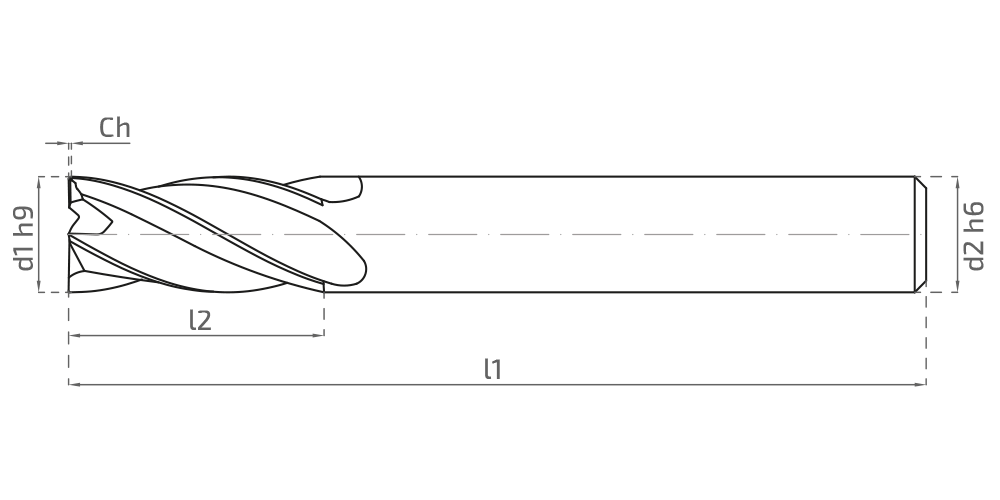

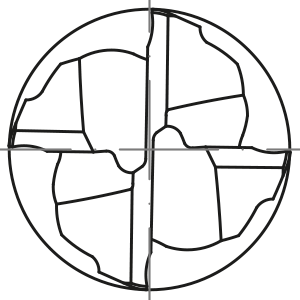

Recommended Acceptable Not Recommended| Stock | Order No | Code | d1h9 | d2h6 | l1 | l2 | Corner | Z |
|---|---|---|---|---|---|---|---|---|
| * | 27166 | 11F00_KSNF0040100A01 | 1 | 3 | 39 | 3 | Ch 0,00 | 4 |
| * | 27100 | 11F00_KSNF0040100A02 | 1 | 4 | 51 | 3 | Ch 0,00 | 4 |
| * | 27162 | 11F00_KSNF0040150A01 | 1.50 | 3 | 39 | 6 | Ch 0,00 | 4 |
| * | 27102 | 11F00_KSNF0040150A02 | 1.50 | 4 | 51 | 6 | Ch 0,00 | 4 |
| * | 27168 | 11F00_KSNF0040200A01 | 2 | 3 | 39 | 7 | Ch 0,00 | 4 |
| * | 27104 | 11F00_KSNF0040200A02 | 2 | 4 | 51 | 7 | Ch 0,00 | 4 |
| * | 27164 | 11F00_KSNF0040250A01 | 2.50 | 3 | 39 | 5.50 | Ch 0,00 | 4 |
| * | 27106 | 11F00_KSNF0040250A02 | 2.50 | 4 | 51 | 9 | Ch 0,00 | 4 |
| * | 27108 | 11F00_KSNF0040300A01 | 3 | 3 | 39 | 9 | Ch 0,00 | 4 |
| * | 27110 | 11F00_KSNF0040300A02 | 3 | 4 | 51 | 9 | Ch 0,00 | 4 |
| 27156 | 11F00_KSNF0040350A01 | 3.50 | 4 | 51 | 12 | Ch 0,00 | 4 | |
| * | 27112 | 11F01_KSNF0040400A01 | 4 | 4 | 51 | 14 | Ch 0,10 | 4 |
| * | 27114 | 11F00_KSNF0040400A01 | 4 | 4 | 51 | 14 | Ch 0,00 | 4 |
| * | 27116 | 11F01_KSNF0040500A01 | 5 | 5 | 51 | 15 | Ch 0,10 | 4 |
| * | 27118 | 11F01_KSNF0040600A01 | 6 | 6 | 57 | 15 | Ch 0,10 | 4 |
| 27170 | 11F01_KSNF0040600A02 | 6 | 6 | 50 | 15 | Ch 0,10 | 4 | |
| * | 27120 | 11F00_KSNF0040600A01 | 6 | 6 | 57 | 15 | Ch 0,00 | 4 |
| 27172 | 11F00_KSNF0040600A02 | 6 | 6 | 50 | 15 | Ch 0,00 | 4 | |
| * | 27122 | 11F01_KSNF0040700A01 | 7 | 8 | 64 | 15 | Ch 0,10 | 4 |
| * | 27124 | 11F01_KSNF0040800A01 | 8 | 8 | 64 | 20 | Ch 0,10 | 4 |
| * | 27126 | 11F00_KSNF0040800A01 | 8 | 8 | 64 | 20 | Ch 0,00 | 4 |
| * | 27128 | 11F01_KSNF0040900A01 | 9 | 10 | 72 | 21 | Ch 0,10 | 4 |
| * | 27130 | 11F01_KSNF0041000A01 | 10 | 10 | 72 | 21 | Ch 0,10 | 4 |
| * | 27132 | 11F00_KSNF0041000A01 | 10 | 10 | 72 | 21 | Ch 0,00 | 4 |
| * | 27174 | 11F00_KSNF0041000S01 | 10 | 10 | 80 | 32 | Ch 0,00 | 4 |
| * | 27134 | 11F01_KSNF0041100A01 | 11 | 12 | 82 | 25 | Ch 0,10 | 4 |
| * | 27136 | 11F01_KSNF0041200A01 | 12 | 12 | 82 | 25 | Ch 0,15 | 4 |
| * | 27138 | 11F00_KSNF0041200A01 | 12 | 12 | 82 | 25 | Ch 0,00 | 4 |
| * | 27140 | 11F01_KSNF0041300A01 | 13 | 14 | 82 | 30 | Ch 0,10 | 4 |
| * | 27142 | 11F01_KSNF0041400A01 | 14 | 14 | 82 | 30 | Ch 0,15 | 4 |
| 27144 | 11F01_KSNF0041500A01 | 15 | 16 | 93 | 35 | Ch 0,10 | 4 | |
| * | 27146 | 11F01_KSNF0041600A01 | 16 | 16 | 93 | 35 | Ch 0,10 | 4 |
| * | 27148 | 11F01_KSNF0041800A01 | 18 | 18 | 93 | 38 | Ch 0,10 | 4 |
| * | 27150 | 11F01_KSNF0042000A01 | 20 | 20 | 105 | 38 | Ch 0,15 | 4 |
| 27158 | 11F01_KSNF0042500A01 | 25 | 25 | 110 | 50 | Ch 0,15 | 4 |
You can use the “KarcanEYE” application to access the machining data for this series based on the material and operational details. More Information
