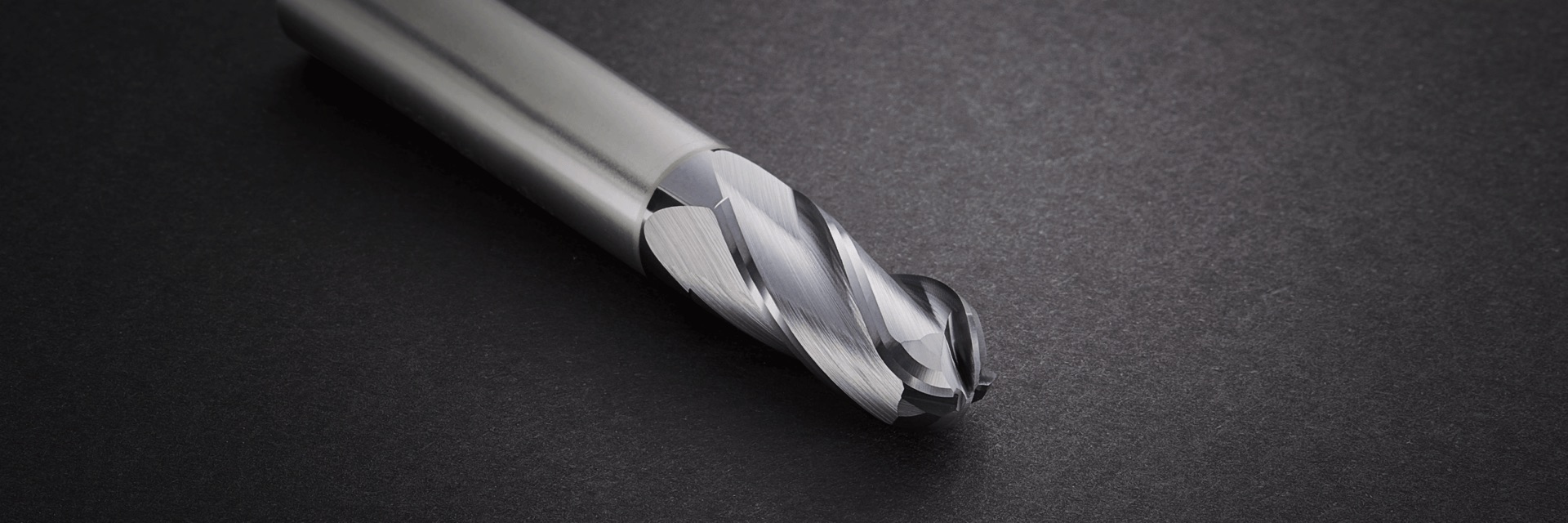

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

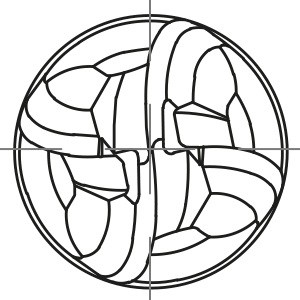

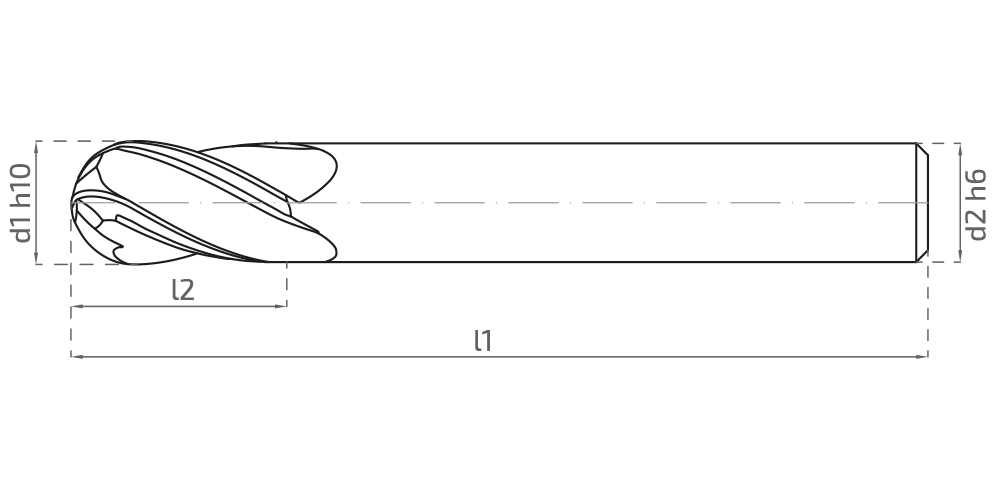

Recommended Acceptable Not Recommended| Stock | Order No. | Code | Old Code | d1h9 | d2h6 | l1 | l2 | Corner | Related Document |
|---|---|---|---|---|---|---|---|---|---|
| * | 29100 | KSKF.4.0300.0390.R0150.0120.0000.0000.00.S03B1A03.01 | KSKF403038 | 3 | 3 | 39 | 12 | R 1.50 | |
| * | 29102 | KSKF.4.0400.0500.R0200.0140.0000.0000.00.S04B1A01.01 | KSKF404051 | 4 | 4 | 50 | 14 | R 2.00 | |
| * | 29104 | KSKF.4.0500.0510.R0250.0200.0000.0000.00.S05B1A01.01 | KSKF405051 | 5 | 5 | 51 | 20 | R 2.50 | |
| * | 29106 | KSKF.4.0600.0580.R0300.0200.0000.0000.00.S06B1A01.01 | KSKF406058 | 6 | 6 | 58 | 20 | R 3.00 | |
| * | 29108 | KSKF.4.0800.0640.R0400.0200.0000.0000.00.S08B1A01.01 | KSKF408064 | 8 | 8 | 64 | 20 | R 4.00 | |
| * | 29110 | KSKF.4.1000.0730.R0500.0250.0000.0000.00.S10B1A01.01 | KSKF410073 | 10 | 10 | 73 | 25 | R 5.00 | |
| * | 29112 | KSKF.4.1200.0820.R0600.0250.0000.0000.00.S12B1A01.01 | KSKF412082 | 12 | 12 | 82 | 25 | R 6.00 | |
| 29114 | KSKF.4.1600.0930.R0800.0320.0000.0000.00.S16B1A01.01 | KSKF416093 | 16 | 16 | 93 | 32 | R 8.00 | ||
| * | 29116 | KSKF.4.1600.0930.R0800.0320.0000.0000.00.S16B1A01.02 | KSKF416093SP | 16 | 16 | 93 | 32 | R 8.00 |
| Ø | ae=0.30Ø | ae=0.20Ø | ae=0.15Ø | ae=0.10Ø |
|---|---|---|---|---|
| 3 | 0.027 | 0.031 | 0.037 | 0.040 |
| 4 | 0.031 | 0.037 | 0.041 | 0.045 |
| 5 | 0.032 | 0.037 | 0.042 | 0.046 |
| 6 | 0.041 | 0.046 | 0.052 | 0.057 |
| 8 | 0.048 | 0.052 | 0.061 | 0.066 |
| 10 | 0.053 | 0.057 | 0.066 | 0.072 |
| 12 | 0.058 | 0.064 | 0.072 | 0.079 |
| Material | Shoulder Milling | Finish Milling |
|---|---|---|
|
|
|
|
| ap=0.1Ø / ae=0.30 - 0.20Ø | ap=0.1Ø / ae=0.20 - 0.10Ø | |
| Vc (m/min) | Vc (m/min) | |
| Unalloyed steel | 200-230 | 230-260 |
| Steel | 200-230 | 230-260 |
| Tempered steel | 180-210 | 200-230 |
| Cold work tool steel | 150-180 | 180-210 |
| Hot work tool steel | 140-170 | 170-200 |
| AISI 304 - 416 - 420 | 90-120 | 120-150 |
| AISI 316 - 440 | 80-110 | 110-140 |
| 17-4 PH 15-5 PH | 80-110 | 110-140 |
| Chrome-Cobalt alloy | 70-100 | 100-130 |
| Gray cast | 280-310 | 310-350 |
| Alloyed cast | 180-210 | 210-250 |
| Precision cast | 150-180 | 180-210 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
