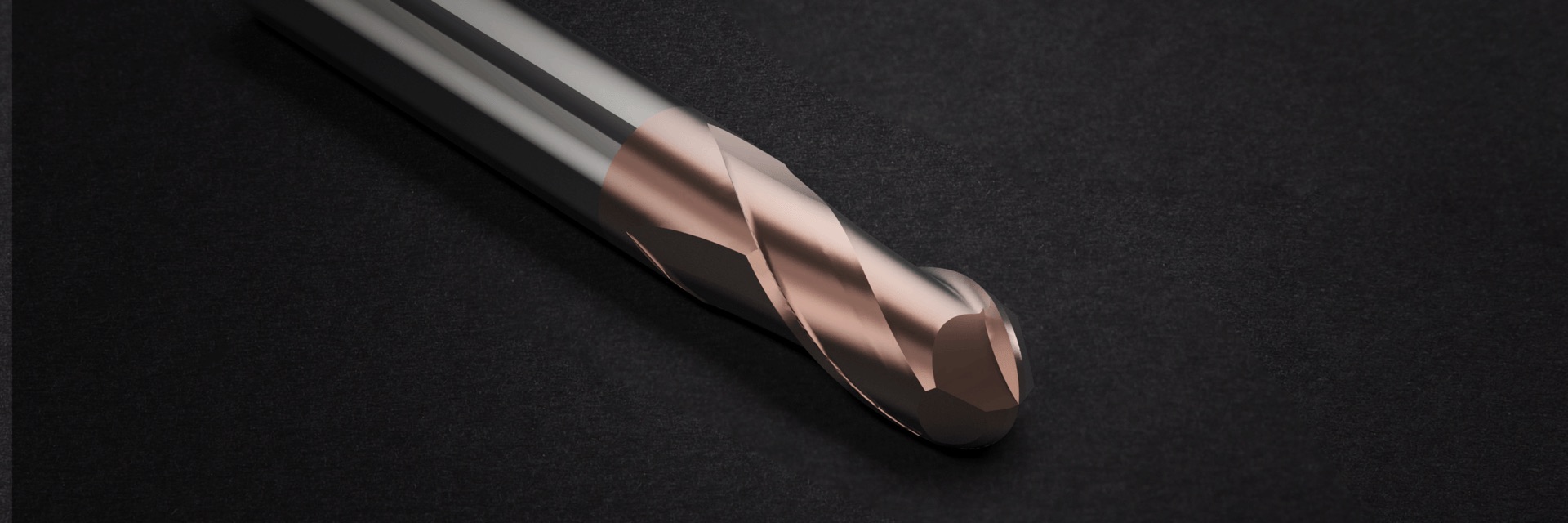

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

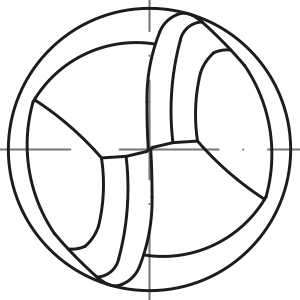

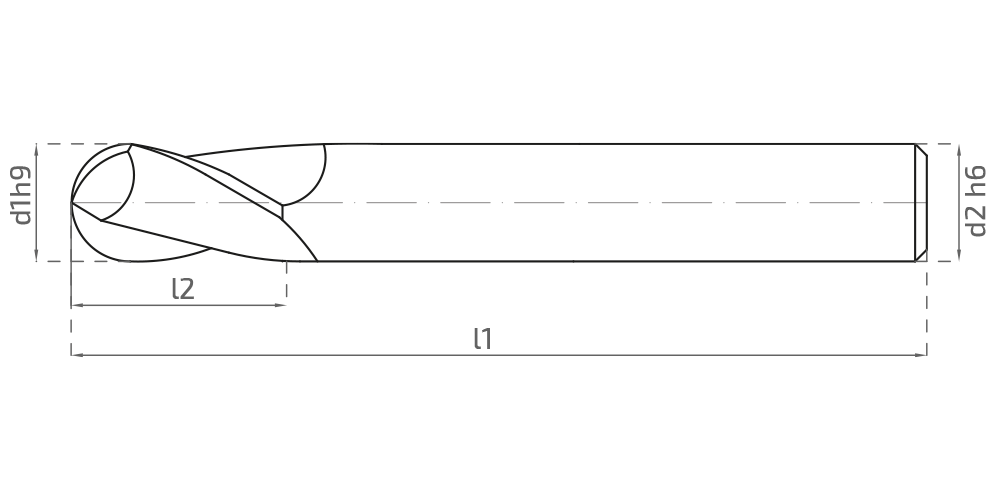

Recommended Acceptable Not Recommended| Stock | Order No. | Code | Old Code | d1h9 | d2h6 | l1 | l2 | Corner | Related Document |
|---|---|---|---|---|---|---|---|---|---|
| * | 30100 | KSKF.2.0100.0500.R0050.0020.0000.0000.00.S04B1A01.01 | KSKF201050 | 1 | 4 | 50 | 2 | R 0.50 | |
| 30102 | KSKF.2.0150.0500.R0075.0040.0000.0000.00.S04B1A01.01 | KSKF201545 | 1.50 | 4 | 50 | 4 | R 0.75 | ||
| * | 30104 | KSKF.2.0150.0500.R0075.0030.0000.0000.00.S04B1A01.01 | KSKF201550 | 1.50 | 4 | 50 | 3 | R 0.75 | |
| 30106 | KSKF.2.0200.0400.R0100.0050.0000.0000.00.S02F1A01.01 | KSKF202040S2 | 2 | 2 | 40 | 5 | R 1.00 | ||
| 30108 | KSKF.2.0200.0500.R0100.0050.0000.0000.00.S04B1A01.01 | KSKF202045 | 2 | 4 | 50 | 5 | R 1.00 | ||
| * | 30110 | KSKF.2.0200.0500.R0100.0040.0000.0000.00.S04B1A01.01 | KSKF202050 | 2 | 4 | 50 | 4 | R 1.00 | |
| * | 30112 | KSKF.2.0250.0500.R0125.0050.0000.0000.00.S04B1A01.01 | KSKF202550 | 2.50 | 4 | 50 | 5 | R 1.25 | |
| * | 30114 | KSKF.2.0300.0500.R0150.0080.0000.0000.00.S04B1A01.01 | KSKF203050 | 3 | 4 | 50 | 8 | R 1.50 | |
| * | 30116 | KSKF.2.0400.0500.R0200.0080.0000.0000.00.S04B1A01.01 | KSKF204050 | 4 | 4 | 50 | 8 | R 2.00 | |
| * | 30118 | KSKF.2.0500.0510.R0250.0100.0000.0000.00.S05B1A01.01 | KSKF205051 | 5 | 5 | 51 | 10 | R 2.50 | |
| * | 30120 | KSKF.2.0600.0580.R0300.0120.0000.0000.00.S06B1A01.01 | KSKF206058 | 6 | 6 | 58 | 12 | R 3.00 | |
| * | 30122 | KSKF.2.0800.0640.R0400.0140.0000.0000.00.S08B1A01.01 | KSKF208064 | 8 | 8 | 64 | 14 | R 4.00 | |
| * | 30124 | KSKF.2.1000.0730.R0500.0180.0000.0000.00.S10B1A01.01 | KSKF210073 | 10 | 10 | 73 | 18 | R 5.00 | |
| * | 30126 | KSKF.2.1200.0820.R0600.0220.0000.0000.00.S12B1A01.01 | KSKF212082 | 12 | 12 | 82 | 22 | R 6.00 | |
| 30128 | KSKF.2.1600.0930.R0800.0320.0000.0000.00.S16B1A01.01 | KSKF216093 | 16 | 16 | 93 | 32 | R 8.00 | ||
| 30130 | KSKF.2.1800.0930.R0900.0300.0000.0000.00.S18B1A01.01 | KSKF218093 | 18 | 18 | 93 | 30 | R 9.00 | ||
| 30132 | KSKF.2.2000.1050.R1000.0350.0000.0000.00.S20B1A01.01 | KSKF220105 | 20 | 20 | 105 | 35 | R 10.00 |
| Ø | ae=0.03Ø | ae=0.02Ø | ae=0.015Ø |
|---|---|---|---|
| 3 | 0,020 | 0,023 | 0,027 |
| 4 | 0,023 | 0,027 | 0,030 |
| 5 | 0,024 | 0,027 | 0,030 |
| 6 | 0,030 | 0,035 | 0,040 |
| 8 | 0,036 | 0,040 | 0,045 |
| 10 | 0,040 | 0,042 | 0,050 |
| 12 | 0,045 | 0,048 | 0,055 |
| Material | Shoulder Milling | Finish Milling |
|---|---|---|
|
|
|
|
| ap=0.1Ø / ae=0.30 - 0.20Ø | ap=0.1Ø / ae=0.20 - 0.10Ø | |
| Vc (m/min) | Vc (m/min) | |
| Unalloyed steel | 200-230 | 230-260 |
| Steel | 200-230 | 230-260 |
| Tempered steel | 180-210 | 200-230 |
| Cold work tool steel | 150-180 | 180-210 |
| Hot work tool steel | 140-170 | 170-200 |
| AISI 304 - 416 - 420 | 90-120 | 120-150 |
| AISI 316 - 440 | 80-110 | 110-140 |
| 17-4 PH 15-5 PH | 80-110 | 110-140 |
| Chrome-Cobalt alloy | 70-100 | 100-130 |
| Gray cast | 280-310 | 310-350 |
| Alloyed cast | 180-210 | 210-250 |
| Precision cast | 150-180 | 180-210 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
