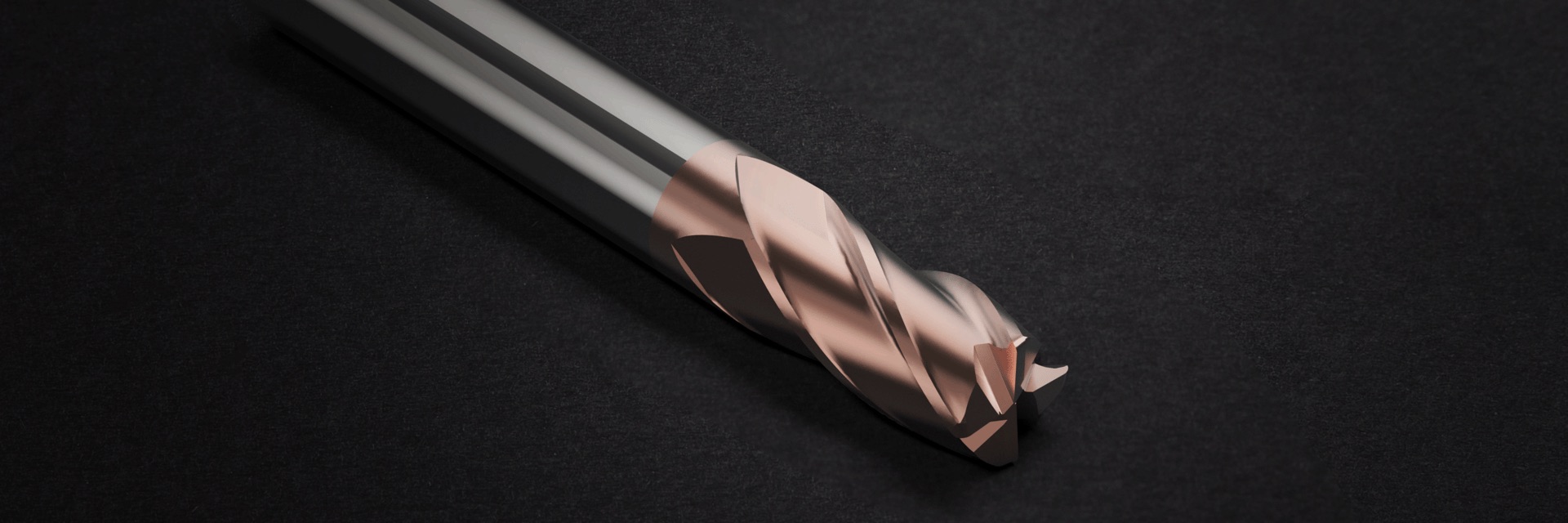

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

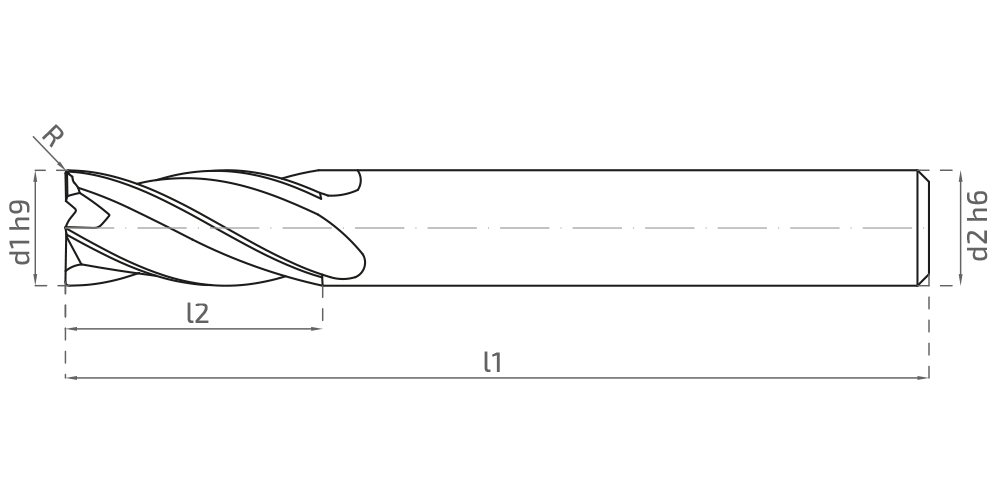

Recommended Acceptable Not Recommended| Stock | Order No. | Code | Old Code | d1h9 | d2h6 | l1 | l2 | Corner | Related Document |
|---|---|---|---|---|---|---|---|---|---|
| 31100 | KRSF.4.0150.0500.R0020.0030.0000.0000.00.S04B1A04.01 | KRSF4015002 | 1.50 | 4 | 50 | 3 | R 0.20 | ||
| 31102 | KRSF.4.0150.0500.R0030.0030.0000.0000.00.S04B1A04.01 | KRSF4015003 | 1.50 | 4 | 50 | 3 | R 0.30 | ||
| 31104 | KRSF.4.0150.0500.R0050.0030.0000.0000.00.S04B1A04.01 | KRSF4015005 | 1.50 | 4 | 50 | 3 | R 0.50 | ||
| 31106 | KRSF.4.0200.0500.R0020.0040.0000.0000.00.S04B1A04.01 | KRSF402002SP | 2 | 4 | 50 | 4 | R 0.20 | ||
| 31108 | KRSF.4.0200.0500.R0050.0040.0000.0000.00.S04B1A04.01 | KRSF402005SP | 2 | 4 | 50 | 4 | R 0.50 | ||
| * | 31110 | KRSF.4.0300.0500.R0050.0060.0000.0000.00.S03B1A02.01 | KRSF403005 | 3 | 3 | 50 | 6 | R 0.50 | |
| 31112 | KRSF.4.0300.0500.R0020.0060.0000.0000.00.S04B1A02.01 | KRSF403002 | 3 | 4 | 50 | 6 | R 0.20 | ||
| * | 31114 | KRSF.4.0300.0500.R0100.0060.0000.0000.00.S03B1A02.01 | KRSF403010 | 3 | 3 | 50 | 6 | R 1.00 | |
| 31116 | KRSF.4.0400.0500.R0020.0080.0000.0000.00.S04B1A02.01 | KRSF404002 | 4 | 4 | 50 | 8 | R 0.20 | ||
| * | 31118 | KRSF.4.0400.0500.R0050.0080.0000.0000.00.S04B1A02.01 | KRSF404005 | 4 | 4 | 50 | 8 | R 0.50 | |
| * | 31120 | KRSF.4.0400.0500.R0100.0080.0000.0000.00.S04B1A02.01 | KRSF404010 | 4 | 4 | 50 | 8 | R 1.00 | |
| * | 31122 | KRSF.4.0500.0510.R0050.0110.0000.0000.00.S05B1A02.01 | KRSF405005 | 5 | 5 | 51 | 11 | R 0.50 | |
| * | 31124 | KRSF.4.0500.0510.R0100.0110.0000.0000.00.S05B1A02.01 | KRSF405010 | 5 | 5 | 51 | 11 | R 1.00 | |
| 31126 | KRSF.4.0600.0580.R0020.0120.0000.0000.00.S06B1A02.01 | KRSF406002 | 6 | 6 | 58 | 12 | R 0.20 | ||
| * | 31128 | KRSF.4.0600.0580.R0050.0120.0000.0000.00.S06B1A02.01 | KRSF406005 | 6 | 6 | 58 | 12 | R 0.50 | |
| * | 31130 | KRSF.4.0600.0580.R0100.0120.0000.0000.00.S06B1A02.01 | KRSF406010 | 6 | 6 | 58 | 12 | R 1.00 | |
| * | 31132 | KRSF.4.0800.0640.R0050.0200.0000.0000.00.S08B1A02.01 | KRSF408005 | 8 | 8 | 64 | 20 | R 0.50 | |
| * | 31134 | KRSF.4.0800.0640.R0100.0200.0000.0000.00.S08B1A02.01 | KRSF408010 | 8 | 8 | 64 | 20 | R 1.00 | |
| * | 31136 | KRSF.4.1000.0730.R0050.0210.0000.0000.00.S10B1A02.01 | KRSF410005 | 10 | 10 | 73 | 21 | R 0.50 | |
| * | 31138 | KRSF.4.1000.0730.R0100.0210.0000.0000.00.S10B1A02.01 | KRSF410010 | 10 | 10 | 73 | 21 | R 1.00 | |
| * | 31140 | KRSF.4.1200.0820.R0050.0250.0000.0000.00.S12B1A02.01 | KRSF412005 | 12 | 12 | 82 | 25 | R 0.50 | |
| * | 31142 | KRSF.4.1200.0820.R0100.0250.0000.0000.00.S12B1A02.01 | KRSF412010 | 12 | 12 | 82 | 25 | R 1.00 | |
| 31144 | KRSF.4.0200.0500.R0050.0040.0000.0000.00.S04B1A04.02 | KRSF402005 | 2 | 4 | 50 | 4 | R 0.50 |
| Ø | ap=1.5Ø | ap=1Ø | ap=0.50Ø | ae=0.35Ø | ae=0.30Ø |
|---|---|---|---|---|---|
| 3 | 0.007 | 0.032 | 0.037 | 0.039 | 0.041 |
| 4 | 0.012 | 0.039 | 0.043 | 0.045 | 0.047 |
| 5 | 0.018 | 0.042 | 0.044 | 0.046 | 0.048 |
| 6 | 0.023 | 0.049 | 0.053 | 0.055 | 0.057 |
| 8 | 0.028 | 0.056 | 0.060 | 0.063 | 0.066 |
| 10 | 0.036 | 0.064 | 0.068 | 0.071 | 0.074 |
| 12 | 0.045 | 0.069 | 0.074 | 0.077 | 0.080 |
| Material | Slotting | Shoulder Milling | Finish Milling |
|---|---|---|---|
|
|
|
|
|
| ap=0.5Ø | ap=1.5Ø / ae=0.30 - 0.20Ø | ap=1.5Ø / ae=0.20 - 0.10Ø | |
| Vc (m/min) | Vc (m/min) | Vc (m/min) | |
| Unalloyed steel | 95-125 | 150-180 | 180-210 |
| Steel | 90-120 | 140-170 | 170-200 |
| Reclamation steel | 80-110 | 130-160 | 160-190 |
| Cold work tool steel | 70-90 | 120-150 | 150-180 |
| Hot work tool steel | 60-80 | 120-150 | 150-180 |
| AISI 304 - 416 - 420 | 70-90 | 80-110 | 110-150 |
| AISI 316 - 440 | 65-85 | 70-100 | 100-130 |
| 17-4 PH 15-5 PH | 60-80 | 70-100 | 100-130 |
| Chrome-Cobalt alloy | 50-70 | 60-90 | 90-120 |
| Gray cast | 100-130 | 250-280 | 280-330 |
| Alloyed cast | 70-100 | 150-190 | 190-240 |
| Precision cast | 60-90 | 130-160 | 160-210 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
