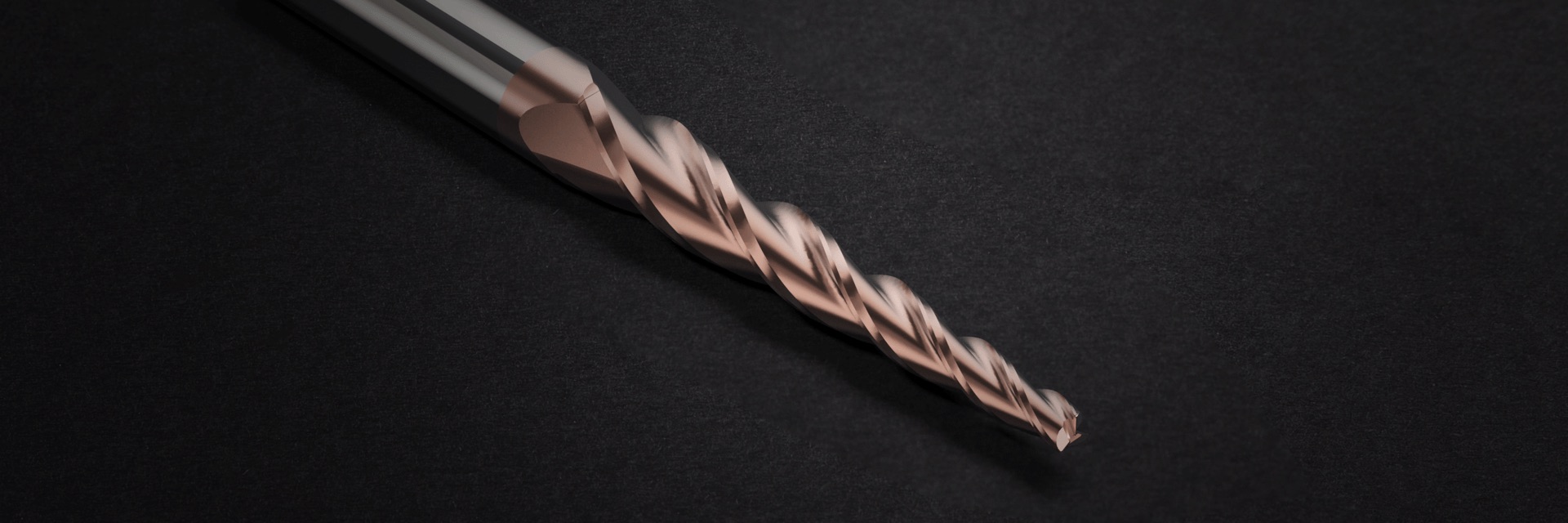

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

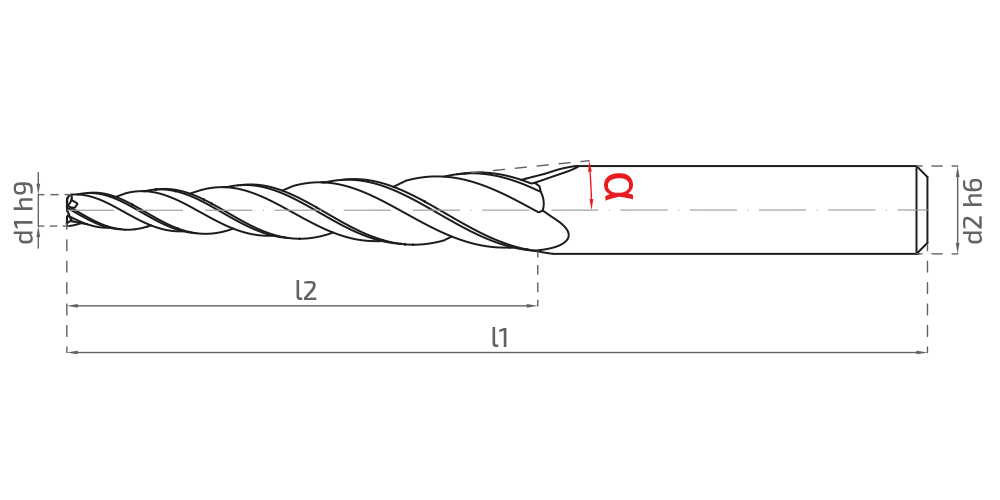

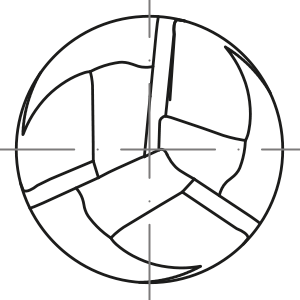

Recommended Acceptable Not Recommended| Stock | Order No. | Code | Old Code | d1h9 | d2h6 | l1 | l2 | α | Corner | Related Document |
|---|---|---|---|---|---|---|---|---|---|---|
| 68100 | KKSF.3.0200.0640.R0010.0350.0000.0010.00.S06A1A02.01 | KKSF010020006 | 2 | 6 | 64 | 35 | 1 | R 0.10 | ||
| 68102 | KKSF.3.0250.0750.R0010.0300.0000.0010.00.S04A1A02.01 | KKSF010025004 | 2.50 | 4 | 75 | 30 | 1 | R 0.10 | ||
| 68104 | KKSF.3.0250.0640.R0010.0300.0000.0010.00.S06A1A02.01 | KKSF010025006 | 2.50 | 6 | 64 | 30 | 1 | R 0.10 | ||
| 68106 | KKSF.3.0300.0640.R0010.0300.0000.0010.00.S06A1A02.01 | KKSF010030006 | 3 | 6 | 64 | 30 | 1 | R 0.10 | ||
| 68108 | KKSF.3.0300.0800.R0010.0400.0000.0010.00.S06A1A02.01 | KKSF010030006XL | 3 | 6 | 80 | 40 | 1 | R 0.10 | ||
| 68110 | KKSF.3.0300.0800.R0010.0400.0000.0010.00.S08A1A02.01 | KKSF010030008 | 3 | 8 | 80 | 40 | 1 | R 0.10 | ||
| 68112 | KKSF.3.0200.0750.R0010.0350.0000.0015.00.S04A1A02.01 | KKSF015020004 | 2 | 4 | 75 | 35 | 1.50 | R 0.10 | ||
| 68114 | KKSF.3.0250.0640.R0010.0300.0000.0015.00.S06A1A02.01 | KKSF015025006 | 2.50 | 6 | 64 | 30 | 1.50 | R 0.10 | ||
| 68116 | KKSF.3.0250.0800.R0010.0400.0000.0015.00.S08A1A02.01 | KKSF015025008 | 2.50 | 8 | 80 | 40 | 1.50 | R 0.10 | ||
| 68118 | KKSF.3.0300.1100.R0010.0400.0000.0015.00.S06A1A02.01 | KKSF015030006 | 3 | 6 | 110 | 40 | 1.50 | R 0.10 | ||
| 68120 | KKSF.3.0200.0640.R0010.0300.0000.0020.00.S06A1A02.01 | KKSF020020006 | 2 | 6 | 64 | 30 | 2 | R 0.10 | ||
| 68122 | KKSF.3.0250.0640.R0010.0600.0000.0020.00.S06A1A02.01 | KKSF020025006 | 2.50 | 6 | 64 | 60 | 2 | R 0.10 | ||
| 68124 | KKSF.3.0300.0800.R0010.0400.0000.0020.00.S06A1A02.01 | KKSF020030006 | 3 | 6 | 80 | 40 | 2 | R 0.10 | ||
| 68126 | KKSF.3.0300.1100.R0010.0600.0000.0020.00.S08A1A02.01 | KKSF020030008 | 3 | 8 | 110 | 60 | 2 | R 0.10 | ||
| 68128 | KKSF.3.0200.0800.R0010.0500.0000.0023.00.S06A1A02.01 | KKSF023020006 | 2 | 6 | 80 | 50 | 2.30 | R 0.10 | ||
| 68130 | KKSF.3.0200.0750.R0010.0280.0000.0025.00.S06A1A02.01 | KKSF025020006 | 2 | 6 | 75 | 28 | 2.50 | R 0.10 | ||
| 68132 | KKSF.3.0250.0750.R0010.0280.0000.0025.00.S06A1A02.01 | KKSF025025006 | 2.50 | 6 | 75 | 28 | 2.50 | R 0.10 | ||
| 68134 | KKSF.3.0300.0750.R0010.0280.0000.0025.00.S06A1A02.01 | KKSF025030006 | 3 | 6 | 75 | 28 | 2.50 | R 0.10 | ||
| 68136 | KKSF.3.0280.0750.R0010.0320.0000.0028.00.S06A1A02.01 | KKSF028028006 | 2.80 | 6 | 75 | 32 | 2.80 | R 0.10 | ||
| 68138 | KKSF.3.0200.0640.R0010.0300.0000.0030.00.S06A1A02.01 | KKSF030020006 | 2 | 6 | 64 | 30 | 3 | R 0.10 | ||
| 68140 | KKSF.3.0200.0800.R0010.0400.0000.0030.00.S08A1A02.01 | KKSF030020008 | 2 | 8 | 80 | 40 | 3 | R 0.10 | ||
| 68142 | KKSF.3.0250.0640.R0010.0300.0000.0030.00.S06A1A02.01 | KKSF030025006 | 2.50 | 6 | 64 | 30 | 3 | R 0.10 | ||
| 68144 | KKSF.3.0250.0800.R0010.0400.0000.0030.00.S08A1A02.01 | KKSF030025008 | 2.50 | 8 | 80 | 40 | 3 | R 0.10 | ||
| 68146 | KKSF.3.0250.1000.R0010.0400.0000.0030.00.S08A1A02.01 | KKSF030025008XL | 2.50 | 8 | 100 | 40 | 3 | R 0.10 | ||
| 68148 | KKSF.3.0300.0640.R0010.0280.0000.0030.00.S06A1A02.01 | KKSF030030006 | 3 | 6 | 64 | 28 | 3 | R 0.10 | ||
| 68150 | KKSF.3.0300.0800.R0010.0400.0000.0030.00.S08A1A02.01 | KKSF030030008 | 3 | 8 | 80 | 40 | 3 | R 0.10 | ||
| 68152 | KKSF.3.0300.1000.R0010.0480.0000.0030.00.S08A1A02.01 | KKSF030030008XL | 3 | 8 | 100 | 48 | 3 | R 0.10 |
| Ø | ae=0.15Ø | ae=0.10Ø |
|---|---|---|
| 2 | 0.005 | 0.005 |
| 2.5 | 0.006 | 0.006 |
| 3 | 0.008 | 0.008 |
| 4 | 0.012 | 0.012 |
| Material | Shoulder Milling |
|---|---|
|
|
|
| ap=0.1Ø / ae=0.30 - 0.20Ø | |
| Vc (m/min) | |
| Unalloyed steel | 100-130 |
| Steel | 100-130 |
| Tempered steel | 90-120 |
| Cold work tool steel | 80-110 |
| Hot work tool steel | 70-100 |
| AISI 304 - 416 - 420 | 50-80 |
| AISI 316 - 440 | 30-60 |
| 17-4 PH 15-5 PH | 30-60 |
| Duplex F51 | 25-40 |
| Gray cast | 100-130 |
| Coper alloys | 100-130 |
| HRSA hastelloy | 10--20 |
| HRSA incoinel 625 | 10--20 |
| HRSA incoinel 718 | 10--20 |
| HRSA nimonic | 10--20 |
| Titanium | 20-30 |
| Titanium alloys | 20-30 |
