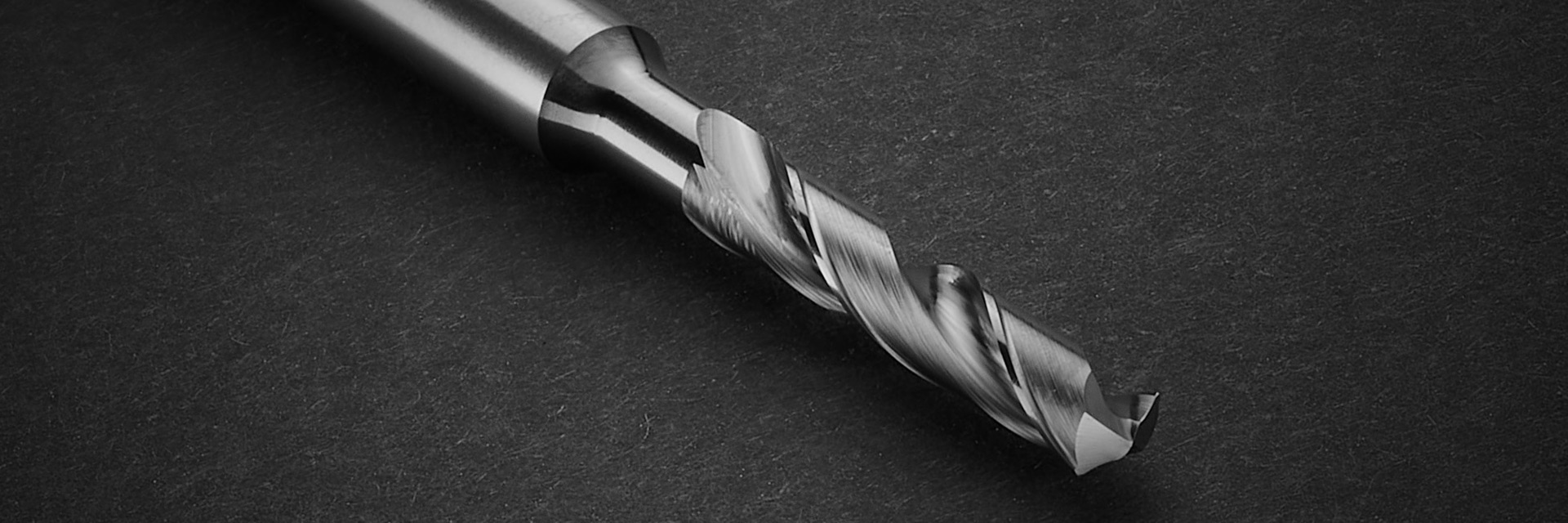

K5DX Series

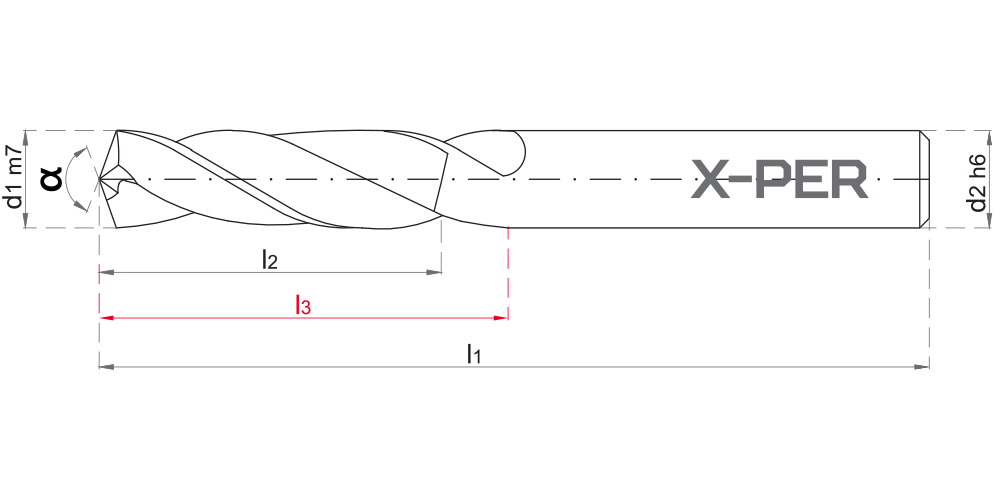

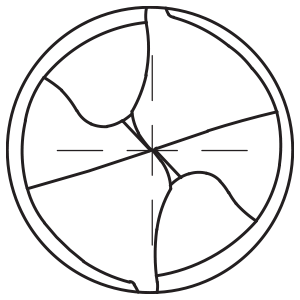

Code	d1m7	d2h6	l1	l2	l3
K5DX030066	3	6	66	27	28
K5DX031066	3.1	6	66	27	28
K5DX032066	3.2	6	66	27	28
K5DX033066	3.3	6	66	27	28
K5DX034066	3.4	6	66	27	28
K5DX035066	3.5	6	66	27	28
K5DX036066	3.6	6	66	27	28
K5DX037066	3.7	6	66	27	28
K5DX038074	3.8	6	74	32	36
K5DX039074	3.9	6	74	32	36
K5DX040074	4	6	74	32	36
K5DX041074	4.1	6	74	32	36
K5DX042074	4.2	6	74	32	36
K5DX043074	4.3	6	74	32	36
K5DX044074	4.4	6	74	32	36
K5DX045074	4.5	6	74	32	36
K5DX046074	4.6	6	74	32	36
K5DX047074	4.7	6	74	32	36
K5DX048082	4.8	6	82	41	44
K5DX049082	4.9	6	82	41	44
K5DX050082	5	6	82	41	44
K5DX051082	5.1	6	82	41	44
K5DX052082	5.2	6	82	41	44
K5DX053082	5.3	6	82	41	44
K5DX054082	5.4	6	82	41	44
K5DX055082	5.5	6	82	41	44
K5DX056082	5.6	6	82	41	44
K5DX057082	5.7	6	82	41	44
K5DX058082	5.8	6	82	41	44
K5DX059082	5.9	6	82	41	44
K5DX060082	6	6	82	41	44
K5DX061091	6.1	8	91	50	53
K5DX062091	6.2	8	91	50	53
K5DX063091	6.3	8	91	50	53
K5DX064091	6.4	8	91	50	53
K5DX065091	6.5	8	91	50	53
K5DX066091	6.6	8	91	50	53
K5DX067091	6.7	8	91	50	53
K5DX068091	6.8	8	91	50	53
K5DX069091	6.9	8	91	50	53
K5DX070091	7	8	91	50	53
K5DX071091	7.1	8	91	50	53
K5DX072091	7.2	8	91	50	53
K5DX073091	7.3	8	91	50	53
K5DX074091	7.4	8	91	50	53
K5DX075091	7.5	8	91	50	53
K5DX076091	7.6	8	91	50	53
K5DX077091	7.7	8	91	50	53
K5DX078091	7.8	8	91	50	53
K5DX079091	7.9	8	91	50	53
K5DX080091	8	8	91	50	53
K5DX081103	8.1	10	103	57	61
K5DX082103	8.2	10	103	57	61
K5DX084103	8.4	10	103	57	61
K5DX085103	8.5	10	103	57	61
K5DX086103	8.6	10	103	57	61
K5DX088103	8.8	10	103	57	61
K5DX089103	8.9	10	103	57	61
K5DX090103	9	10	103	57	61
K5DX091103	9.1	10	103	57	61
K5DX092103	9.2	10	103	57	61
K5DX093103	9.3	10	103	57	61
K5DX094103	9.4	10	103	57	61
K5DX095103	9.5	10	103	57	61
K5DX096103	9.6	10	103	57	61
K5DX097103	9.7	10	103	57	61
K5DX098103	9.8	10	103	57	61
K5DX099103	9.9	10	103	57	61
K5DX100103	10	10	103	57	61
K5DX101118	10.1	12	118	67	71
K5DX102118	10.2	12	118	67	71
K5DX103118	10.3	12	118	67	71
K5DX104118	10.4	12	118	67	71
K5DX105118	10.5	12	118	67	71
K5DX106118	10.6	12	118	67	71
K5DX107118	10.7	12	118	67	71
K5DX108118	10.8	12	118	67	71
K5DX109118	10.9	12	118	67	71
K5DX110118	11	12	118	67	71
K5DX111118	11.1	12	118	67	71
K5DX112118	11.2	12	118	67	71
K5DX113118	11.3	12	118	67	71
K5DX114118	11.4	12	118	67	71
K5DX115118	11.5	12	118	67	71
K5DX116118	11.6	12	118	67	71
K5DX117118	11.7	12	118	67	71
K5DX118118	11.8	12	118	67	71
K5DX119118	11.9	12	118	67	71
K5DX120118	12	12	118	67	71
K5DX121124	12.1	14	124	70	77
K5DX122124	12.2	14	124	70	77
K5DX123124	12.3	14	124	70	77
K5DX124124	12.4	14	124	70	77
K5DX125124	12.5	14	124	70	77
K5DX126124	12.6	14	124	70	77
K5DX127124	12.7	14	124	70	77
K5DX128124	12.8	14	124	70	77
K5DX129124	12.9	14	124	70	77
K5DX130124	13	14	124	70	77
K5DX131124	13.1	14	124	70	77
K5DX133124	13.3	14	124	70	77
K5DX134124	13.4	14	124	70	77
K5DX135124	13.5	14	124	70	77
K5DX136124	13.6	14	124	70	77
K5DX137124	13.7	14	124	70	77
K5DX138124	13.8	14	124	70	77
K5DX139124	13.9	14	124	70	77
K5DX140124	14	14	124	70	77
K5DX141133	14.1	16	133	74	83
K5DX142133	14.2	16	133	74	83
K5DX143133	14.3	16	133	74	83
K5DX144133	14.4	16	133	74	83
K5DX145133	14.5	16	133	74	83
K5DX150133	15	16	133	74	83
K5DX155133	15.5	16	133	74	83
K5DX160133	16	16	133	74	83

Feed Per Tooth (mm/tooth)

Q
3	0.025
4	0.03
5	0.042
6	0.052
8	0.092
10	0.115
12	0.135
16	0.155
20	0.175

Cutting Parameters

Unalloyed steel	65-80

Steel	55-70
Tempered steel	50-65
Cold work tool steel	40-55
Hot work tool steel	40-55
AISI 304 - 416 - 420	30-40
AISI 316 - 440	30-40
17-4 PH 15-5 PH	25-30
Chrome-Cobalt alloy	25-30
Duplex F51	15-25
Super duplex F55	15-25
Gray cast	80-95
Alloyed cast	65-80
Precision cast	65-80
Graphite	95-110
Titanium	30-40
Titanium alloys	25-30

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended

Hole-Making

K5DX Series

K5DX Series

Feed Per Tooth (mm/tooth)

Cutting Parameters
