99 Ultra-Bite Series

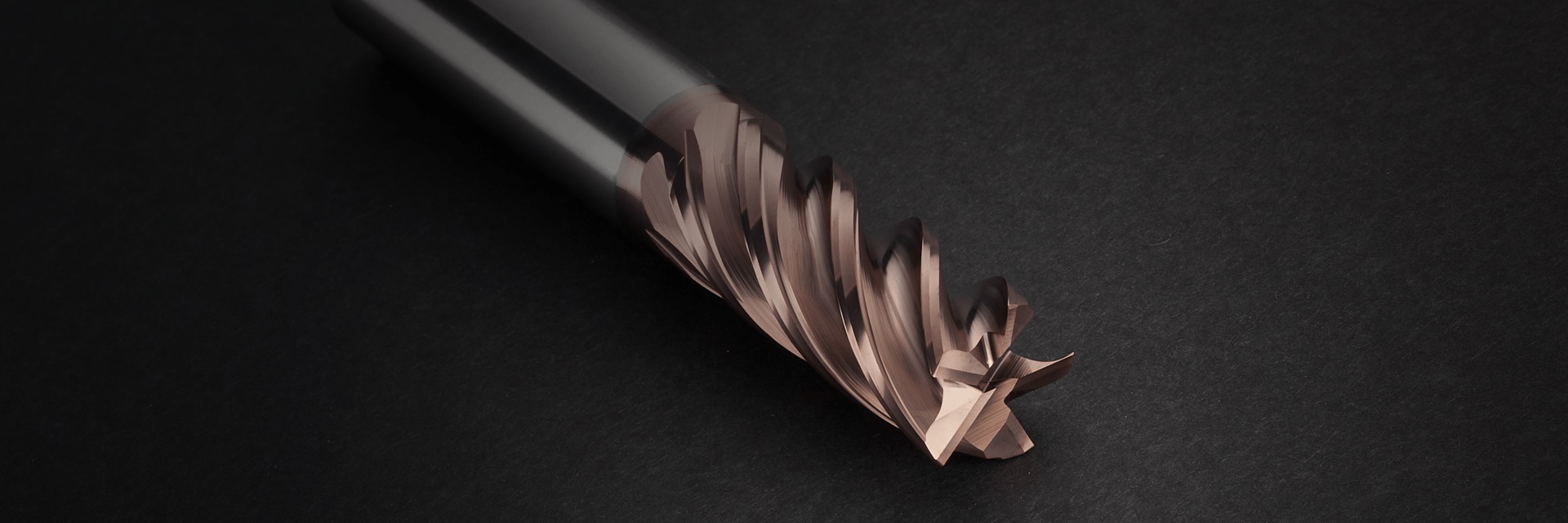

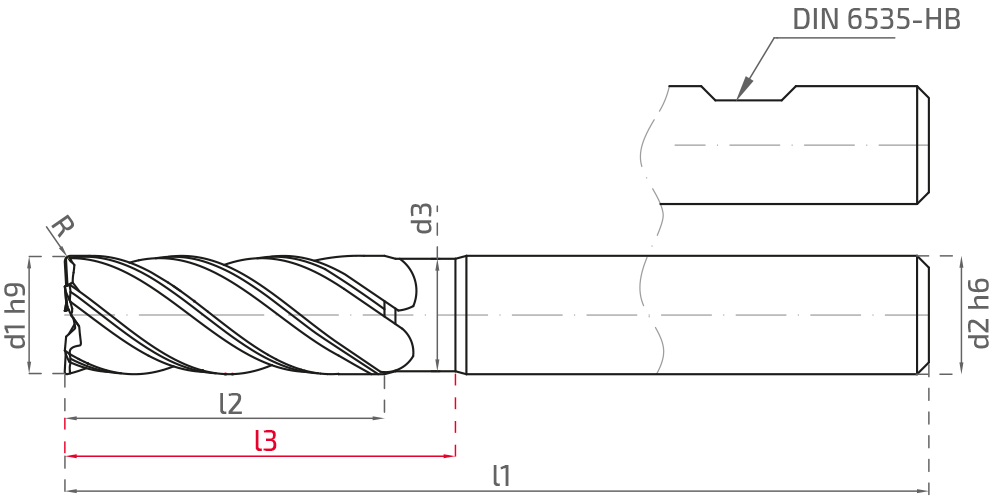

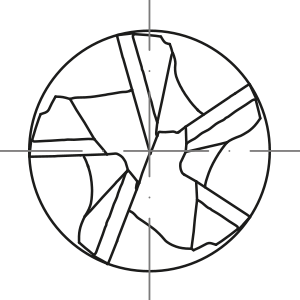

Stock	Order No.	Code	Old Code	d1h9	d2h6	d3	l1	l2	l3	Corner	Weldon Order No.	Related Document
*	12100	99.5.0500.0580.R0020.0150.0470.0200.00.S06B1C01.01	99505002	5	6	4.70	58	15	20	R 0.20	12101	STP DXF
*	12102	99.5.0500.0580.R0050.0150.0470.0200.00.S06B1C01.01	99505005	5	6	4.70	58	15	20	R 0.50	12103	STP DXF
	12104	99.5.0600.0580.K0000.0150.0570.0200.00.S06B1C01.01	99506000	6	6	5.70	58	15	20	Ch 0.00	12105	STP DXF
*	12106	99.5.0600.0580.R0020.0150.0570.0200.00.S06B1C01.01	99506002	6	6	5.70	58	15	20	R 0.20	12107	STP DXF
*	12108	99.5.0600.0580.R0050.0150.0570.0200.00.S06B1C01.01	99506005	6	6	5.70	58	15	20	R 0.50	12109	STP DXF
	12110	99.5.0600.0580.R0100.0150.0570.0200.00.S06B1C01.01	99506010	6	6	5.70	58	15	20	R 1.00	12111	STP DXF
*	12112	99.5.0600.0580.R0150.0150.0570.0200.00.S06B1C01.01	99506015	6	6	5.70	58	15	20	R 1.50	12113	STP DXF
	12114	99.5.0600.1000.R0050.0150.0570.0600.00.S06B1C01.01	99506100	6	6	5.70	100	15	60	R 0.50	12115	STP DXF
	12116	99.5.0800.0640.K0000.0220.0770.0290.00.S08B1C01.01	99508000	8	8	7.70	64	22	29	Ch 0.00	12117	STP DXF
*	12118	99.5.0800.0640.R0030.0220.0770.0290.00.S08B1C01.01	99508003	8	8	7.70	64	22	29	R 0.30	12119	STP DXF
*	12120	99.5.0800.0640.R0050.0220.0770.0290.00.S08B1C01.01	99508005	8	8	7.70	64	22	29	R 0.50	12121	STP DXF
	12122	99.5.0800.1100.R0050.0220.0770.0650.00.S08B1C01.01	99508105	8	8	7.70	110	22	65	R 0.50	12123	STP DXF
	12124	99.5.1000.0730.K0000.0270.0950.0330.00.S10B1C01.01	99510000	10	10	9.50	73	27	33	Ch 0.00	12125	STP DXF
*	12126	99.5.1000.0730.R0030.0270.0950.0330.00.S10B1C01.01	99510003	10	10	9.50	73	27	33	R 0.30	12127	STP DXF
*	12128	99.5.1000.0730.R0050.0270.0950.0330.00.S10B1C01.01	99510005	10	10	9.50	73	27	33	R 0.50	12129	STP DXF
*	12130	99.5.1000.0730.R0100.0270.0950.0330.00.S10B1C01.01	99510010	10	10	9.50	73	27	33	R 1.00	12131	STP DXF
	12132	99.5.1000.0730.R0150.0270.0950.0330.00.S10B1C01.01	99510015	10	10	9.50	73	27	33	R 1.50	12133	STP DXF
	12134	99.5.1200.0820.K0000.0300.1150.0400.00.S12B1C01.01	99512000	12	12	11.50	82	30	40	Ch 0.00	12135	STP DXF
*	12136	99.5.1200.0820.R0030.0300.1150.0400.00.S12B1C01.01	99512003	12	12	11.50	82	30	40	R 0.30	12137	STP DXF
*	12138	99.5.1200.0820.R0050.0300.1150.0400.00.S12B1C01.01	99512005	12	12	11.50	82	30	40	R 0.50	12139	STP DXF
*	12140	99.5.1200.0820.R0075.0300.1150.0400.00.S12B1C01.01	99512075	12	12	11.50	82	30	40	R 0.75	12141	STP DXF
	12142	99.5.1200.1250.R0050.0300.1150.0750.00.S12B1C01.01	99512125	12	12	11.50	125	30	75	R 0.50	12143	STP DXF
	12144	99.5.1400.0930.K0000.0450.1380.0500.00.S14B2C01.01	99514000	14	14	13.80	93	45	50	Ch 0.00	12145	STP DXF
	12146	99.5.1400.0930.R0050.0450.1380.0500.00.S14B2C01.01	99514005	14	14	13.80	93	45	50	R 0.50	12147	STP DXF
	12148	99.5.1400.0930.R0100.0450.1380.0500.00.S14B2C01.01	99514010	14	14	13.80	93	45	50	R 1.00	12149	STP DXF
	12150	99.5.1600.0930.C0020.0370.1550.0450.00.S16B1C01.01	99516093	16	16	15.50	93	37	45	Ch 0.20	12151	STP DXF
*	12152	99.5.1600.0930.R0030.0370.1550.0450.00.S16B1C01.01	99516003	16	16	15.50	93	37	45	R 0.30	12153	STP DXF
*	12154	99.5.1600.0930.R0050.0370.1550.0450.00.S16B1C01.01	99516005	16	16	15.50	93	37	45	R 0.50	12155	STP DXF
*	12156	99.5.1600.0930.R0075.0370.1550.0450.00.S16B1C01.01	99516075	16	16	15.50	93	37	45	R 0.75	12157	STP DXF
*	12158	99.5.1600.1000.R0075.0500.1550.0580.00.S16B1C01.01	99516100	16	16	15.50	100	50	58	R 0.75	12159	STP DXF
	12160	99.5.1600.1500.R0075.0500.1550.1000.00.S16B1C01.01	99516150	16	16	15.50	150	50	100	R 0.75	12161	STP DXF
	12162	99.5.1800.0930.R0030.0400.1750.0500.00.S18B1C01.01	99518003	18	18	17.50	93	40	50	R 0.30	12163	STP DXF
	12164	99.5.1800.0930.R0075.0400.1750.0500.00.S18B1C01.01	99518075	18	18	17.50	93	40	50	R 0.75	12165	STP DXF
	12166	99.5.2000.1050.K0000.0400.1950.0560.00.S20B1C01.01	99520000	20	20	19.50	105	40	56	Ch 0.00	12167	STP DXF
*	12168	99.5.2000.1050.R0075.0400.1950.0560.00.S20B1C01.01	99520075	20	20	19.50	105	40	56	R 0.75	12169	STP DXF
	12170	99.5.1000.0730.R0150.0270.0950.0330.00.S10B1C01.02	99510015SP	10	10	9.50	73	27	33	R 1.50	12171	STP DXF

Feed Per Tooth (mm/tooth)

ᴓ	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø	ae=0.25Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
3	0.012	0.015	0.016	0.02	0.022	0.025	0.026	0.03
4	0.02	0.024	0.02	0.023	0.026	0.03	0.032	0.036
5	0.023	0.026	0.023	0.027	0.031	0.036	0.04	0.045
6	0.026	0.03	0.034	0.038	0.043	0.049	0.05	0.06
8	0.033	0.038	0.036	0.042	0.048	0.054	0.06	0.075
10	0.044	0.049	0.045	0.053	0.063	0.07	0.072	0.084
12	0.045	0.051	0.047	0.053	0.064	0.072	0.08	0.088
16	0.056	0.062	0.058	0.064	0.069	0.075	0.09	0.1
20	0.065	0.073	0.066	0.074	0.08	0.092	0.102	0.11

Cutting Parameters

Material	Trochoidal ap=1.2Ø - 2.0Ø / ae=0.20Ø Vc (m/min)	Slotting ap= 0.5Ø Vc (m/min)	Shoulder Milling ap=1.5Ø / ae=0.35 - 0.20Ø Vc (m/min)	Finish Milling ap=1.5Ø / ae=0.20 - 0.10Ø Vc (m/min)


Unalloyed steel	170-200	130-160	150-180	170-200
Steel	170-200	130-160	150-180	170-200
Tempered steel	160-190	120-150	140-170	160-190
Cold work tool steel	100-130	80-100	90-110	100-130
Hot work tool steel	90-110	70-90	80-100	90-110
AISI 304 - 416 - 420	110-130	90-110	100-120	110-130
AISI 316 - 440	110-130	90-110	100-120	110-130
17-4 PH 15-5 PH	90-110	70-90	80-100	90-110
Chrome-Cobalt alloy	80-100	60-80	70-90	80-100
Duplex F51	70-90	50-70	60-80	70-90
Super duplex F55	70-90	50-70	60-80	70-90
Gray cast	150-180	120-150	140-160	150-180
Alloyed cast	140-160	110-140	130-150	140-160
Precision cast	130-150	110-130	120-140	130-150
> 54 HRC	120-150	80-120	110-130	120-150
HRSA hastelloy	60-80	40-60	50-70	60-80
HRSA inconel 625	60-80	40-60	50-70	60-80
HRSA inconel 718	60-80	40-60	50-70	60-80
HRSA nimonic	60-80	40-60	50-70	60-80
Titanium	80-100	60-80	70-90	80-100
Titanium alloys	80-100	60-80	70-90	80-100

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended
