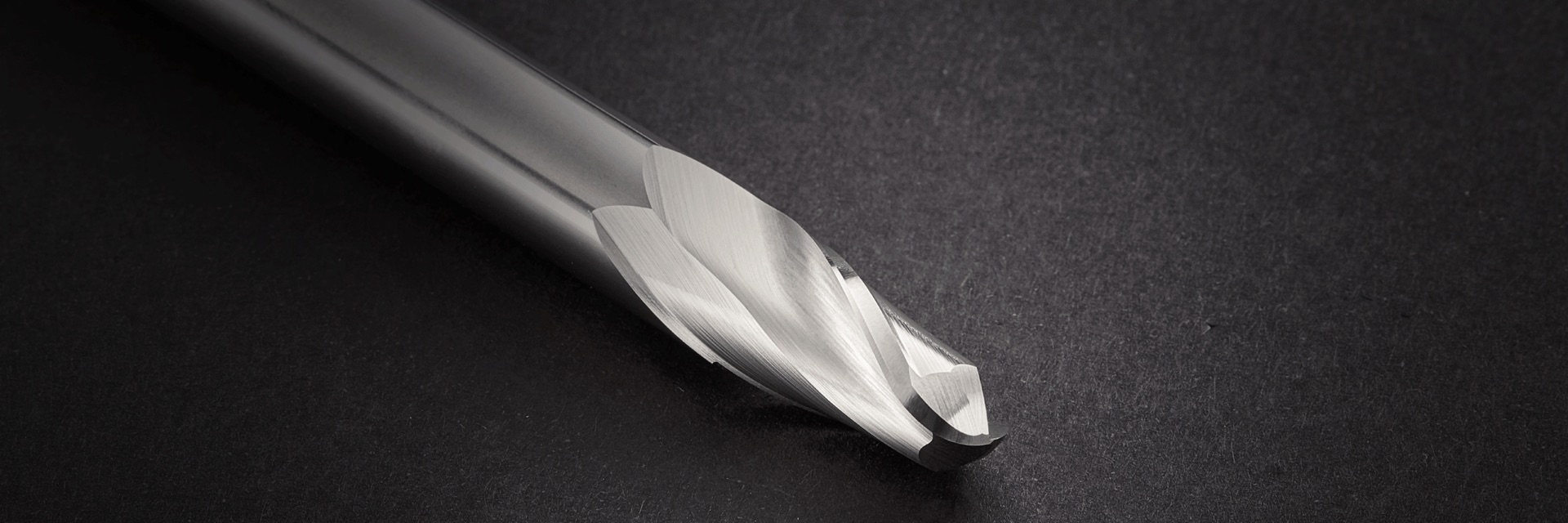

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended

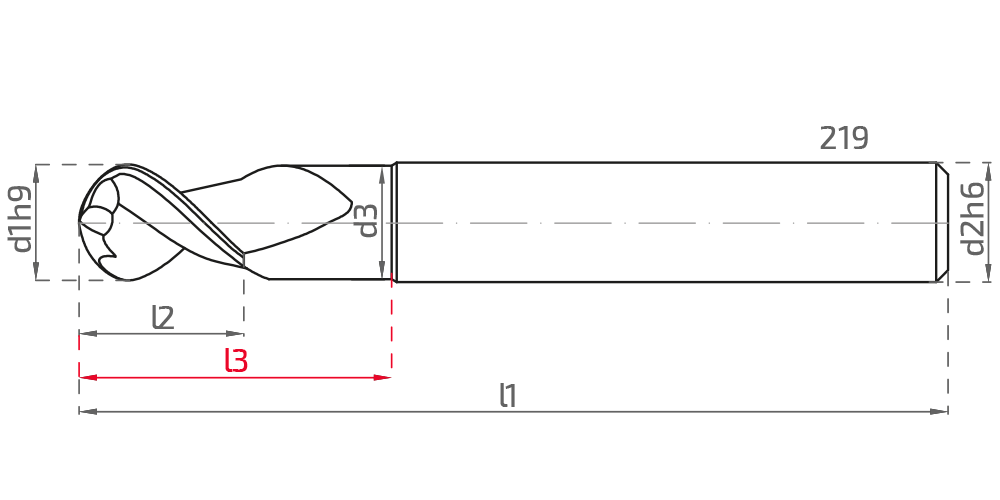

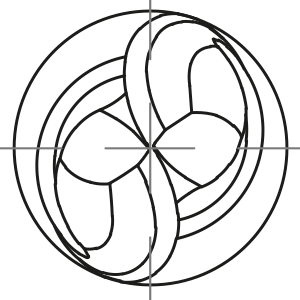

Acceptable Not Recommended| STOCK | CODE | d1h9 | l2 | l3 | d3 | l1 | d2h6 |
|---|---|---|---|---|---|---|---|
| 219203058 | 3 | 6 | 12 | 2.8 | 58 | 6 | |
| 219204058 | 4 | 6 | 13 | 3.8 | 58 | 6 | |
| 219205058 | 5 | 8 | 15 | 4.8 | 58 | 6 | |
| 219206058 | 6 | 8 | 16 | 5.8 | 58 | 6 | |
| 219208064 | 8 | 10 | 20 | 7.8 | 64 | 8 | |
| 219210073 | 10 | 12 | 30 | 9.8 | 73 | 10 | |
| 219212082 | 12 | 15 | 30 | 11.8 | 82 | 12 | |
| 219216093 | 16 | 18 | 35 | 15.8 | 93 | 16 | |
| 219220105 | 20 | 25 | 40 | 19.8 | 105 | 20 |
| Ø | ae=0.30Ø | ae=0.20Ø | ae=0.10Ø |
|---|---|---|---|
| 3 | 0.2 | 0.305 | 0.42 |
| 4 | 0.218 | 0.33 | 0.5 |
| 5 | 0.239 | 0.345 | 0.52 |
| 6 | 0.252 | 0.36 | 0.55 |
| 8 | 0.278 | 0.384 | 0.58 |
| 10 | 0.3 | 0.42 | 0.6 |
| 12 | 0.338 | 0.453 | 0.64 |
| 16 | 0.521 | 0.6 | 0.7 |
| 20 | 0.6 | 0.71 | 0.8 |
| Material | Slotting |
|---|---|
|
|
|
| ap=1.5Ø / ae=0.3 - 0.2 - 0.1Ø | |
| Vc (m/min) | |
| Aluminium alloys | 250-300 |
| Plastic | 400-450 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
