Mic Cut

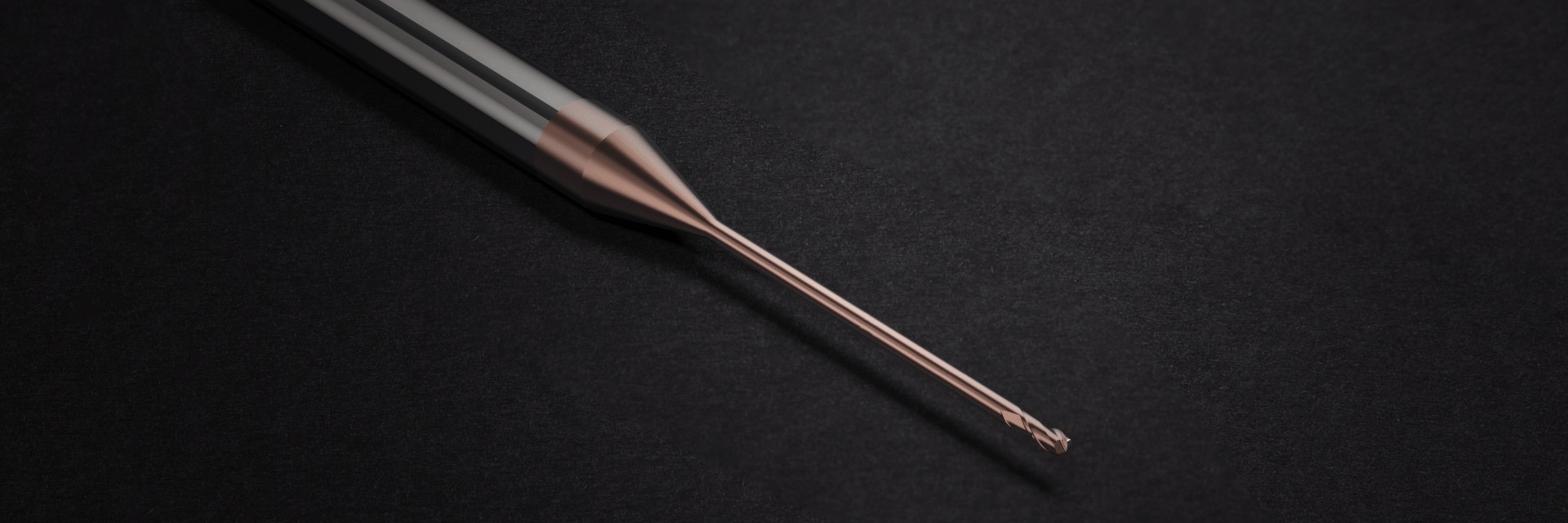

170 Series Endmill

Micro Series
Micro Series
Micro Straight endmill

Finish
Rough

Steel
Stainless Steel
Hardened Steel ≤ 54 HRc
Hardened Steel > 54 HRc
Cast
Graphite
Non Ferrous Material
HRSA
Titanium
  • Recommended
  • Acceptable
  • Not Recommended

170 Mic-Cut Series

StockOrder NoCoded1h10d2h5d3l1l2l3CornerZ
8410011F00_17000020030A010.304-5112Ch 0,002
8410211F00_17000020040A010.404-511-Ch 0,002
8410411F00_17000020050A010.5040.47510.502Ch 0,002
8410611F00_17000020050A020.5040.47510.503Ch 0,002
8410811F00_17000020050A030.5040.47510.504Ch 0,002
8411011F00_17000020060A010.6040.55510.602Ch 0,002
8411211F00_17000020060A020.6040.55510.604Ch 0,002
8411411F00_17000020100A01140.945112.80Ch 0,002
8411611F00_17000020100A02140.945114Ch 0,002
8411811F00_17000020100A03140.945116Ch 0,002
8412011F00_17000020100A04140.945118Ch 0,002
8412211F00_17000020100A05140.9451110Ch 0,002
8412411F00_17000020100A06140.9451112Ch 0,002
8412611F00_17000020100A07140.9451114Ch 0,002
8412811F00_17000020100A08140.9451116Ch 0,002
8413011F00_17000020100A09140.9451120Ch 0,002
8413211F00_17000020150A011.5041.40511.504Ch 0,002
8413411F00_17000020150A021.5041.40511.506Ch 0,002
8413611F00_17000020150A031.5041.40511.508Ch 0,002
8413811F00_17000020150A041.5041.40511.5010Ch 0,002
8414011F00_17000020150A051.5041.40511.5012Ch 0,002
8414211F00_17000020150A061.5041.40511.5014Ch 0,002
8414411F00_17000020150A071.5041.40511.5016Ch 0,002
8414611F00_17000020150A081.5041.40601.5025Ch 0,002
8414811F00_17000020200A01241.905124Ch 0,002
8415011F00_17000020200A02241.905126Ch 0,002
8415211F00_17000020200A03241.905128Ch 0,002
8415411F00_17000020200A04241.9051210Ch 0,002
8415611F00_17000020200A05241.9051212Ch 0,002
8415811F00_17000020200A06241.9051216Ch 0,002
8416011F00_17000020200A07241.9051220Ch 0,002
8416211F00_17000020200A08241.9051225Ch 0,002
8416411F00_17000020200A09241.9060230Ch 0,002
8416611F00_17000020200A10241.9075640Ch 0,002
8416811F00_17000020250A012.5042.40512.506Ch 0,002
8417011F00_17000020250A022.5042.40512.508Ch 0,002
8417211F00_17000020250A032.5042.40512.5010Ch 0,002
8417411F00_17000020250A042.5042.40512.5012Ch 0,002
8417611F00_17000020250A052.5042.40512.5020Ch 0,002

You can use the “KarcanEYE” application to access the machining data for this series based on the material and operational details. More Information
