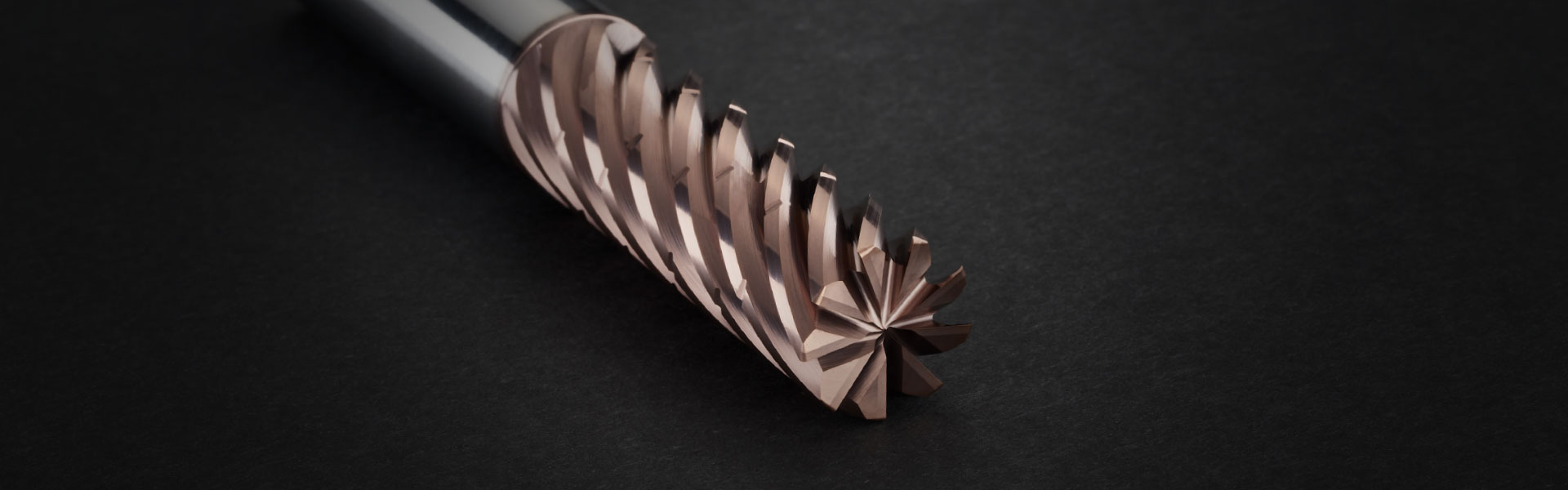

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended

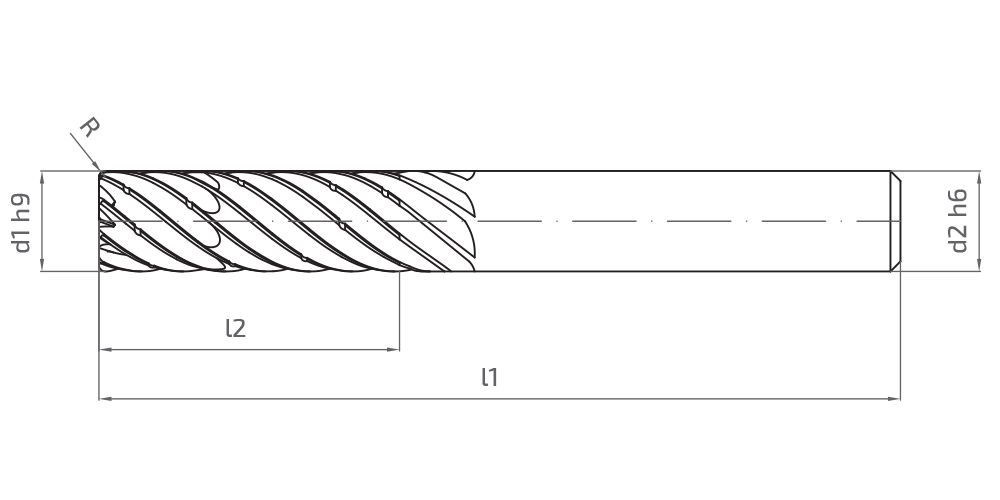

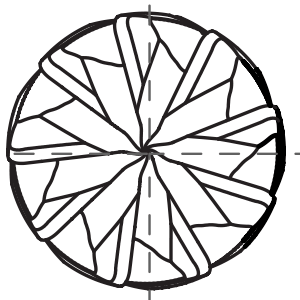

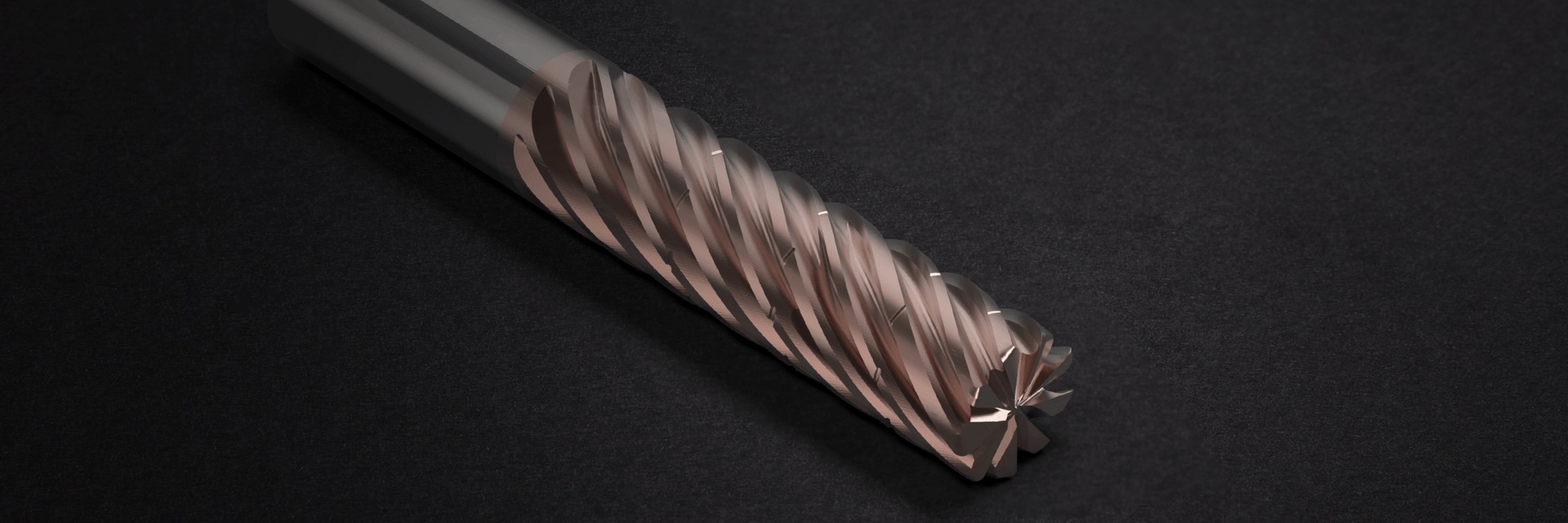

Acceptable Not Recommended| Stock | Order No | Code | d1h9 | d2h6 | ⌀xD | l1 | l2 | Corner | Z | Weldon Order No |
|---|---|---|---|---|---|---|---|---|---|---|
| 82100 | 1619081603 | 8 | 8 | 2xD | 64 | 16 | R 0,30 | 9 | 82101 | |
| 82102 | 1619082005 | 8 | 8 | 2,5xD | 64 | 20 | R 0,50 | 9 | 82103 | |
| 82104 | 1619081605 | 8 | 8 | 2xD | 64 | 16 | R 0,50 | 9 | 82105 | |
| 82106 | 1619082003 | 8 | 8 | 2,5xD | 64 | 20 | R 0,30 | 9 | 82107 | |
| 82108 | 1619102005 | 10 | 10 | 2xD | 73 | 20 | R 0,50 | 9 | 82109 | |
| 82110 | 1619102510 | 10 | 10 | 2,5xD | 73 | 25 | R 1,00 | 9 | 82111 | |
| 82112 | 1619102010 | 10 | 10 | 2xD | 73 | 20 | R 1,00 | 9 | 82113 | |
| 82114 | 1619102505 | 10 | 10 | 2,5xD | 73 | 25 | R 0,50 | 9 | 82115 | |
| 82116 | 1619122405 | 12 | 12 | 2xD | 83 | 24 | R 0,50 | 9 | 82117 | |
| 82118 | 1619123010 | 12 | 12 | 2,5xD | 83 | 30 | R 1,00 | 9 | 82119 | |
| 82120 | 1619122410 | 12 | 12 | 2xD | 83 | 24 | R 1,00 | 9 | 82121 | |
| 82122 | 1619123005 | 12 | 12 | 2,5xD | 83 | 30 | R 0,50 | 9 | 82123 | |
| 82124 | 1619163205 | 16 | 16 | 2xD | 93 | 32 | R 0,50 | 9 | 82125 | |
| 82126 | 1619164010 | 16 | 16 | 2,5xD | 93 | 40 | R 1,00 | 9 | 82127 | |
| 82128 | 1619163210 | 16 | 16 | 2xD | 93 | 32 | R 1,00 | 9 | 82129 | |
| 82130 | 1619164005 | 16 | 16 | 2,5xD | 93 | 40 | R 0,50 | 9 | 82131 |
| Stock | Order No | Code | d1h9 | d2h6 | ⌀xD | l1 | l2 | Corner | Z | Weldon Order No |
|---|---|---|---|---|---|---|---|---|---|---|
| 82132 | 161CS9082403 | 8 | 8 | 3xD | 64 | 24 | R 0,30 | 9 | 82133 | |
| 82134 | 161CS9082405 | 8 | 8 | 3xD | 64 | 24 | R 0,50 | 9 | 82135 | |
| 82136 | 161CS9103005 | 10 | 10 | 3xD | 73 | 30 | R 0,50 | 9 | 82137 | |
| 82138 | 161CS9103010 | 10 | 10 | 3xD | 73 | 30 | R 1,00 | 9 | 82139 | |
| 82140 | 161CS9123605 | 12 | 12 | 3xD | 83 | 36 | R 0,50 | 9 | 82141 | |
| 82142 | 161CS9123610 | 12 | 12 | 3xD | 83 | 36 | R 1,00 | 9 | 82143 | |
| 82144 | 161CS9164805 | 16 | 16 | 3xD | 100 | 48 | R 0,50 | 9 | 82145 | |
| 82146 | 161CS9164810 | 16 | 16 | 3xD | 100 | 48 | R 1,00 | 9 | 82147 |
| Ø | ae=0,1xØ | ae=0.08xØ | ae=0.015xØ |
|---|---|---|---|
| 8 | 0,071-0,11 | 0,0810,12 | 0,045-0,08 |
| 10 | 0,081-0,14 | 0,091-0,15 | 0,055-0,1 |
| 12 | 0,098-0,16 | 0,1-0,18 | 0,065-0,12 |
| 16 | 0,135-0,21 | 0,15-0,23 | 0,08-0,16 |
| Trochoidal & HPC | Trochoidal & HPC | |
|---|---|---|
|
|
|
|
| ap=2xØ-2,5xØ / ae=0.08 - 0.10Ø | ap=3xØ / ae=0,08xØ | |
| Vc (m/dk) | Vc (m/dk) | |
| Unalloyed steel | 130-160 | 130-150 |
| Steel | 125-145 | 125-140 |
| Tempered steel | 120-140 | 120-135 |
| Cold work tool steel | 110-130 | 110-125 |
| Hot work tool steel | 100-120 | 100-115 |
| AISI 304 - 416 - 420 | 130-150 | 130-145 |
| AISI 316 - 440 | 130-150 | 130-145 |
| 17-4 PH 15-5 PH | 110-140 | 110-130 |
| Chrome-Cobalt alloy | 110-135 | 110-130 |
| Duplex F51 | 110-130 | 110-125 |
| Super Duplex F55 | 110-130 | 110-125 |
| Gray cast | 110-130 | 110-125 |
| Alloyed cast | 110-130 | 110-125 |
| Precision cast | 100-120 | 95-115 |
| HRSA hastelloy | 60-90 | 60-80 |
| HRSA inconel 625 | 60-90 | 60-80 |
| HRSA inconel 718 | 60-90 | 60-80 |
| HRSA nimonic | 60-90 | 60-80 |
| Titanium | 110-130 | 100-120 |
| Titanium Alloys | 110-120 | 100-120 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
