Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended

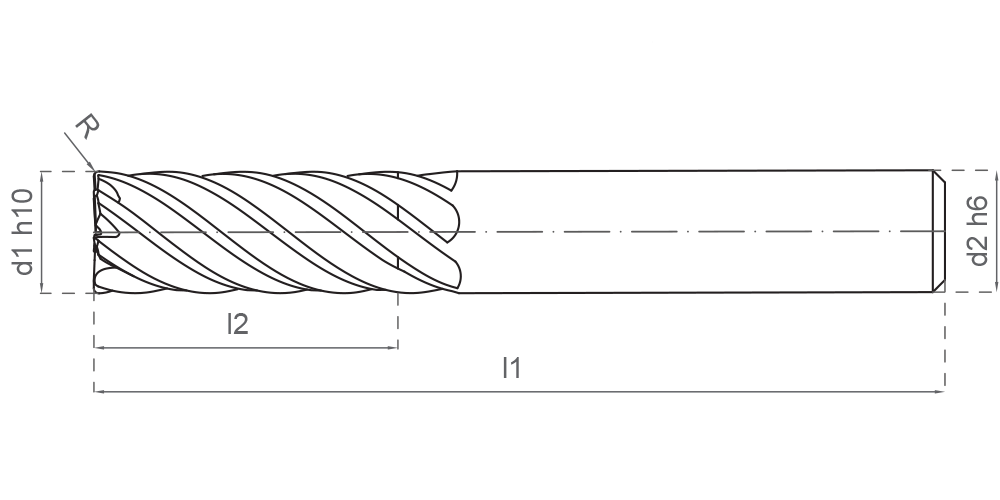

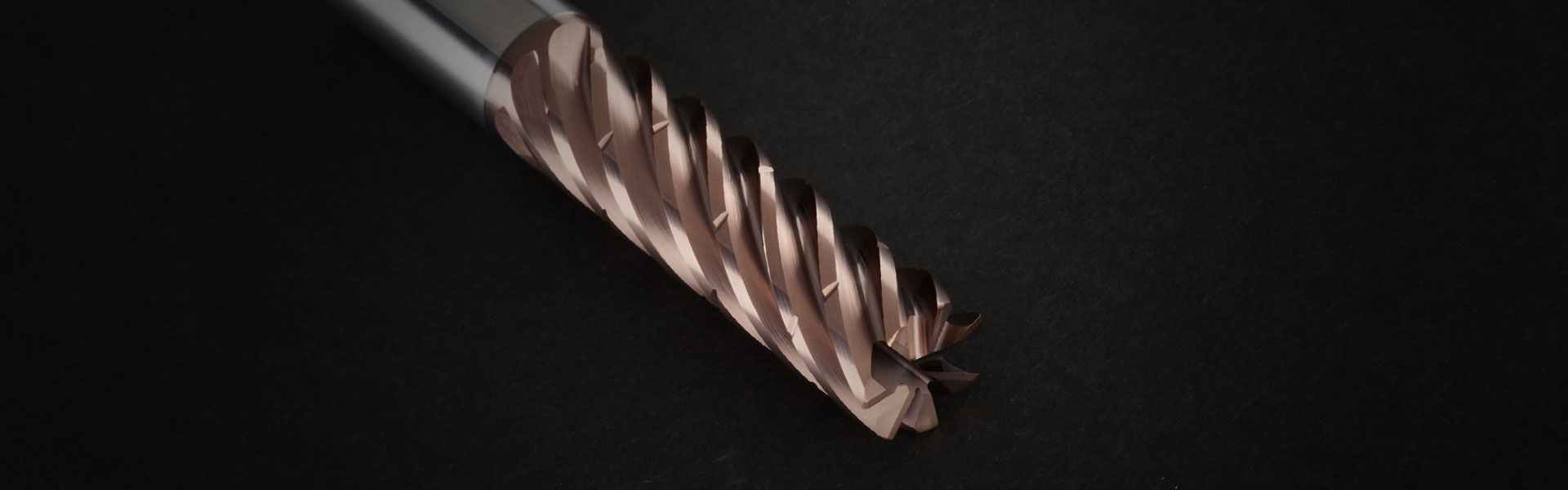

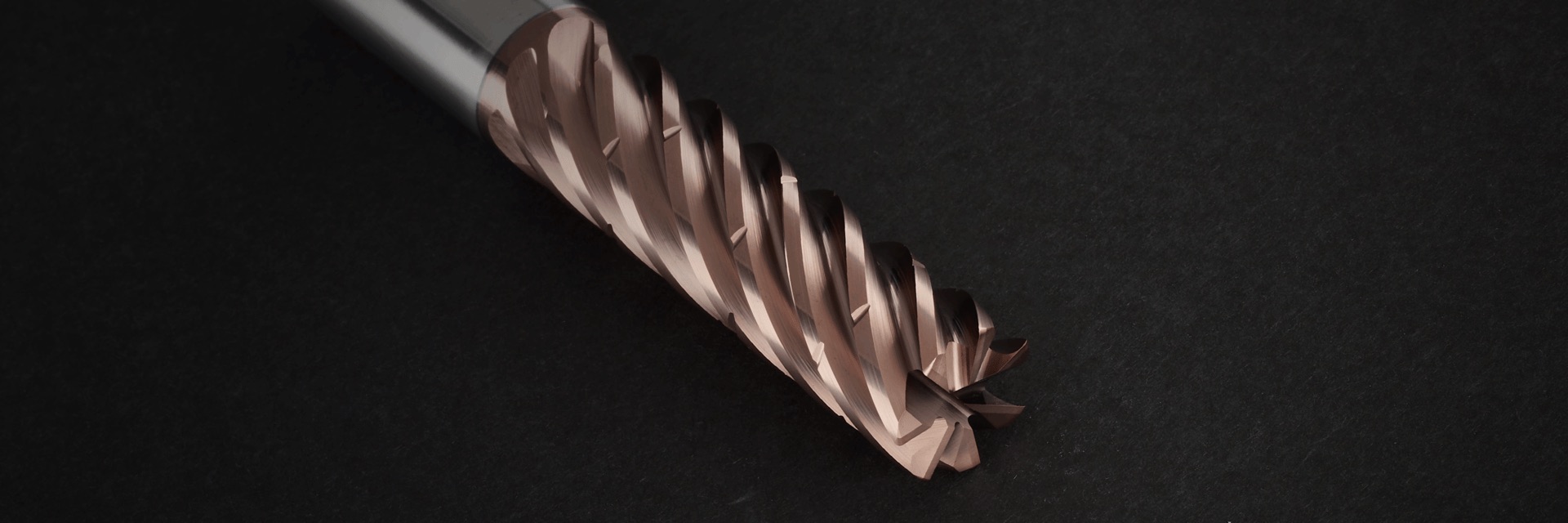

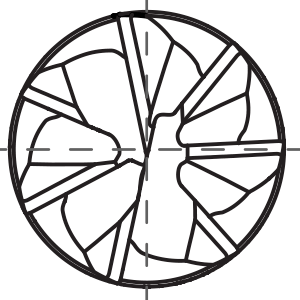

Acceptable Not Recommended| Stock | Order No | Legacy Code | d1h10 | d2h6 | ⌀xD | l1 | l2 | Corner | Z | Weldon Order No |
|---|---|---|---|---|---|---|---|---|---|---|
| 81100 | 11F20_16000070800A01 | 8 | 8 | 2xD | 64 | 16 | R 0,30 | 7 | 81101 | |
| 81102 | 11F20_16000070800A02 | 8 | 8 | 2,5xD | 64 | 20 | R 0,50 | 7 | 81103 | |
| 81104 | 11F20_16000070800A03 | 8 | 8 | 2xD | 64 | 16 | R 0,50 | 7 | 81105 | |
| 81106 | 11F20_16000070800A04 | 8 | 8 | 2,5xD | 64 | 20 | R 0,30 | 7 | 81107 | |
| 81108 | 11F20_16000071000A01 | 10 | 10 | 2xD | 72 | 20 | R 0,50 | 7 | 81109 | |
| 81110 | 11F20_16000071000A02 | 10 | 10 | 2,5xD | 72 | 25 | R 1,00 | 7 | 81111 | |
| 81112 | 11F20_16000071000A03 | 10 | 10 | 2xD | 72 | 20 | R 1,00 | 7 | 81113 | |
| 81114 | 11F20_16000071000A04 | 10 | 10 | 2,5xD | 72 | 25 | R 0,50 | 7 | 81115 | |
| 81162 | 11F20_16000071000A05 | 10 | 10 | 3xD | 72 | 30 | R 1,20 | 7 | 81163 | |
| 81152 | 11F20_16000071000S01 | 10 | 10 | 3xD | 73 | 30 | R 1,20 | 7 | 81153 | |
| 81148 | 11F20_16000071000S02 | 10 | 10 | 3xD | 73 | 30 | R 0,50 | 7 | 81149 | |
| 81154 | 11F20_16000071200S01 | 12 | 12 | 2xD | 74 | 23 | R 0,50 | 7 | 81155 | |
| 81116 | 11F20_16000071200A01 | 12 | 12 | 2xD | 82 | 24 | R 0,50 | 7 | 81117 | |
| 81118 | 11F20_16000071200A02 | 12 | 12 | 2,5xD | 82 | 30 | R 1,00 | 7 | 81119 | |
| 81156 | 11F20_16000071200S02 | 12 | 12 | 2,5xD | 74 | 30 | R 0,50 | 7 | 81157 | |
| 81150 | 11F20_16000071200S03 | 12 | 12 | 3xD | 84 | 36 | R 0,50 | 7 | 81151 | |
| 81120 | 11F20_16000071200A03 | 12 | 12 | 2xD | 82 | 24 | R 1,00 | 7 | 81121 | |
| 81122 | 11F20_16000071200A04 | 12 | 12 | 2,5xD | 82 | 30 | R 0,50 | 7 | 81123 | |
| 81124 | 11F20_16000071600A01 | 16 | 16 | 2xD | 93 | 32 | R 0,50 | 7 | 81125 | |
| 81126 | 11F20_16000071600A02 | 16 | 16 | 2,5xD | 93 | 40 | R 1,00 | 7 | 81127 | |
| 81128 | 11F20_16000071600A03 | 16 | 16 | 2xD | 93 | 32 | R 1,00 | 7 | 81129 | |
| 81130 | 11F20_16000071600A04 | 16 | 16 | 2,5xD | 93 | 40 | R 0,50 | 7 | 81131 | |
| 81158 | 11F20_16000072000S01 | 20 | 20 | 3xD | 125 | 60 | R 0,50 | 7 | 81159 | |
| 81160 | 11F20_16000072000S02 | 20 | 20 | 5xD | 165 | 100 | R 0,50 | 7 | 81161 |
| Stock | Order No | Legacy Code | d1h10 | d2h6 | ⌀xD | l1 | l2 | Corner | Z | Weldon Order No |
|---|---|---|---|---|---|---|---|---|---|---|
| 81132 | 11F20_160T0070800A01 | 8 | 8 | 3xD | 64 | 24 | R 0,30 | 7 | 81133 | |
| 81134 | 11F20_160T0070800A02 | 8 | 8 | 3xD | 64 | 24 | R 0,50 | 7 | 81135 | |
| 81136 | 11F20_160T0071000A01 | 10 | 10 | 3xD | 72 | 30 | R 0,50 | 7 | 81137 | |
| 81138 | 11F20_160T0071000A02 | 10 | 10 | 3xD | 72 | 30 | R 1,00 | 7 | 81139 | |
| 81140 | 11F20_160T0071200A01 | 12 | 12 | 3xD | 82 | 36 | R 0,50 | 7 | 81141 | |
| 81142 | 11F20_160T0071200A02 | 12 | 12 | 3xD | 82 | 36 | R 1,00 | 7 | 81143 | |
| 81144 | 11F20_160T0071600A01 | 16 | 16 | 3xD | 110 | 48 | R 0,50 | 7 | 81145 | |
| 81146 | 11F20_160T0071600A02 | 16 | 16 | 3xD | 110 | 48 | R 1,00 | 7 | 81147 |
| Ø | ae=0,1xØ | ae=0.08xØ | ae=0.015xØ |
|---|---|---|---|
| 8 | 0,071-0,11 | 0,0810,12 | 0,045-0,08 |
| 10 | 0,081-0,14 | 0,091-0,15 | 0,055-0,1 |
| 12 | 0,098-0,16 | 0,1-0,18 | 0,065-0,12 |
| 16 | 0,135-0,21 | 0,15-0,23 | 0,08-0,16 |
| Trochoidal & HPC | Trochoidal & HPC | |
|---|---|---|
|
|
|
|
| ap=2xØ-2,5xØ / ae=0.08 - 0.10Ø | ap=3xØ / ae=0,08xØ | |
| Vc (m/dk) | Vc (m/dk) | |
| Unalloyed steel | 130-160 | 130-150 |
| Steel | 125-145 | 125-140 |
| Tempered steel | 120-140 | 120-135 |
| Cold work tool steel | 110-130 | 110-125 |
| Hot work tool steel | 100-120 | 100-115 |
| AISI 304 - 416 - 420 | 130-150 | 130-145 |
| AISI 316 - 440 | 130-150 | 130-145 |
| 17-4 PH 15-5 PH | 110-140 | 110-130 |
| Chrome-Cobalt alloy | 110-135 | 110-130 |
| Duplex F51 | 110-130 | 110-125 |
| Super Duplex F55 | 110-130 | 110-125 |
| Gray cast | 110-130 | 110-125 |
| Alloyed cast | 110-130 | 110-125 |
| Precision cast | 100-120 | 95-115 |
| HRSA hastelloy | 60-90 | 60-80 |
| HRSA inconel 625 | 60-90 | 60-80 |
| HRSA inconel 718 | 60-90 | 60-80 |
| HRSA nimonic | 60-90 | 60-80 |
| Titanium | 110-130 | 100-120 |
| Titanium Alloys | 110-120 | 100-120 |
