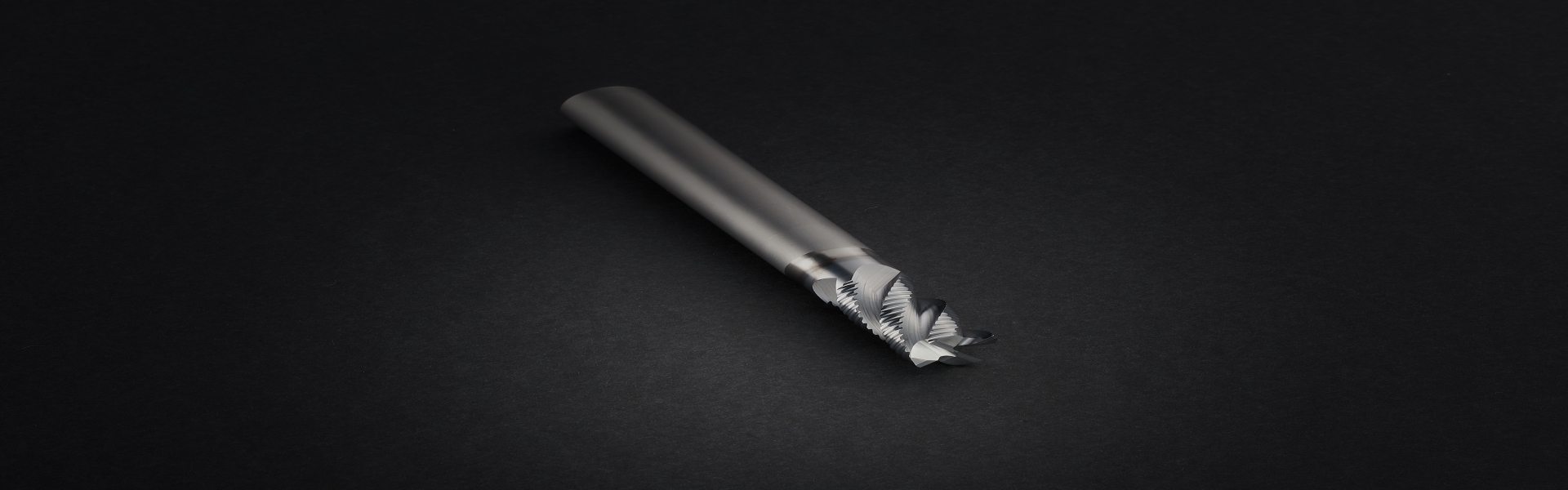

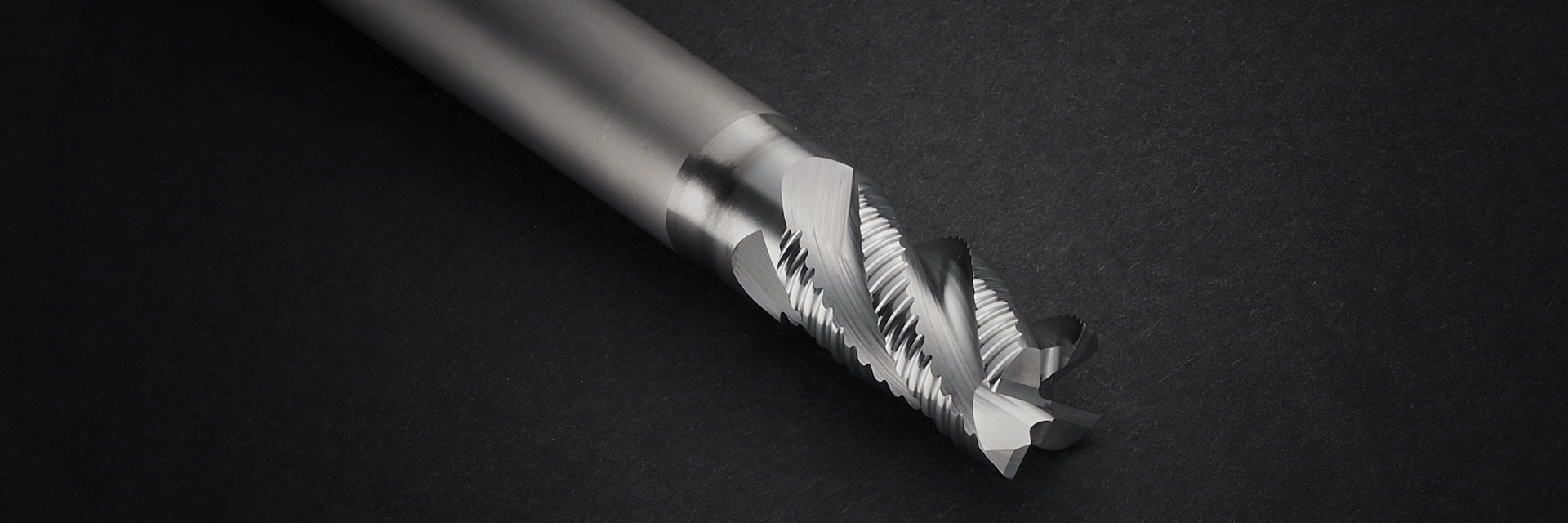

158 Gen-Z Series Frezes

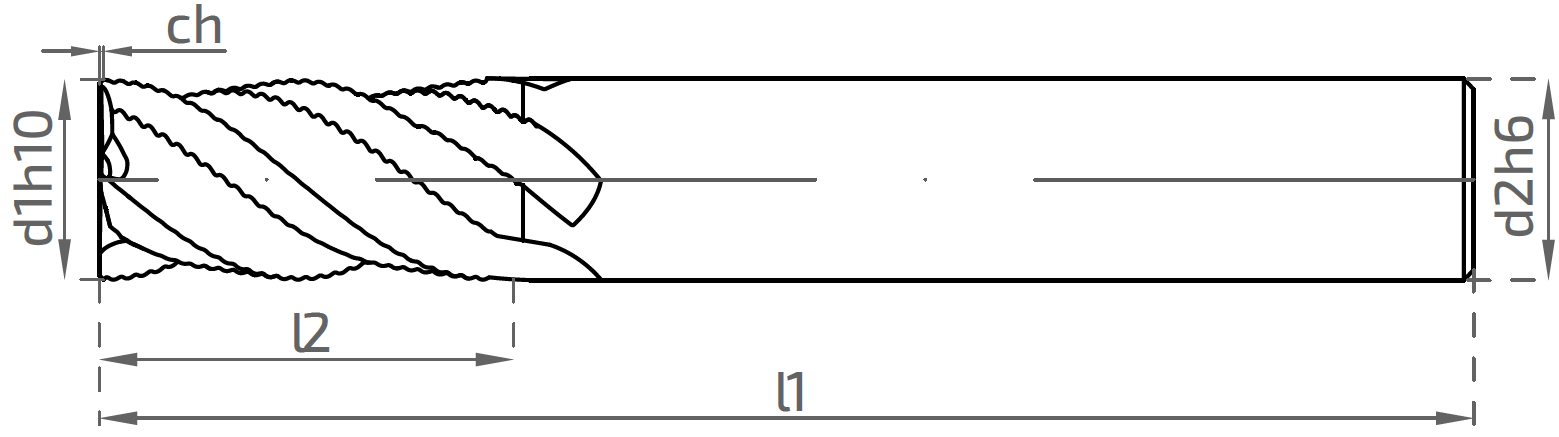

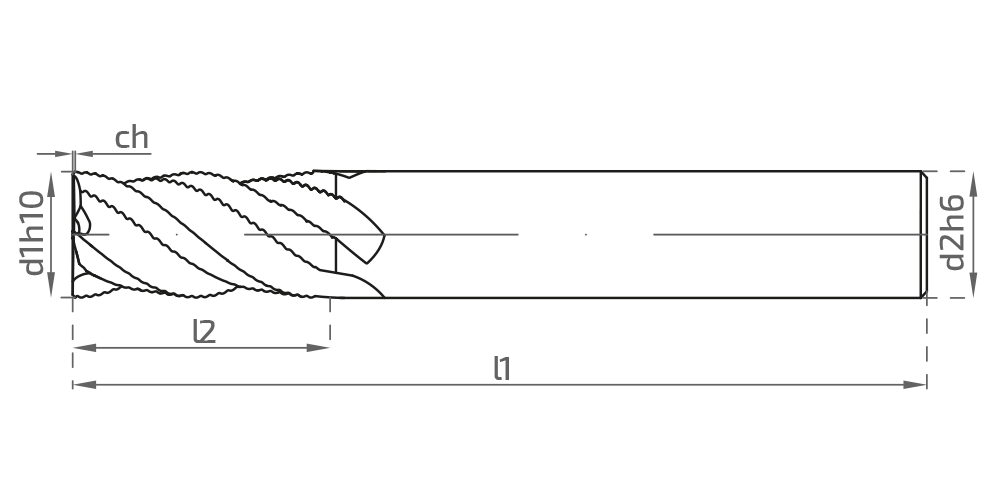

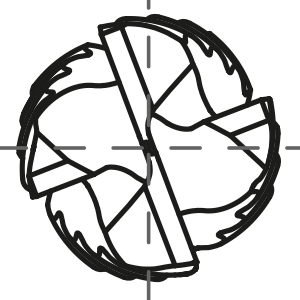

Stock	Order No	Legacy Code	d1h10	d2h6	l1	l2	Corner	Z
*	65100	11F09_15800040600A01	6	6	57	14	Ch 0,15	4
	65118	11F09_15800040600A02	6	6	100	20	Ch 0,15	4
*	65102	11F09_15800040800A01	8	8	64	20	Ch 0,20	4
	65120	11F09_15800040800A02	8	8	100	25	Ch 0,20	4
*	65104	11F09_15800041000A01	10	10	72	22	Ch 0,20	4
	65122	11F09_15800041000A02	10	10	100	35	Ch 0,20	4
*	65106	11F09_15800041200A01	12	12	82	27	Ch 0,25	4
	65108	11F09_15800041400A01	14	14	82	32	Ch 0,25	4
*	65110	11F09_15800051600A01	16	16	93	35	Ch 0,35	5
	65116	11F09_15800041600A01	16	16	93	35	Ch 0,35	4
	65112	11F09_15800051800A01	18	18	93	35	Ch 0,35	5
*	65114	11F09_15800052000A01	20	20	105	42	Ch 0,40	5

Ø	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø	ae=0.25Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
3	0.012	0.015	0.016	0.02	0.022	0.025	0.026	0.03
4	0.02	0.024	0.02	0.023	0.026	0.03	0.032	0.036
5	0.023	0.026	0.023	0.027	0.031	0.036	0.04	0.045
6	0.026	0.03	0.034	0.038	0.043	0.049	0.05	0.06
8	0.033	0.038	0.036	0.042	0.048	0.054	0.06	0.075
10	0.044	0.049	0.045	0.053	0.063	0.07	0.072	0.084
12	0.045	0.051	0.047	0.053	0.064	0.072	0.08	0.088
16	0.056	0.062	0.058	0.064	0.069	0.075	0.09	0.1
20	0.065	0.073	0.066	0.074	0.08	0.092	0.102	0.11

Material	Slotting	Slotting	Shoulder Milling

	ap= 0.5xØ	ap= 1xØ	ap=1.5Ø / ae=0.35 - 0.20Ø
	Vc (m/dk)	Vc (m/dk)	Vc (m/dk)
Unalloyed steel	130-160	110-140	210-240
Steel	130-160	110-130	190-230
Tempered steel	120-150	100-130	140-160
Cold work tool steel	80-100	70-90	90-110
Hot work tool steel	70-90	80-90	80-100
AISI 304 - 416 - 420	90-110	80-100	100-120
AISI 316 - 440	90-110	80-100	100-120
17-4 PH 15-5 PH	70-90	60-80	80-100
Chrome-Cobalt alloy	60-80	50-70	70-90
Duplex F51	50-70	50-70	60-80
Super Duplex F55	50-70	50-70	60-80
Gray cast	120-150	110-130	140-160
Alloyed cast	110-140	100-120	130-150
Precision cast	110-130	100-120	120-140
54 HRC	80-120	60-80	110-130
HRSA hastelloy	40-60	40-60	50-70
HRSA inconel 625	40-60	40-60	50-70
HRSA inconel 718	40-60	40-60	50-70
HRSA nimonic	40-60	40-60	50-70
Titanium	60-80	60-80	70-90
Titanium Alloys	60-80	60-80	70-90
