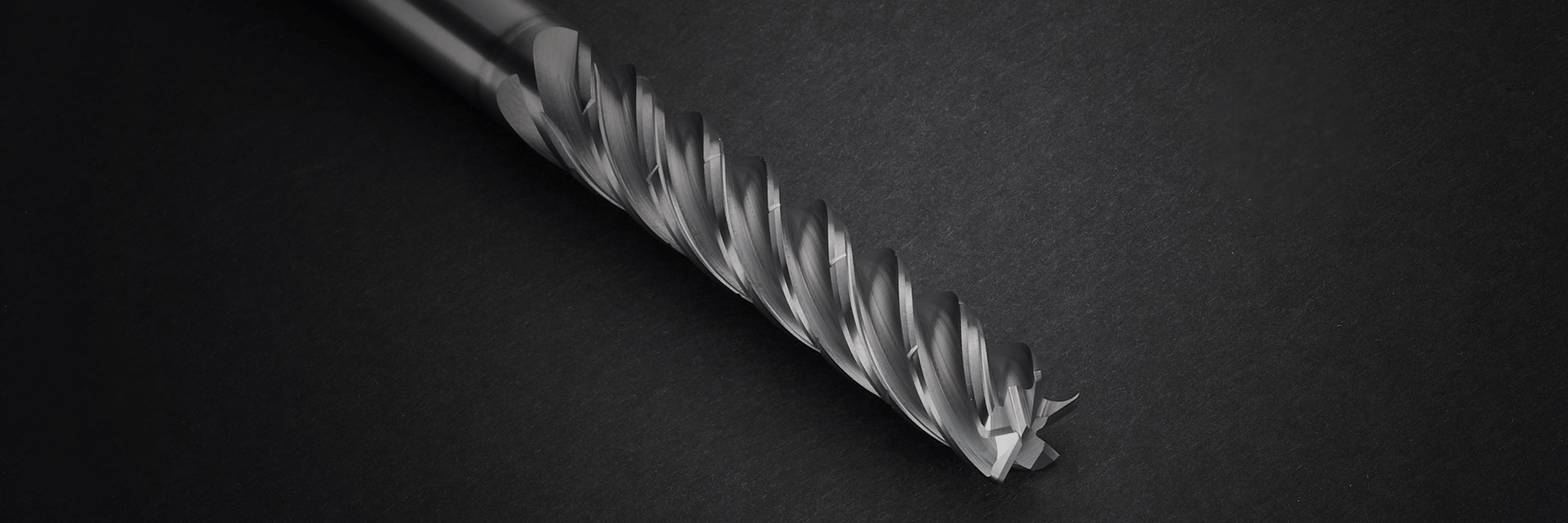

157 Gen-Z Series Frezes

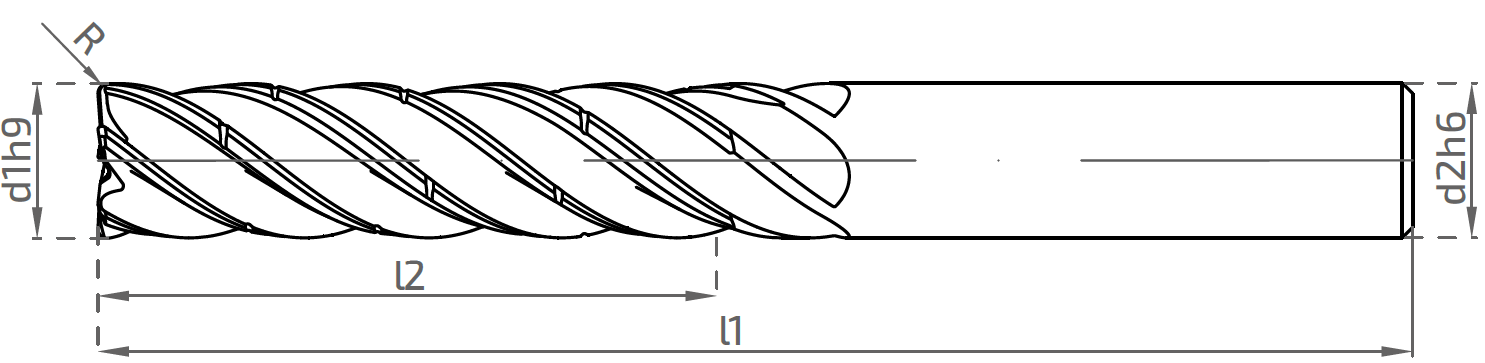

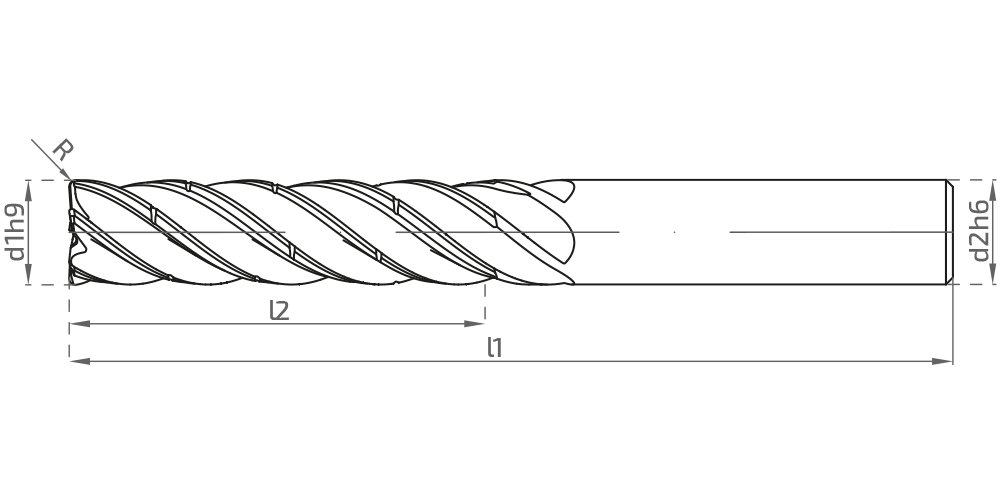

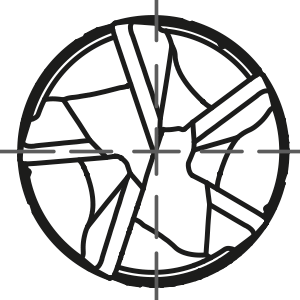

Stock	Order No	Code	d1h9	d2h6	⌀xD	l1	l2	Corner	Z
*	64100	157508064	8	8	3xD	64	24	R 0,50	5
*	64102	157510073	10	10	3xD	73	30	R 0,50	5
*	64104	157512089	12	12	3xD	89	36	R 0,75	5
*	64106	157516093	16	16	3xD	93	48	R 1,00	5
	64108	157520110	20	20	3xD	110	60	R 1,00	5
	64110	157525125	25	25	3xD	125	75	R 1,00	5
*	64112	157508072	8	8	4xD	75	32	R 0,50	5
*	64114	157510082	10	10	4xD	82	40	R 0,50	5
*	64116	157512103	12	12	4xD	103	48	R 0,75	5
*	64118	157516120	16	16	4xD	120	64	R 1,00	5
*	64120	157520140	20	20	4xD	140	80	R 1,00	5
	64122	157525155	25	25	4xD	155	100	R 1,00	5
*	64136	157508091	8	8	5xD	91	40	R 0,50	5
*	64126	157510100	10	10	5xD	100	50	R 0,50	5
*	64128	157512125	12	12	5xD	125	60	R 0,75	5
*	64130	157516150	16	16	5xD	150	80	R 1,00	5
*	64132	157520165	20	20	5xD	165	100	R 1,00	5
	64134	157525200	25	25	5xD	200	125	R 1,00	5

Ø	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø	ae=0.25Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
3	0.012	0.015	0.016	0.02	0.022	0.025	0.026	0.03
4	0.02	0.024	0.02	0.023	0.026	0.03	0.032	0.036
5	0.023	0.026	0.023	0.027	0.031	0.036	0.04	0.045
6	0.026	0.03	0.034	0.038	0.043	0.049	0.05	0.06
8	0.033	0.038	0.036	0.042	0.048	0.054	0.06	0.075
10	0.044	0.049	0.045	0.053	0.063	0.07	0.072	0.084
12	0.045	0.051	0.047	0.053	0.064	0.072	0.08	0.088
16	0.056	0.062	0.058	0.064	0.069	0.075	0.09	0.1
20	0.065	0.073	0.066	0.074	0.08	0.092	0.102	0.11

Material	Trochoidal	Slotting	Shoulder Milling

	ap=1.2Ø / ae=0.20 - 0.10Ø	ap= 0.5Ø	ap=1.5Ø / ae=0.35 - 0.20Ø
	Vc (m/dk)	Vc (m/dk)	Vc (m/dk)
Unalloyed steel	170-200	130-160	150-180
Steel	170-200	130-160	150-180
Tempered steel	160-190	120-150	140-170
Cold work tool steel	100-130	80-100	90-110
Hot work tool stee	90-110	70-90	80-100
AISI 304 - 416 - 420	110-130	90-110	100-120
AISI 316 - 440	110-130	90-110	100-120
17-4 PH 15-5 PH	90-110	70-90	80-100
Chrome-Cobalt alloy	80-100	60-80	70-90
Duplex F51	70-90	50-70	60-80
Super Duplex F55	70-90	50-70	60-80
Gray cast	150-180	120-150	140-160
Alloyed cast	140-160	110-140	130-150
Precision cast	130-150	110-130	120-140
54 HRC	120-150	80-120	110-130
HRSA hastelloy	60-80	40-60	50-70
HRSA inconel 625	60-80	40-60	50-70
HRSA inconel 718	60-80	40-60	50-70
HRSA nimonic	60-80	40-60	50-70
Titanium	80-100	60-80	70-90
Titanium Alloys	80-100	60-80	70-90

Hpc
