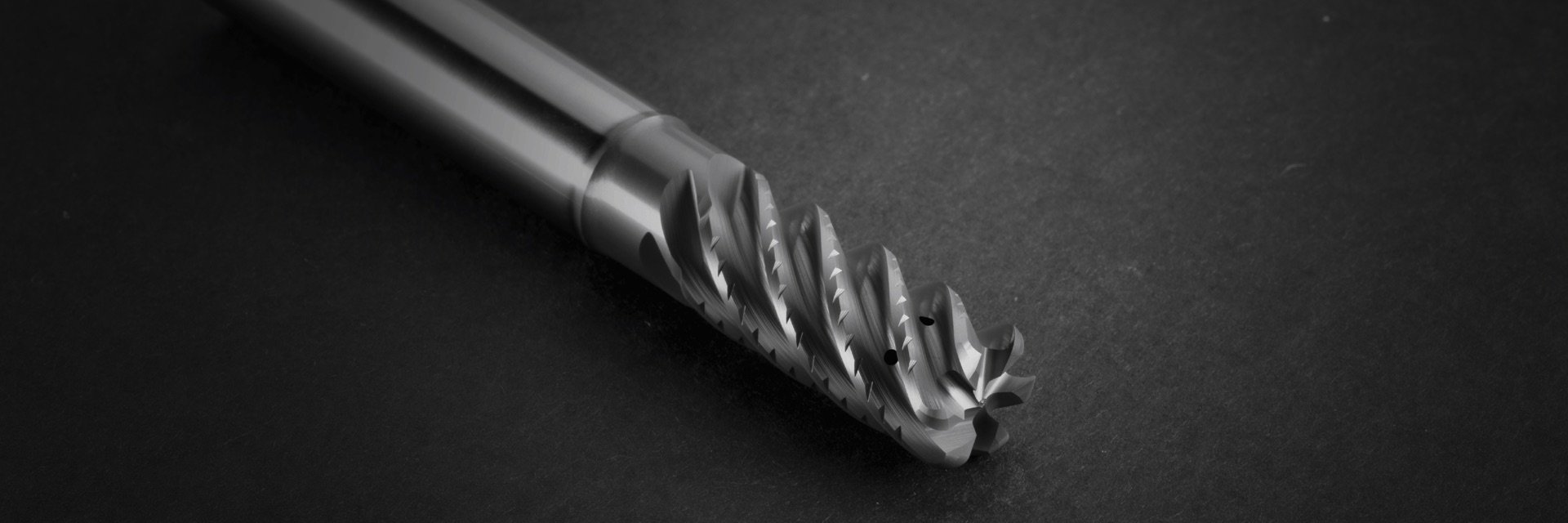

Steel |
![]() |
|
Stainless Steel |
![]() |
|
Hardened Steel ≤ 54 HRc |
![]() |
|
Hardened Steel > 54 HRc |
![]() |
|
Cast |
![]() |
|
Graphite |
![]() |
|
Non Ferrous Material |
![]() |
|
HRSA |
![]() |
|
Titanium |
![]() |

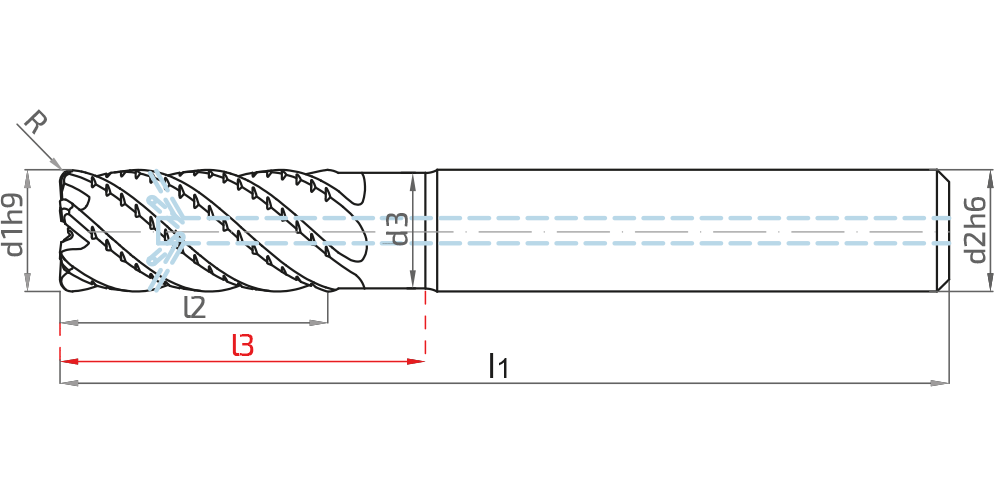

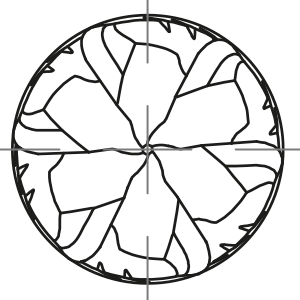

Stock | Code | d1h9 | d2h6 | d3 | l1 | l2 | l3 | r | Z |
---|---|---|---|---|---|---|---|---|---|
156606005 | 6 | 6 | 5.7 | 58 | 13 | 20 | 0.5 | 6 | |
156608005 | 8 | 8 | 7.6 | 64 | 18 | 25 | 0.5 | 6 | |
156610005 | 10 | 10 | 7.5 | 73 | 22 | 30 | 0.5 | 6 | |
156610010 | 10 | 10 | 7.5 | 73 | 22 | 30 | 1 | 6 | |
156612005 | 12 | 12 | 11.4 | 82 | 26 | 36 | 0.5 | 6 | |
156612010 | 12 | 12 | 11.4 | 82 | 26 | 36 | 1 | 6 | |
156616010 | 16 | 16 | 15.2 | 93 | 34 | 42 | 1 | 6 | |
156616020 | 16 | 16 | 15.2 | 93 | 34 | 42 | 2 | 6 | |
156620030 | 20 | 20 | 19 | 105 | 42 | 52 | 3 | 6 |
ᴓ | ap=2xØ | ap=3xØ | ap=4xØ |
---|---|---|---|
4 | 0,016-0,032 | ||
6 | 0,036-0,072 | 0,036-0,072 | 0,04-0,07 |
8 | 0,048-0,096 | 0,048-0,086 | 0,05-0,08 |
10 | 0,075-0,15 | 0,06-0,12 | 0,05-0,08 |
12 | 0,09-0,18 | 0,072-0,144 | 0,06-0,09 |
14 | 0,105-0,210 | 0,084-0,168 | 0,07-0,1 |
16 | 0,120-0,0240 | 0,07-0,1 | 0,07-0,1 |
18 | 0,135-0,270 | 0,12-0,15 | 0,12-0,15 |
20 | 0,150-0,300 | 0,12-0,24 | 0,13-0,16 |
Material | Shoulder Milling ap=2xØ/ae=0,05-0,12Ø Vc (m/min) | Shoulder Milling ap=3xØ/ae=0,05-0,1Ø Vc (m/min) | Shoulder Milling ap=4xØ/ae=0,05-0,1Ø Vc (m/min) |
---|---|---|---|
|
|
|
|
Unalloyed steel | 220-250 | 220-250 | 200-230 |
Steel | 210-240 | 210-240 | 190-220 |
Tempered steel | 110-140 | 110-140 | 100-120 |
Cold work tool steel | 80-110 | 75-105 | 70-90 |
Hot work tool steel | 80-110 | 75-105 | 70-90 |
AISI 304 - 416 - 420 | 120-150 | 120-150 | 95-125 |
AISI 316 - 440 | 100-130 | 90-120 | 80-110 |
17-4 PH 15-5 PH | 90-120 | 80-110 | 70-100 |
Chrome-Cobalt alloy | 70-100 | 70-90 | 65-85 |
Duplex F51 | 90-130 | 90-130 | 70-110 |
Super duplex F55 | 90-130 | 90-130 | 70-110 |
Gray cast | 200-235 | 200-235 | 195-215 |
Alloyed cast | 200-240 | 200-240 | 190-220 |
Precision cast | 200-245 | 200-245 | 190-225 |
Iron-based superalloys | 45-65 | 45-65 | 40-60 |
Nickel-based superalloys | 40-55 | 40-55 | 40-50 |
Titanium-based superalloys | 100-120 | 95-115 | 90-105 |
Steel |
![]() |
|
Stainless Steel |
![]() |
|
Hardened Steel ≤ 54 HRc |
![]() |
|
Hardened Steel > 54 HRc |
![]() |
|
Cast |
![]() |
|
Graphite |
![]() |
|
Non Ferrous Material |
![]() |
|
HRSA |
![]() |
|
Titanium |
![]() |
