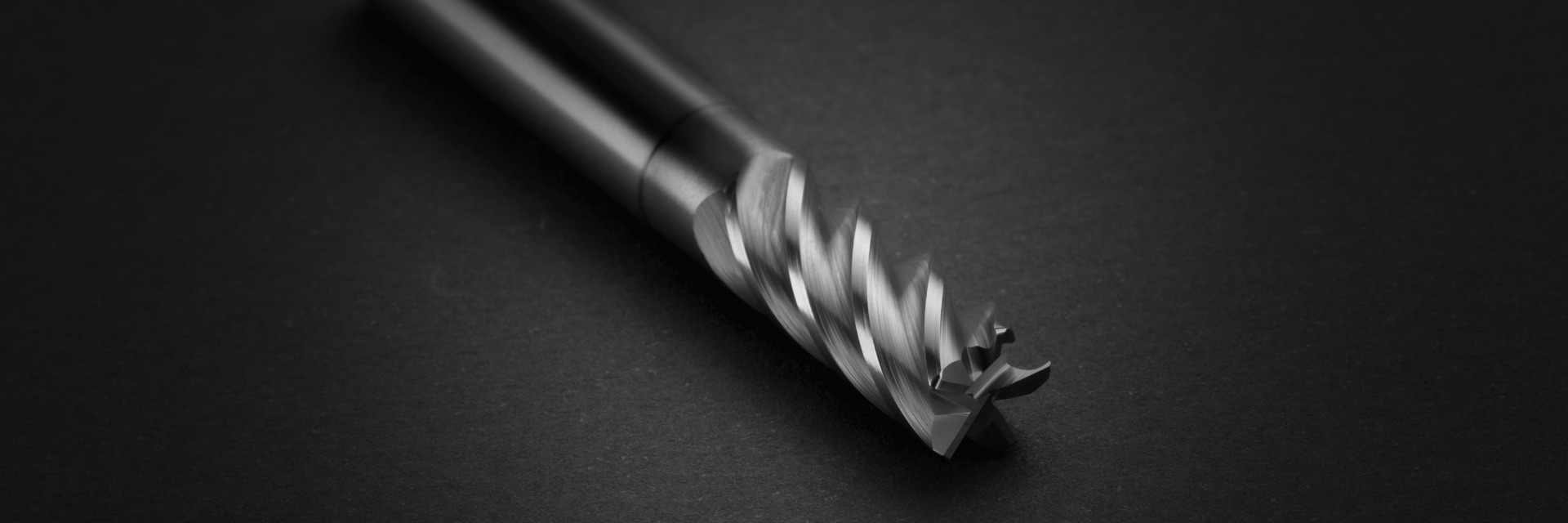

154 Gen-Z Series Frezes

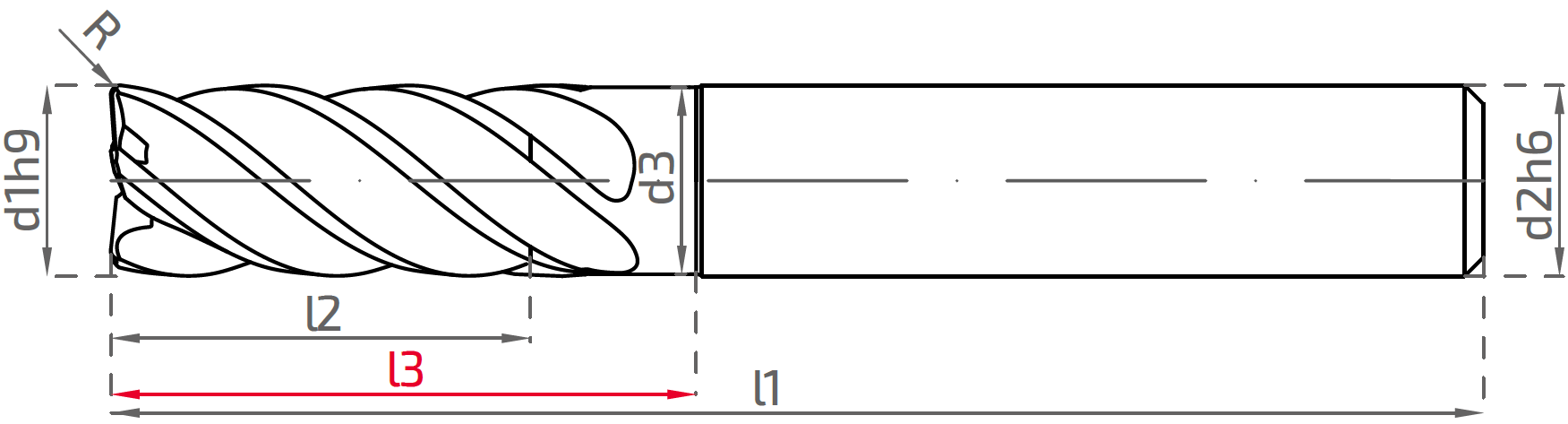

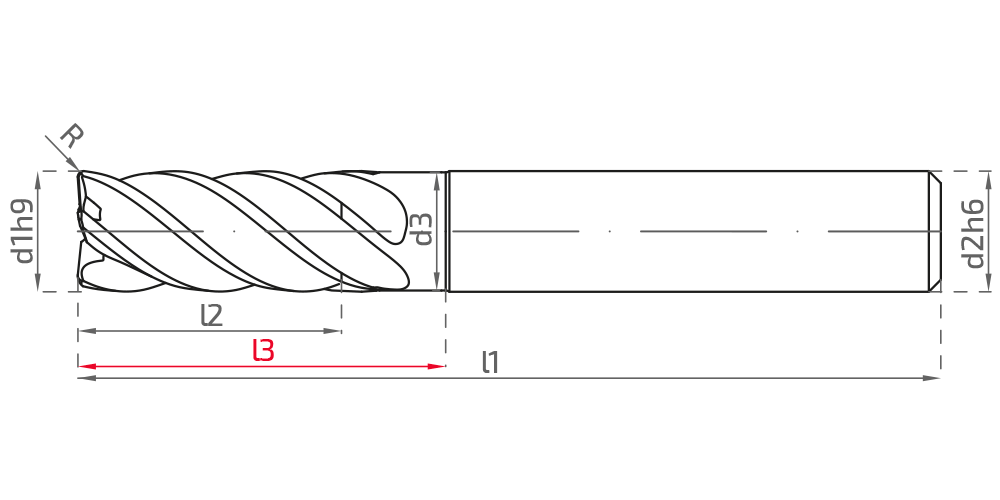

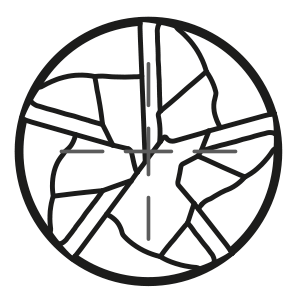

Stock	Order No	Legacy Code	d1h9	d2h6	d3	l1	l2	l3	Corner	Z
	61100	11F20_15400050300A01	3	6	2.90	58	8	10	R 0,20	5
	61102	11F20_15400050300A02	3	6	2.90	58	8	10	R 0,50	5
	61172	11F20_15400050400A01	4	6	3.90	58	11	13	R 0,20	5
	61104	11F20_15400050400A02	4	6	3.90	58	11	13	R 0,50	5
	61106	11F20_15400050500A01	5	6	4.90	58	13	16	R 0,20	5
	61108	11F20_15400050500A02	5	6	4.90	58	13	16	R 0,50	5
	61110	11F20_15400050600A01	6	6	5.85	58	13	18.50	R 0,20	5
	61112	11F20_15400050600A02	6	6	5.85	58	13	18.50	R 0,50	5
	61114	11F20_15400050600A03	6	6	5.90	58	13	19	R 1,00	5
	61116	11F20_15400050800A01	8	8	7.70	64	19	25	R 0,20	5
	61118	11F20_15400050800A02	8	8	7.70	64	19	25	R 0,50	5
	61120	11F20_15400050800A03	8	8	7.70	64	19	25	R 1,00	5
	61124	11F20_15400050800A04	8	8	7.70	64	19	25	R 2,00	5
*	61126	11F20_15400051000A01	10	10	9.80	72	22	31	R 0,50	5
	61128	11F20_15400051000A02	10	10	9.80	72	22	31	R 1,00	5
	61130	11F20_15400051000A03	10	10	9.80	72	22	31	R 2,00	5
*	61132	11F20_15400051200A01	12	12	11.40	82	26	37	R 0,50	5
*	61134	11F20_15400051200A02	12	12	11.40	82	26	37	R 1,00	5
	61138	11F20_15400051200A03	12	12	11.40	82	26	37	R 2,00	5
	61140	11F20_15400051200A04	12	12	11.40	82	26	37	R 2,50	5
	61142	11F20_15400051200A05	12	12	11.40	82	26	37	R 3,00	5
	61144	11F20_15400051200A06	12	12	11.40	82	26	37	R 4,00	5
*	61146	11F20_15400051600A01	16	16	15.20	100	35	49	R 0,50	5
*	61148	11F20_15400051600A02	16	16	15.20	100	35	49	R 1,00	5
	61150	11F20_15400051600A03	16	16	15.20	100	35	49	R 1,50	5
	61152	11F20_15400051600A04	16	16	15.20	100	35	49	R 2,50	5
	61154	11F20_15400051600A05	16	16	15.20	100	35	49	R 3,00	5
	61156	11F20_15400051600A06	16	16	15.20	100	35	49	R 4,00	5
	61158	11F20_15400052000A01	20	20	19.20	112	40	62	R 1,00	5
	61160	11F20_15400052000A02	20	20	19.20	112	40	62	R 2,00	5
	61162	11F20_15400052000A03	20	20	19.20	112	40	62	R 3,00	5
	61164	11F20_15400052000A04	20	20	19.20	112	40	62	R 4,00	5
	61166	11F20_15400052500A01	25	25	24.60	127	40	72	R 1,00	5
	61168	11F20_15400052500A02	25	25	24.60	127	40	72	R 3,00	5
	61170	11F20_15400052500A03	25	25	24.60	127	40	72	R 4,00	5

Feed Per Tooth (mm/tooth)

ᴓ	ae=0,05xØ	ae=0,1xØ	ae=0,25xØ	ae=0,5xØ	ap=0,25-1Ø
3	0.035	0.025	0.021	0.02	0.01
4	0.045	0.035	0.03	0.029	0.02
5	0.06	0.045	0.04	0.035	0.025
6	0.07	0.05	0.041	0.04	0.03
8	0.08	0.07	0.062	0.06	0.04
10	0.09	0.08	0.071	0.07	0.05
12	0.12	0.99	0.085	0.08	0.06
16	0.15	0.12	0.11	0.1	0.08
18	0.18	0.14	0.12	0.11	0.09
20	0.2	0.16	0.131	0.12	0.1
25	0.25	0.19	0.16	0.15	0.125
Diş Başı İlerleme HPC (mm/dev)
ᴓ	ae=0,05xØ	ae=0,1xØ	ae=0,25xØ	ae=0,5xØ	ap=0,25-1Ø
3	0.069	0.054	0.036	0.03	0.01
4	0.092	0.072	0.048	0.04	0.02
5	0.115	0.09	0.06	0.05	0.025
6	0.138	0.108	0.072	0.06	0.03
8	0.184	0.144	0.096	0.08	0.04
10	0.23	0.18	0.12	0.1	0.05
12	0.276	0.216	0.144	0.12	0.06
16	0.368	0.288	0.192	0.16	0.08
18	0.414	0.324	0.216	0.18	0.09
20	0.46	0.36	0.24	0.2	0.1
25	0.575	0.45	0.3	0.25	0.125

ᴓ	ae=0,05xØ	ae=0,1xØ	ae=0,25xØ	ae=0,5xØ	ap=0,25-1Ø
3	0.069	0.054	0.036	0.03	0.01
4	0.092	0.072	0.048	0.04	0.02
5	0.115	0.09	0.06	0.05	0.025
6	0.138	0.108	0.072	0.06	0.03
8	0.184	0.144	0.096	0.08	0.04
10	0.23	0.18	0.12	0.1	0.05
12	0.276	0.216	0.144	0.12	0.06
16	0.368	0.288	0.192	0.16	0.08
18	0.414	0.324	0.216	0.18	0.09
20	0.46	0.36	0.24	0.2	0.1
25	0.575	0.45	0.3	0.25	0.125

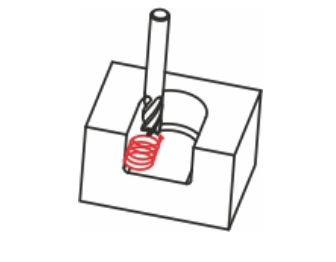

Cutting Parameters ( Standart ve HPC)

Cutting Parameters (m/dk) Normal Parameters

	Shoulder Milling	Shoulder Milling	Shoulder Milling	Slotting	Slotting
Material	ap=2xØ/ae=0,05-0,1Ø	ap=2xØ/ae=0,1-0,25Ø	ap=2xØ/ae=0,25-0,5Ø	ap=0,25-0,5Ø	ap=0,5-1Ø
	Vc(m/dk)	Vc(m/dk)	Vc(m/dk)	Vc(m/dk)	Vc(m/dk)
Unalloyed steel	170-200	130-160	110-130	150-180	120-140
Steel	170-200	130-160	110-130	150-180	120-140
Tempered steel	160190	120-150	100-120	140-170	110-140
Cold work tool steel	100-130	80-100	60-70	90-110	80-100
Hot work tool stee	90-110	70-90	60-70	80-100	75-95
AISI 304-416-420	110-130	90-110	80-100	100-120	90-110
AISI 316-440	110-130	90-110	80-100	80-100	80-90
17-4 PH 15-5 PH	90-110	70-90	60-80	70-90	70-80
Chrome-Cobalt alloy	80-100	60-80	60-80	60-80	60-70
Duplex F51	70-90	50-70	50-60	60-80	60-70
Super Duplex F55	70-90	50-70	50-60	60-80	60-70
Gray cast	150-180	120-150	90-120	140-160	120-150
Alloyed cast	140-160	110-140	90-110	130-150	110-140
Precision cast	130-150	110-130	90-110	120-140	110-130
Iron-based superalloys	60-80	40-60	40-50	50-70	50-60
Nickel-based superalloys	60-80	40-60	40-50	50-70	50-60
Titanium-based superalloys	60-80	40-60	40-50	50-70	50-60
≤ 54 HRC	100-120	80-120	70-90	70-90	60-70
>54 HRC	80-100	70-90	60-70	70-90	60-70
Cutting Parameters (m/dk) HPC
	Shoulder Milling	Shoulder Milling	Shoulder Milling	Slotting	Slotting
Material	ap=2xØ/ae=0,05-0,1Ø	ap=2xØ/ae=0,1-0,25Ø	ap=2xØ/ae=0,25-0,5Ø	ap=0,25-0,5Ø	ap=0,5-1Ø
	Vc(m/dk)	Vc(m/dk)	Vc(m/dk)	Vc(m/dk)	Vc(m/dk)
Unalloyed steel	350-450	300-350	150-300	160	150-170
Steel	275-345	255-275	175-255	90	80
Tempered steel	255-315	230-255	175-230	90	80
Cold work tool steel	125-155	85-125	60-85	85	65
Hot work tool stee	150-185	100-150	75-100	75	65
AISI 304-416-420	130-160	120-130	65-120	80	70
AISI 316-440	100-125	90-100	65-90	80	70
17-4 PH 15-5 PH	130-160	120-130	35-120	60	40
Chrome-Cobalt alloy	100-125	90-100	40-90	60	45
Duplex F51	60-75	55-60	40-55	60	45
Super Duplex F55	60-75	55-60	35-55	50	40
Gray cast	395-495	265-395	110-265	105	110
Alloyed cast	165-205	155-165	80-155	80	85
Precision cast	165-205	155-165	80-155	80	85
Iron-based superalloys	45-55	40-45	25-40	40	30
Nickel-based superalloys	45-55	40-45	25-40	40	30
Titanium-based superalloys	105-115	100-105	55-100	60	55
≤ 54 HRC	150-185	100-150	75-100	80	70
>54 HRC	125-155	85-125	60-85	65	55

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended

Hpc
