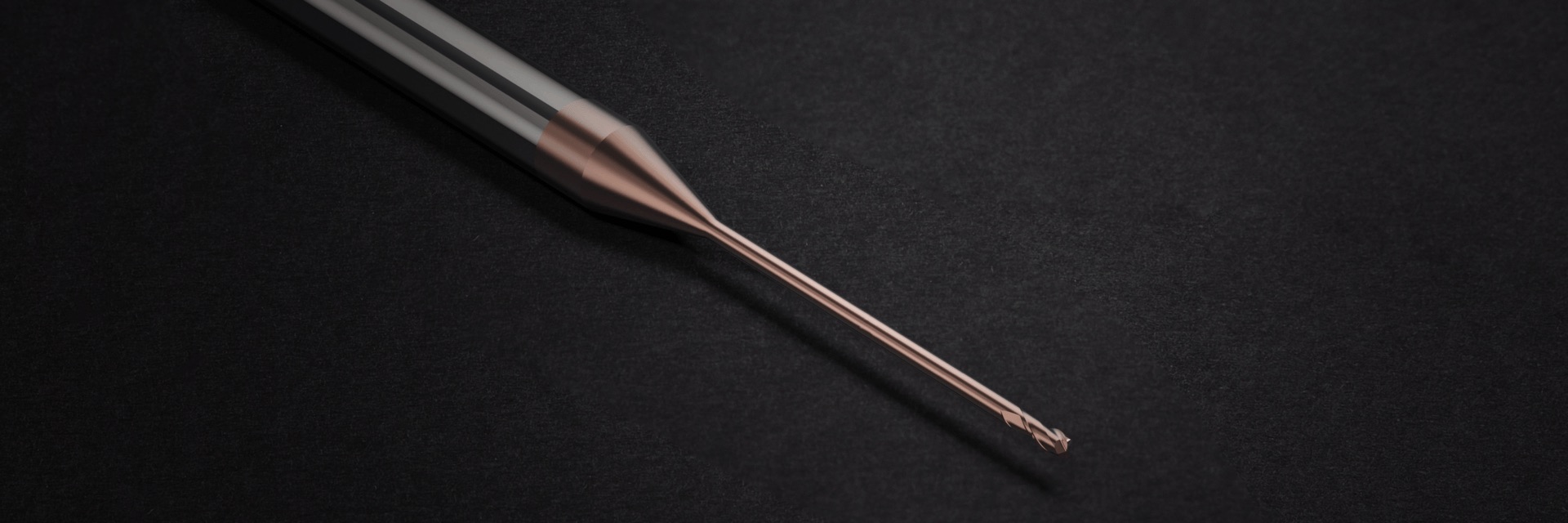

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

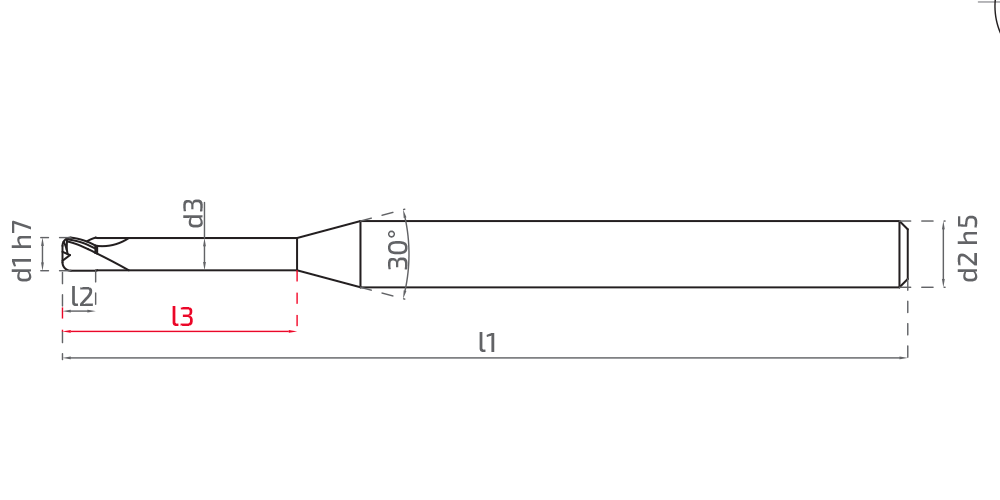

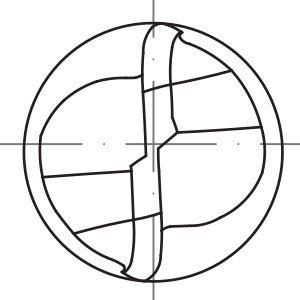

Recommended Acceptable Not Recommended| Stock | Order No. | Code | d1h9 | d2h5 | d3 | l1 | l2 | l3 | Corner |
|---|---|---|---|---|---|---|---|---|---|
| 25100 | 153.2.0050.0510.R0005.0005.0047.0020.00.S04H1A04.01 | 0.5 | 4 | 0.47 | 51 | 0.5 | 2 | R 0.05 | |
| 25102 | 153.2.0050.0510.R0005.0005.0047.0030.00.S04H1A04.01 | 0.5 | 4 | 0.47 | 51 | 0.5 | 3 | R 0.05 | |
| 25104 | 153.2.0050.0510.R0005.0005.0047.0040.00.S04H1A04.01 | 0.5 | 4 | 0.47 | 51 | 0.5 | 4 | R 0.05 | |
| * | 25106 | 153.2.0100.0510.R0010.0010.0094.0060.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 6 | R 0.10 |
| 25108 | 153.2.0100.0510.R0020.0010.0094.0060.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 6 | R 0.20 | |
| * | 25110 | 153.2.0100.0510.R0010.0010.0094.0080.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 8 | R 0.10 |
| 25112 | 153.2.0100.0510.R0020.0010.0094.0080.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 8 | R 0.20 | |
| * | 25114 | 153.2.0100.0510.R0010.0010.0094.0100.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 10 | R 0.10 |
| * | 25116 | 153.2.0100.0510.R0010.0010.0094.0120.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 12 | R 0.10 |
| 25118 | 153.2.0100.0510.R0020.0010.0094.0120.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 12 | R 0.20 | |
| 25120 | 153.2.0100.0510.R0020.0010.0094.0160.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 16 | R 0.20 | |
| 25122 | 153.2.0100.0510.R0020.0010.0094.0200.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 20 | R 0.20 | |
| * | 25124 | 153.2.0150.0510.R0020.0015.0140.0060.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 6 | R 0.20 |
| 25126 | 153.2.0150.0510.R0050.0015.0140.0060.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 6 | R 0.50 | |
| 25128 | 153.2.0150.0510.R0010.0015.0140.0080.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 8 | R 0.10 | |
| * | 25130 | 153.2.0150.0510.R0020.0015.0140.0080.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 8 | R 0.20 |
| 25132 | 153.2.0150.0510.R0050.0015.0140.0080.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 8 | R 0.50 | |
| * | 25134 | 153.2.0150.0510.R0020.0015.0140.0100.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 10 | R 0.20 |
| 25136 | 153.2.0150.0510.R0050.0015.0140.0100.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 10 | R 0.50 | |
| 25138 | 153.2.0150.0510.R0010.0015.0140.0120.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 12 | R 0.10 | |
| * | 25140 | 153.2.0150.0510.R0020.0015.0140.0120.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 12 | R 0.20 |
| * | 25142 | 153.2.0200.0510.R0020.0020.0195.0060.00.S04H1A04.01 | 2 | 4 | 1.95 | 51 | 2 | 6 | R 0.20 |
| * | 25144 | 153.2.0200.0510.R0050.0020.0195.0060.00.S04H1A04.01 | 2 | 4 | 1.95 | 51 | 2 | 6 | R 0.50 |
| * | 25146 | 153.2.0200.0510.R0020.0020.0195.0080.00.S04H1A04.01 | 2 | 4 | 1.95 | 51 | 2 | 8 | R 0.20 |
| * | 25148 | 153.2.0200.0510.R0050.0020.0195.0080.00.S04H1A04.01 | 2 | 4 | 1.95 | 51 | 2 | 8 | R 0.50 |
| * | 25150 | 153.2.0200.0510.R0020.0020.0195.0100.00.S04H1A04.01 | 2 | 4 | 1.95 | 51 | 2 | 10 | R 0.20 |
| * | 25152 | 153.2.0200.0510.R0050.0020.0195.0100.00.S04H1A04.01 | 2 | 4 | 1.95 | 51 | 2 | 10 | R 0.50 |
| * | 25154 | 153.2.0200.0510.R0020.0020.0195.0120.00.S04H1A04.01 | 2 | 4 | 1.95 | 51 | 2 | 12 | R 0.20 |
| * | 25156 | 153.2.0200.0510.R0050.0020.0195.0120.00.S04H1A04.01 | 2 | 4 | 1.95 | 51 | 2 | 12 | R 0.50 |
| Stock | Order No. | Code | d1h9 | d2h5 | d3 | l1 | l2 | l3 | Corner |
|---|---|---|---|---|---|---|---|---|---|
| * | 25158 | 153.2.0100.0510.R0010.0010.0094.0160.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 16 | R 0.10 |
| 25160 | 153.2.0100.0510.R0010.0010.0094.0200.00.S04H1A04.01 | 1 | 4 | 0.94 | 51 | 1 | 20 | R 0.10 | |
| * | 25162 | 153.2.0150.0510.R0020.0015.0140.0160.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 16 | R 0.20 |
| 25164 | 153.2.0150.0510.R0020.0015.0140.0200.00.S04H1A04.01 | 1.5 | 4 | 1.4 | 51 | 1.5 | 20 | R 0.20 | |
| * | 25166 | 153.2.0200.0510.R0020.0020.0194.0160.00.S04H1A04.01 | 2 | 4 | 1.94 | 51 | 2 | 16 | R 0.20 |
| * | 25168 | 153.2.0200.0510.R0050.0020.0194.0160.00.S04H1A04.01 | 2 | 4 | 1.94 | 51 | 2 | 16 | R 0.50 |
| 25170 | 153.2.0200.0510.R0020.0020.0194.0200.00.S04H1A04.01 | 2 | 4 | 1.94 | 51 | 2 | 20 | R 0.20 |
| Ø | ae=0.20Ø | ae=0.10Ø |
|---|---|---|
| 0,5 | 0.07 | 0.01 |
| 1 | 0.015 | 0.02 |
| 1.5 | 0.018 | 0.025 |
| 2 | 0.022 | 0.031 |
| Material | Finish Milling |
|---|---|
|
|
|
| ap=0.2Ø / ae=0.20 - 0.10Ø | |
| Vc (m/min) | |
| Unalloyed steel | 170-220 |
| Steel | 170-220 |
| Tempered steel | 140-180 |
| Cold work tool steel | 140-180 |
| Hot work tool steel | 110-150 |
| AISI 304 - 416 - 420 | 80-130 |
| AISI 316 - 440 | 70-120 |
| 17-4 PH 15-5 PH | 70-100 |
| Cobalt-Chrome alloys | 60-100 |
| Duplex F51 | 50-80 |
| Super duplex F55 | 50-80 |
| Gray cast | 110-150 |
| Titanium | 30-60 |
| Titanium alloys | 30-60 |
| ≤ 54 HRC | 100-140 |
| >54 HRC | 70-90 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
