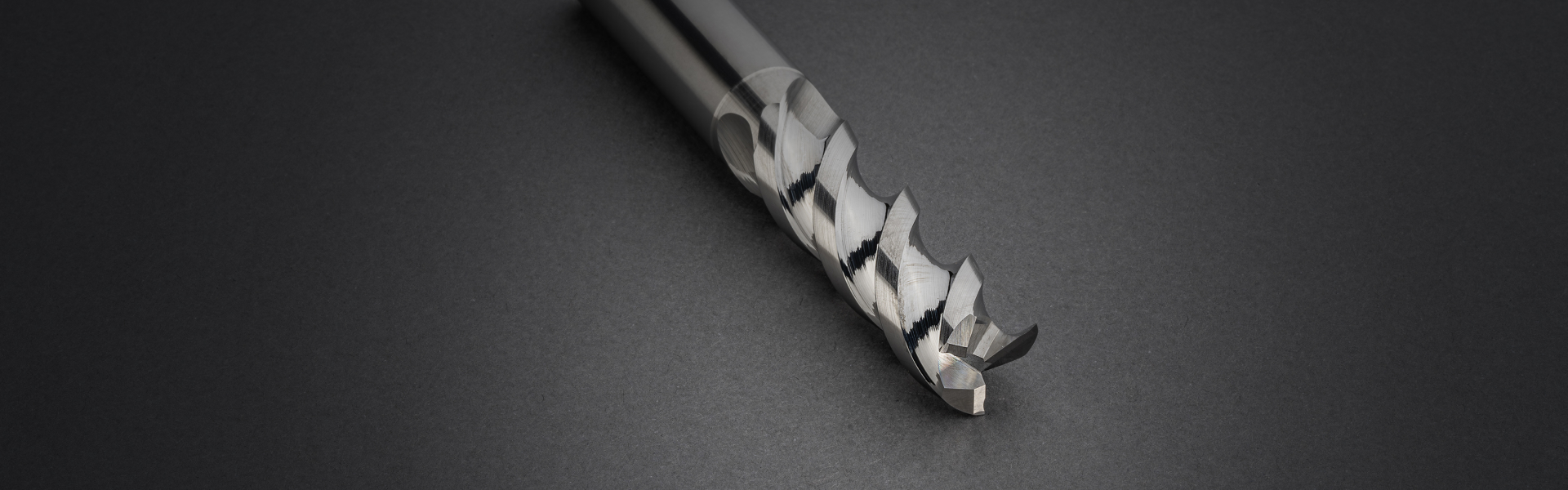

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended

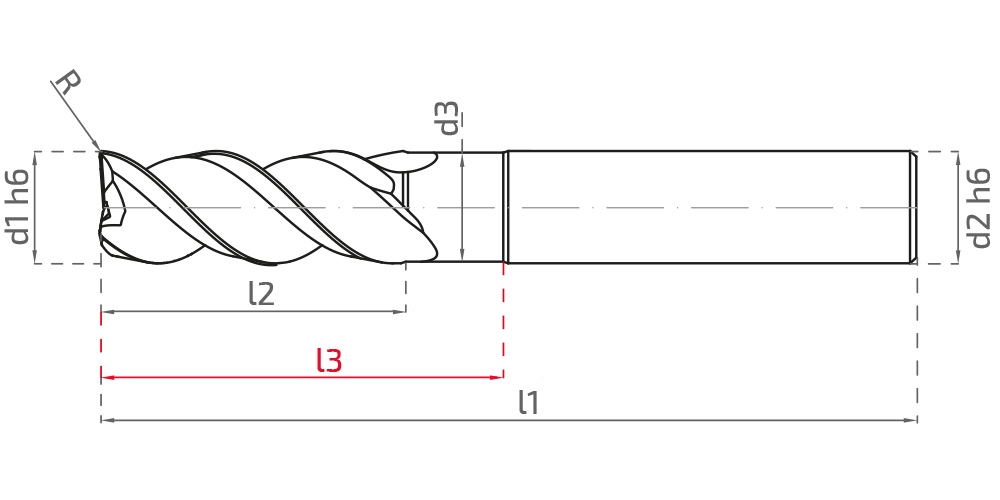

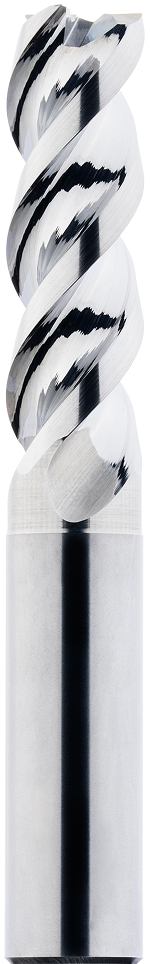

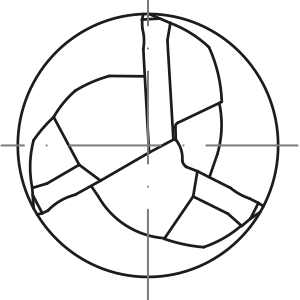

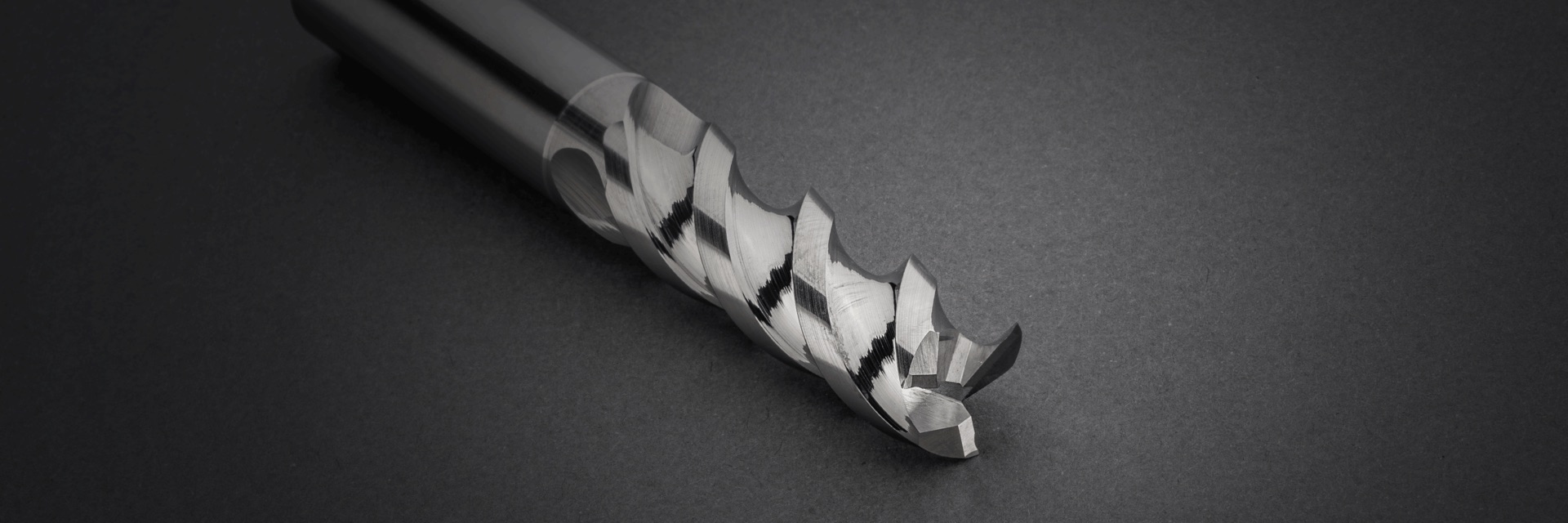

Acceptable Not Recommended| Stock | Order No. | Code | Old Code | d1h6 | d2h6 | d3 | l1 | l2 | l3 | Corner | Related Document |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * | 58150 | 123P.3.0600.0580.R0020.0170.0570.0260.00.S06B1Y01.01 | 123306058 PLUS | 6 | 6 | 5.70 | 58 | 17 | 26 | R 0.20 | |
| * | 58152 | 123P.3.0800.0640.R0020.0220.0770.0300.00.S08B1Y01.01 | 123308064 PLUS | 8 | 8 | 7.70 | 64 | 22 | 30 | R 0.20 | |
| * | 58154 | 123P.3.1000.0730.R0020.0250.0970.0350.00.S10B1Y01.01 | 123310073 PLUS | 10 | 10 | 9.70 | 73 | 25 | 35 | R 0.20 | |
| * | 58156 | 123P.3.1200.0820.R0020.0280.1170.0400.00.S12B1Y01.01 | 123312082 PLUS | 12 | 12 | 11.70 | 82 | 28 | 40 | R 0.20 | |
| * | 58158 | 123P.3.1400.0820.R0020.0280.1370.0400.00.S14B1Y01.01 | 123314082 PLUS | 14 | 14 | 13.70 | 82 | 28 | 40 | R 0.20 | |
| * | 58160 | 123P.3.1600.0930.R0020.0370.1570.0530.00.S16B1Y01.01 | 123316093 PLUS | 16 | 16 | 15.70 | 93 | 37 | 53 | R 0.20 | |
| * | 58162 | 123P.3.2000.1050.R0020.0380.1970.0540.00.S20B1Y01.01 | 123320105 PLUS | 20 | 20 | 19.70 | 105 | 38 | 54 | R 0.20 |
| Stock | Order No. | Code | Old Code | d1h6 | d2h6 | d3 | l1 | l2 | l3 | Corner | Related Document |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * | 58164 | 123P.3.0600.1080.R0020.0150.0580.0450.00.S06B1Y01.01 | 123306108 PLUS | 6 | 6 | 5.8 | 108 | 15 | 45 | R 0.20 | |
| * | 58166 | 123P.3.0800.1100.R0020.0180.0780.0620.00.S08B1Y01.01 | 123308108 PLUS | 8 | 8 | 7.8 | 110 | 18 | 62 | R 0.20 | |
| * | 58168 | 123P.3.1000.1100.R0020.0200.0980.0620.00.S10B1Y01.01 | 123310108 PLUS | 10 | 10 | 9.8 | 110 | 20 | 62 | R 0.20 | |
| * | 58170 | 123P.3.1200.1270.R0020.0250.1180.0800.00.S12B1Y01.01 | 123312125 PLUS | 12 | 12 | 11.8 | 127 | 25 | 80 | R 0.20 | |
| * | 58172 | 123P.3.1200.1500.R0020.0320.1180.1050.00.S12B1Y01.01 | 123312150 PLUS | 12 | 12 | 11.8 | 150 | 32 | 105 | R 0.20 | |
| * | 58174 | 123P.3.1600.1100.R0020.0500.1570.0600.00.S16B1Y01.01 | 123316110 PLUS | 16 | 16 | 15.7 | 110 | 50 | 60 | R 0.20 | |
| * | 58176 | 123P.3.1600.1600.R0020.0300.1580.1100.00.S16B1Y01.01 | 123316160 PLUS | 16 | 16 | 15.8 | 160 | 30 | 110 | R 0.20 | |
| * | 58178 | 123P.3.2000.2000.R0020.0300.1980.1144.00.S20B2Y01.01 | 123320200 PLUS | 20 | 20 | 19.8 | 200 | 30 | 114.4 | R 0.20 |
| Ø | ap=1.50Ø | ap=1Ø | ae=0.30Ø | ae=0.20Ø | ae=0.10Ø |
|---|---|---|---|---|---|
| 3 | 0,01 | 0,015 | 0,03 | 0,035 | 0,04 |
| 4 | 0,056 | 0,068 | 0,08 | 0,09 | 0,1 |
| 5 | 0,06 | 0,07 | 0,09 | 0,1 | 0,12 |
| 6 | 0,07 | 0,075 | 0,1 | 0,12 | 0,15 |
| 8 | 0,072 | 0,083 | 0,168 | 0,21 | 0,281 |
| 10 | 0,075 | 0,088 | 0,173 | 0,22 | 0,3 |
| 12 | 0,084 | 0,093 | 0,2 | 0,26 | 0,325 |
| 16 | 0,09 | 0,103 | 0,24 | 0,3 | 0,36 |
| 20 | 0,1 | 0,112 | 0,28 | 0,34 | 0,4 |
| Material | Slotting | Shoulder Milling |
|---|---|---|
|
|
|
|
| ap=1.5-1.0Ø | ap=1.5Ø / ae=0.3 - 0.2 - 0.1Ø | |
| Vc (m/min) | Vc (m/min) | |
| Aluminium alloys | 250-300 | 350-400 |
| Coper alloys | 200-250 | 300-350 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
