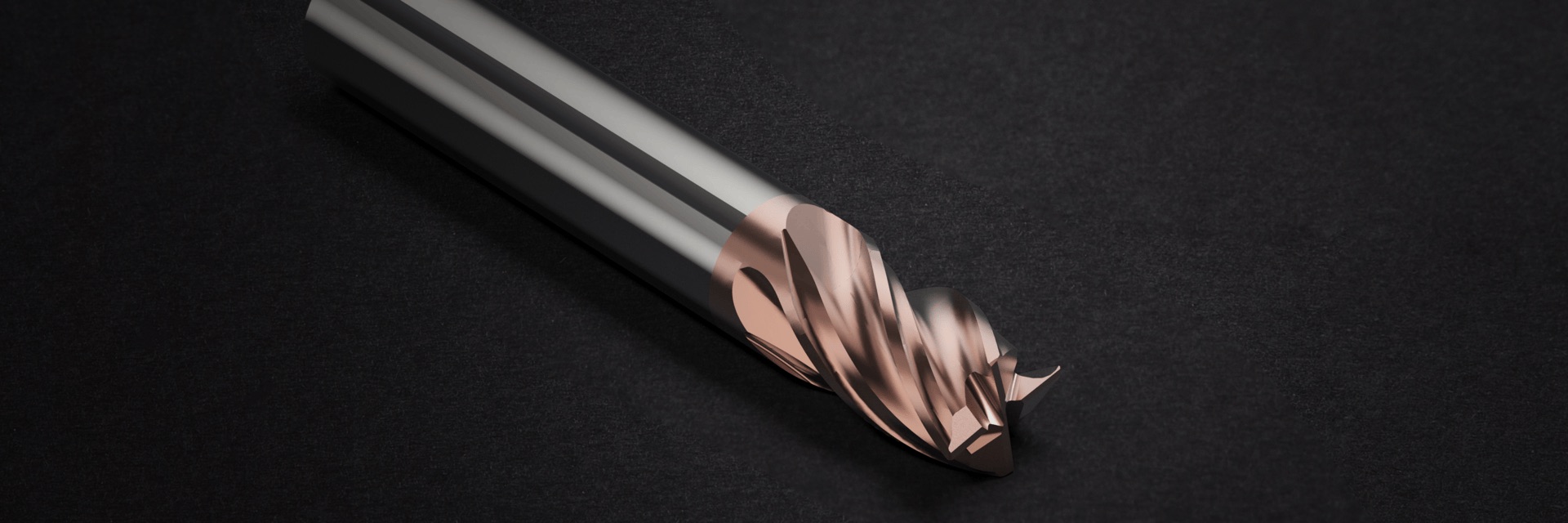

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

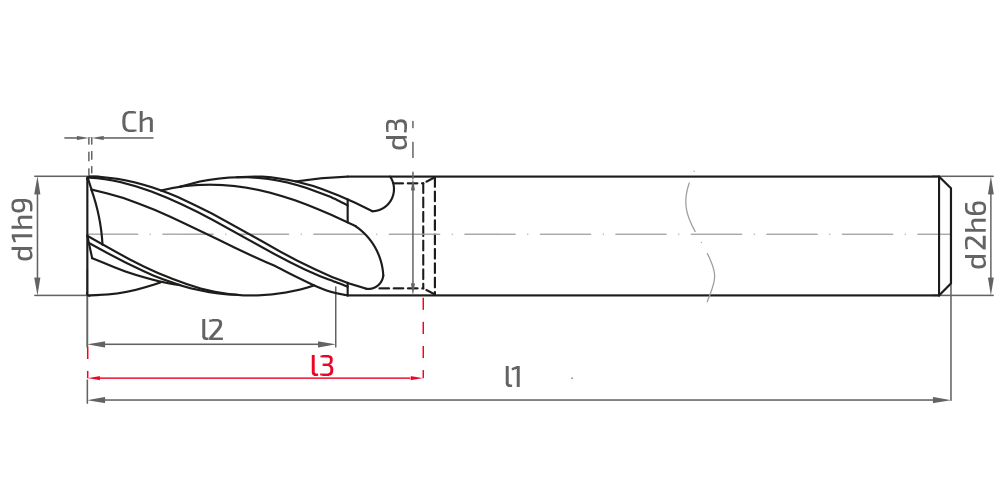

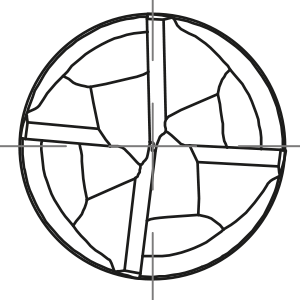

Recommended Acceptable Not Recommended| Stock | Order No. | Code | Old Code | d1h9 | d2h6 | d3 | l1 | l2 | l3 | Corner | Weldon Order No. | Related Document |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| * | 21100 | 121.4.0300.0580.C0015.0090.0290.0120.00.S06B1A01.01 | 121403058 | 3 | 6 | 2.90 | 58 | 9 | 12 | Ch 0.15 | 21101 | |
| * | 21102 | 121.4.0400.0580.C0015.0120.0390.0150.00.S06B1A01.01 | 121404058 | 4 | 6 | 3.90 | 58 | 12 | 15 | Ch 0.15 | 21103 | |
| * | 21104 | 121.4.0500.0580.C0020.0150.0490.0180.00.S06B1A01.01 | 121405058 | 5 | 6 | 4.90 | 58 | 15 | 18 | Ch 0.20 | 21105 | |
| * | 21106 | 121.4.0600.0580.C0020.0160.0000.0000.00.S06B1A01.01 | 121406058 | 6 | 6 | - | 58 | 16 | - | Ch 0.20 | 21107 | |
| * | 21108 | 121.4.0600.0580.C0020.0160.0590.0217.00.S06B1A01.01 | 121406058P | 6 | 6 | 5.90 | 58 | 16 | 21.70 | Ch 0.20 | 21109 | |
| * | 21110 | 121.4.0700.0640.C0020.0190.0000.0000.00.S08B1A01.01 | 121407064 | 7 | 8 | - | 64 | 19 | - | Ch 0.20 | 21111 | |
| * | 21112 | 121.4.0800.0640.C0020.0200.0000.0000.00.S08B1A01.01 | 121408064 | 8 | 8 | - | 64 | 20 | - | Ch 0.20 | 21113 | |
| * | 21114 | 121.4.0800.0640.C0020.0200.0780.0250.00.S08B1A01.01 | 121408064P | 8 | 8 | 7.80 | 64 | 20 | 25 | Ch 0.20 | 21115 | |
| * | 21116 | 121.4.0900.0730.C0020.0220.0000.0000.00.S10B1A01.01 | 121409073 | 9 | 10 | - | 73 | 22 | - | Ch 0.20 | 21117 | |
| * | 21118 | 121.4.1000.0730.C0020.0220.0000.0000.00.S10B1A01.01 | 121410073 | 10 | 10 | - | 73 | 22 | - | Ch 0.20 | 21119 | |
| * | 21120 | 121.4.1000.0730.C0020.0220.0980.0310.00.S10B1A01.01 | 121410073P | 10 | 10 | 9.80 | 73 | 22 | 31 | Ch 0.20 | 21121 | |
| * | 21122 | 121.4.1200.0820.C0020.0280.0000.0000.00.S12B1A01.01 | 121412082 | 12 | 12 | - | 82 | 28 | - | Ch 0.20 | 21123 | |
| * | 21124 | 121.4.1200.0820.C0020.0280.1170.0370.00.S12B1A01.01 | 121412082P | 12 | 12 | 11.70 | 82 | 28 | 37 | Ch 0.20 | 21125 | |
| * | 21126 | 121.4.1600.0930.C0020.0360.0000.0000.00.S16B1A01.01 | 121416093 | 16 | 16 | - | 93 | 36 | - | Ch 0.20 | 21127 | |
| * | 21128 | 121.4.1600.0930.C0020.0360.1580.0470.00.S16B1A01.01 | 121416093P | 16 | 16 | 15.80 | 93 | 36 | 47 | Ch 0.20 | 21129 | |
| 21130 | 121.4.2000.1050.C0050.0380.0000.0000.00.S20B1A01.01 | 121420105 | 20 | 20 | - | 105 | 38 | - | Ch 0.50 | 21131 | ||
| * | 21132 | 121.4.2000.1050.C0050.0380.1950.0540.00.S20B1A01.01 | 121420105P | 20 | 20 | 19.50 | 105 | 38 | 54 | Ch 0.50 | 21133 |
| Stock | Order No. | Code | Old Code | d1h9 | d2h6 | d3 | l1 | l2 | l3 | Corner | Weldon Order No. | Related Document |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| * | 21136 | 121.4.0300.0500.C0015.0050.0290.0080.00.S06B1A01.01 | 121403050 | 3 | 6 | 2.9 | 50 | 5 | 8 | Ch 0.15 | 21137 | |
| * | 21138 | 121.4.0400.0500.C0015.0060.0390.0080.00.S06B1A01.01 | 121404050 | 4 | 6 | 3.9 | 50 | 6 | 8 | Ch 0.15 | 21139 | |
| * | 21140 | 121.4.0500.0540.C0020.0090.0490.0140.00.S06B1A01.01 | 121405054 | 5 | 6 | 4.9 | 54 | 9 | 14 | Ch 0.20 | 21141 | |
| * | 21142 | 121.4.0600.0540.C0020.0100.0000.0000.00.S06B1A01.01 | 121406054 | 6 | 6 | - | 54 | 10 | - | Ch 0.20 | 21143 | |
| * | 21144 | 121.4.0800.0580.C0020.0120.0000.0000.00.S08B1A01.01 | 121408058 | 8 | 8 | - | 58 | 12 | - | Ch 0.20 | 21145 | |
| * | 21146 | 121.4.1000.0660.C0020.0140.0000.0000.00.S10B1A01.01 | 121410066 | 10 | 10 | - | 66 | 14 | - | Ch 0.20 | 21147 | |
| * | 21148 | 121.4.1200.0730.C0020.0160.0000.0000.00.S12B1A01.01 | 121412073 | 12 | 12 | - | 73 | 16 | - | Ch 0.20 | 21149 | |
| * | 21150 | 121.4.1600.0820.C0040.0230.0000.0000.00.S16B1A01.01 | 121416082 | 16 | 16 | - | 82 | 23 | - | Ch 0.40 | 21151 | |
| * | 21152 | 121.4.2000.0920.C0050.0260.0000.0000.00.S20B1A01.01 | 121420092 | 20 | 20 | - | 92 | 26 | - | Ch 0.50 | 21153 |
| ᴓ | ap=1.5Ø | ap=1Ø | ap=0.50Ø | ae=0.35Ø | ae=0.30Ø | ae=0.20Ø | ae=0.15Ø | ae=0.10Ø |
|---|---|---|---|---|---|---|---|---|
| 3 | 0.004 | 0.006 | 0.008 | 0.010 | 0.012 | 0.020 | 0.030 | 0.0420 |
| 4 | 0.007 | 0.009 | 0.013 | 0.016 | 0.020 | 0.030 | 0.038 | 0.0490 |
| 5 | 0.010 | 0.013 | 0.017 | 0.020 | 0.025 | 0.036 | 0.046 | 0.0580 |
| 6 | 0.014 | 0.018 | 0.022 | 0.026 | 0.030 | 0.044 | 0.050 | 0.0620 |
| 8 | 0.020 | 0.025 | 0.029 | 0.034 | 0.040 | 0.056 | 0.064 | 0.0730 |
| 10 | 0.026 | 0.030 | 0.038 | 0.042 | 0.050 | 0.067 | 0.076 | 0.0880 |
| 12 | 0.035 | 0.042 | 0.053 | 0.060 | 0.070 | 0.092 | 0.102 | 0.1150 |
| 16 | 0.042 | 0.060 | 0.082 | 0.100 | 0.110 | 0.130 | 0.0138 | 0.1500 |
| Material | Slotting ap=1.5 - 1Ø Vc (m/min) | Slotting ap= 1.0 - 0.5Ø Vc (m/min) | Slotting ap=1.5Ø / ae=0.35 - 0.20Ø Vc (m/min) | Finish Milling ap=1.5Ø / ae=0.20 - 0.10Ø Vc (m/min) |
|---|---|---|---|---|
|
|
|
|
|
|
| Unalloyed steel | 130-170 | 170-200 | 200-230 | 230-280 |
| Steel | 120-160 | 160-190 | 190-220 | 220-260 |
| Tempered steel | 80-110 | 100-130 | 130-160 | 160-200 |
| Cold work tool steel | 80-100 | 90-120 | 110-140 | 130-150 |
| Hot work tool steel | 70-100 | 80-110 | 100-130 | 120-140 |
| Gray cast | 90-130 | 130-180 | 180-220 | 220-260 |
| Alloyed cast | 90-130 | 130-180 | 180-220 | 220-260 |
| Precision cast | 80-120 | 120-160 | 160-195 | 180-200 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
Recommended Acceptable Not Recommended
