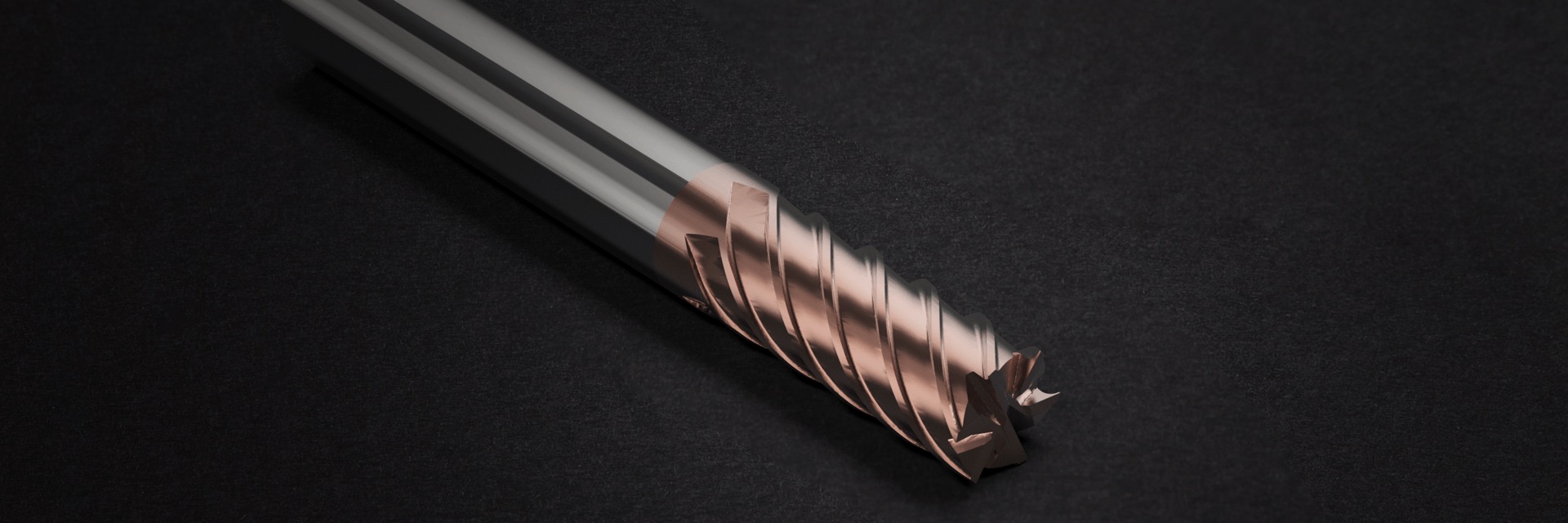

Finish
Rough
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|

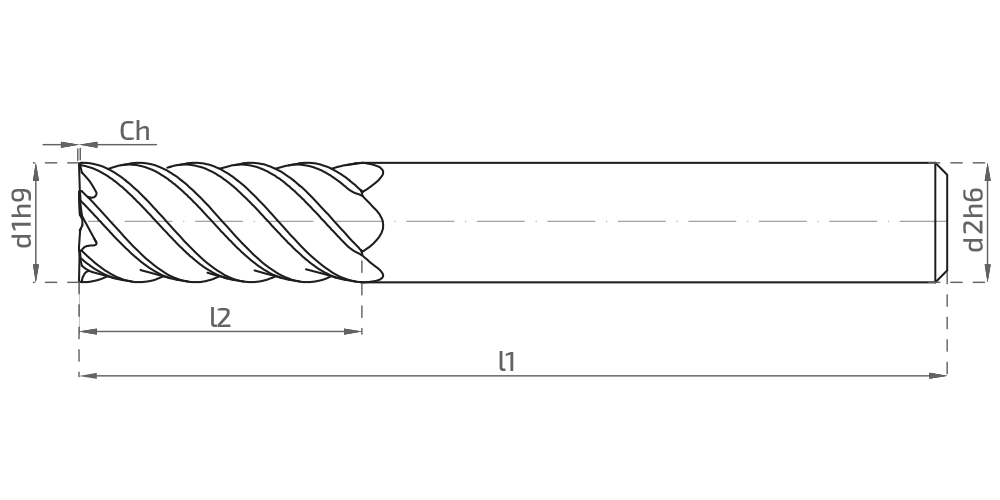

Recommended Acceptable Not Recommended| Stock | Code | d1h9 | d2h6 | l1 | l2 | Z |
|---|---|---|---|---|---|---|
| * | 112606058 PLUS | 6 | 6 | 58 | 13 | 6 |
| * | 112608064 PLUS | 8 | 8 | 64 | 19 | 6 |
| * | 112610073 PLUS | 10 | 10 | 73 | 22 | 6 |
| * | 112612082 PLUS | 12 | 12 | 82 | 26 | 6 |
| 112614082 PLUS | 14 | 14 | 82 | 26 | 6 | |
| * | 112616093 PLUS | 16 | 16 | 93 | 32 | 6 |
| 112820105 PLUS | 20 | 20 | 105 | 38 | 8 |
| Stock | Code | d1h9 | d2h6 | l1 | l2 | Z |
|---|---|---|---|---|---|---|
| * | 112606070 PLUS | 6 | 6 | 70 | 26 | 6 |
| * | 112608090 PLUS | 8 | 8 | 90 | 36 | 6 |
| * | 112610100 PLUS | 10 | 10 | 100 | 46 | 6 |
| * | 112612110 PLUS | 12 | 12 | 110 | 56 | 6 |
| * | 112616130 PLUS | 16 | 16 | 130 | 66 | 6 |
| 112820140 PLUS | 20 | 20 | 140 | 76 | 8 |
| Ø | ae=0.04Ø |
|---|---|
| 6 | 0.032 |
| 8 | 0.044 |
| 10 | 0.052 |
| 12 | 0.058 |
| 14 | 0.067 |
| 16 | 0.075 |
| 18 | 0.078 |
| 20 | 0.082 |
| 25 | 0.093 |
| Material | Shoulder Milling |
|---|---|
|
|
|
| ap=1.5Ø / ae=0.04Ø | |
| Vc (m/min) | |
| Unalloyed Steel | 110-130 |
| Low Alloy Steel | 110-130 |
| High Alloyes Steel | 85-100 |
| Steel | 60-80 |
| ≤ 54 HRC | 20-50 |
| ≥ 54 HRC | 20-50 |
| Steel |
|
|
| Stainless Steel |
|
|
| Hardened Steel ≤ 54 HRc |
|
|
| Hardened Steel > 54 HRc |
|
|
| Cast |
|
|
| Graphite |
|
|
| Non Ferrous Material |
|
|
| HRSA |
|
|
| Titanium |
|
