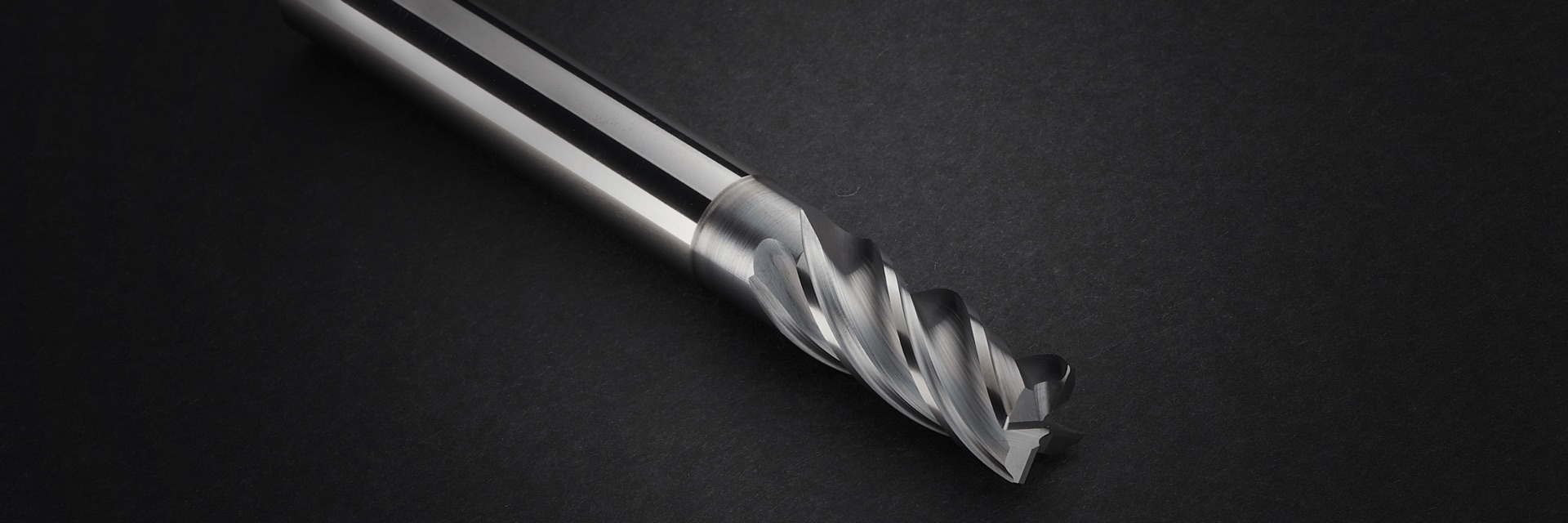

111 Ultra-Bite Series

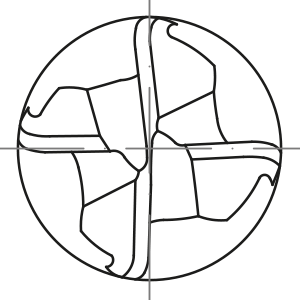

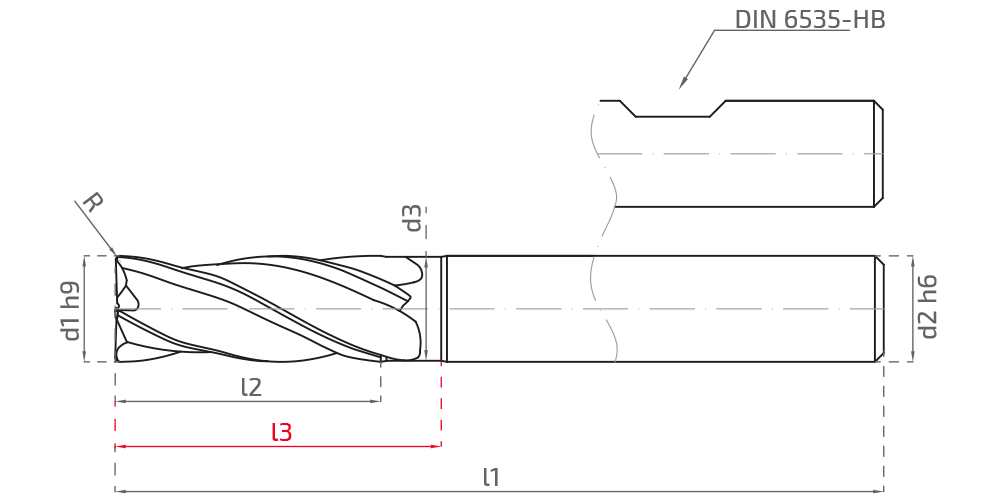

Stock	Order No.	Code	Old Code	d1h9	d2h6	d3	l1	l2	l3	Corner	Weldon Order No.	Related Document
*	16100	111.4.0300.0580.R0020.0090.0290.0120.00.S06C1C01.01	111403002	3	6	2.90	58	9	12	R 0.20	16101	STP DXF
*	16102	111.4.0400.0580.R0020.0120.0390.0150.00.S06C1C01.01	111404002	4	6	3.90	58	12	15	R 0.20	16103	STP DXF
	16104	111.4.0400.0580.R0050.0120.0390.0150.00.S06C1C01.01	111404005	4	6	3.90	58	12	15	R 0.50	16105	STP DXF
*	16106	111.4.0500.0580.R0020.0150.0490.0180.00.S06C1C01.01	111405002	5	6	4.90	58	15	18	R 0.20	16107	STP DXF
*	16108	111.4.0600.0580.R0020.0160.0590.0210.00.S06C1C01.01	111406002	6	6	5.90	58	16	21	R 0.20	16109	STP DXF
*	16110	111.4.0600.0580.R0050.0160.0590.0210.00.S06C1C01.01	111406005	6	6	5.90	58	16	21	R 0.50	16111	STP DXF
	16112	111.4.0600.0580.R0100.0170.0570.0270.00.S06C1C01.01	111406010	6	6	5.70	58	17	27	R 1.00	16113	STP DXF
*	16114	111.4.0800.0640.R0020.0200.0780.0250.00.S08C1C01.01	111408002	8	8	7.80	64	20	25	R 0.20	16115	STP DXF
	16116	111.4.0800.0640.R0030.0200.0780.0250.00.S08C1C01.01	111408003	8	8	7.80	64	20	25	R 0.30	16117	STP DXF
*	16118	111.4.0800.0640.R0050.0200.0780.0250.00.S08C1C01.01	111408005	8	8	7.80	64	20	25	R 0.50	16119	STP DXF
	16120	111.4.0800.0640.R0100.0200.0780.0250.00.S08C1C01.01	111408010	8	8	7.80	64	20	25	R 1.00	16121	STP DXF
	16122	111.4.0800.0640.R0200.0200.0780.0250.00.S08C1C01.01	111408020	8	8	7.80	64	20	25	R 2.00	16123	STP DXF
	16124	111.4.0800.0640.R0300.0200.0780.0250.00.S08C1C01.01	111408030	8	8	7.80	64	20	25	R 3.00	16125	STP DXF
*	16126	111.4.1000.0730.R0020.0220.0980.0310.00.S10C1C01.01	111410002	10	10	9.80	73	22	31	R 0.20	16127	STP DXF
*	16128	111.4.1000.0730.R0050.0220.0980.0310.00.S10C1C01.01	111410005	10	10	9.80	73	22	31	R 0.50	16129	STP DXF
*	16130	111.4.1000.0730.R0080.0220.0980.0310.00.S10C1C01.01	111410008	10	10	9.80	73	22	31	R 0.80	16131	STP DXF
	16132	111.4.1000.0730.R0100.0220.0980.0310.00.S10C1C01.01	111410010	10	10	9.80	73	22	31	R 1.00	16133	STP DXF
	16134	111.4.1000.0730.R0200.0220.0980.0310.00.S10C1C01.01	111410020	10	10	9.80	73	22	31	R 2.00	16135	STP DXF
	16136	111.4.1000.0730.R0300.0220.0980.0310.00.S10C1C01.01	111410030	10	10	9.80	73	22	31	R 3.00	16137	STP DXF
*	16138	111.4.1200.0820.R0020.0280.1170.0390.00.S12C1C01.01	111412002	12	12	11.70	82	28	39	R 0.20	16139	STP DXF
*	16140	111.4.1200.0820.R0050.0280.1170.0390.00.S12C1C01.01	111412005	12	12	11.70	82	28	39	R 0.50	16141	STP DXF
*	16142	111.4.1200.0820.R0080.0280.1170.0390.00.S12C1C01.01	111412008	12	12	11.70	82	28	39	R 0.80	16143	STP DXF
*	16144	111.4.1200.0820.R0100.0280.1170.0390.00.S12C1C01.01	111412010	12	12	11.70	82	28	39	R 1.00	16145	STP DXF
*	16146	111.4.1200.0820.R0150.0280.1170.0390.00.S12C1C01.01	111412015	12	12	11.70	82	28	39	R 1.50	16147	STP DXF
	16148	111.4.1200.0820.R0300.0280.1170.0390.00.S12C1C01.01	111412030	12	12	11.70	82	28	39	R 3.00	16149	STP DXF
*	16150	111.4.1600.0930.R0020.0360.1570.0470.00.S16C1C01.01	111416002	16	16	15.70	93	36	47	R 0.20	16151	STP DXF
	16152	111.4.1600.0930.R0030.0360.1570.0470.00.S16C1C01.01	111416003	16	16	15.70	93	36	47	R 0.30	16153	STP DXF
*	16154	111.4.1600.0930.R0050.0360.1570.0470.00.S16C1C01.01	111416005	16	16	15.70	93	36	47	R 0.50	16155	STP DXF
	16156	111.4.1600.0930.R0200.0360.1570.0470.00.S16C1C01.01	111416020	16	16	15.70	93	36	47	R 2.00	16157	STP DXF
	16158	111.4.1600.0930.R0400.0320.1570.0460.00.S16C1C01.01	111416040	16	16	15.70	93	32	46	R 4.00	16159	STP DXF
*	16160	111.4.1600.0930.R0075.0360.1570.0470.00.S16C1C01.01	111416075	16	16	15.70	93	36	47	R 0.75	16161	STP DXF
	16162	111.4.1600.0930.R0100.0360.1570.0470.00.S16C1C01.01	111416010	16	16	15.70	93	36	47	R 1.00	16163	STP DXF
*	16164	111.4.1600.0930.R0150.0360.1570.0470.00.S16C1C01.01	111416015	16	16	15.70	93	36	47	R 1.50	16165	STP DXF
	16166	111.4.2000.1050.R0050.0380.1970.0570.00.S20C1C01.01	111420005	20	20	19.70	105	38	57	R 0.50	16167	STP DXF
	16168	111.4.2000.1050.R0100.0380.1970.0570.00.S20C1C01.01	111420010	20	20	19.70	105	38	57	R 1.00	16169	STP DXF

Feed Per Tooth (mm/tooth)

Ø	ap=1.5Ø	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø	ae=0.25Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
3	0,007	0,008	0,009	0,01	0,012	0,0125	0,013	0,014	0,016
4	0,009	0,01	0,01	0,02	0,025	0,026	0,028	0,029	0,03
5	0,01	0,011	0,02	0,03	0,035	0,036	0,038	0,04	0,045
6	0,02	0,028	0,03	0,045	0,05	0,057	0,059	0,061	0,065
8	0,03	0,04	0,045	0,05	0,06	0,068	0.07	0,073	0,078
10	0,04	0,045	0,05	0,06	0,07	0,075	0,078	0,08	0,082
12	0,05	0,06	0,065	0,07	0,08	0,09	0,1	0,11	0,13
16	0,08	0,095	0,1	0,12	0,13	0,14	0,145	0,15	0,16
20	0,09	0,12	0,15	0,17	0,175	0,18	0,185	0,19	0,22

Cutting Parameters

Material	Slotting	Slotting	Shoulder Milling	Finish Milling

	ap=1.5 - 1Ø	ap= 1.0 - 0.5Ø	ap=1.5Ø / ae=0.35 - 0.20Ø	ap=1.5Ø / ae=0.20 - 0.10Ø
	Vc (m/min)	Vc (m/min)	Vc (m/min)	Vc (m/min)
Unalloyed steel	100-130	120 -160	150-180	170-220
Steel	100-130	1 20 -150	150-180	170-220
Tempered steel	90-120	110 -150	130-170	150-200
Cold work tool steel	80 -110	100-140	120 -150	140-180
Hot work tool steel	80-110	100-140	120 -150	140-180
AISI 304 - 416 - 420		50-70	70-90	80-100
AISI 316 - 440		45-70	55-80	60-90
17-4 PH 15-5 PH		45-70	55-80	60-90
Cobalt-Chrome alloys		30-50	35-55	40-70
Duplex F51		60-80	65-85	70-90
Super duplex F55		60-80	65-85	70-90
HRSA hastelloy	35-60	30-50	40-60	50-70
HRSA incoinel 625	35-60	30-50	40-60	50-70
HRSA incoinel 718	35-60	30-50	40-60	50-70
HRSA nimonic	35-60	30-50	40-60	50-70
Titanium	50-70	60-80	70-90	80-90
Titanium alloys	50-70	60-80	70-90	80-90
>54 HRC		50-70	55-75	60-85

	Steel
	Stainless Steel
	Hardened Steel ≤ 54 HRc
	Hardened Steel > 54 HRc
	Cast
	Graphite
	Non Ferrous Material
	HRSA
	Titanium

Recommended
Acceptable
Not Recommended

Ultra Bite

111 Series Endmill

111 Ultra-Bite Series

Feed Per Tooth (mm/tooth)

Cutting Parameters
