105 EVO Mold Series | Karcan Cutting Tools | Carbide Endmills | CNC Machining Tools

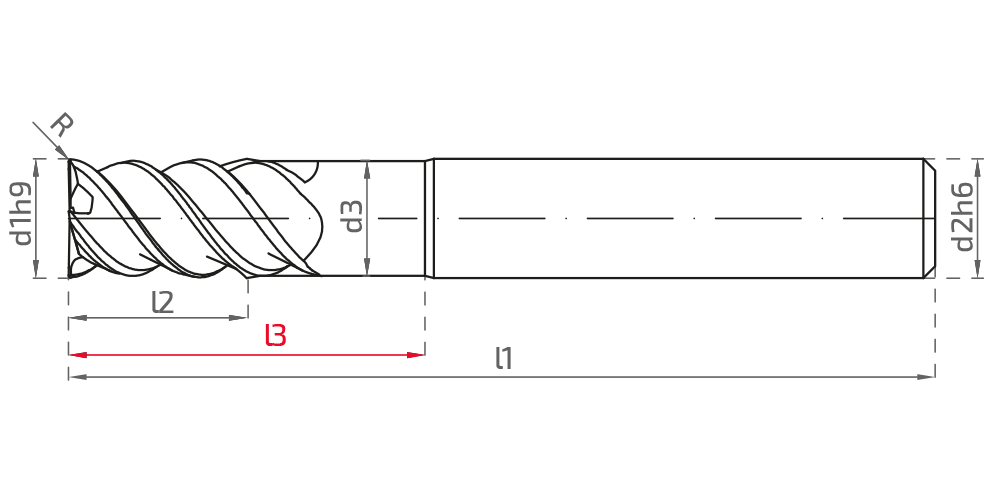

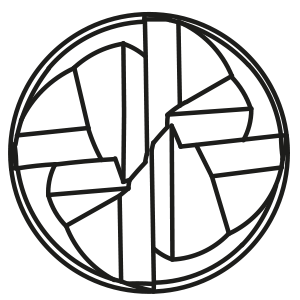

Stock	Order No	Legacy Code	d1h9	d2h6	d3	l1	l2	l3	Corner	Z
*	36118	11F20_105E0040300A01	3	3	2.80	50	6	10	R 0,50	4
*	36206	11F20_105E0040300A02	3	3	2.80	60	8	12	R 1,00	4
*	36102	11F20_105E0040400A01	4	4	3.80	60	11	15	R 0,50	4
*	36200	11F20_105E0040400A02	4	4	3.80	60	11	15	R 1,00	4
	36138	11F20_105E0040400A03	4	6	3.80	66	20	26	R 0,20	4
*	36202	11F20_105E0040500A01	5	5	4.80	57	11	15	R 0,50	4
*	36204	11F20_105E0040500A02	5	5	4.80	57	11	15	R 1,00	4
*	36122	11F20_105E0040600A01	6	6	5.50	50	12	16	R 0,50	4
*	36104	11F20_105E0040600A02	6	6	5.50	57	12	24	R 1,00	4
	36140	11F20_105E0040800A03	8	8	-	64	20	-	R 0,20	4
*	36124	11F20_105E0040800A01	8	8	7.50	64	16	24	R 0,50	4
*	36106	11F20_105E0040800A02	8	8	7.50	64	12	24	R 1,00	4
	36142	11F20_105E0041000A03	10	10	-	72	25	-	R 0,20	4
*	36126	11F20_105E0041000A01	10	10	9.60	72	20	32	R 0,50	4
*	36108	11F20_105E0041000A02	10	10	9.60	72	15	30	R 1,00	4
	36144	11F20_105E0041000A04	10	10	9.50	80	20	45	R 1,00	4
*	36128	11F20_105E0041200A01	12	12	11.70	75	24	32	R 0,50	4
*	36110	11F20_105E0041200A02	12	12	11.70	82	25	37	R 1,00	4
	36130	11F20_105E0041400A01	14	14	13.70	82	30	41.40	R 0,50	4
	36112	11F20_105E0041400A02	14	14	13.70	82	30	41	R 1,00	4
*	36132	11F20_105E0041600A01	16	16	15.55	93	32	50	R 0,50	4
*	36114	11F20_105E0041600A02	16	16	15.55	93	32	50	R 1,00	4
	36134	11F20_105E0041800A01	18	18	17.55	93	32	50	R 0,50	4
	36208	11F20_105E0041800A02	18	18	17.60	93	32	50	R 1,00	4
	36136	11F20_105E0042000A01	20	20	19.60	105	42	59	R 0,50	4
	36116	11F20_105E0042000A02	20	20	19.60	105	42	59	R 1,00	4

Ø	ap=1.5Ø	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø
3	0.007	0.032	0.037	0.039	0.041
4	0.012	0.039	0.043	0.045	0.047
5	0.018	0.042	0.044	0.046	0.048
6	0.023	0.049	0.053	0.055	0.057
8	0.028	0.056	0.06	0.063	0.066
10	0.036	0.064	0.068	0.071	0.074
12	0.045	0.069	0.074	0.077	0.08
14	0.054	0.074	0.079	0.083	0.086
16	0.065	0.079	0.084	0.089	0.093
18	0.076	0.082	0.088	0.093	0.097
20	0.087	0.087	0.095	0.1	0.105
25	0.115	0.092	0.105	0.11	0.119

Material	Slotting	Shoulder Milling	Finish Milling

	ap=0.5Ø Vc (m/dk)	ap=1.5Ø / ae=0.30 - 0.20Ø Vc (m/dk)	ap=1.5Ø / ae=0.20 - 0.10Ø Vc (m/dk)
Unalloyed steel	95-125	150-180	180-210
Steel	90-120	140-170	170-200
Reclamation steel	80-110	130-160	160-190
Cold work tool steel	70-90	120-150	150-180
Hot work tool steel	60-80	120-150	150-180
AISI 304 - 416 - 420	70-90	80-110	110-150
AISI 316 - 440	65-85	70-100	100-130
17-4 PH 15-5 PH	60-80	70-100	100-130
Chrome-Cobalt alloy	50-70	60-90	90-120
Gray cast	100-130	250-280	280-330
Alloyed cast	70-100	150-190	190-240
Precision cast	60-90	130-160	160-210
>54 HRC	40-60	50-70	70-90

Eco Plus
