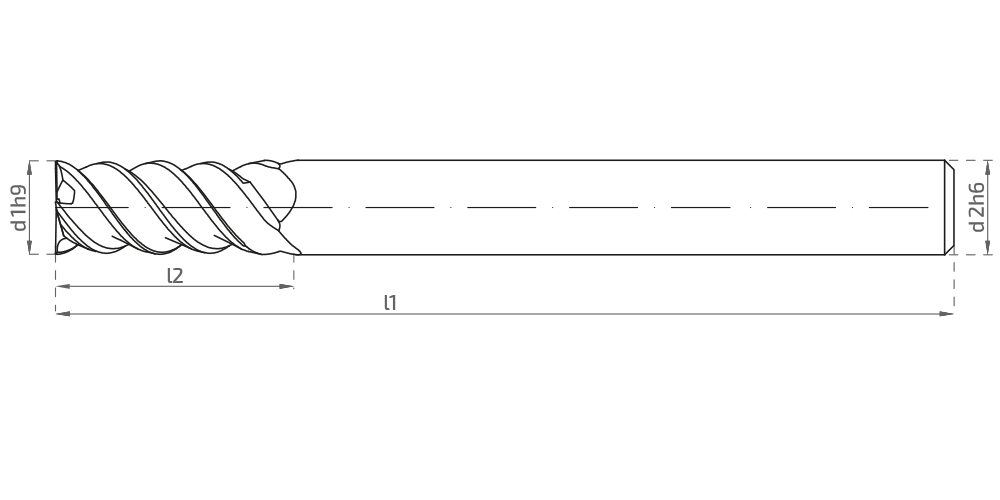

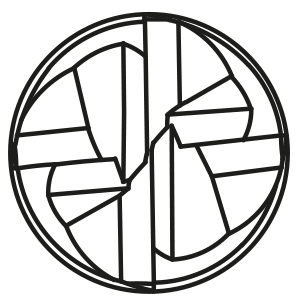

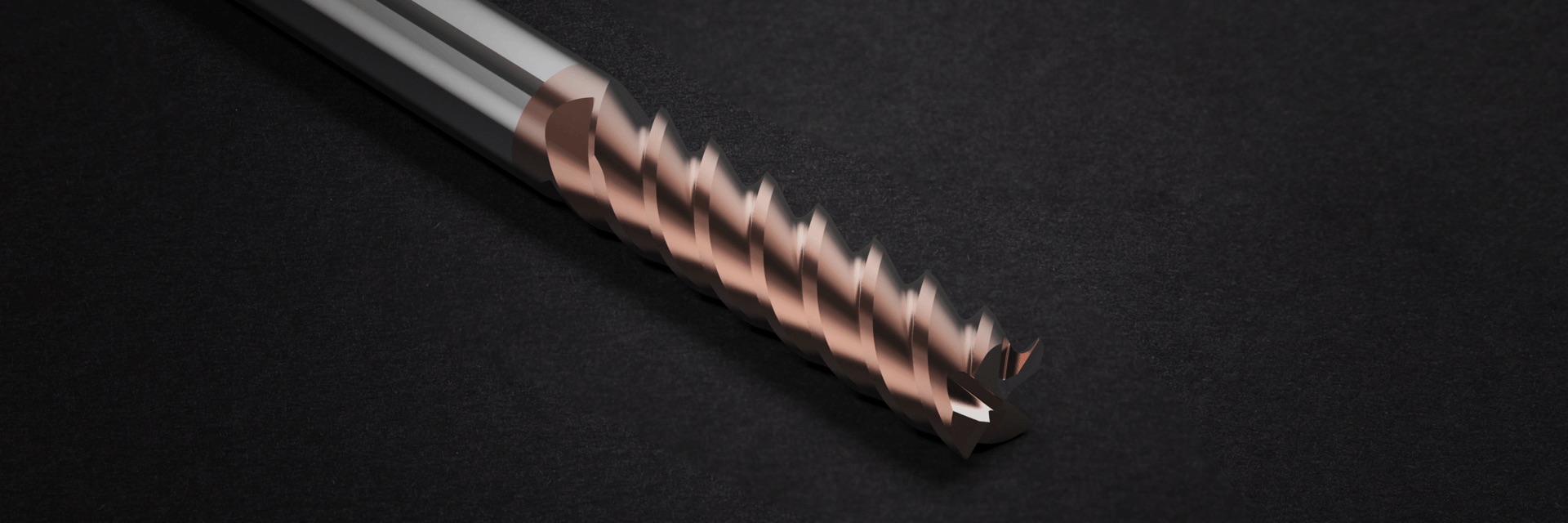

Stock	Order No	Legacy Code	d1h9	d2h6	l1	l2	Corner	Z
*	35100	11F01_104E0040300A01	3	3	75	15	Ch 0,20	4
*	35102	11F01_104E0040400A01	4	4	75	20	Ch 0,20	4
*	35104	11F01_104E0040500A01	5	5	75	20	Ch 0,20	4
*	35106	11F01_104E0040600A01	6	6	100	30	Ch 0,20	4
*	35108	11F01_104E0040800A01	8	8	100	35	Ch 0,20	4
*	35110	11F01_104E0041000A01	10	10	110	40	Ch 0,20	4
*	35112	11F01_104E0041200A01	12	12	110	45	Ch 0,20	4
*	35114	11F01_104E0041600A01	16	16	100	45	Ch 0,20	4
*	35116	11F01_104E0042000A01	20	20	150	75	Ch 0,20	4

Ø	ap=0.050Ø	ae=0.10Ø	ae=0.30Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
3	0.005	0.006	0.031	0.036	0.038	0.040
4	0.008	0.011	0.038	0.042	0.044	0.046
5	0.013	0.017	0.041	0.043	0.045	0.047
6	0.016	0.022	0.048	0.052	0.054	0.056
8	0.021	0.027	0.054	0.058	0.061	0.064
10	0.029	0.035	0.062	0.066	0.069	0.072
12	0.038	0.043	0.067	0.072	0.075	0.079
14	0.047	0.052	0.072	0.077	0.080	0.083
16	0.056	0.063	0.076	0.081	0.086	0.090
18	0.068	0.073	0.079	0.085	0.089	0.095
20	0.078	0.084	0.084	0.092	0.097	0.098
25	0.105	0.110	0.088	0.100	0.110	0.110

Material	Slotting	Shoulder Milling	Finish Milling

	ap=0.5 - 0.1Ø	ap=1.5Ø / ae=0.30 - 0.20Ø	ap=1.5Ø / ae=0.20 - 0.10Ø
	Vc (m/dk)	Vc (m/dk)	Vc (m/dk)
Unalloyed steel	95-125	180-210	210-230
Steel	90-120	180-210	210-230
Tempered steel	80-110	160-190	190-120
Cold work tool steel	70-90	150-180	170-200
Hot work tool steel	60-80	140-170	160-190
Gray cast	100-130	250-280	280-330
Alloyed cast	70-100	150-190	190-240
Precision cast	60-90	130-160	160-210
<54 HRC	50-70	70-90	75-90
>54 HRC	40-60	50-70	70-90
