Steel | ||
Stainless Steel | ||
Hardened Steel ≤ 54 HRc | ||
Hardened Steel > 54 HRc | ||
Cast | ||
Graphite | ||
Non Ferrous Material | ||
HRSA | ||
Titanium |

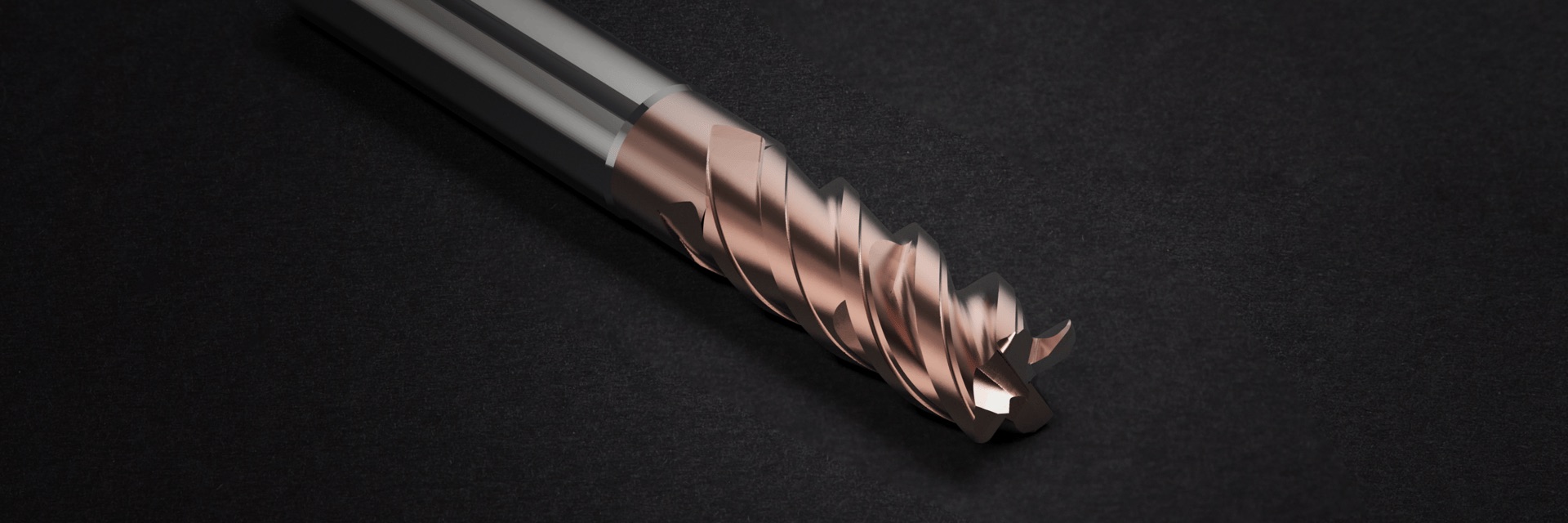

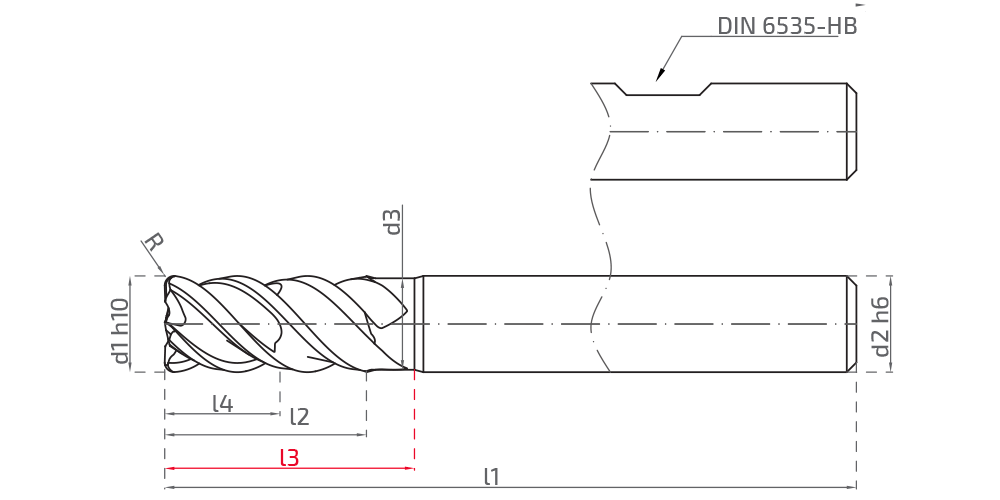

Stock | Order No. | Code | Old Code | d1h9 | d2h6 | d3 | l1 | l2 | l3 | l4 | Corner | Weldon Order No. |
---|---|---|---|---|---|---|---|---|---|---|---|---|
* | 14100 | 101.4.0300.0570.R0020.0110.0280.0140.05.S06K1C03.01 | 101403002 | 3 | 6 | 2.8 | 57 | 11 | 14 | 5 | R 0.20 | 14101 |
* | 14102 | 101.4.0400.0570.R0020.0120.0380.0160.06.S06K1C03.01 | 101404002 | 4 | 6 | 3.8 | 57 | 12 | 16 | 6 | R 0.20 | 14103 |
* | 14104 | 101.4.0500.0570.R0020.0130.0480.0170.06.S06K1C03.01 | 101405002 | 5 | 6 | 4.8 | 57 | 13 | 17 | 6 | R 0.20 | 14105 |
* | 14106 | 101.4.0500.0570.R0050.0130.0480.0170.06.S06K1C03.01 | 101405005 | 5 | 6 | 4.8 | 57 | 13 | 17 | 6 | R 0.50 | 14107 |
* | 14108 | 101.4.0600.0570.R0020.0150.0570.0190.08.S06K1C03.01 | 101406002 | 6 | 6 | 5.7 | 57 | 15 | 19 | 8 | R 0.20 | 14109 |
* | 14110 | 101.4.0600.0570.R0050.0150.0570.0190.08.S06K1C03.01 | 101406005 | 6 | 6 | 5.7 | 57 | 15 | 19 | 8 | R 0.50 | 14111 |
14112 | 101.4.0700.0630.R0020.0210.0650.0270.10.S08K1C03.01 | 101407002 | 7 | 8 | 6.5 | 63 | 21 | 27 | 10 | R 0.20 | 14113 | |
* | 14114 | 101.4.0800.0630.R0020.0210.0770.0270.10.S08K1C03.01 | 101408002 | 8 | 8 | 7.7 | 63 | 21 | 27 | 10 | R 0.20 | 14115 |
* | 14116 | 101.4.0800.0630.R0050.0210.0770.0270.10.S08K1C03.01 | 101408005 | 8 | 8 | 7.7 | 63 | 21 | 27 | 10 | R 0.50 | 14117 |
14118 | 101.4.0800.0630.R0100.0210.0770.0270.10.S08K1C03.01 | 101408010 | 8 | 8 | 7.7 | 63 | 21 | 27 | 10 | R 1.00 | 14119 | |
14120 | 101.4.0800.0630.R0200.0210.0770.0270.10.S08K1C03.01 | 101408020 | 8 | 8 | 7.7 | 63 | 21 | 27 | 10 | R 2.00 | 14121 | |
* | 14122 | 101.4.1000.0720.R0020.0210.0950.0260.12.S10K1C03.01 | 101410002 | 10 | 10 | 9.5 | 72 | 21 | 26 | 12 | R 0.20 | 14123 |
* | 14124 | 101.4.1000.0720.R0050.0210.0950.0260.12.S10K1C03.01 | 101410005 | 10 | 10 | 9.5 | 72 | 21 | 26 | 12 | R 0.50 | 14125 |
14126 | 101.4.1000.0720.R0080.0210.0950.0260.12.S10K1C03.01 | 101410008 | 10 | 10 | 9.5 | 72 | 21 | 26 | 12 | R 0.80 | 14127 | |
14128 | 101.4.1000.0720.R0100.0210.0950.0260.12.S10K1C03.01 | 101410010 | 10 | 10 | 9.5 | 72 | 21 | 26 | 12 | R 1.00 | 14129 | |
14130 | 101.4.1000.0720.R0150.0210.0950.0260.12.S10K1C03.01 | 101410015 | 10 | 10 | 9.5 | 72 | 21 | 26 | 12 | R 1.50 | 14131 | |
14132 | 101.4.1000.0720.R0200.0210.0950.0260.12.S10K1C03.01 | 101410020 | 10 | 10 | 9.5 | 72 | 21 | 26 | 12 | R 2.00 | 14133 | |
14134 | 101.4.1000.0720.R0300.0210.0950.0260.12.S10K1C03.01 | 101410030 | 10 | 10 | 9.5 | 72 | 21 | 26 | 12 | R 3.00 | 14135 | |
* | 14136 | 101.4.1200.0830.R0030.0290.1150.0380.16.S12K1C03.01 | 101412003 | 12 | 12 | 11.5 | 83 | 29 | 38 | 16 | R 0.30 | 14137 |
* | 14138 | 101.4.1200.0830.R0050.0290.1150.0380.16.S12K1C03.01 | 101412005 | 12 | 12 | 11.5 | 83 | 29 | 38 | 16 | R 0.50 | 14139 |
14140 | 101.4.1200.0830.R0100.0290.1150.0380.16.S12K1C03.01 | 101412010 | 12 | 12 | 11.5 | 83 | 29 | 38 | 16 | R 1.00 | 14141 | |
14142 | 101.4.1200.0830.R0150.0290.1150.0380.16.S12K1C03.01 | 101412015 | 12 | 12 | 11.5 | 83 | 29 | 38 | 16 | R 1.50 | 14143 | |
14144 | 101.4.1200.0830.R0200.0290.1150.0380.16.S12K1C03.01 | 101412020 | 12 | 12 | 11.5 | 83 | 29 | 38 | 16 | R 2.00 | 14145 | |
14146 | 101.4.1200.0830.R0300.0290.1150.0380.16.S12K1C03.01 | 101412030 | 12 | 12 | 11.5 | 83 | 29 | 38 | 16 | R 3.00 | 14147 | |
14148 | 101.4.1400.0820.K0000.0260.1350.0350.13.S14K1C03.01 | 101414000 | 14 | 14 | 13.5 | 82 | 26 | 35 | 13 | Ch 0.00 | 14149 | |
* | 14150 | 101.4.1400.0820.R0030.0260.1350.0350.13.S14K1C03.01 | 101414003 | 14 | 14 | 13.5 | 82 | 26 | 35 | 13 | R 0.30 | 14151 |
* | 14152 | 101.4.1600.0920.R0030.0360.1550.0430.21.S16K1C03.01 | 101416003 | 16 | 16 | 15.5 | 92 | 36 | 43 | 21 | R 0.30 | 14153 |
* | 14154 | 101.4.1600.0920.R0050.0360.1550.0430.21.S16K1C03.01 | 101416005 | 16 | 16 | 15.5 | 92 | 36 | 43 | 21 | R 0.50 | 14155 |
14156 | 101.4.1600.0920.R0100.0360.1550.0430.21.S16K1C03.01 | 101416010 | 16 | 16 | 15.5 | 92 | 36 | 43 | 21 | R 1.00 | 14157 | |
14158 | 101.4.1600.0920.R0150.0360.1550.0430.21.S16K1C03.01 | 101416015 | 16 | 16 | 15.5 | 92 | 36 | 43 | 21 | R 1.50 | 14159 | |
14160 | 101.4.2000.1040.R0030.0380.1950.0530.19.S20K1C03.01 | 101420003 | 20 | 20 | 19.5 | 104 | 38 | 53 | 19 | R 0.30 | 14161 |
STOK | KOD | d1h10 | l4 | l2 | l3 | d3 | l1 | d2h6 | Ch | Z |
---|---|---|---|---|---|---|---|---|---|---|
101406110W | 6 | 15 | 27 | 75 | 5.8 | 110 | 6 | 0.2 | 4 | |
101406150W | 6 | 15 | 27 | 115 | 5.8 | 150 | 6 | 0.2 | 4 | |
101408082W | 8 | 11 | 21 | 37 | 7.8 | 64 | 8 | 0.2 | 4 | |
101408110W | 8 | 20 | 40 | 70 | 7.8 | 110 | 8 | 0.2 | 4 | |
101408150W | 8 | 20 | 40 | 110 | 7.8 | 150 | 8 | 0.2 | 4 | |
101408200W | 8 | 20 | 40 | 160 | 7.8 | 200 | 8 | 0.2 | 4 | |
101410110W | 10 | 20 | 40 | 70 | 9.7 | 110 | 10 | 0.2 | 4 | |
101410150W | 10 | 22 | 45 | 110 | 9.7 | 150 | 10 | 0.2 | 4 | |
101410200W | 10 | 22 | 45 | 160 | 9.7 | 200 | 10 | 0.2 | 4 | |
101412110W | 12 | 20 | 40 | 70 | 11.7 | 110 | 12 | 0.3 | 4 | |
101412150W | 12 | 22 | 45 | 110 | 11.7 | 150 | 12 | 0.3 | 4 | |
101412200W | 12 | 22 | 45 | 160 | 11.7 | 200 | 12 | 0.3 | 4 | |
101412250W | 12 | 22 | 45 | 210 | 11.7 | 250 | 12 | 0.3 | 4 |
Ø | ap=1Ø | ap=1.50Ø | ae=0.35Ø | ae=0.30Ø | ae=0.25Ø | ae=0.20Ø | ae=0.15Ø | ae=0.10Ø |
---|---|---|---|---|---|---|---|---|
3 | 0.003 | 0.004 | 0.01 | 0.012 | 0.013 | 0.015 | 0.016 | 0.017 |
4 | 0.005 | 0.005 | 0.012 | 0.015 | 0.019 | 0.02 | 0.022 | 0.026 |
5 | 0.006 | 0.007 | 0.015 | 0.018 | 0.022 | 0.027 | 0.03 | 0.035 |
6 | 0.007 | 0.009 | 0.017 | 0.02 | 0.023 | 0.028 | 0.031 | 0.036 |
8 | 0.011 | 0.014 | 0.019 | 0.022 | 0.025 | 0.029 | 0.032 | 0.037 |
10 | 0.014 | 0.189 | 0.3 | 0.032 | 0.036 | 0.039 | 0.041 | 0.046 |
12 | 0.02 | 0.025 | 0.034 | 0.038 | 0.041 | 0.045 | 0.047 | 0.051 |
14 | 0.025 | 0.031 | 0.04 | 0.045 | 0.05 | 0.056 | 0.061 | 0.066 |
16 | 0.031 | 0.038 | 0.05 | 0.056 | 0.062 | 0.068 | 0.073 | 0.078 |
20 | 0.046 | 0.054 | 0.07 | 0.076 | 0.084 | 0.09 | 0.096 | 0.011 |
Material | Slotting | Shoulder Milling | Finish Milling |
---|---|---|---|
|
|
|
|
ap=1.0Ø | ap=1.5Ø / ae=0.35 - 0.20Ø | ap=1.5Ø / ae=0.20 - 0.10Ø | |
Vc (m/min) | Vc (m/min) | Vc (m/min) | |
Unalloyed steel | 100-130 | 130-160 | 150-180 |
Steel | 100-130 | 130-160 | 150-180 |
Tempered steel | 80-110 | 110-140 | 130-160 |
Cold work tool steel | 70-100 | 90-120 | 110-135 |
Hot work tool steel | 65-95 | 80-110 | 100-125 |
AISI 304 - 416 - 420 | 20-50 | 30-60 | 50-90 |
AISI 316 - 440 | 20-50 | 30-60 | 50-90 |
17-4 PH 15-5 PH | 20-40 | 30-50 | 40-70 |
Chrome-Cobalt alloy | 20-40 | 30-50 | 40 -70 |
Duplex F51 | 25 -45 | 35-50 | |
Super duplex F55 | 25-45 | 35-50 | |
Gray cast | 70-100 | 100-130 | 120-150 |
Alloyed cast | 70-100 | 90-120 | 110-145 |
Precision cast | 50-80 | 70-100 | 90-115 |
> 54 HRC | 25-35 | 35-40 | 35-45 |
HRSA hastelloy | 30-50 | 40-60 | 50-70 |
HRSA incoinel 625 | 30-50 | 40-60 | 50-70 |
HRSA incoinel 718 | 30-50 | 40-60 | 50-70 |
HRSA nimonic | 30-50 | 40-60 | 50-70 |
Titanium | 60-80 | 70-90 | 80-90 |
Titanium alloys | 60-80 | 70-90 | 80-90 |
Steel | ||
Stainless Steel | ||
Hardened Steel ≤ 54 HRc | ||
Hardened Steel > 54 HRc | ||
Cast | ||
Graphite | ||
Non Ferrous Material | ||
HRSA | ||
Titanium |
